OKM Gepard GPR 3D Metal Detector with Ground Penetrating Radar

OKM Gepard GPR 3D Metal Detector with Ground Penetrating Radar

$24,990.00

OKM Gepard GPR 3D Metal Detector with Ground Penetrating Radarr

The Gepard GPR is a very flexible and powerful Ground Penetrating Radar for the detection of underground objects like pipelines, cavities, cables, conduits, tunnels, bunkers and foundations.

The Gepard ground penetrating radar uses an omnidirectional unshielded transmission system to reach maximum depths up to 40 meters (131 ft). The agile and compact unit can easily be operated by a single user via Android Tablet PC.

The RADAR (Radio Detection and Ranging) of the Gepard GPR 3D sends a signal into the ground and awaits the reflection or echo of the signal to detect sub-surface anomalies.


Detectable Objects and Structures

  • Underground walls, basements, and concrete reinforcements
  • Hidden cavities, graves, and sepulchers
  • Water level, underground rivers, and aquifers
  • Buried pipelines, conduits, and cable harnesses
  • Backfilled wells, galleries, trenches, and dugouts
  • Septic tanks, distribution boxes, and drainage pipes
  • Secret tunnels, bunkers, and shelters
  • Buried treasure chests, statues, and caches

    Optimization of Ground Surveys

    • The Gepard ground penetrating radar is using a multiple transmission frequency range starting at 60 MHz up to 300 MHz which is realized by adjustable telescopic antennas. It furthermore supports many automatic adjustments to optimize your ground surveys on specific soil types, which makes the handling of the Gepard ground radar very easy. You just set your depth resolution and start surveying.

    Measurement Data Analysis with Android App

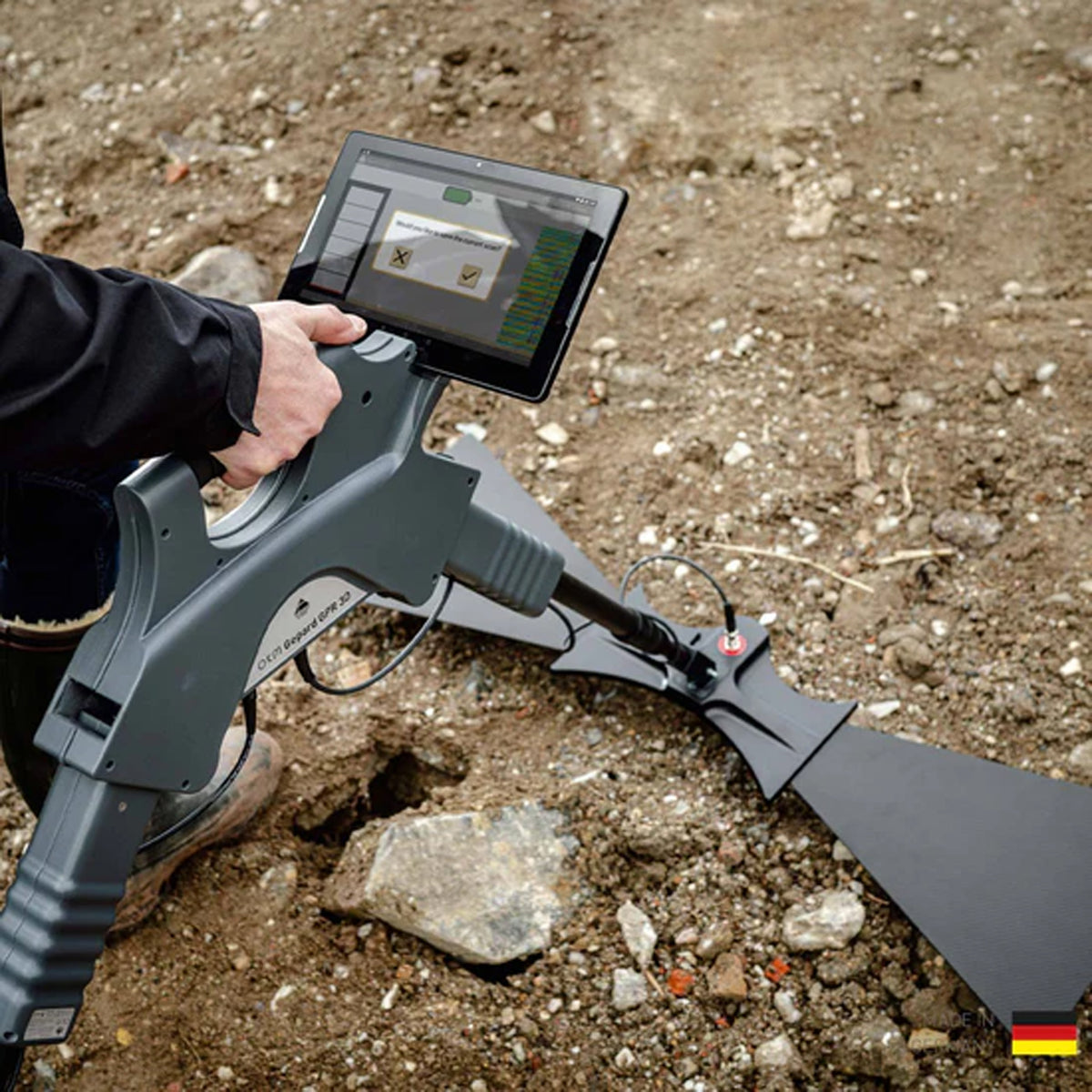

    • The measured data of the ground penetrating radar is immediately transferred to the Android Tablet PC. The Android software receives the data via WiFi and displays it directly on screen.
    • The software offers the option of integrating a GPS signal or Google Maps, filtering automatically and entering notes for later recollection of specific scan details. Additionally, the automatic filtering option improves the results of your scan and assists in finding hidden objects and structures more easily. Due to the integrated GPS all scan positions can be stored along with the scan data.

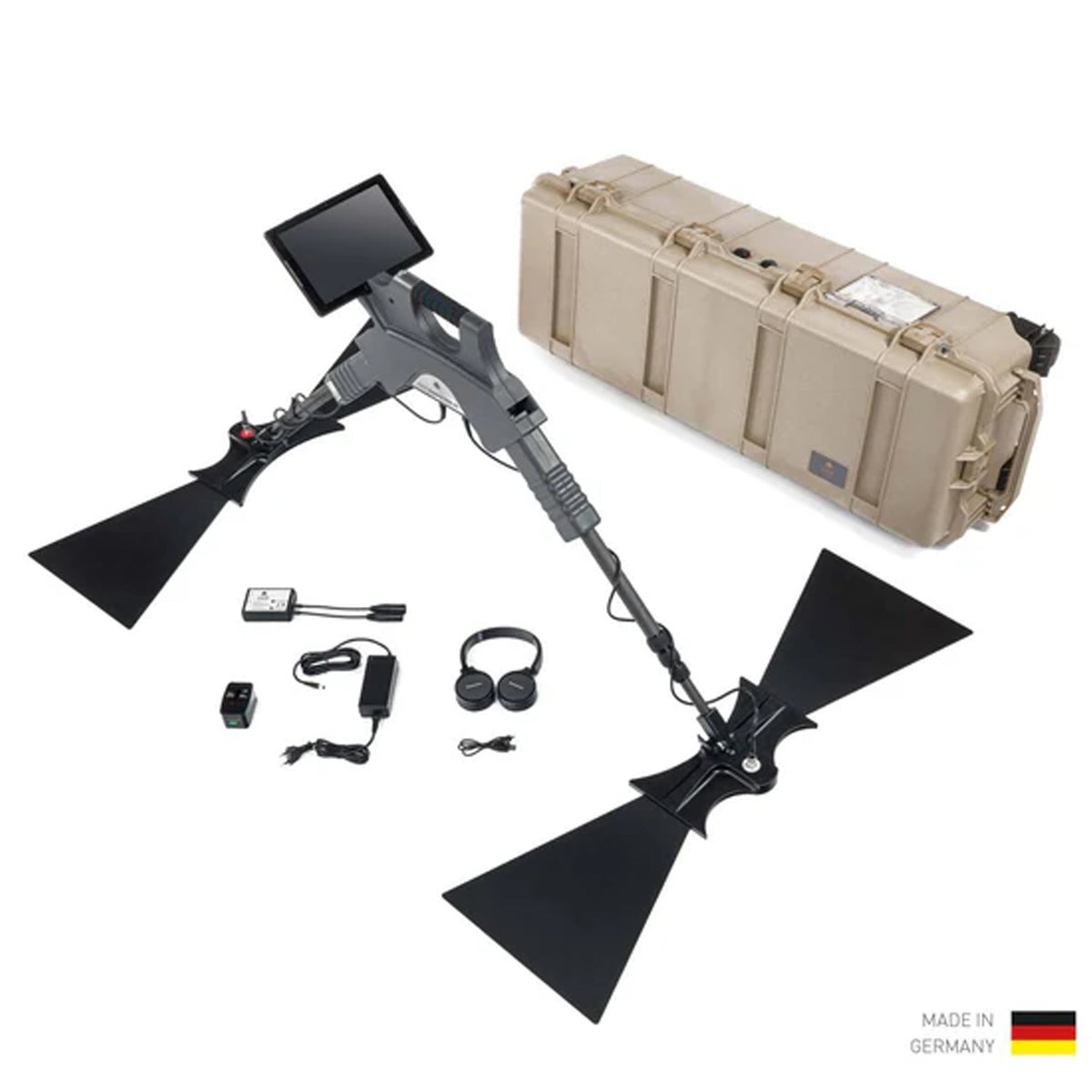

    Factory Included Items:

    • Control Unit
    • Android Tablet
    • Telescopic Shaft
    • Sending Antenna for Gepard GPR 3D
    • Receiving Antenna for Gepard GPR 3D
    • USB Flash Drive with OKM Visualizer 3D Studio Professional Edition
    • Power Pack
    • Bluetooth Headphones incl. charging cable
    • Charger with charging cable
    • Travel Adapter Set
    • Waterproof and shock-resistant Protector Case
    • Quick Start Guide



    Headphone TypeOver Ear
    ColorBlack
    Bag TypeHard Case
    Warranty2 Year Manufacturer
    Technology Android Tablet, USB Flash Driver, 2D Visualization, and 3D Visualization
    Size16
    RechargeableYes
    Metal Detector TypeMetal Detectors
    Low Battery AlertYes
    Headphones SuppliedYes
    Display TypesTablet
    Detect ModesRadio Detection and Ranging, Ground Scan, and Live Stream
    Depth Rating132ft
    Battery Type Li-ion
    Skill LevelAdvanced / Expert
    Metal Detector CategoryTreasure Hunting and Relic
