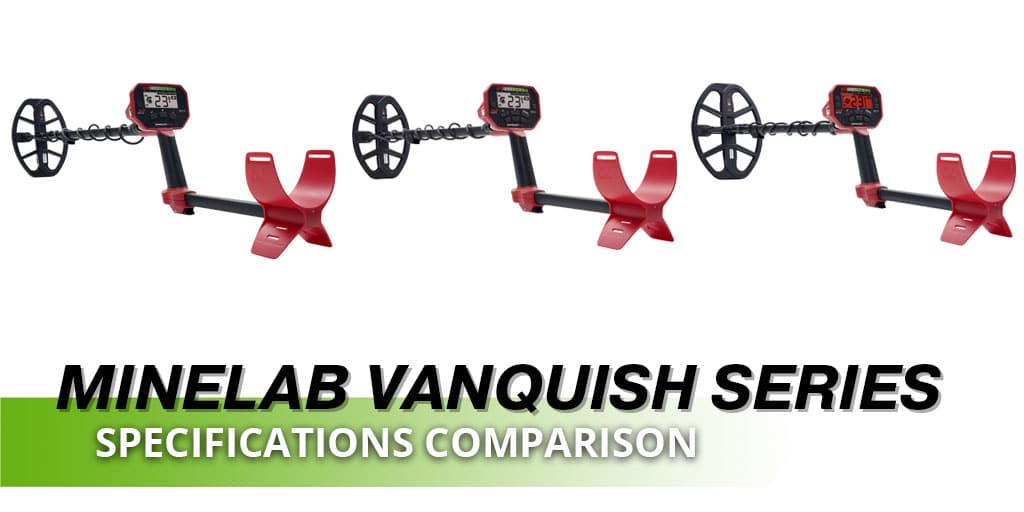

Minelab Vanquish Series Technical Specifications Comparison

Minelab Vanquish 340 | 440 | 540 Comparison

in Serious Detecting Blog

How do the Minelab Vanquish Series Metal Detectors Compare?

Technical Specifications Side by Side

Vanquish 340 Vanquish 440 Vanquish 540
Search Modes Coin, Jewelry, All-Metal Coin, Relic, Jewelry, Custom Coin, Relic, Jewelry, Custom
All-Metal Shortcut No Yes Yes
Custom User Search Profile No Yes Yes
Operating Frequencies Multi-IQ Multi-IQ Multi-IQ
Noise Cancel Auto Auto Auto
Bluetooth Audio No No Yes
Iron Bias High High High , Low
Sensitivity 4 levels 10 levels 10 levels
Volume 3 levels 10 levels 10 levels
Iron Volume Fixed Fixed 10 levels
Target Tones 3 tones 3 tones 5 tones
Discrimination Segments 5 segments 12 segments 25 segments
Discrimination Notch No Yes Yes
Pinpoint Mode No Yes Yes
Target ID's -9 to 40 -9 to 40 -9 to 40
Depth Indicator 4 levels 5 levels 5 levels
Length Extended: 145 cm Collapsed: 76 cm Extended: 145 cm Collapsed: 76 cm Extended: 145 cm Collapsed: 76 cm
Weight 1.2 kg 1.2 kg 1.3 kg
Display Monochrome LCD Monochrome LCD Monochrome LCD w/ Red Backlight
Supplied Coil V10 10"x7" Double-D V10 10"x7" Double-D V12 12"x9" Double D
Audio Output In-built Loudspeaker Wired 3.5 mm headphones In-built Loudspeaker Wired 3.5 mm headphones In-built Loudspeaker Wired 3.5 mm headphones Bluetooth wireless audio
Supplied Headphones - Wired 3.5 mm headphones Wired 3.5 mm headphones
Supplied Batteries 4 x AA Alkaline non-rechargeable 4 x AA Alkaline non-rechargeable 4 x AA NiMH rechargeable
Additional Included Accessories Getting Started Guide Getting Started Guide Rain Cover Armrest Strap V10 skidplate Getting Started Guide Rain Cover Armrest Strap V12 skidplate
Waterproof Coil to 1m Coil to 1m Coil to 1m
Water-Resistant Control box Control box Control box
Operating Temperature Range -10°C to +40°C -10°C to +40°C -10°C to +40°C
Storage Temperature Range -20° to +70°C [-4°F to +158° -20° to +70°C [-4°F to +158° -20° to +70°C [-4°F to +158°
Key Technologies Multi-IQ Multi-IQ Multi-IQ, Bluetooth, aptX™ Low Latency

The Vanquish 540 Pro-Pack is based on the standard Vanquish 540 with the following differences: Includes Bluetooth wireless headphones and a V8 8" x 5" Double-D coil and a V8 skidplate. Excludes Wired 3.5 mm headphones.

View the Minelab Vanquish Series Metal Detectors.
