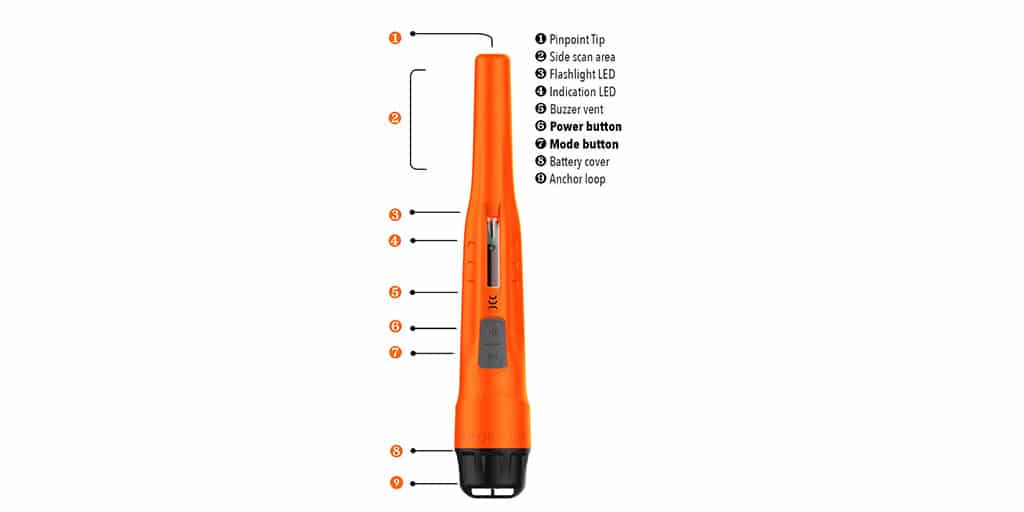

Structure
- Pinpoint Tip
- Side scan area
- Flashlight LED
- Indication LED
- Buzzer vent
- Power button
- Mode button
- Battery cover
- Anchor loop
Quick Start
Land mode/LM (0~10M underwater)
Power on/off (default) Press the Power button once to power on. Press again to power off. Power on/off (retune on) Press the Power button once to power on. Press 1S to power off.
Dive mode/DM (10~60M)
Hold two buttons for 2sec to enter dive mode. Come with 5 times red light blink and vibration. Click mode 3 times quickly to switch back to land mode.DO's & DON’T
• Always make sure to tighten the battery cap before entering the water. • Always store your detector fully charged. • Always rinse equipment in fresh water after every dive. • Always apply silicone grease after cleaning the O-ring. • Only open battery cap by clean hand. • Never leave your equipment in the rinse bucket. It may be damaged by other equipment.Sensitivity
When powered on, keep pressing the Mode button and quickly press the power button to change the sensitivity level from 1~4 (highest level). Each level will sound an extra beep until level 4 which will sound a long beep.
Alarm
Change Alarm Modes When powered on, press the Mode button quickly to switch through the three different alarm modes (Beep, Vibration only, Beep and Vibrate) Losing Alert The probe will start to beep at a certain frequency when no alarm or operating for 3 minutes. This is to remind the user to power off or to pick up and re-use. Power Saving Feature The probe will turn off automatically after 3 minutes alarming under losing mode to save battery.
Programming
LED Controlling While powered on, keep pressing on the Mode button for 2.5 seconds to enter LED light control programming. While indicator and flashlight both light up, quick press on mode button to switch from four modes(indicator only, flashlight only, all off, all on). Turn On/Off Tuning Function Under Expert Mode, quick press the power button once to activate/de-activate the retune function.
Retrieve
• Move the detector in circle or cross style to pinpoint. • Retune function. The retuning function is designed for ground balance to high minimization conditions or narrow down the target position. The Xpointer family are powered by Pulse Induction technology which will not produce any falsing to saltwater or black sand environment. You can use this function to help you get closer to the target. Just quick press the power button once to mute the alarm and move again until you hear the target. You can also turn it off to make the operation simple.
Low Battery
Low battery When the probes flashlight starts to blink at a certain frequency, it means it needs recharging. You can still use it but the sensitivity will be a little lower.
Remove Battery Cap
Remove Battery Cap Hold and twist the battery cap anti-clockwise to loosen it. Hold and twist clockwise to re-tight. Beware of cross-threading the cap and body when tightening the cap.
Recharging
• We strongly recommend you use a quality wall charger when re-charge the probe. It will take about 2~3 hours to fully charge. • Laptop or desktop computer’s USB port produce lower power which could make the recharging longer than a wall charger. • The probe will stop blinking when it is fully charged. You can leave the USB cable inside the recharge house after recharging.
Maintenance
Cleaning the Device
- Use tap water or dampen a clean cloth with a mild detergent solution.
- Wipe the device with a damp cloth.
- Thoroughly dry the device.
Avoid chemical cleaners and solvents which can damage plastic components. The device is waterproof to 60M/200FT. It can withstand immersion in 60M/200FT of water for 30 minutes. After submersion, be certain to wipe dry and air dry the device before using or charging. Do not store the device where prolonged exposure to extreme temperatures can occur because it can cause permanent damage.
O-Ring
Clean dust sand and fabric if spotted. Even a tiny grain of sand will cause water ingress.
Apply quality silicone O-ring grease thoroughly.
Change O-ring once a year at least. Use qualified original parts only.
Dive Mode Control
Activate Alarm Tilt it upside down 3X to activate the detection mode(DMA). The detector is ready to use. The red indicator will blink twice every 3 sec. You are ready to search.
Mute Alarming Keep the coil up for 5 seconds to turn back to standby mode (DMS). It will come with a 1-second alarm and the sensor has now stopped working. The red indicator will blink once every 3 sec. The unit is still powered on until power off at snorkeling mode. Notice: • Under deep water when two buttons have been pressed down, the detector will switch to dive mode automatically. • No losing alert and power-saving under diving mode.
