Gold Genie Spiral Panner Recreational Model, Gold Mining Equipment, Gold Panning

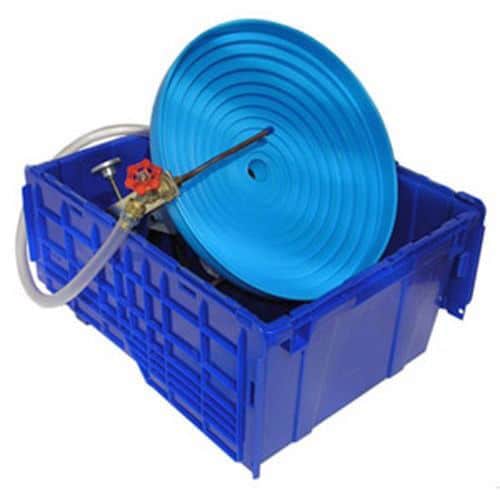

Spiral Panning Recreational Prospecting Equipment with 18″ blue spiral pan, 12 volt pump and warranty.

Gold Genie is the only automatic panner that consistently and effectively recovers 95% of the gold in concentrates down to 400 mesh. Capable of extracting all grades of gold!

• Gold Genie manufactures three different quality spiral recovery systems in their Oregon facility and provides a 5 year factory warranty with a 1 year warranty on the pump and motor. All three are designed to recirculate water with the 12 volt pump which is provided.

  The Miner Model is designed for high volume applications with adjustable height frame and a plastic skirt which directs all the waste material to the rear.

  Features:

  • 18 inch blue spiral pan - All Gold Genie spiral gold wheels have a quality 18 inch blue spiral pan for easy observation of both your gold and black sand. The pan is injection molded from polypropylene plastic. The injection molding under heat and pressure assures an exact copy of the mold with sharp definition of the ridges in the pan which are critical for gold recovery. The deep cut spirals with sharp edges allows the genie spiral wheel to work wet or dry.
  • Controls - The controls for both the volume of water on the spray bar and the critical angle of the pan are designed to be easily and accurately adjusted
  • Heavy duty 12 volt dc motor - The heavy duty 12 volt dc motor has a 2 speed switching system. The low speed is about 15 rpms and the high speed is about 22 rpms. The switch allows high speed, low speed and center off. A separate switch is provided for the 12 volt dc water pump so the units can operate with or without water. The motor and pump have a total current draw of less than 4 amps. The gold and other values are collected on the back side of the pan in a high capacity 10 1/2 inch gold pan. The fitting in the center of the pan that the gold travels through is made of high quality stainless steel so that the unites can be used for amalgamation. The frames are all made from anodized steel for years of attractive service.
  • Extract Gold From Black Sand Concentrates
  • Faster, Better, and Less Expensive - If you are not using the Gold Genie spiral wheel panner, chances are you may be wasting valuable time and precious gold too. Hand panning is extremely slow, backbreaking, and you could be losing up to 50% of your gold. Other spiral panning wheels just aren't as effective.
  • Gold Genie represents The State of The Art in gold separation.
