Minelab GPZ 7000 All Terrain Gold Metal Detector

The Minelab GPZ 7000 puts gold under the coil that a GPX 5000, GPX 6000, or any VLF gold machine leaves in the ground. Zero Voltage Transmission (ZVT) technology transmits and receives simultaneously across a full waveform, reaching deep large nuggets and sub-gram surface pieces without the signal attenuation that forces a standard pulse induction machine to trade depth for ground stability. If you have run hot ground in Nevada, Arizona, or Western Australia and come up short on patches that should hold gold, the GPZ 7000 is the machine built to change that result.

What You Gain Upgrading to the GPZ 7000

• Deep targets that masked on your last machine become audible. ZVT's differential receive geometry strips ground matrix noise before processing, so the detector holds signal on targets at depth that a standard PI's blanking window would suppress.
• Sub-gram gold reads consistently in High Yield mode. Optimised receive timing for shallow, small targets makes the GPZ 7000 effective on fine gold as well as large, deep pieces, covering both ends of the gold-size range in a single machine.
• Ground Type settings replace guesswork. Three ground compensation levels, Normal, Difficult, and Severe, let you match the detector to the specific mineralisation level of your patch rather than settling on a single compromise balance figure.
• Integrated GPS logs every signal. The built-in GPSi system records target locations in real time and syncs with XChange 2 software and Google Maps, so you grid a patch and return to exact signal points without relying on flagging tape or memory.
• Wi-Stream wireless audio keeps cables out of the dig path. The included WM 12 module delivers audio with less than 10 ms lag, giving wireless freedom without the delay that makes threshold response unreliable at depth.
• For a direct comparison with a lighter PI option, our Minelab GPX 6000 page covers the full lineup. Our GPX 6000 field review lays out where each machine earns its place by target size, ground type, and daily swing weight.

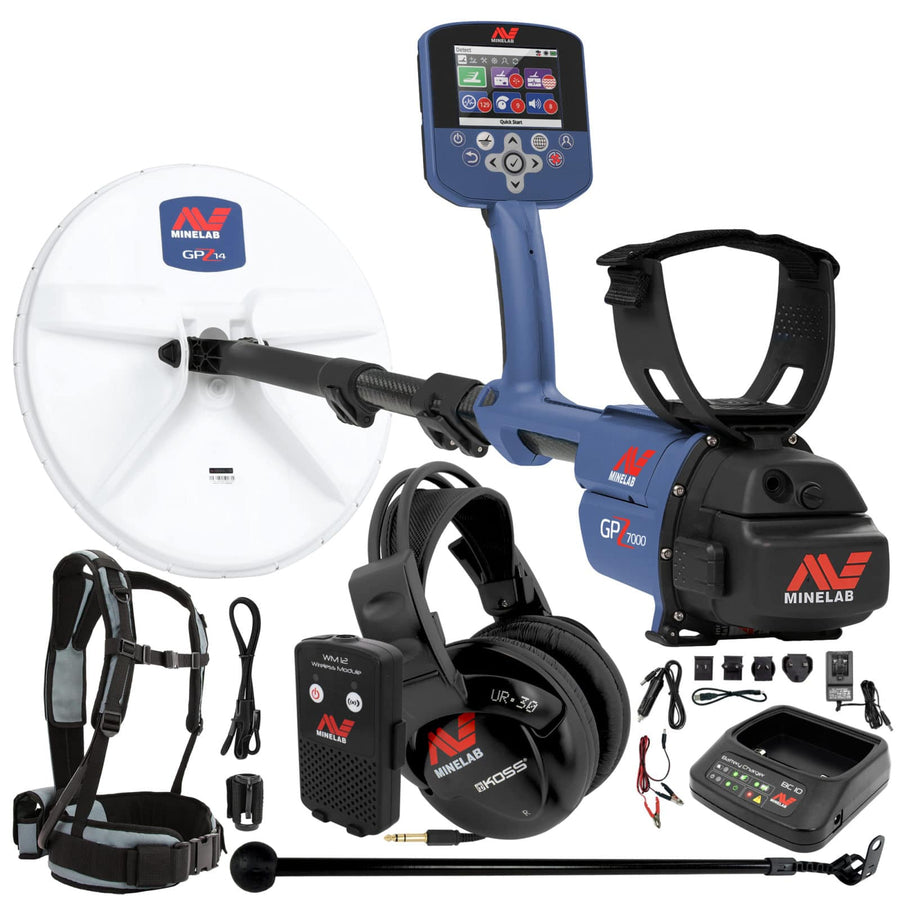

What's in the Box

• GPZ14 14"x13" Super-D Search Coil with skid plate
• Rechargeable Lithium-ion Battery Pack (7.2V / 72Wh)
• Pro-Swing 45 Harness
• KOSS UR-30 Wired Headphones (100 ohm, 6.35 mm plug)
• WM 12 Wireless Audio Module
• Universal Charging Cable Kit
• Car Battery Charging Cable
• BC 10 Battery Charger
• Swing Arm

Field Use: Where the GPZ 7000 Performs

Heavily Mineralised Desert and Outback Ground

Iron-rich laterite, magnetite, and saline soils in classic Australian and American Southwest gold country generate the strongest ground signal of any terrain type. Standard PI machines need aggressive ground balance settings that cut depth to stay stable, and VLF machines lose usable signal entirely in severe ground.

With Ground Type set to Severe and Extra Deep mode active, the GPZ 7000's ZVT differential receive configuration cancels the ground matrix before signal processing, holding threshold stability at depth without the signal loss that comes from blanked-window PI operation.

• Mode: Gold Mode – Extra Deep / Ground Type – Severe
• Sensitivity: 14–16
• Noise Cancel: Auto, then lock manually if EMI is consistent
• Ground Balance: Auto-tune on the ground, verify with ferrite ring

Dry Creek Beds and Rocky Desert Washes

Broken bedrock channels concentrate shallow, fine gold pockets across irregular surface material. Coil control through tight terrain matters as much as raw depth here, and shallow targets are easy to miss when the detector's timing is biased toward deep-mode operation.

High Yield mode shifts receive timing toward small, shallow targets. Combined with the GPZ14's geometry, it produces reliable signal on sub-gram pieces sitting in bedrock cracks or just above clay layers. The GPZ14 is waterproof to 1 m (3.3 ft), safe through shallow creek sections without any coil concern. For the recovery stage, the Minelab Pro Gold panning kit covers classification and panning once the detector has located the hot spot.

• Mode: Gold Mode – High Yield / Ground Type – Normal or Difficult
• Sensitivity: 17–19
• Noise Cancel: Auto
• Ground Balance: Auto

Worked-Over Patches and Old Diggings

Previously hunted patches are where the GPZ 7000's depth-and-sensitivity combination earns its price. The gold that remains is typically either too small for a standard PI, too deep for a VLF, or masked by surface trash at a technology level that couldn't separate it from background noise.

General mode balances High Yield's small-gold sensitivity against Extra Deep's ground penetration, covering the mix of target sizes and depths found in a worked patch. Running the GPSi log on old diggings maps productive zones across a second pass without covering ground randomly.

• Mode: Gold Mode – General / Ground Type – Normal or Difficult
• Sensitivity: 15–18
• Noise Cancel: Auto
• Ground Balance: Auto, verify with ferrite ring on first pass

ZVT Technology and the Super-D Coil

Conventional PI machines transmit a timed pulse and open a receive window, which means the ground signal and target signal arrive together and must be separated after the fact. Zero Voltage Transmission eliminates that problem at the coil level. The GPZ14's central transmit winding broadcasts a full, continuous waveform while two outer receive windings capture the return signal in a differential configuration: the outer windings see the ground matrix equally, so their combined output cancels it, and only the differential signal from an off-centre target reaches the processor. The practical result: the GPZ 7000 runs at higher effective sensitivity in severe ground than a timing-based PI that relies on blanking for ground rejection.

The integrated GPSi system logs target locations continuously to an internal file. XChange 2 desktop software (free download, Windows) imports the log and maps it against Google Maps satellite imagery, overlaying your swing path and signal points on the actual terrain.

Build, Display, and Audio

Assembled weight is 3.32 kg (7.32 lbs). The included Pro-Swing 45 distributes that load across the torso via a bungee swing arm, removing the arm fatigue that makes a heavy machine hard to run past midday. The shaft extends to 152.6 cm (60.1 in) and collapses to 117 cm (46.1 in) for transport. The full-colour LCD and keypad both carry adjustable white backlighting (1–10) readable in direct sunlight.

Audio runs through the built-in speaker, the included KOSS UR-30 wired headphones (6.35 mm, 100 ohm), or the WM 12 module for wire-free operation. Wi-Stream keeps audio latency under 10 ms, close enough to target position that threshold response stays reliable. A Minelab Pro-Find pinpointer paired with the GPZ 7000 cuts recovery time in the compacted or rocky soil this machine commonly works.

Coil Options

The included GPZ14 (14"x13" Super-D, waterproof to 1 m / 3.3 ft) covers the full range of GPZ 7000 hunting, from sub-gram surface gold in creek beds to large, deep nuggets in open desert. The oblong shape gives consistent coverage on undulating terrain without the edge-signal drop a round coil shows at the same nominal diameter.

The GPZ19 (19" round Super-D, fully waterproof, sold separately) is a legacy coil from the original GPZ platform, designed for flat, open alluvial ground where wide coverage and maximum depth on big targets take priority over sensitivity to small pieces. It remains a functional option on that specific terrain, but the larger diameter reduces sensitivity on sub-gram gold and slows progress in confined areas. Reach for it only on open, flat ground with confirmed gold at depth, and note that waterproofing applies to the coil only; the control box is not waterproof.

Minelab GPZ 7000 Specifications

• Technology: Zero Voltage Transmission (ZVT)
• Key Technologies: ZVT, Super-D, GPSi, Wi-Stream
• Gold Mode: High Yield, General, Extra Deep
• Ground Type: Normal, Difficult, Severe
• Sensitivity: 1–20
• Noise Cancel: Auto and Manual
• Wireless Audio: Wi-Stream via WM 12 module (included)
• Volume: 1–20
• Target Tones: Continuous
• Included Headphones: KOSS UR-30 (100 ohm, 6.35 mm wired)
• Display: Full Colour LCD, backlit display and keypad (1–10)
• Standard Coil: GPZ14 14"x13" Super-D
• Battery: 7.2V / 72Wh Lithium-ion Removable Pack
• Length Extended: 152.6 cm (60.1 in)
• Length Collapsed: 117 cm (46.1 in)
• Weight: 3.32 kg (7.32 lbs)
• Coil Waterproof Rating: 1 m (3.3 ft), coil only
• Operating Temperature: 0°C to +50°C (32°F to 122°F)
• Warranty: 3 Years (Control Box and Coil)

GPZ 7000 Availability and the GPZ 8000

While Minelab has introduced the GPZ 8000 to the lineup, global demand has led to significant supply constraints for the new model. For prospectors requiring a proven, deep-seeking solution for the current season, the GPZ 7000 remains our primary recommendation. It is in stock, fully supported with a 3-year warranty, and ready for immediate field deployment.
