The Groundtech Lineup at a Glance
Groundtech makes three series of 3D ground scanners, two models each, and the two-model IQ Series of pulse induction tools.
| Series | Models | What it is | Rated 3D scan depth | Metal detector | Display |
| GR-3 Series | GR-3, GR-3 PLUS | One-piece 3D scanner wand, 600 to 605 g (21.2 to 21.3 oz) | GR-3 up to 7 m (23 ft), GR-3 PLUS up to 15 m (49 ft) | None | Your phone or tablet |
| GR-4 Series | GR-4, GR-4 DUAL | Standalone 3D scanner | Up to 15 m (49 ft) | GR-4 DUAL: 404 Hz PI, up to 3 m (10 ft) | Built-in color screen |
| A2 Series | A2, A2 GEO | Standalone 3D scanner and PI detector; A2 GEO adds geo-electric | Up to 20 m (66 ft) | 500 Hz PI, up to 1.5 m (5 ft), three coils | Built-in color screen |
| IQ Series | IQ Pointer, IQ Detect | Pinpointer and ring-shaped underwater detector | None | 675 Hz PI | LED signal bar |
Groundtech Families Explained
GR-3 Series: GR-3 and GR-3 PLUS
The GR-3 Series is the lower-cost way into 3D scanning. Both models are cable-free wands that send scans over Bluetooth to the Conrad GR-3 app on an Android or iOS phone or tablet, with four modes and up to 10 hours per charge. The GR-3 uses a Single CN-D sensor rated up to 7 meters (23 ft), and the GR-3 PLUS a Dual CN-D sensor rated up to 15 meters (49 ft). Choose it when a phone as the screen does not bother you.
GR-4 Series: GR-4 and GR-4 DUAL
The GR-4 Series adds a built-in color screen, the MFS-2 dual sensor rated up to 15 meters (49 ft) and the G-Portal app for 3D and 4D analysis. The GR-4 has three modes. The GR-4 DUAL adds a 404 Hz pulse-induction detector with the PiD35 coil, rated up to 3 meters (10 ft), for five modes in all, so one unit scans deep and then checks the upper soil.

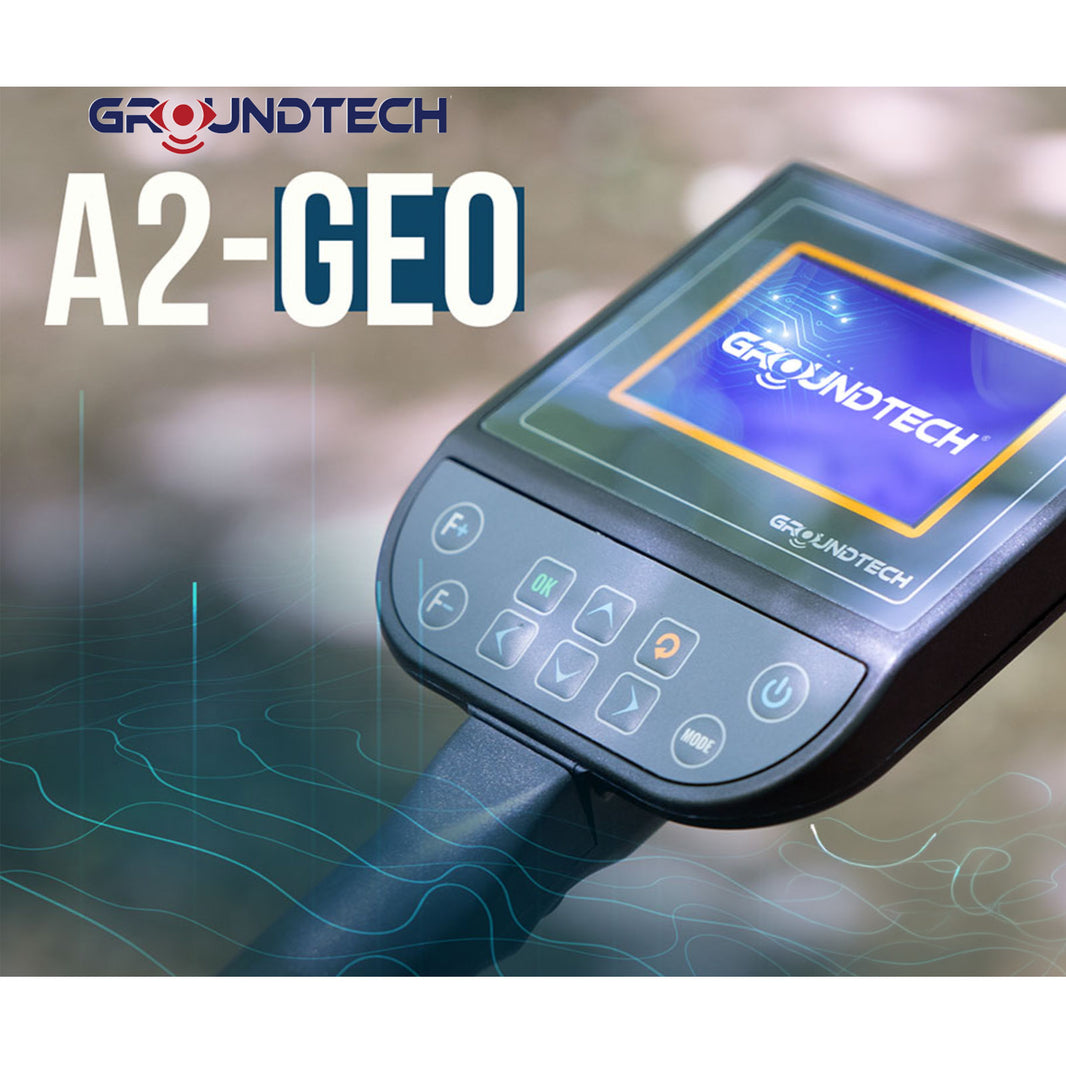

A2 Series: A2 and A2 GEO
The A2 Series is Groundtech's deepest-rated line: the MFS-3 dual sensor up to 20 meters (66 ft), a 500 Hz pulse-induction detector with three coils (9.5 x 6.5, 11.75 x 8 and 14.5 x 10 inch), a headset and six modes. The A2 GEO adds a geo-electric resistivity system with four probes on 25 meter (82 ft) cables and two more modes, for groundwater, tunnels, tombs and caves.
IQ Series: IQ Pointer and IQ Detect
The IQ Pointer is a 675 Hz pulse induction pinpointer, IP69 and waterproof to 10 meters (33 ft), with a narrow probe that detects at the tip and sides. The IQ Detect is a ring-shaped 675 Hz detector with a 5.5 inch (14 cm) round coil, waterproof to 30 meters (98 ft), for scuba diving, snorkeling and deep-sand searching. Groundtech rates the IQ Pointer for saltwater and highly mineralized soils, and the IQ Detect for underwater, shoreline and saltwater use.
How Groundtech Technology Works
A Groundtech 3D scanner is a gradiometer. It measures small changes in the ground's magnetic field as you walk a grid and turns them into a color 3D image, and Groundtech says the image shows magnetic metals such as iron and steel differently from non-magnetic metals such as gold, silver and copper, along with voids such as tunnels and rooms. A pulse induction detector, in the GR-4 DUAL, the A2 Series and the IQ Series, transmits into the ground and responds to metal near the coil, which suits checking a marked spot. The A2 GEO's geo-electric system measures ground resistivity through four probes, for water and deep cavities. A 3D scan gives you an anomaly, its rough size and depth, not a coin-style target ID, so we recommend a scanner to people who are prepared to dig on a scan result. Groundtech's depth ratings are maximums that depend on soil, target size and time buried, so small objects read far shallower; our page on how deep metal detectors go explains why.
Waterproofing and Coils
Groundtech publishes no waterproof rating for the GR-3, GR-4 or A2 Series, so treat the scanners as dry-ground tools. The IQ Series is the waterproof side of the range, both rated IP69. The A2 Series comes with three detector coils and the GR-4 DUAL with the PiD35 coil.
