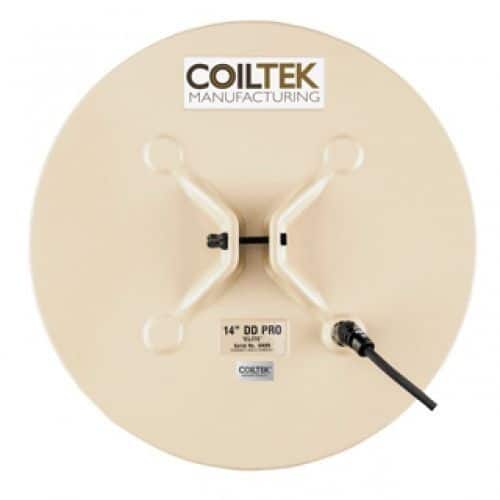

Coiltek 14" DD Pro Elite 350mm for Minelab SP, GP, GPX Series Detectors

Coiltek 14" DD Pro Elite 350mm for Minelab SP, GP, GPX Series Detectors

The 14” (350mm) coil is one of the best all-round performing products Coiltek has produced. With a combined advantage of excellent depth and sensitivity it has outstanding performance ability in the majority of goldfields around the world. Being an extremely robust coil it has the capability of lasting many seasons in the field which will make this coil a primary choice when prospecting.

Suited to the more open field where little or no overgrowth will hinder the swing it will provide an excellent coverage area to ensure a comfortable action. For a mid sized coil it is light and has good maneuverability ability and because it is not of the open web design it can help when there is long grass or sticks which need to be moved out of the way or pressed closer to the ground.

The coil can be used either just off the ground or scraping the ground when swinging. It has minimal touch sensitivity and has good ability to pinpoint making target retrieval quick and accurate.

DD PRO ELITE operation hints & tips:

The DD PRO ELITE is the newer series of DD coils as the PRO ELITE series have been developed to enhance depth and sensitivity capabilities. The main sensitivity area for the coil is through the centre when looking from above and when pinpointing the target will start to respond approximately 1 inch in from the tip of the coil. However, the deeper the target in the ground the response and pinpointing ability moves more to the centre of the coil. To ensure good ground coverage, be sure to overlap the swings by at least one quarter the size of the coil and by moving slowly with this coil you will allow the field to penetrate to good depths and excite the deeper targets. It has great sensitivity to small targets as it is capable of seeing the sub-gram nuggets at good depth. This is an excellent choice when there is mild to high mineralisation conditions. The PRO ELITE coil is better suited to the Minelab SD and GP series.

Strengths

• Excellent overall performance
• Easily handled in open ground
• Reasonable pinpointing ability
• Good depth capability and sensitivity
• Good ground coverage
• Very robust design

Applicable metal detectors

• Minelab SD series
• Minelab GP series
• Minelab GPX series
