Tero Vido 3D System Basic

The Tero Vido 3D System is a 3D measuring device for the detection and precise localization of anomalies in the ground. It is based on newly developed and measuring technology from Tero Vido GmbH, Germany.

The whole device has been developed and manufactured in Germany. This detector helps you to discover and discriminate all kinds of metal. The included software shows if you found magnetic metals like iron or steel, or non-magnetic precious metals such as gold, silver or copper.  Furthermore, the Tero Vido System is best suited to detect and locate underground voids, such as bunkers, graves, tunnels, or other rooms.

One thing that makes the Tero Vido System quite special, besides the exact localization, is the deep penetration of the ground. Depending on the size of the object, significant depths of up to 18m can be reached. The multi-language user interface of the proprietary software is currently available in English, German, French, Russian, Arabic, Turkish, Spanish, Greek, Romanian, and Bulgarian. More languages are coming soon. The automatic and free software updates contain, besides software improvements also further new languages.

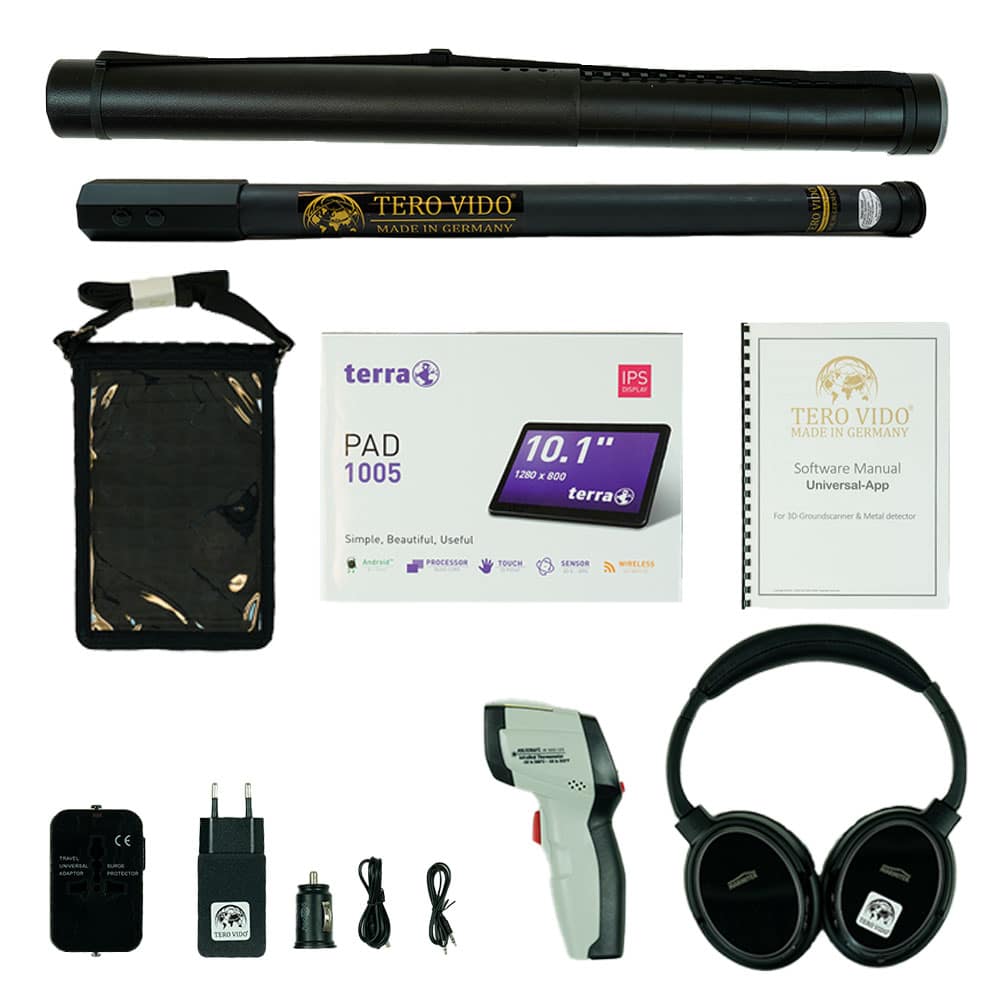

Included:

• Tablet with pre-installed software Tero Vido 3D
• Sensor ………………… Vertical, 85 cm
• USB-Dongle for data exchange between sensor and computer
• Charging cable and adapter for USB ………………… 12 V DC and 220 V AC
• Manual and Quick Start Guide
• Flexible tablet carrying case with touch-sensitive screen protection
• Transport bag for sensor
• Headphones (Bluetooth/WiFi)

Technical Data:

Probes

• Sensors ……………………………… 3-­‐axis digital sensors

Built-­in Rechargeable Battery

• Type ……………………………… LiPo rechargeable battery
• Performance ……………………………… parameters 800 mAh 4,2V
• Internal ……………………………… operating voltage 3,0V
• Battery ……………………………… run-­‐time 15h
• Charging ……………………………… time 1h with mains adapter, 4h with­ car charger

Charger

• Input voltage ……………………………… 240/110 V or 12 V (in-­‐car charger)
• Charging current ……………………………… 5 V/ 500 mA max.

Measurement and Weight of Probes

USB Radio Module for Data Transfer

• Frequency band ……………………………… 2.4GHz ISM band
• Channels ……………………………… 126 RF channels
• Transmission rate (air) ……………………………… 2Mbps
• Programmable output ……………………………… 0. -6, -12 or -18 dBm
• Sensitivity ……………………………… -82 dBm Sensitivity at 2 Mbps

Processor

• Microcontroller ……………………………… 8-bit RISC-based Microcontroller
• Maximum working frequency ……………………………… 16MHz
• 1KB SRAM, 512K EEPROM
• 10-bit A/D converter

Data Transfer (Bluetooth)

• Frequency range ……………………………… 2,5 – 2,4835 GHz
• Maximum transfer rate ……………………………… 1 Mbps
• Receiver sensitivity ……………………………… -85 dBm
• Maximum reach in the open ……………………………… Approx. 10 m

Technical Requirements for Computer

• Operating system ……………………………… Windows 8.1. or newer
• Disk drive ……………………………… CD-­‐ROM drive; alternatively: software download from company website
• USB ……………………………… USB 2.0 or higher
• Bluetooth ……………………………… For the Headphones
• Processor speed ……………………………… 1 GHz
• Working memory ……………………………… 1 GB RAM
• Disk space ……………………………… HDD 250 MB
• Graphic card ……………………………… DirectX9 compatible
