Minelab VANQUISH 560 Waterproof Multi-Frequency Detector

<

The Minelab Vanquish 560 is the flagship of the new V60 series, and the most immediate change coming off a single-frequency VLF is target ID stability. Multi-IQ transmits across multiple frequencies simultaneously instead of choosing one, so a silver coin at 8 inches reads clean in mineralized parkland the same way it does in dry sandy turf. At 2.6 lbs with full IP68 submersion to 16 feet and a 12-inch coil, it covers terrain that used to require two separate detectors.

What You Gain Coming from a Single-Frequency Machine

• Target IDs hold across variable ground. Single-frequency machines shift target numbers when mineralization changes mid-hunt. Multi-IQ processes multiple frequencies simultaneously, keeping IDs stable so you dig on signal quality, not chasing readings that drift as you move from one soil type to another.
• Full submersion to 16 feet, not just rain resistance. IP68 means wading rivers, working the wet-sand line at the beach, and recovering targets in shallow water without pulling the detector out. This is not splash-proofing. Your coil, shaft, and control box all go in.
• A target ID scale with real separation between target types. The Vanquish 560 runs a -19 to 99 TID scale, spreading non-ferrous targets across 1-99 with more room between foil, pull-tabs, nickels, and high-conductors than the compressed ranges on older budget machines. You can set discrimination with precision rather than accepting or rejecting large chunks of targets at once.
• Five audio tones with independent iron volume control. You can hear a quarter below pull-tab trash because iron and high-conductors carry different tones at different volumes. Drop the ferrous tone volume, raise the non-ferrous tone, and work faster through junk-heavy sites without missing targets at the edges of your discrimination pattern.
• Low-latency wireless audio that actually works in the field. Bluetooth LE Audio with LC3 codec reduces wireless headphone delay to near-wired levels, eliminating the signal lag that made earlier Bluetooth detecting impractical. The included wired headphones are there if you prefer them, or need a backup.

Comparing the Minelab Vanquish 560 to the step-down model? See the full Vanquish 460 lineup for a direct spec and pricing comparison before you decide.

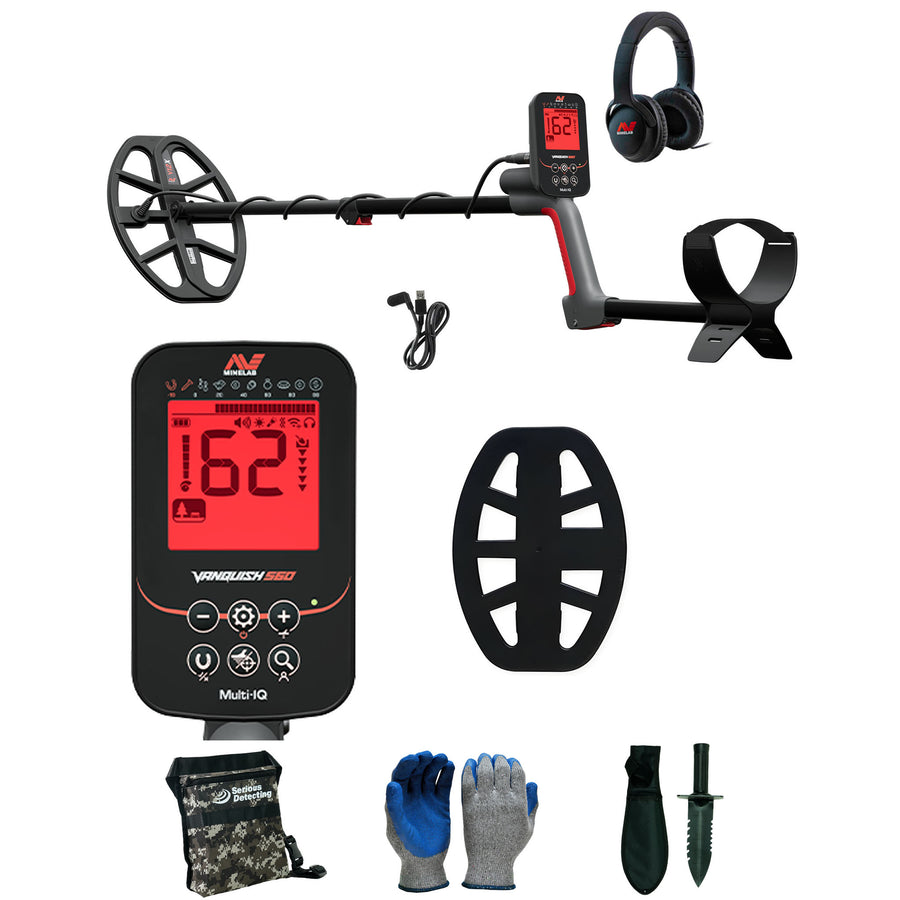

What's in the Box

Factory items from Minelab:

• V12X 12"×9" Double-D Elliptical Coil with Skidplate
• Wired Headphones with 3.5mm (1/8") plug
• Magnetic USB Charge Cable
• Getting Started Guide
• 3-Year Limited Manufacturer's Warranty

Serious Detecting bundle (added automatically at checkout):

• Serious Detecting Finds Bag with 42" adjustable waist belt
• Double Serrated Hand Digger with belt holster
• Protective Gloves

The SD bundle ships as a separate cart item. Limit one bundle per detector order.

Where the Vanquish 560 Earns Its Keep

Parks and Coin Sites

Modern parks layer decades of iron trash across the same zones as silver coins, copper cents, and older clad, and separation demands are constant.

Park mode runs a Multi-IQ frequency profile calibrated for mineralized turf, delivering cleaner separation between iron and coin targets than a single-frequency machine in the same soil. Iron Bias at Level 1 keeps faint coin signals from being masked by adjacent nails. The 30 discrimination segments let you block specific TID ranges without wiping out adjacent targets, so you can silence bottle caps without losing nickels nearby.

• Mode: Park
• Sensitivity: 7 of 10
• Iron Bias: Level 1
• Ground Balance: Fixed (auto)
• Discrimination: Accept TID 1-99, reject -19 to 0

Wet and Dry Beach Hunting

Salt water creates a false ground signal that saturates most single-frequency VLF detectors below the wet line, making consistent depth and accurate IDs in the surf zone unreliable.

Beach mode runs Multi-IQ with a frequency profile designed for saltwater conductivity, keeping target IDs stable in wet sand, at the surf line, and during submersion to 16 feet. On dry sand, push sensitivity to 8-9 of 10; at the wet line and in shallow water, drop two steps and let the Beach profile handle the conductivity shift.

• Mode: Beach
• Sensitivity: 8-9/10 (dry sand), 6-7/10 (wet sand and water)
• Iron Bias: Level 2
• Ground Balance: Fixed (auto)
• Discrimination: Open (1-99) for jewelry; narrow to TID 20+ for coin focus

Relic Hunting and Farm Fields

Old farm ground holds iron in every layer, with horseshoes, cut nails, and harness hardware competing with buckles, buttons, and dropped coins in the same detection window.

Field mode is the most open of the four detection profiles, which suits relic sites where targets of interest span a wide TID range. Iron Bias at Level 3 improves separation between iron maskers and adjacent non-ferrous signals without overrejecting edge-case targets like small brass. The 5-level depth indicator helps gauge signal depth before you open the hole.

• Mode: Field
• Sensitivity: 8-9 of 10
• Iron Bias: Level 3
• Ground Balance: Fixed (auto)
• Discrimination: Accept 1-99, or apply narrow rejection to the lowest ferrous TIDs only

Multi-IQ Technology: What It Actually Changes for You

Single-frequency detectors run all detection through one operating frequency, and that frequency is a trade-off. Optimized for silver coins, it loses accuracy on low-conductors like small gold. Mineralization shifts those target ID readings further as ground conditions change across a single field.

Multi-IQ transmits and processes multiple frequencies simultaneously. The Vanquish 560 runs this without requiring you to select a frequency or manually tune to ground conditions. Turn it on and the machine manages the frequency blend, delivering accurate target response across gold, silver, copper, and ferrous in the same sweep. Our team finds it most valuable at sites where soil types change mid-hunt. For a look at how the Vanquish series has evolved, see our Vanquish model comparison guide.

Build, Display, and Audio

The Vanquish 560 collapses to 79 cm (31 in) and extends to 142 cm (56 in), with an adjustable shaft and removable armrest. At 1.26 kg (2.6 lbs), the balance is manageable through full-day sessions. The red LED monochrome LCD is readable in direct sunlight, with keypad backlighting and a built-in flashlight that add field usability for early morning launches and late evening hunts. Handgrip vibration provides a tactile alert on every target signal, which matters when you are running headphones in noisy surf environments.

Audio runs through three paths: the built-in speaker, the included wired 3.5mm headphones, and Bluetooth LE Audio for compatible wireless headphones. The Minelab Pro-Find 40 Pinpointer pairs well with the Vanquish 560 for precise in-hole target recovery and reduces dig time on deep signals.

Included Coil and Optional Upgrades

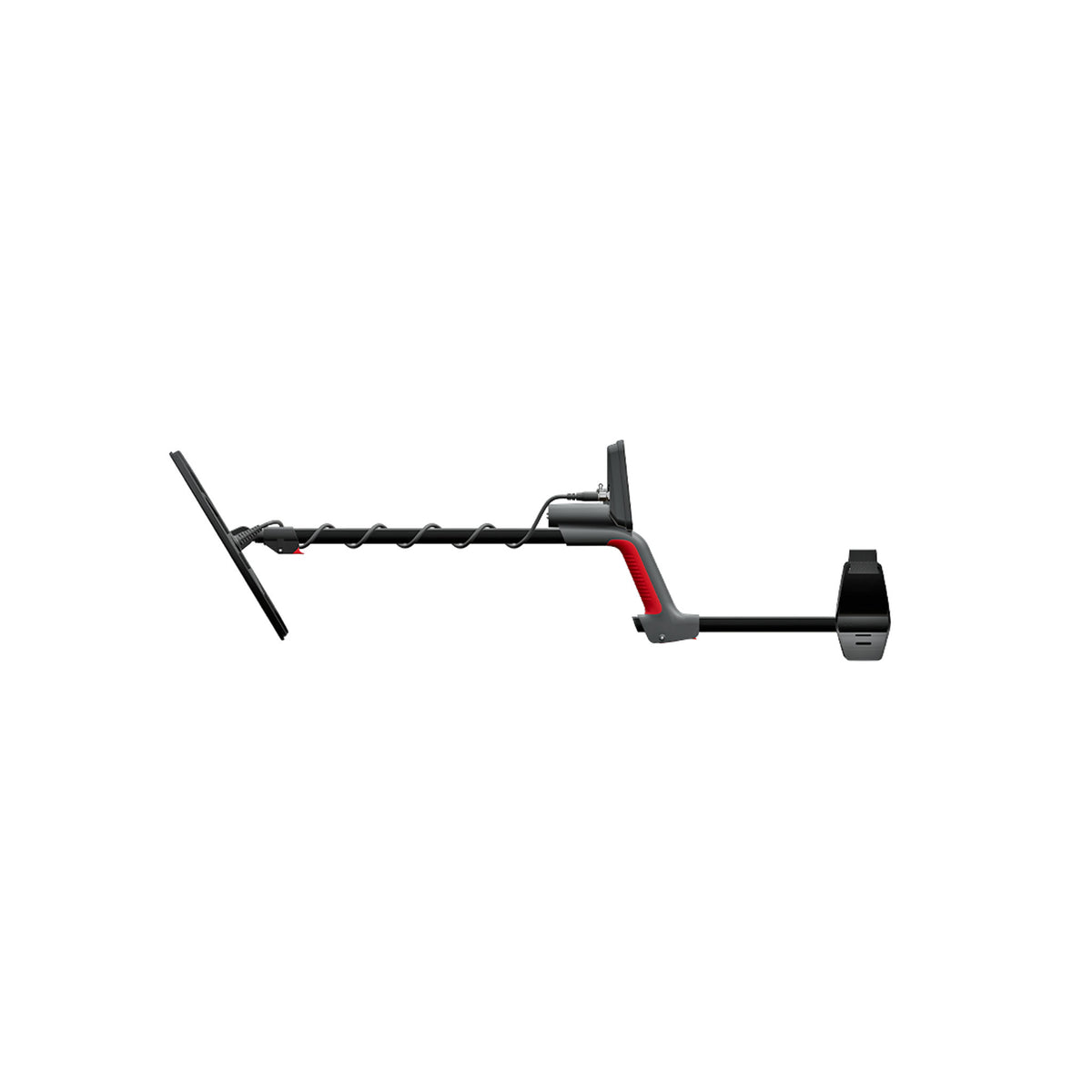

The Vanquish 560 ships with the V12X, a 12"×9" Double-D Elliptical coil with skidplate. The DD design produces a long, narrow detection field that handles ground mineralization efficiently and maintains good target separation in iron-heavy soil. The 12×9 elliptical footprint provides more ground coverage per swing than smaller coils without the added weight or drag of a large plate coil in water.

For heavy-trash sites where target separation matters more than coverage speed, the V10X 10"×7" DD coil (sold separately) reduces the detection footprint and improves the machine's ability to isolate individual signals in dense target environments. Reach for it in urban park grids or tight cellar holes where the V12X reads too many targets at once.

Minelab Vanquish 560 Specifications

• Technology: Multi-IQ simultaneous multi-frequency
• Search Modes: Park, Beach, Field, User Profile
• Target ID Scale: Ferrous -19 to 0, Non-Ferrous 1 to 99
• Discrimination Segments: 30
• Iron Bias: 4 Levels
• Sensitivity: 10 Levels
• Audio Tones: 5
• Ferrous Volume: 10 Levels
• Wireless Audio: Bluetooth LE Audio (LC3 Codec)
• Wired Audio: 3.5mm (1/8") headphone jack
• Depth Indicator: 5 Levels
• Noise Cancel: Auto
• Search Coil: V12X 12"×9" Double-D Elliptical with Skidplate
• Length Extended: 56 in (142 cm)
• Length Collapsed: 31 in (79 cm)
• Weight: 2.6 lbs (1.26 kg)
• Battery: Internal Lithium-Ion rechargeable, up to 10 hours
• Charging: Magnetic USB
• Display: Monochrome LCD with display backlight, keypad backlight, and built-in flashlight
• Vibration: Yes (handgrip)
• Waterproof Rating: IP68, submersible to 16 ft (5 m)
• Operating Temperature: 14°F to 104°F (-10°C to +40°C)
• Warranty: 3 Years (Control Box and Coil)
