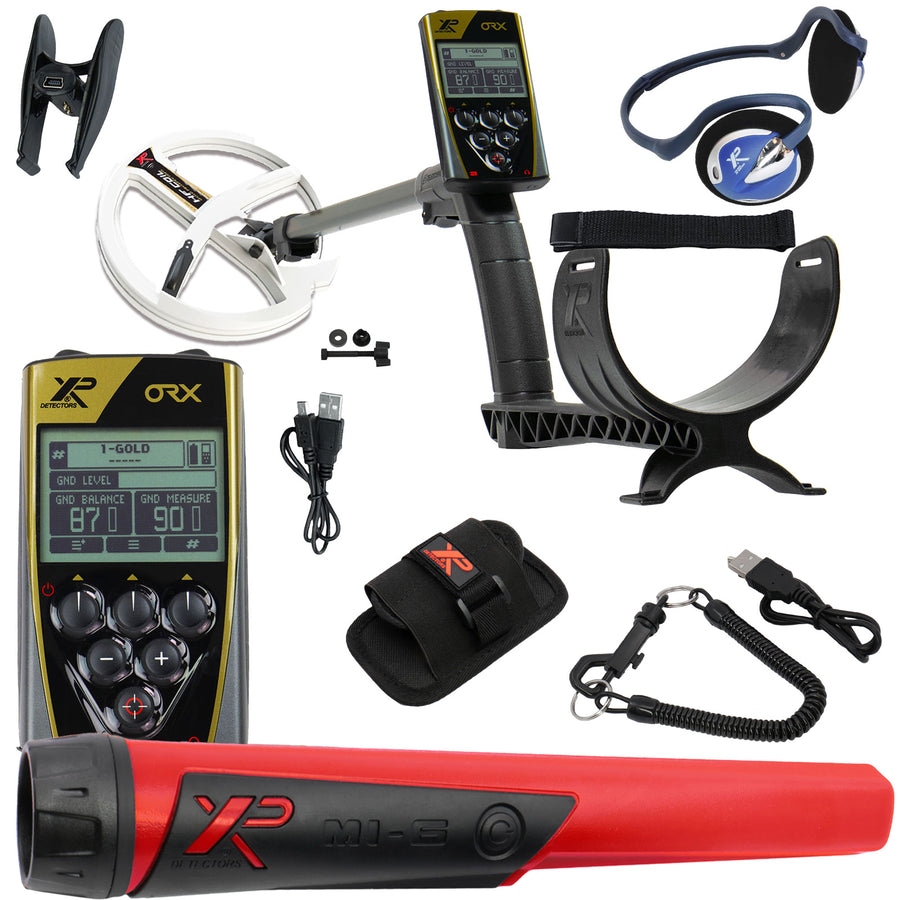

XP ORX Metal Detector with 9" High Frequency Coil, FX02 Headphones & MI-6 Pinpointer

The XP ORX with 9-inch HF coil supports 21 selectable frequencies ranging from 13 kHz to 81 kHz. You choose one frequency at a time based on your ground mineralization and target type. The highest frequencies (50 kHz and 81 kHz) deliver extreme sensitivity to small gold nuggets and shallow coins, while the lower frequencies in the range penetrate deeper on larger targets. This single-frequency VLF architecture gives you precise control over detection behavior, though it requires more operator skill than simultaneous multi-frequency platforms.

The XP ORX's 9-inch HF coil and lower shaft are fully waterproof, allowing you to hunt wet sand, wade shallow surf, and work creeks. The LCD remote control is splash-resistant only and must stay dry, so submerging the remote will damage it. The detector includes a Salt mode with ground rejection settings from 00 to 25 to handle wet saltwater sand and alkali flats. We've used the ORX in the surf zone on California beaches, and the wireless architecture eliminates cable corrosion failures common with wired detectors in saltwater environments.

The XP ORX runs on lithium rechargeable batteries in both the coil and remote, delivering up to 20 hours of detecting on a full charge. In practice, runtime depends on your settings (higher sensitivity and threshold drain the battery faster) and temperature (cold weather reduces lithium battery capacity). You can recharge the system with any certified USB charger or a computer USB port, and the batteries carry a two-year warranty. For weekend trips, a single charge typically covers two full days of hunting without needing a recharge in the field.

The XP ORX's Gold program is tuned for low to average mineralization with good sensitivity to medium and large-sized gold nuggets. The Fine Gold program handles heavy mineralization (hot ground, ironstone, decomposed granite) with enhanced sensitivity to small and medium-sized nuggets. Fine Gold uses tighter discrimination and faster recovery to separate targets from hot rocks and ferrous trash, though it may sacrifice some depth on deeper large nuggets compared to the Gold program. Both programs include five levels of IAR (Iron Audio Reject) discrimination to filter iron without masking non-ferrous targets.

The XP ORX with 9-inch HF coil is compatible with XP's X35 coil range, including the 9-inch, 11-inch, and 13.4-inch/11-inch elliptical X35 coils. Swapping to an X35 coil changes the frequency range to 35 selectable frequencies from 3.7 kHz to 27.7 kHz, optimized for deeper large targets and general-purpose coin hunting. The HF coils (9-inch round and 9.5-inch elliptical) run the 21 high frequencies from 13 kHz to 81 kHz for small gold and shallow targets. Coil changes take seconds with the quick-release collar, and the wireless link automatically pairs with any compatible coil. Browse the XP ORX metal detector with high frequency coil collection to compare coil options.

The XP ORX uses XP's patented digital radio link to communicate between the coil, backlit LCD remote, and optional WS Audio wireless headphones. All components pair automatically when powered on, with no cables to connect or break. The wireless link is fast enough to transmit target signals in real time with no perceptible lag, and the system maintains connection in brush and rough terrain where cables would snag. The remote can be hip-mounted or used handheld, and the optional MI-6 pinpointer also pairs wirelessly for advanced settings control from the remote screen.

The XP ORX displays a numerical target index from 0 to 99 on the backlit LCD remote, along with an iron probability reading from 0 to 100 percent. The target ID helps you decide if to dig a signal before breaking ground, though accuracy depends on target depth, orientation, and ground mineralization. In practice, shallow coins and jewelry produce consistent IDs, while deep or corroded targets may bounce across multiple numbers. The iron probability reading is particularly useful in relic sites where ferrous trash dominates, letting you skip obvious iron signals without digging. The 99 discrimination levels let you notch out specific ID ranges.

The XP ORX works for both beginners and experienced detectorists, though it rewards operator skill more than turn-key multi-frequency detectors. Beginners can use the four factory preset programs (Gold, Fine Gold, Coin Fast, Coin Deep) and get results immediately without adjusting sensitivity, ground balance, or discrimination. Experienced hunters can customize the two user program slots, dial in manual ground balance, and select specific frequencies for their sites. The learning curve is shorter than XP's DEUS II, but longer than fully automatic detectors. If you're new to detecting, start with a preset program and add adjustments as you gain field experience.

The XP ORX weighs 1 pound 14 ounces (870 grams) with the remote control hip-mounted, making it one of the lightest detectors on the market. The patented XP LITE S-telescopic stem combines an S-shaped curve for ergonomic balance with a straight telescopic section for quick length adjustment. In practice, the light weight and balanced design reduce wrist and shoulder fatigue during all-day hunts. We've run the ORX for six-hour sessions in goldfields without significant arm strain, a marked improvement over heavier detectors with fixed shafts. The stem folds for transport in seconds, fitting in a backpack or carry-on luggage.

The XP ORX does not include headphones in the base package. XP offers the WS Audio wireless headphones as an optional accessory, which pair with the detector via the same digital radio link used by the coil and remote. The wireless headphones eliminate cable snags and provide clear audio for faint signals. For detectorists building a complete system, the best pinpointers for metal detecting guide covers compatible accessories including the MI-6 wireless pinpointer.

XP backs the ORX with a five-year limited manufacturer warranty covering defects in materials and workmanship, and the lithium rechargeable batteries carry a two-year warranty. The detector is LONGTIME certified, meaning XP designs it for extended use with long-term parts availability. XP releases periodic firmware updates via USB cable to improve performance and add features over the detector's lifespan. The company maintains a network of authorized dealers and service centers in more than 50 countries, and the ORX is made in France with global support infrastructure. As an authorized XP dealer, we handle warranty claims and provide technical support for your ORX.
