Minelab VANQUISH 540 Metal Detector

If you're running a single-frequency machine and losing ground to changing soil conditions, the Minelab VANQUISH 540 is the upgrade that ends that problem. Multi-IQ simultaneous multi-frequency runs automatically, all the time, which means stable target IDs in mineralized ground, clean separation in wet sand, and no manual frequency juggling when the site gets tricky. The full Minelab lineup covers everything from beginner to flagship, and the VANQUISH 540 sits at the top of the Vanquish series with the features that matter most to hunters who already know what they're doing: Iron Bias, 25-segment discrimination, Bluetooth aptX Low Latency audio, and a 12-inch waterproof DD coil.

What You Gain Coming from a Single-Frequency Machine

• IDs that stay locked. Multi-IQ processes multiple frequencies at once, so the target ID number on your screen stays consistent across variable or mineralized ground instead of jumping around and forcing guesses.
• Iron Bias for smarter trash management. Switch between High and Low in the field to open up to non-ferrous targets sitting next to iron without getting hammered by false signals. Single-frequency machines don't give you this control.
• 25 discrimination segments. Fine enough to notch out bottle caps while passing zinc cents. You're building real patterns, not just toggling a rough iron reject.
• Bluetooth aptX Low Latency audio. Tight enough that fast swing speeds don't blur the tones. Standard Bluetooth lag makes this kind of hunting unreliable.
• A coil that actually gets wet. The V12 12-inch DD is waterproof to 1 m. Hunt through rain, waterlogged ground, and the swash zone without thinking twice about it.

Deciding between the 540 and its stablemate? Compare them on our Minelab VANQUISH 440 collection page to see exactly where the 540 adds Iron Bias and the Custom search mode.

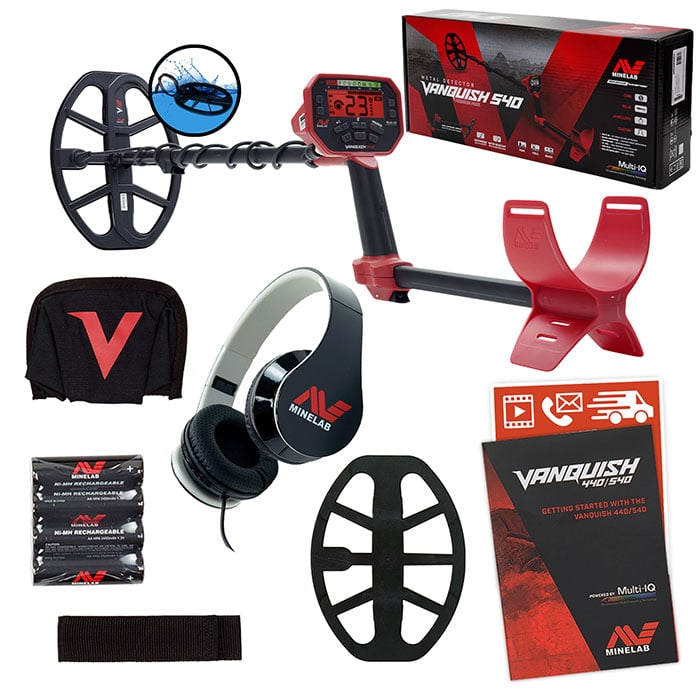

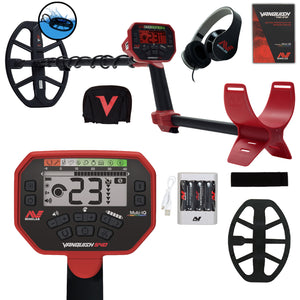

What's in the Box

Every Minelab VANQUISH 540 from Serious Detecting ships with the full factory kit plus our SD bundle, added automatically at no extra cost:

• V12 12"x9" Double-D Elliptical Coil (waterproof to 1 m / 3.3 ft)
• 4 x AA NiMH Rechargeable Batteries
• 4-Way USB Battery Charger
• Control Pod Protective Cover
• Wired 3.5 mm Headphones
• SD Finds Bag with 42" adjustable waist belt
• SD Double Serrated Hand Digger with belt holster
• SD Protective Gloves

Hunting with the Minelab VANQUISH 540

Parks and Coin Fields

Park soil is rarely consistent. Fertilizer applications, layered fill dirt, and buried trash all create conditions that knock single-frequency IDs around. Multi-IQ holds the -19 to 40 scale steady so you're reading the target, not reacting to the ground. Five audio tones mean you're identifying likely finds by ear before the coil is even off the signal. Our full Vanquish 440/540 target ID guide maps the entire scale to real-world targets.

• Mode: Coin
• Sensitivity: 5 to 7
• Iron Bias: High
• Discrimination: Accept Non-Ferrous 1 to 40

Relic Sites with Iron Trash

At iron-heavy sites, Iron Bias Low lets non-ferrous targets sitting next to nails and hardware come through instead of getting swallowed by the iron signal. Relic Mode opens the default discrimination pattern to a wider non-ferrous range, and Custom Mode saves your site-specific settings so you're back up to speed the next time without rebuilding. See our settings guide for soil-specific tuning recommendations.

• Mode: Relic or Custom
• Sensitivity: 4 to 6
• Iron Bias: Low (open sites), High (dense trash)
• Discrimination: Open from 1 upward

Beach and Wet Sand

Conductive saltwater sand produces constant false signals on single-frequency VLF machines running at low frequencies. Multi-IQ cross-references target responses across multiple frequencies at once and pulls clean IDs out of conditions that would defeat a single-frequency machine. The V12 coil handles 1 m of submersion, so hunting the swash zone is a real option.

• Mode: Jewellery or Coin
• Sensitivity: 4 to 6
• Iron Bias: High
• Discrimination: Accept 1 to 40

Multi-IQ and Iron Bias

A standard VLF detector sends and receives on one frequency. The Minelab VANQUISH 540 runs multiple frequencies simultaneously and processes all of them in a single sweep, which is why target IDs are more stable, low-conductors are easier to separate from adjacent iron, and depth holds up in ground that would detune a single-frequency machine mid-hunt. Iron Bias works on top of that: set it High to apply stronger iron rejection logic on dense sites, Low to let non-ferrous signals break through when iron and good targets are mixed together. Switching takes one button press.

Build, Display, and Audio

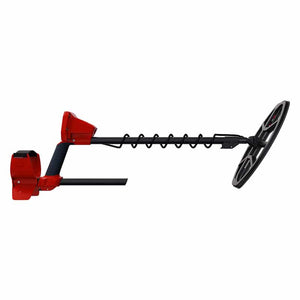

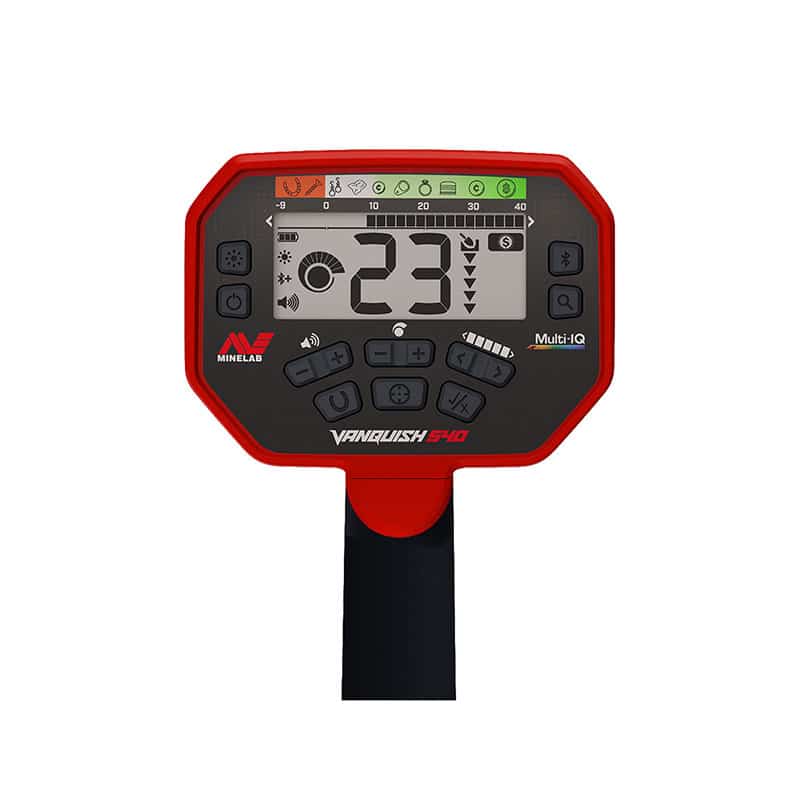

At 1.3 kg (2.8 lbs) assembled, the VANQUISH 540 is built for long hunts. The telescoping shaft adjusts from 76 cm to 145 cm (30 to 57 in) without tools and folds down for transport. The LCD shows target ID, 5-level depth indicator, battery level, and sensitivity in one view, with a red LED backlight for low-light hunting. All 10 controls are on the face of the box for one-handed operation, and Noise Cancel is automatic.

Audio runs five distinct tones across the target ID scale, giving you a clear read on high conductors, mid-range targets, low conductors, and iron before you start digging. Ferrous Volume is independently adjustable across 10 levels, so you can keep iron as a quiet background reference rather than cutting it entirely. The built-in speaker runs at 10 volume levels; wired headphones plug into the 3.5 mm jack; compatible Bluetooth aptX Low Latency headphones connect wirelessly without introducing the audio lag that makes tone timing unreliable. A dedicated pinpointer like the Minelab Pro-Find 35 tightens recovery after the coil locates a target.

The V12 Search Coil

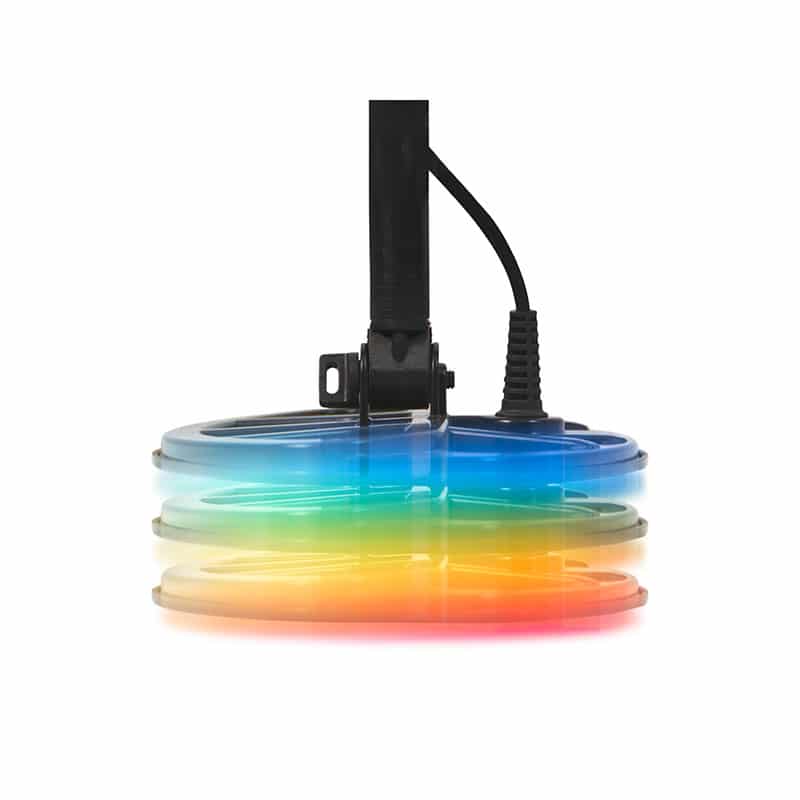

The included V12 is a 12"x9" Double-D elliptical coil, waterproof to 1 m. The DD detection field gives better separation in dense target environments than a concentric coil of similar size, and the 12-inch footprint covers ground efficiently without sacrificing sensitivity on smaller targets. Minelab's V8 (8"x5") and V10 (10"x7") DD coils fit the VANQUISH 540 for tighter work in heavy iron or more precise coverage in small areas, and all V-series coils swap with the same twist-lock collar, no tools required.

Minelab VANQUISH 540 Specifications

• Operation Frequency: Multi-IQ (simultaneous multiple frequency)
• Search Modes: Coin, Relic, Jewellery, All Metal, Custom
• Target ID Scale: Ferrous -19 to 0, Non-Ferrous 1 to 40
• Discrimination Segments: 25
• Iron Bias: High, Low
• Sensitivity Levels: 10
• Depth Indicator: 5 Levels
• Target Tones: 5
• Volume Control: 10 Levels
• Ferrous Volume: 10 Levels
• Noise Cancel: Auto
• Audio Output: Built-in speaker, wired 3.5 mm, Bluetooth aptX Low Latency
• Display: Monochrome LCD with red LED backlight
• Search Coil: V12 12"x9" Double-D Elliptical, waterproof to 1 m (3.3 ft)
• Weight: 1.3 kg (2.8 lbs)
• Length Extended: 145 cm (57 in)
• Length Collapsed: 76 cm (30 in)
• Battery: 4 x AA NiMH Rechargeable (included)
• Operating Temperature: -10°C to +40°C (14°F to 104°F)
• Waterproof Rating: Coil waterproof to 1 m (3.3 ft); control box weather-resistant
• Warranty: 3 Years (control box and coil)

Why Buy the Minelab VANQUISH 540 from Serious Detecting

We are an authorized Minelab dealer, so every VANQUISH 540 we sell activates the full 3-year manufacturer warranty on the control box and coil. Our team hunts Multi-IQ machines, which means setup questions and field-tuning advice come from actual experience, not a support script. All orders ship free, we match any lower price from an authorized US dealer, and our 30-day return policy covers any order that doesn't work out. The SD bundle of finds bag, digger, and gloves ships with every VANQUISH 540 at no extra charge.
