XP ORX Metal Detector with 9.5" Elliptical DD High Frequency Waterproof Coil

The XP ORX with 9.5-inch elliptical high-frequency coil is a wireless metal detector built for gold prospecting in mineralized ground and coin hunting in trashy sites, running 21 selectable frequencies that let you tune detection depth and small-target sensitivity to match your terrain. This detector ships with four factory programs (two gold, two coin) and two user-customizable slots, so you can start hunting immediately or dial in your own settings as you learn the machine. The elliptical coil shape covers ground faster than a round coil of similar weight and slips between rocks and brush where circular coils hang up, making it a strong choice for detectorists working variable terrain from decomposed granite hillsides to iron-choked homesteads.

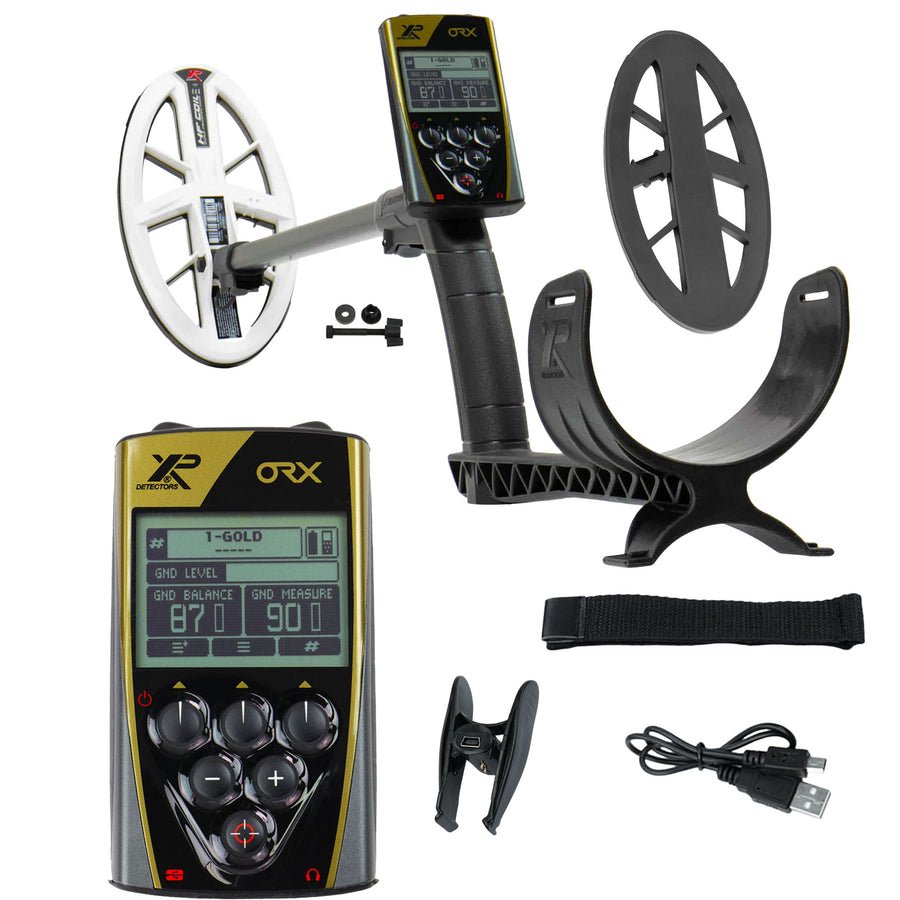

What's Included with the XP ORX

• XP ORX metal detector with 9.5-inch elliptical DD high-frequency coil
• ORX remote control with backlit display
• S-telescopic Lite stem (folds for transport)
• Lithium rechargeable batteries
• USB charging cable

High-Frequency Gold Detection in Variable Mineralization

Low to Average Mineralization

The ORX's Gold program runs best in soils with moderate iron content and stable ground phase. You'll pull medium and large nuggets from dry washes, decomposed granite hillsides, and alluvial benches where hot rocks aren't dense. The detector's ground balance system offers manual adjustment or automatic fast-grab tracking, so you can lock in stable threshold when you move between soil types. The elliptical coil's 9.5-inch length covers more ground per swing than a 9-inch round coil while maintaining the maneuverability you need in rocky terrain. Discrimination in the Gold program uses five levels of IAR (Iron Amplitude Rejection) to filter ferrous trash without masking small gold signals. Hunters working decomposed quartz veins can use higher frequencies for sensitivity to small targets, then step down to lower frequencies when larger specimens are the target and you want deeper penetration through caliche layers.

Heavy Mineralization

The Fine Gold program handles hot ground where single-frequency detectors chatter. You'll use this mode in laterite soils, black sand concentrations, and ironstone country where the ground signal overwhelms the target signal on conventional machines. The ORX's fast reactivity setting (four levels available) lets you separate small nuggets from ferrous fragments in the same swing. Ground balance stays stable across phase shifts that would force constant retuning on fixed-frequency detectors. The elliptical coil shape reduces ground coupling compared to a round coil of the same surface area, so you get cleaner threshold in patches of magnetic soil. The Fine Gold program at its highest frequency provides maximum sensitivity to small gold targets, accepting the shallower depth in exchange for hearing targets other detectors miss entirely.

Saltwater Beach and Wet Sand

The ORX includes a salt mode with ground rejection, letting you hunt the surf line and wet sand without the false signals that plague VLF detectors in conductive environments. The elliptical coil is waterproof, so you can work the wash zone where gold chains and rings settle after storms. The remote control mounts on your hip or chest above the waterline. Lower frequencies balance depth and stability in wet sand, while the discrimination system filters unwanted targets without sacrificing gold jewelry in the mid-conductivity range.

Parks and Trashy Sites

The Coin Fast program handles contaminated ground where iron nails, foil, and aluminum scrap mask good targets. Four levels of reactivity let you tune target separation to match trash density. In a site with moderate junk, adjusting reactivity gives you enough recovery speed to hear a coin signal between two nails without the instability that comes from maxing out the setting. The elliptical coil's narrow profile works well in tight rows between playground equipment and along fence lines where a larger round coil would bang obstacles. The ORX's target ID runs from 0 to 99 with iron probability displayed as a percentage, so you can make dig decisions based on conductivity and ferrous content together. Discrimination offers 99 levels of granularity, letting you notch out specific trash signatures while accepting coins and jewelry in adjacent conductivity bands. The detector's fast target response speed means you'll hear a dime signal immediately after a nail signal in the same swing, a capability that separates the ORX from slower-recovery machines in high-trash environments. Detectorists comparing options in the XP ORX metal detector lineup often weigh the elliptical coil's coverage speed against the 9-inch round coil's pinpoint precision in tight spaces.

Wireless System Architecture and Field Ergonomics

• Patented radio frequency wireless: the coil, remote, and optional headphones communicate via digital radio link with no cables to tangle or break.
• Lightest weight in class: 1 pound 14 ounces with remote hip-mounted, so you can hunt longer sessions without wrist fatigue or shoulder strain.
• S-telescopic Lite stem deploys in seconds and folds for transport without tools, making the detector easy to stow in a backpack or vehicle.
• Lithium rechargeable batteries in both the coil and remote charge via any certified USB adapter or computer USB port, no proprietary charger required.

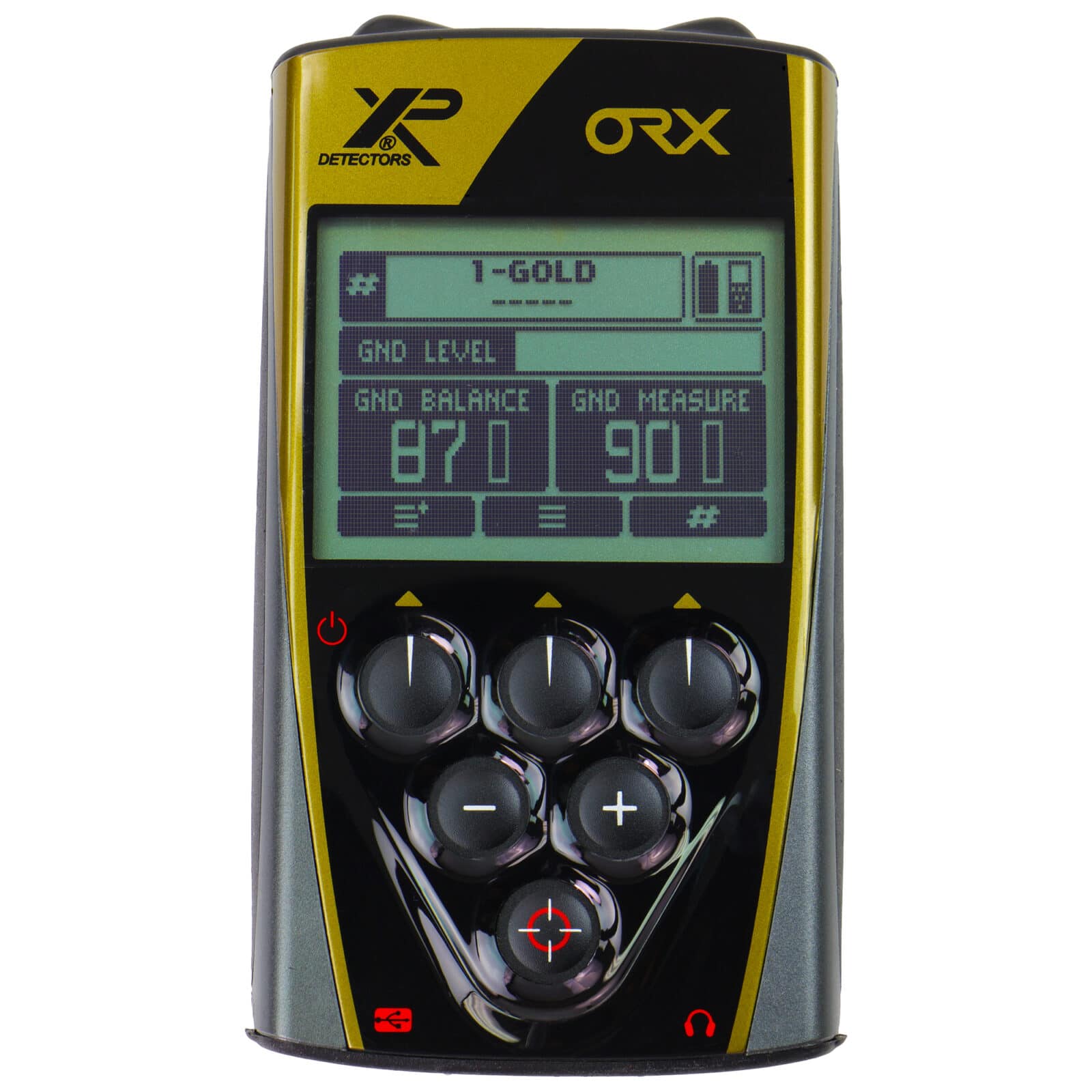

• Backlit display: the ORX remote displays target information and settings on a high-contrast LCD readable in direct sunlight, so you can adjust programs and discrimination settings without squinting.

Frequency Selection and Target Discrimination

The ORX with elliptical HF coil runs 21 selectable frequencies from 15 kHz to 80 kHz, giving you extreme sensitivity to small gold at the high end and stable depth on coins at the mid-range frequencies. The detector's frequency shift feature lets you fine-tune each base frequency to avoid electromagnetic interference from power lines, radio towers, or other detectors operating nearby. You'll use this capability in urban parks where electrical noise would otherwise destabilize threshold on a fixed-frequency machine. The ORX's discrimination system combines IAR (Iron Amplitude Rejection) with normal discrimination modes, so you can filter ferrous trash in gold-bearing ground without losing small nuggets that share conductivity ranges with iron fragments. The target ID system displays both conductivity (0 to 99) and iron probability as a percentage, giving you two data points to decide if a signal is worth digging. In practice, this dual-readout system helps you separate rusty bottle caps from silver coins in the same conductivity band, a distinction that single-number target ID systems struggle to make. Hunters working sites with mixed trash density can save custom programs to the two user slots, dialing in discrimination thresholds and reactivity settings for specific environments without losing the factory presets.

Pinpoint Function and Target Zoom

The ORX's pinpoint function lets you center over a target by pressing the pinpoint button, then use the zoom feature to gauge depth and isolate the signal from adjacent junk. In a trashy site where multiple targets sit within the coil's footprint, the zoom function narrows the detection field so you can identify which signal is the good target and which is the nail or foil fragment sitting inches away. This capability speeds up recovery in contaminated ground where digging every signal would waste time on junk. The pinpoint mode also helps you mark target locations for grid searches in open fields, letting you flag multiple signals before you start digging so you can work the site methodically rather than wandering between scattered hits.

Coil Compatibility and Field Swaps

The ORX is compatible with XP's X35 coil range in addition to the high-frequency coils it ships with. X35 coils run 35 selectable frequencies and cover lower frequency bands for deeper detection on larger targets. You can swap coils in the field without tools, so if you're working a site where depth matters more than small-target sensitivity, you can switch to an 11-inch X35 coil mid-session. The wireless architecture means coil swaps take seconds: disconnect the old coil, snap on the new one, and the detector automatically recognizes the coil type and adjusts available frequency ranges. This modularity lets you build a detector system tailored to your local ground conditions and target types rather than buying separate machines for gold prospecting and coin hunting. Detectorists who hunt both mineralized gold country and urban parks often run the elliptical HF coil for gold work and keep a 9-inch X35 coil for coin sites, swapping between them as needed. For hunters looking to compare detector platforms, our guide to coin-hunting detectors breaks down frequency ranges and coil options across brands.

Operating Temperature and Environmental Limits

The ORX operates in temperatures from 23°F to 104°F, covering the range most detectorists hunt in. The lithium batteries perform well in cold weather down to the lower operating limit, though runtime drops slightly in freezing conditions as battery chemistry slows. In hot desert environments, keep the remote control out of direct sun when you're not actively hunting to avoid overheating the internal electronics. The coil is waterproof and submersible, but the remote control is splash-resistant only, so mount it on your hip or chest when you're working the surf zone. For full submersion detecting, XP offers an optional antenna that lets you submerge the coil while keeping the remote above water.

Compare within the family

Specifications

• Operating Frequencies: 21 selectable (15 kHz to 80 kHz with shift)
• Coil: 9.5in elliptical DD, waterproof, wireless
• Weight: 1 lb 14 oz (870g) with batteries
• Battery Life: 20 to 28 hours (coil), 19 hours (remote)
• Battery Type: Lithium polymer rechargeable
• Wireless: 2.4 GHz digital, 36 automatic channels
• Display: 8192 pixels, backlit LCD
• Ground Balance: Automatic or manual (60 to 90)
• Discrimination: IAR + Normal, 99 levels
• Target ID: 0 to 99 with iron probability
• Reactivity: 4 levels
• Factory Programs: 4 + 2 customizable
• Operating Temperature: 23°F to 104°F (-5°C to +40°C)
• Stem: S-telescopic Lite, folds to 58cm, deploys to 130cm
• Warranty: 5 years parts and labor, 2 years battery
