What Is the Garrett Vortex VX9 Metal Detector?
The Garrett Vortex VX9 metal detector is the top tier of Garrett's Vortex Series, designed for intermediate and advanced detectorists hunting coins, relics, jewelry, and gold across varied terrain. The VX9 runs Garrett's MD-MF (Multi-Detect Multi-Frequency) platform with seven selectable frequency options: five single frequencies (5, 9, 13, 18, 25 kHz) and two simultaneous multi-frequency modes (Metal mode for general outdoor work, Multi-Frequency Salt mode for saltwater beach hunting). The chassis is fully submersible to 16 ft (5 m), the LCD is backlit for night and low-light hunts, and Z-Lynk 2.4 GHz wireless audio is built into the control unit for cord-free headphone use.
MD-MF (Vortex) Multi-Frequency Technology Explained
Simultaneous multi-frequency means the VX9 transmits and receives on multiple frequencies at once. In the field, that translates to stable target ID on a silver dime buried six inches deep in black sand, and a copper penny next to a rusty nail in a colonial relic permission. Single-frequency VLF detectors often null out in those scenarios because mineralization or iron interference overwhelms the signal at a fixed frequency. The VX9 processes the multi-frequency stream in real time, filtering ground noise while preserving target response. On a salt beach at low tide, where a fixed-frequency detector chatters and drifts, the VX9 holds a clean threshold and reports consistent target ID numbers. Switching to a higher single frequency (18 or 25 kHz) sharpens response on small low-conductive targets like thin gold chains; dropping to 5 kHz favors high-conductive deep silver in clean ground.
VX9 Search Modes and 3-Tier MD-MF Target ID
The VX9 ships with seven search modes plus Pinpoint:
- Standard: general-purpose detection for relics, jewelry, and most international coins
- USA Coins: tuned for U.S. coin range
- Beach: calibrated for wet sand and surf, pairs with Multi-Frequency Salt mode
- Zero Discrimination: accept everything, useful in known-clean sites
- Thin Coins (VX9-only): tuned for hammered silver and small thin ancient gold coins, with reduced response on common high-tone targets
- Fast (VX9-only): faster recovery for competition hunts and high-trash sites, with reduced iron volume
- Custom: save your own discrimination, sensitivity, and tone configuration
The 3-tier MD-MF Target ID scale gives a non-ferrous reading plus two ferrous scales, designed to surface complex targets that register across multiple metal ID ranges at once. Pair that with the VX9's six-step Iron Boundary, six-step Bottlecap Reject, Iron Audio, Iron Volume (eight levels), and notch discrimination, and you have a full toolkit for unmasking non-ferrous targets in iron-trashy ground.
What the VX9 Finds and Where It Shines
The VX9 fits coin shooters, relic hunters, and beach detectorists who want one detector that handles parks, salt sand, and iron-heavy historical permissions on the same swing. Coin work in urban parks and athletic fields uses USA Coins mode to separate clad quarters from aluminum pull-tabs in dense trash. Relic detectorists working colonial home sites, Civil War camps, and older battlefields run Standard or Fast mode with Iron Volume turned down to pull buttons, buckles, and Minie balls out of iron scatter. Beach and shallow-water hunters get the Multi-Frequency Salt mode plus full 16-foot IP-rated submersion for surf wading, river crossings, and wet-sand hunts. Gold rings, platinum bands, and silver chains fall well inside the VX9's mid-to-high conductivity sweet spot.
The VX9 also detects gold, including small targets at 18 kHz and 25 kHz single-frequency operation. For deep gold nuggets and micro nuggets in heavily mineralized desert or mountain ground, a pulse induction (PI) detector or a dedicated high-frequency gold VLF will still outperform a general-purpose multi-frequency machine. The Garrett Axiom PI is the in-brand answer for serious gold prospecting; the VX9 is the right call for hunters who want occasional gold capability alongside coin, relic, and beach work.
Garrett Vortex VX9 Key Specs
| Technology | MD-MF (Multi-Detect Multi-Frequency) Vortex platform |
| Frequency Options | 5 single frequencies (5, 9, 13, 18, 25 kHz) plus 2 multi-frequency modes (Metal, Multi-Frequency Salt) |
| Search Modes | Seven (Zero, Standard, USA Coins, Custom, Beach, Thin Coins, Fast) plus Pinpoint |
| Target ID Scale | 3-tier MD-MF (non-ferrous plus two ferrous scales) |
| Tones | 2-tone, 3-tone, or 5-tone audible target ID |
| Recovery Speed | 3 settings |
| Sensitivity | 8 settings |
| Iron Audio & Iron Volume | Iron Audio: Yes. Iron Volume: 8 adjustable levels. |
| Iron Boundary & Bottlecap Reject | 6 settings each (multi-frequency function) |
| Ground Balance | Auto, 175-point hi-resolution range |
| Frequency Shift (EMI) | Yes |
| Wireless Audio | Built-in Z-Lynk 2.4 GHz (headphones sold separately) |
| Search Coil | 11" Multi-Flex DD (8.5" x 11"), waterproof, with protective cover |
| Display | Backlit LCD with target ID, depth, and battery indicator |
| Waterproof Rating | Fully submersible to 16 ft (5 m) |
| Button Lock | Dive Mode keypad lock |
| Length | 24.75" to 56.75" (62.86 cm to 144.14 cm) adjustable, foldable |
| Weight | 3 lb (1.38 kg) with the 8.5" x 11" coil |
| Battery | Built-in lithium-ion rechargeable, approximately 15 hours per charge, USB-C charging |
| Warranty | 3 Years, Limited Parts/Labor |
| Country of Origin | Made in USA (Garland, Texas) |

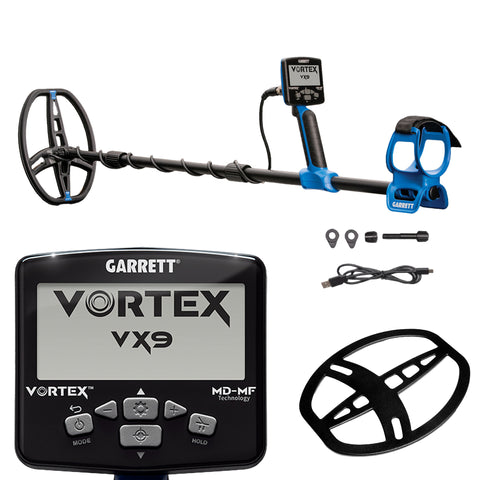

| Package Contents | VX9 metal detector, 11" Multi-Flex DD search coil with protective cover, high-speed USB charging and data cable, premium armrest strap, quick-start guide |
Vortex Series Comparison: VX5, VX7, VX9
| Feature | Vortex VX5 | Vortex VX7 | Vortex VX9 |
|---|
| Target ID Scale | 1 scale (0 to 99) | 2-tier scales | 3-tier scales |
| Frequencies | 13 kHz, Multi-Frequency | 5, 13 kHz, Multi-Freq., Multi-Salt | 5, 9, 13, 18, 25 kHz, Multi-Freq., Multi-Salt |
| Search Modes | Zero, Standard, USA Coins, Custom | Zero, Standard, USA Coins, Beach, Custom | Zero, Standard, USA Coins, Thin Coins, Beach, Custom, Fast |
| Recovery Speed | Fixed | 2 settings | 3 settings |
| Bottlecap Reject (MF) | Fixed | 4 settings | 6 settings |
| Iron Boundary (MF) | Fixed | 4 settings | 6 settings |
| Tones | 3 | 3, 5 | 2, 3, 5 |
| Z-Lynk Wireless | Yes | Yes | Yes |
| Sensitivity Settings | 8 | 8 | 8 |
| Length, Adjustable | 24.75" to 56.75" | 24.75" to 56.75" | 24.75" to 56.75" |
| Weight (with 8.5" x 11" coil) | 3 lb (1.38 kg) | 3 lb (1.38 kg) | 3 lb (1.38 kg) |
| Waterproof Rating | 16 ft (5 m) | 16 ft (5 m) | 16 ft (5 m) |
| Warranty | 3 Years | 3 Years | 3 Years |
Garrett offers a paid software upgrade path within the Vortex Series, so a VX5 owner can transform their machine into a VX7 or VX9 over time with manufacturer firmware upgrades; the chassis hardware is shared across all three models.
Gear Up: Recommended Accessories for the Garrett VX9
A pinpointer cuts plug-side recovery time. The Garrett Pro-Pointer AT is waterproof to 10 ft and matches Garrett's one-button interface. Garrett also offers Z-Lynk wireless headphones (MS-3 over-ear, CS-3 in-ear) for cord-free audio, and waterproof Vortex submersible headphones with a 1/8" jack for underwater hunts. Aftermarket Vortex coils include the 6" x 11" DD Viper (target separation in trashy sites) and the 14" x 11" DD Reaper (deeper coverage in open ground). Browse the wider aftermarket search coil selection or a carry bag to protect the rig in transit. Pair the VX9 with the digging tool selection for recovery work.
