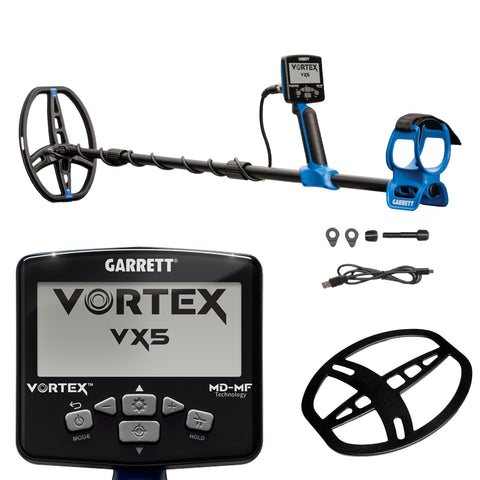

What Is the Garrett Vortex VX5 Metal Detector?
The Garrett Vortex VX5 metal detector is the entry-tier model in Garrett's three-detector Vortex Series, sitting below the VX7 and VX9 on the same chassis hardware. Garrett manufactures the entire Vortex Series at its Garland, Texas headquarters, the same facility the company has operated from since 1964. The VX5 fits hobbyists stepping up from a beginner single-frequency machine who want simultaneous multi-frequency capability for parks, freshwater beaches, and moderately mineralized inland soil, without the higher-tier price of a flagship-class detector.
MD-MF (Vortex) Multi-Frequency Technology Explained
Simultaneous multi-frequency means the VX5 transmits and receives on multiple frequencies at once in its Multi-Frequency mode. The detector processes the multi-frequency stream in real time, filtering ground response while preserving target signal. On lightly mineralized parks and freshwater beaches, where a single-frequency VLF would drift and chatter, the VX5 holds a clean threshold and reports consistent target ID. The VX5 also offers a 13 kHz single-frequency mode for sites where a single fixed frequency gives you a sharper response on coin-sized targets in clean ground.
What Multi-Frequency Means in the Field
- Parks and athletic fields: Multi-Frequency mode separates clad coins from aluminum trash with stable target ID across the spectrum.
- Freshwater beaches: The VX5 reads through low-to-moderate ground mineralization without constant retuning.
- Inland relic permissions with moderate iron: Iron Audio and Iron Volume controls keep non-ferrous signals readable next to ferrous trash.
VX5 Search Modes, Tones, and Discrimination Tools
The VX5 ships with four search modes plus a Pinpoint function:
- Standard: general-purpose detection for relics, jewelry, and most international coins
- USA Coins: tuned for U.S. coin range
- Zero Discrimination: accept everything, useful in known-clean sites
- Custom: save your own discrimination, sensitivity, and tone configuration
Audible target ID runs at 3 tones. The VX5 carries a single-tier MD-MF Target ID scale (0 to 99). Iron Audio is on, Iron Volume is adjustable, Notch Discrimination is on, and High-Resolution Iron Discrimination is on. Recovery Speed is fixed (Garrett tuned this for fast adjacent-target separation rather than user-adjustable). Bottlecap Reject and Iron Boundary are also fixed multi-frequency settings on the VX5; both functions become user-adjustable on the VX7 and VX9 if you upgrade.
What the VX5 Finds and Where It Shines
Coin shooters working urban parks and athletic fields use the USA Coins or Standard mode to separate clad quarters, silver dimes, and copper pennies from aluminum pull-tabs. Multi-frequency operation reads cleaner in iron-trashy sites than a single-frequency VLF at the same price tier. Jewelry hunters at freshwater swim beaches benefit from the same target separation and the 16-foot IP-rated submersion build, which covers wading, rain, and full coil submersion. The VX5 also detects gold jewelry, lightweight chains, and shallow gold targets in moderate soil.
The VX5 is not the right pick for serious gold nugget prospecting in heavily mineralized desert or mountain ground; a dedicated pulse induction detector or a high-frequency VLF gold machine outperforms a general-purpose multi-frequency detector on small low-conductive nuggets in hot soil. The Garrett Axiom PI and the Garrett Goldmaster 24k high-frequency VLF cover that hunt type in the Garrett lineup. The VX5 is the right pick when you want one detector that covers coins, jewelry, and relics across parks, freshwater, and moderate inland sites.
Garrett Vortex VX5 Key Specs
| Technology | MD-MF (Multi-Detect Multi-Frequency) Vortex platform |
| Frequency Options | 2 total: 13 kHz single frequency plus Multi-Frequency mode |
| Search Modes | Four (Zero, Standard, USA Coins, Custom) plus Pinpoint |
| Target ID Scale | Single-tier MD-MF (0 to 99) |
| Tones | 3-tone audible target ID |
| Recovery Speed | Fixed (Garrett tuned for fast adjacent-target separation) |
| Sensitivity | 8 settings |
| Iron Audio & Iron Volume | Iron Audio: Yes. Iron Volume: Yes. |
| Iron Boundary & Bottlecap Reject | Fixed (multi-frequency function) |
| Notch Discrimination | Yes |
| High-Resolution Iron Discrimination | Yes |
| Ground Balance | Auto Ground Balance |
| Frequency Shift (EMI) | Yes (Channel selection) |
| Wireless Audio | Built-in Z-Lynk 2.4 GHz (headphones sold separately) |
| Search Coil | 11" Multi-Flex DD (8.5" x 11"), waterproof, with protective cover |
| Display | Backlit LCD with target ID, depth, and battery indicator |
| Waterproof Rating | Fully submersible to 16 ft (5 m) |
| Button Lock | Dive Mode keypad lock |
| Length | 24.75" to 56.75" (62.86 cm to 144.14 cm) adjustable, foldable |
| Weight | 3 lb (1.38 kg) with the 8.5" x 11" coil |
| Battery | Built-in lithium-ion rechargeable, USB-C charging |
| Warranty | 3 Years, Limited Parts/Labor |
| Country of Origin | Made in USA (Garland, Texas) |
| Package Contents | VX5 metal detector, 11" Multi-Flex DD search coil with protective cover, USB-C charging and data cable, premium armrest strap, quick-start guide |
Vortex Series Comparison: VX5, VX7, VX9
| Feature | Vortex VX5 | Vortex VX7 | Vortex VX9 |
|---|
| Target ID Scale | 1 scale (0 to 99) | 2-tier scales | 3-tier scales |
| Frequencies | 13 kHz, Multi-Frequency | 5, 13 kHz, Multi-Freq., Multi-Salt | 5, 9, 13, 18, 25 kHz, Multi-Freq., Multi-Salt |
| Search Modes | Zero, Standard, USA Coins, Custom | Zero, Standard, USA Coins, Beach, Custom | Zero, Standard, USA Coins, Thin Coins, Beach, Custom, Fast |
| Recovery Speed | Fixed | 2 settings | 3 settings |
| Bottlecap Reject (MF) | Fixed | 4 settings | 6 settings |
| Iron Boundary (MF) | Fixed | 4 settings | 6 settings |
| Tones | 3 | 3, 5 | 2, 3, 5 |
| Z-Lynk Wireless | Yes | Yes | Yes |
| Sensitivity Settings | 8 | 8 | 8 |
| Length, Adjustable | 24.75" to 56.75" | 24.75" to 56.75" | 24.75" to 56.75" |
| Weight (with 8.5" x 11" coil) | 3 lb (1.38 kg) | 3 lb (1.38 kg) | 3 lb (1.38 kg) |
| Waterproof Rating | 16 ft (5 m) | 16 ft (5 m) | 16 ft (5 m) |
| Warranty | 3 Years | 3 Years | 3 Years |
Garrett's Vortex Series offers a paid software upgrade path between models, so a VX5 owner can transform their machine into a VX7 or VX9 over time without buying new hardware. The chassis, coil mount, battery, length range, waterproof rating, and Z-Lynk wireless are shared across all three models. Upgrading adds frequencies, more target ID resolution, additional search modes, and adjustable recovery speed, Bottlecap Reject, and Iron Boundary settings.
Gear Up: Recommended Accessories for the Garrett VX5
The Garrett Pro-Pointer AT pinpointer is the natural recovery companion, waterproof to 10 ft with Garrett's one-button interface. For wireless audio, the Garrett MS-3 (over-ear) and CS-3 (in-ear) Z-Lynk wireless headphones pair directly with the VX5. The Vortex submersible headphones with a 1/8" jack are designed for underwater hunts. Aftermarket Vortex coils include the 6" x 11" DD Viper for target separation in trashy sites and the 14" x 11" DD Reaper for deeper coverage in open ground. Browse the wider aftermarket search coil selection or a carry bag to protect the rig in transit. Round out the recovery kit from the digging tool collection.
