Garrett Vortex VX7 Metal Detector Overview

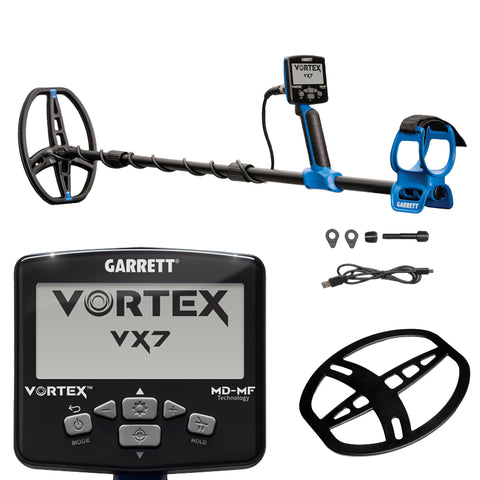

The Garrett Vortex VX7 is the middle model of the Vortex Series and the first one Garrett builds for salt water. It runs Garrett's MD-MF (Multi-Detect Multi-Frequency) platform with four frequency settings: 5 kHz, 13 kHz, Multi-Frequency and Multi-Salt. Five search modes (Zero, Standard, USA Coins, Beach and Custom) plus Pinpoint cover land and beach, and the 2-tier Target ID display gives a ferrous reading next to the 0 to 99 Target ID. Garrett rates the VX7 for more sensitivity and depth than the VX5. You can choose 3 or 5 tones and 2 recovery speeds, and in Multi-Frequency the Bottlecap Reject and Iron Boundary are adjustable, with 4 settings each. Sensitivity has 8 settings and Iron Volume runs 1 to 8. The detector is fully waterproof to 16 ft (5 m), collapses for transport and weighs 3 lb (1.38 kg) with the 11 inch DD coil (8.5 x 11 inch) in the box. Z-Lynk wireless is built in, charging is over USB-C, and the warranty is 3 years, limited parts and labor.
Vortex VX7 vs. Vortex VX9: Which Should You Buy?
The VX7 and VX9 share the coil, weight, waterproof rating, Z-Lynk wireless, Multi-Salt and Beach mode, so both handle wet sand and surf. The VX9 adds three single frequencies (9, 18 and 25 kHz), two extra search modes (Thin Coins and Fast), a 3-tier Target ID, a third recovery speed, a 2-tone option, and more Bottlecap Reject and Iron Boundary settings (6 each, from 0 to 5, instead of 4). Garrett's FAQ calls the VX7 practical and approachable for hunters moving beyond entry level.
One step down, the VX5 has the same chassis and coil but only 13 kHz and Multi-Frequency, four search modes, one Target ID scale, fixed recovery speed and fixed bottlecap and iron settings, and Garrett points VX5 owners who hunt salt water regularly to the VX7 or VX9.
If you split your time between ocean beaches and parks and want Multi-Salt without paying for the full feature set, the VX7 is the one we recommend. If you hunt competition events, very trashy sites or thin hammered and small gold coins, the VX9's Fast and Thin Coins modes are worth the step up.
Vortex VX7, Best For:
- Beach and surf hunters who want Multi-Salt and Beach mode with a 16 ft waterproof rating
- Park hunters who want to pick between 2 recovery speeds and tune Bottlecap Reject and Iron Boundary
- Hunters moving up from an entry detector who want dual Target ID scales without a long menu
Vortex VX9, Best For:
- Competition and high-trash hunts, using Fast mode and the third recovery speed
- Thin hammered coins, small gold coins and small jewelry, using Thin Coins mode
- Detectorists who want seven frequency settings and the 3-tier Target ID
VX7 Settings That Matter at the Beach and in the Park
Beach mode is the VX7's key setting. Garrett sets it to default to Multi-Salt and to eliminate most common ferrous items, so switching to Beach is all you need to do for wet sand and surf. We ground balance on the wet sand itself, by holding the Ground Balance button while bouncing the coil until the ground response is minimal, and then set sensitivity just below the point where the threshold starts to chatter.
Back on land, Standard, USA Coins, Zero and Custom work as on the VX5, with Multi-Frequency as the default. Bottlecap Reject (for tricky bottlecaps) and Iron Boundary (for discriminating chunky iron) only work in Multi-Frequency; the VX7 has 4 settings each, and we raise them one step at a time in trashy parks rather than notching out whole Target ID ranges. The second recovery speed helps when good targets sit tight against trash, and the 5-tone setting splits the Target ID range into more audio steps than the 3-tone setting. Iron Volume (1 to 8) keeps iron audible but quieter, and the Channel setting (1 to 8) moves the detector away from electrical interference.
Where the Vortex VX7 Works Best and Its Limits
The VX7 fits ocean beaches, wet sand and shallow surf, plus parks, fields and competition hunts, which are the hunting types Garrett lists for it. For water work, Garrett's quick start guide says wired headphones are needed for fully submerged use, and that you should lock the buttons (press plus and minus together three times) before going deeper than 6 ft (2 m). Rinse the detector in fresh water after every saltwater hunt, before collapsing the shafts.
The VX7 is not a deep-water dive detector beyond its 16 ft rating, and it lacks the VX9's Thin Coins and Fast modes and its 9, 18 and 25 kHz frequencies. For small gold nuggets in mineralized ground, Garrett's pulse induction Axiom is the better tool.
Coils and Accessories That Fit the Vortex VX7
The VX7 takes every Vortex coil. Alongside the 11 inch stock DD sit the large 14 x 11 inch Reaper, the narrow 6 x 11 inch Viper and the small 5 x 8 inch Ripper, which we keep for tight spots and iron-heavy ground. The 8.5 x 11 inch Raider replaces the stock coil size. For a beach-first VX7, we recommend the Reaper for covering long stretches of open sand, and the Viper for crowded swim areas with more trash.
Audio on the beach is a two-part setup. Z-Lynk is built in, so the MS-3 or CS-3 Z-Lynk headphones pair directly for dry sand and land, and the wired Garrett Submersible Headphones for Vortex cover fully submerged hunting. Garrett's Pro-Pointer AT pinpointers are waterproof to 20 ft (6 m); the Z-Lynk version syncs with the VX7 so you hear both in the same wireless headphones.
Vortex Series Comparison: VX5, VX7 and VX9
All three Vortex models share the MD-MF platform, the 11 inch DD coil, the 3 lb weight and a 16 ft waterproof rating. The differences sit in frequencies, search modes, Target ID tiers, recovery speed and the adjustable iron and bottlecap settings.
| Feature | Vortex VX5 | Vortex VX7 | Vortex VX9 |
|---|
| Target ID Scale (MD-MF) | One scale, 0 to 99 | 2-tier scales | 3-tier scales |
| Frequencies | 13 kHz, Multi-Freq. | 5, 13 kHz, Multi-Freq., Multi-Salt | 5, 9, 13, 18, 25 kHz, Multi-Freq., Multi-Salt |
| Search Modes | Zero, Standard, USA Coins, Custom | Zero, Standard, USA Coins, Beach, Custom | Zero, Standard, USA Coins, Thin Coins, Beach, Custom, Fast |
| Recovery Speed | Fixed (fast) | 2 settings | 3 settings |
| Bottlecap Reject (Multi-Freq. only) | Fixed | 4 settings | 6 settings (0 to 5) |
| Iron Boundary (Multi-Freq. only) | Fixed | 4 settings | 6 settings (0 to 5) |
| Number of Tones | 3 | 3, 5 | 2, 3, 5 |
| Increased Sensitivity / Depth | No (base level) | Yes | Yes |
| Sensitivity Settings | 8 | 8 | 8 |
| Iron Volume | 1 to 8 | 1 to 8 | 1 to 8 |
| Ground Balance | Auto | Auto | Auto |
| Wireless Audio | No | Z-Lynk built in | Z-Lynk built in |
| Included Coil | 11 inch DD (8.5 x 11 inch) | 11 inch DD (8.5 x 11 inch) | 11 inch DD (8.5 x 11 inch) |
| Weight (with 8.5 x 11 inch coil) | 3 lb (1.38 kg) | 3 lb (1.38 kg) | 3 lb (1.38 kg) |
| Length (adjustable) | 24.75 to 56.75 inch (62.86 to 144.14 cm) | 24.75 to 56.75 inch (62.86 to 144.14 cm) | 24.75 to 56.75 inch (62.86 to 144.14 cm) |
| Fully Waterproof To | 16 ft (5 m) | 16 ft (5 m) | 16 ft (5 m) |
| Charging | Rechargeable, USB-C | Rechargeable, USB-C | Rechargeable, USB-C |
| Warranty | 3 years, limited parts and labor | 3 years, limited parts and labor | 3 years, limited parts and labor |
For a side-by-side walk through all three, read our Garrett Vortex VX5 vs VX7 vs VX9 guide.
