Minelab EQUINOX 900 Multi-IQ Metal Detector with 11" and 6" Coils

The Minelab EQUINOX 900 is the machine most intermediate detectorists reach for when a single-frequency VLF starts losing target ID stability in high-mineralization soil, wet salt sand, or iron-dense sites. Multi-IQ transmits multiple frequencies simultaneously, producing IDs that hold across shifting ground conditions instead of drifting with soil chemistry. Coins and jewelry the old machine was skipping come back into range, and iron masking stops hiding them behind adjacent nails.

What You Gain Coming from a Single-Frequency Machine

• Target IDs that stay consistent across variable ground. Single-frequency machines assign different ID numbers to the same target in mineralized vs. clean soil. Multi-IQ averages signal data across the frequency range simultaneously, so a Roosevelt dime reads 73-75 in red clay, pasture, and wet sand alike.
• A Gold mode that changes detection behavior, not just sensitivity. Gold mode shifts signal processing toward high-frequency response, resolving small, low-conductivity targets in mineralized soils. Most VLF machines in all-metal mode chase the ground itself. Gold mode filters it out.
• Eight search profiles that save your settings per hunt type. Park 1, Park 2, Field 1, Field 2, Beach 1, Beach 2, Gold, and All Metal each store their own sensitivity, discrimination, tone count, recovery speed, and iron bias. Switch terrain, load the profile, hunt.
• Recovery Speed 1-8 for precise target separation in dense iron. A VLF with fixed recovery either misses the coin next to the nail or produces a chatty audio response you cannot sort. Recovery Speed 5-7 resolves adjacent signals in the trashiest environments without masking good targets.
• Waterproof to 5 m (16 ft) at IP68, not just splash resistant. The shaft, coil, and control pod are rated for deep water. Wade surf zones, work flooded cellar holes, or detect in driving rain without worrying about water intrusion.
• Six single frequencies (4, 5, 10, 15, 20, and 40 kHz) alongside Multi-IQ. For heavy EMI in urban areas, small gold in low-mineral soil, or saltwater conductivity isolation, the single-frequency options deliver a targeted approach without switching machines.

For a direct comparison of how the Minelab EQUINOX 900 performs against a popular single-frequency all-terrain machine, see our Garrett AT Max vs. EQUINOX 900 field comparison.

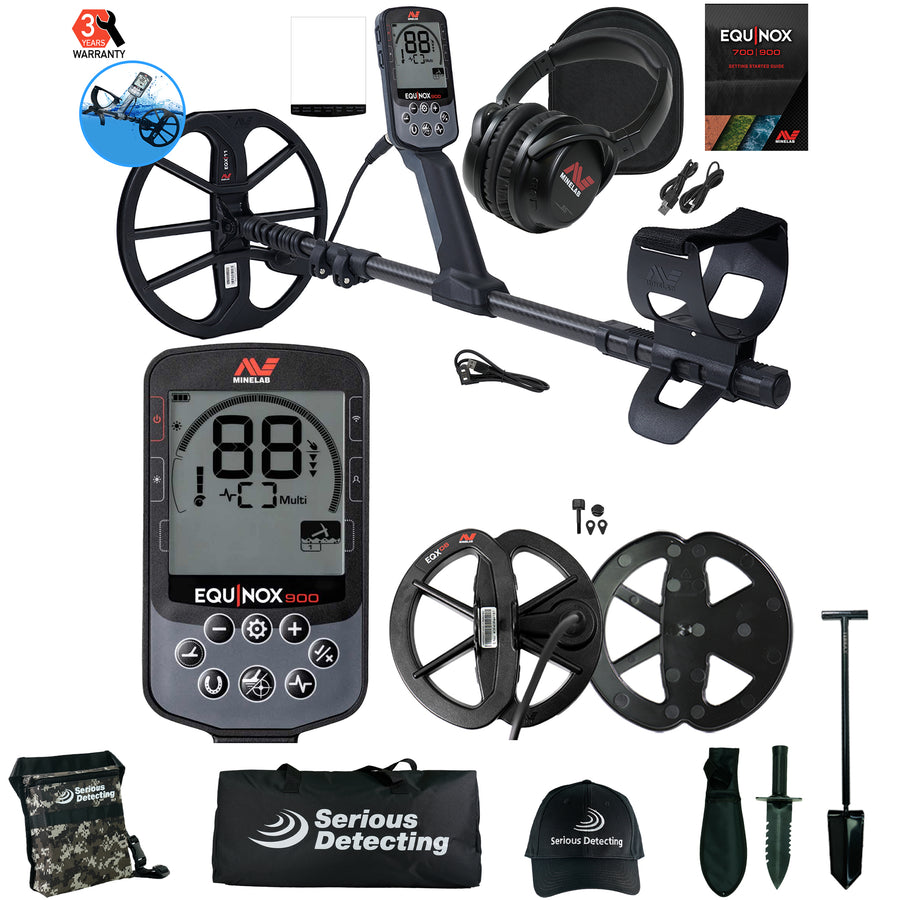

What Ships with the Minelab EQUINOX 900

Factory included:

• EQX11 11" Double-D Smart Coil with skidplate
• EQX06 6" Double-D Smart Coil with skidplate
• ML 85 Low-Latency Wireless Headphones
• Screen Protector
• Magnetic USB Charging Cable
• Getting Started Guide
• 3-Year Limited Manufacturer Warranty (Control Box and Coil)

Serious Detecting Bonus Kit (added automatically at checkout, one per detector):

• Finds Bag with 42" Waist Belt
• Double Serrated Hand Digger with Belt Holster
• All-Purpose Padded Carry Bag for Metal Detector and Accessories
• Serious Detecting Black Cap
• 34" Shovel

Hunting the Minelab EQUINOX 900: Field Applications

Parks and Urban Coin Hunting

Modern parks with bottle caps, foil, and iron are where single-frequency machines struggle hardest. Foil and pull tabs share the same target ID range as gold rings on many VLFs, and iron masking buries coins adjacent to nails. The 119-segment discrimination scale separates targets more precisely than a standard 0-99 scale, and Iron Bias (0-9) controls how aggressively the machine pushes borderline signals toward ferrous. Park 2 opens sensitivity for deeper targets; Park 1 tightens discrimination for dense surface trash.

• Mode: Park 2 (deeper targets) or Park 1 (dense surface trash)
• Sensitivity: 20-23; reduce if EMI is heavy
• Iron Bias: 3-5
• Recovery Speed: 5-6
• Tones: 5

Mineralized Relic and Agricultural Field Sites

Agricultural fields and old home sites with red clay or black dirt are where single-frequency VLFs lose ID stability. Ground mineralization can shift target IDs by 10 or more points, turning a confident signal into a guess. Multi-IQ processes ground balance across the full frequency range simultaneously, keeping IDs consistent across variable soil and hot rocks. Field 1 reduces sensitivity to surface debris; Field 2 pushes depth on low-conductivity targets in iron-contaminated ground.

• Mode: Field 1 (shallow, trashy) or Field 2 (depth, variable soil)
• Sensitivity: 18-22
• Ground Balance: Tracking
• Iron Bias: 4-6
• Recovery Speed: 4-5

Salt Beach and Surf Zone Detecting

Wet salt sand drives most VLFs into noise overload at high sensitivity, forcing a reduction that costs depth. Beach 1 handles dry and wet sand transition zones; Beach 2 is built for full salt-wet conditions including submerged work. The IP68 rating to 5 m (16 ft) covers surf zone entry without modification. Continuous Auto Noise Cancel handles variable EMI from saltwater conductivity, and the ML 85 headphones maintain wireless connection even at the edge of wave reach.

• Mode: Beach 2 (wet salt, submerged) or Beach 1 (dry/wet transition)
• Sensitivity: 18-20 in heavy mineral; increase in clean sand
• Ground Balance: Auto or Tracking
• Noise Cancel: Continuous Auto
• Recovery Speed: 3-5

Multi-IQ and Iron Bias

Multi-IQ transmits several frequencies at once rather than cycling between them. Return signals from each frequency are processed simultaneously and combined into a single target ID and audio response. The result stabilizes IDs in mineralized ground by accounting for conductivity behavior across the full frequency range. No best-frequency calculation happens after the sweep. The data generates in real time.

Iron Bias (0-9) addresses ferrous targets that share ID space with non-ferrous targets. A nail at an angle reads ID 15-25, overlapping with low-conductivity non-ferrous signals. Iron Bias weights ambiguous signals toward ferrous based on how aggressively you set the control. Most coin and relic detectorists run Iron Bias 2-5 as a starting point and adjust for site conditions. Setting 0 accepts everything in the discrimination window; setting 9 suppresses borderline signals aggressively.

Build, Display, and Audio

The EQUINOX 900 uses a 3-piece carbon-fiber collapsible shaft: 61 cm (24 in) packed, 144 cm (56.7 in) extended. Total weight is 1.27 kg (2.8 lbs). The red monochrome LCD displays target ID, depth (5 levels), battery status, and mode. A control pod flashlight and handgrip vibration alert make the machine functional in low-light conditions when audio headphones are not an option.

Audio options are built-in loudspeaker, wired 3.5mm headphones, and Low-Latency Wireless. The included ML 85 headphones pair directly with the control pod. Tone options cover 1, 2, 5, All Tones, and Depth, with volume and ferrous volume adjustable 0-25 independently. We pair the EQUINOX 900 with the Garrett Pro-Pointer AT for target recovery; it is waterproof and handles the same soil and water conditions the detector does.

Coil Configuration

The Minelab EQUINOX 900 ships with two coils: the EQX11 11" Double-D Smart Coil for coverage and depth, and the EQX06 6" Double-D Smart Coil for target separation in high-trash environments. The 11" handles open fields, beach hunting, and most general detecting. The 6" earns its place in parks with dense iron and pull tabs, foundation sites where mixed audio is unworkable, and any site where target density is producing masking. Both are rated to 5 m (16 ft) and share the EQX Smart Coil interface.

Minelab EQUINOX 900 Specifications

• Technology: Multi-IQ (simultaneous multi-frequency)
• Single Frequencies: 4, 5, 10, 15, 20, 40 kHz
• Search Modes: Park 1, Park 2, Field 1, Field 2, Beach 1, Beach 2, Gold, All Metal
• Custom User Profile: Yes
• Target ID Scale: Ferrous -19 to 0, Non-Ferrous 1-99 (119 discrimination segments)
• Iron Bias: 0-9
• Recovery Speed: 1-8
• Sensitivity: 1-28
• Noise Cancel: Auto, Continuous Auto, Manual
• Target Tones: 1, 2, 5, All Tones, Depth
• Volume / Ferrous Volume: 0-25 each
• Depth Indicator: 5 levels
• Included Coils: EQX11 11" Double-D Smart Coil and EQX06 6" Double-D Smart Coil
• Included Headphones: ML 85 Low-Latency Wireless Headphones
• Audio Output: Built-in loudspeaker, wired 3.5mm, Low-Latency Wireless
• Display: Monochrome LCD, red backlight (High, Med, Low, Off)
• Flashlight: Yes (control pod)
• Vibration: Ferrous Vibration (On/Off), Tone Regions (On/Off)
• Weight: 1.27 kg (2.8 lbs)
• Length: Extended 144 cm (56.7 in), Collapsed 61 cm (24 in)
• Battery: 3.7V / 5100 mAh internal rechargeable lithium-ion
• Waterproof: 5 m (16 ft), IP68
• Warranty: 3 Years (Control Box and Coil)

Why Buy the Minelab EQUINOX 900 from Serious Detecting

We are an authorized Minelab dealer, so every Minelab EQUINOX 900 we ship carries full manufacturer warranty coverage. Our team uses this machine in the field and can answer questions about setup, mode selection, and site-specific settings that go beyond the manual. Every order ships free, our 30-day return policy eliminates buyer's remorse, and our price-match guarantee means you are not overpaying. Detectorists ready to compare the EQUINOX 900 against the next step up can find the Minelab Manticore in our lineup as well.
