Autel EVO II Dual 640T Rugged Bundle V3

Autel EVO II Dual 640T Rugged Bundle V3: Dual-Camera Thermal Drone with 640x512 Imaging and 360° Obstacle Avoidance

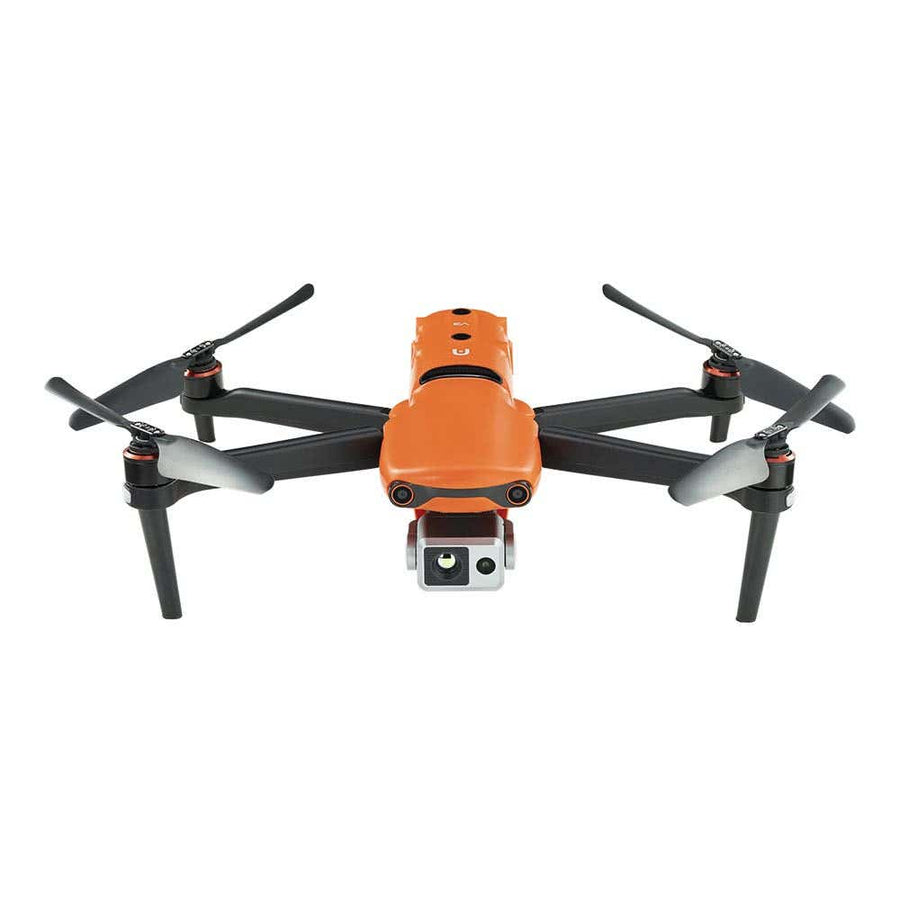

The Autel EVO II Dual 640T V3 is a compact foldable quadcopter built for public safety, inspection, and search and rescue teams that need thermal imaging, high-resolution visual capture, and omnidirectional obstacle avoidance in a single deployable system. Its dual-camera payload pairs a 50MP RYYB primary camera with a 640x512 thermal sensor, giving operators simultaneous visual and thermal data without swapping payloads between mission types.

Key Features and Benefits

• 640x512 thermal camera: 25fps radiometric imaging with DRI ranges up to 2889m for trucks.
• 50MP RYYB primary camera: 0.8" sensor delivers up to 40% more light sensitivity than RGB sensors.
• 360° obstacle avoidance: 19 sensor groups build 3D maps and plan paths in real time.
• Dynamic Track 2.1: tracks up to 64 objects simultaneously with trajectory prediction.
• SkyLink 2.0 transmission: 15 km range with tri-band automatic frequency hopping.
• 10 thermal color palettes: including Ironbow, Rainbow, White Hot, and Heat Detection modes.
• 38-minute max flight time: two batteries included for extended field operations.
• No fly zones enforced: no geofencing restrictions preventing takeoff in the field.
• No forced updates required: aircraft takes off without mandatory app or firmware updates.
• 45-second deployment: case to airborne in under one minute for time-critical response.

The Rugged Bundle V3 includes two flight batteries, a battery multicharger, a car charger, and the Autel Smart Controller V3 with a 7.9-inch 2000-nit display, giving field teams everything needed for extended multi-battery operations out of the box. SkyLink 2.0 tri-band transmission delivers up to 15 km of range with automatic frequency hopping, while Dynamic Track 2.1 identifies and tracks up to 64 objects simultaneously for sustained target monitoring across complex scenes.

Two Cameras, One Deployment, Zero Payload Swaps

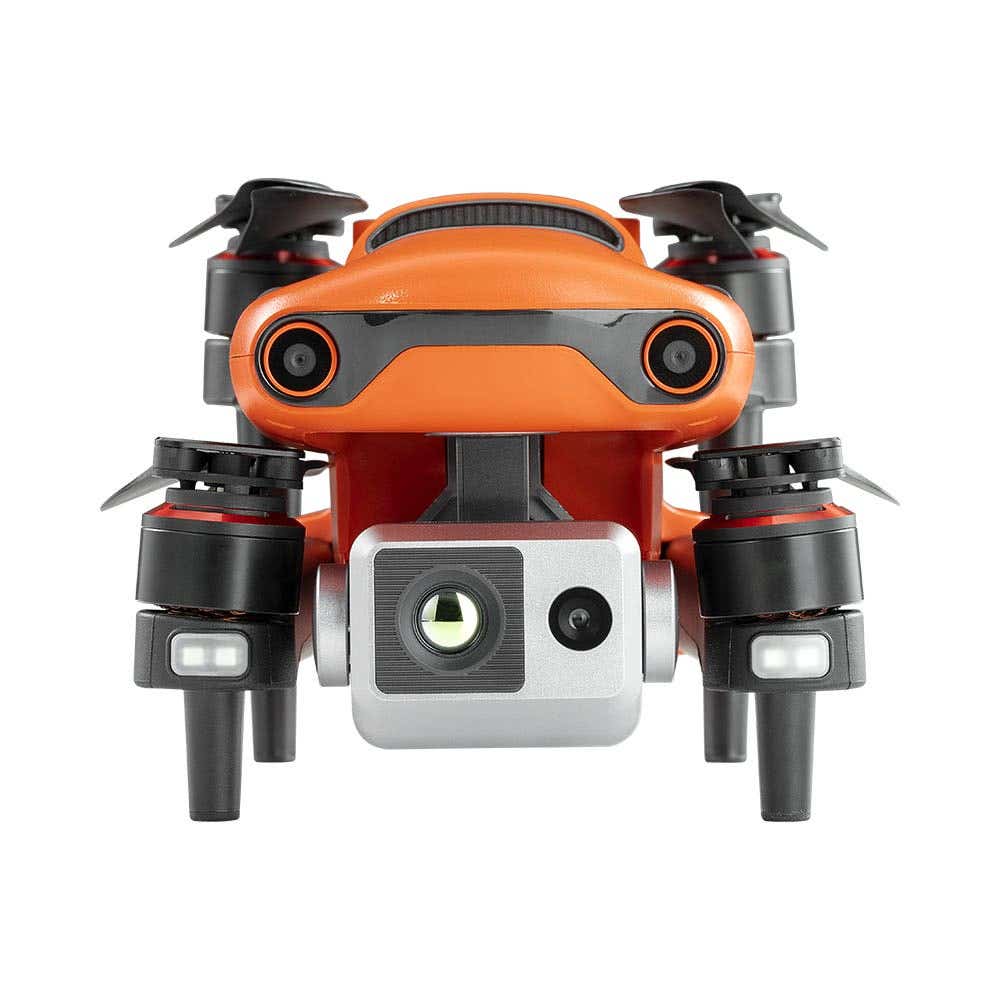

Field operators rarely have time to land, swap payloads, and relaunch when a situation changes. The EVO II Dual 640T V3 removes that constraint by carrying two cameras simultaneously: a 50MP RYYB primary visual camera using Moonlight Algorithm 2.0 for low-light noise reduction, and a 640x512 thermal sensor that detects temperature differences from -20°C to 550°C.

Picture-in-Picture mode overlays both feeds on the same screen, letting operators correlate visual and thermal data in real time without dividing their attention between separate displays.

For public safety teams responding to structure fires, perimeter searches, or industrial inspections, that combination keeps the aircraft on task and the operator focused on the scene rather than the equipment.

Compatibility and System Integration

• Autel Smart Controller V3: 7.9-inch, 2000-nit display with SkyLink 2.0 and IP43 rating (included).
• 2 x EVO II Smart Flight Battery: 7100mAh, 82Wh, 90-minute charge time (included).
• EVO II Battery Multicharger: simultaneous multi-battery charging for extended field rotations (included).
• EVO II Battery Car Charger: vehicle-based charging for field operations away from fixed power (included).
• 32GB SD card: onboard storage for photo and video data capture (included).
• IRPC TOOL: free PC-based thermal analysis software for temperature measurement reporting (included with purchase).
• Autel Explorer App: mission planning, flight control, and firmware management application (free download).
• Autel Care plans: optional extended warranty and service coverage (sold separately).
• EVO II accessory ecosystem: additional batteries, propellers, and carry solutions (sold separately).
• Third-party Android apps: Smart Controller V3 supports installation of compatible Android applications (sold separately).

Applications and Use Cases

• Search and rescue teams: thermal DRI ranges detect persons at up to 542m and vehicles at up to 2889m.
• Firefighting units: thermal imaging locates hotspots and monitors fire spread through smoke and darkness.
• Law enforcement: Dynamic Track 2.1 maintains lock on up to 64 moving targets for overwatch and forensics.
• Line and infrastructure inspection: thermal sensor identifies heat loss, electrical faults, and equipment failures.
• Security and perimeter patrol: SkyLink 2.0 15 km range supports wide-area overwatch from a safe standoff.
• Solar panel inspection: thermal imaging identifies underperforming cells and hot spots across large arrays.
• Chemical and industrial plant inspection: dual camera payload assesses equipment without entering hazardous areas.

The EVO II Dual 640T Rugged Bundle V3 is built for operators who need thermal detection, high-resolution visual capture, and omnidirectional obstacle avoidance in a compact, field-deployable package. With two batteries, a multicharger, and a 45-second deploy time, this bundle is configured for teams that need to be airborne fast and stay up longer.
