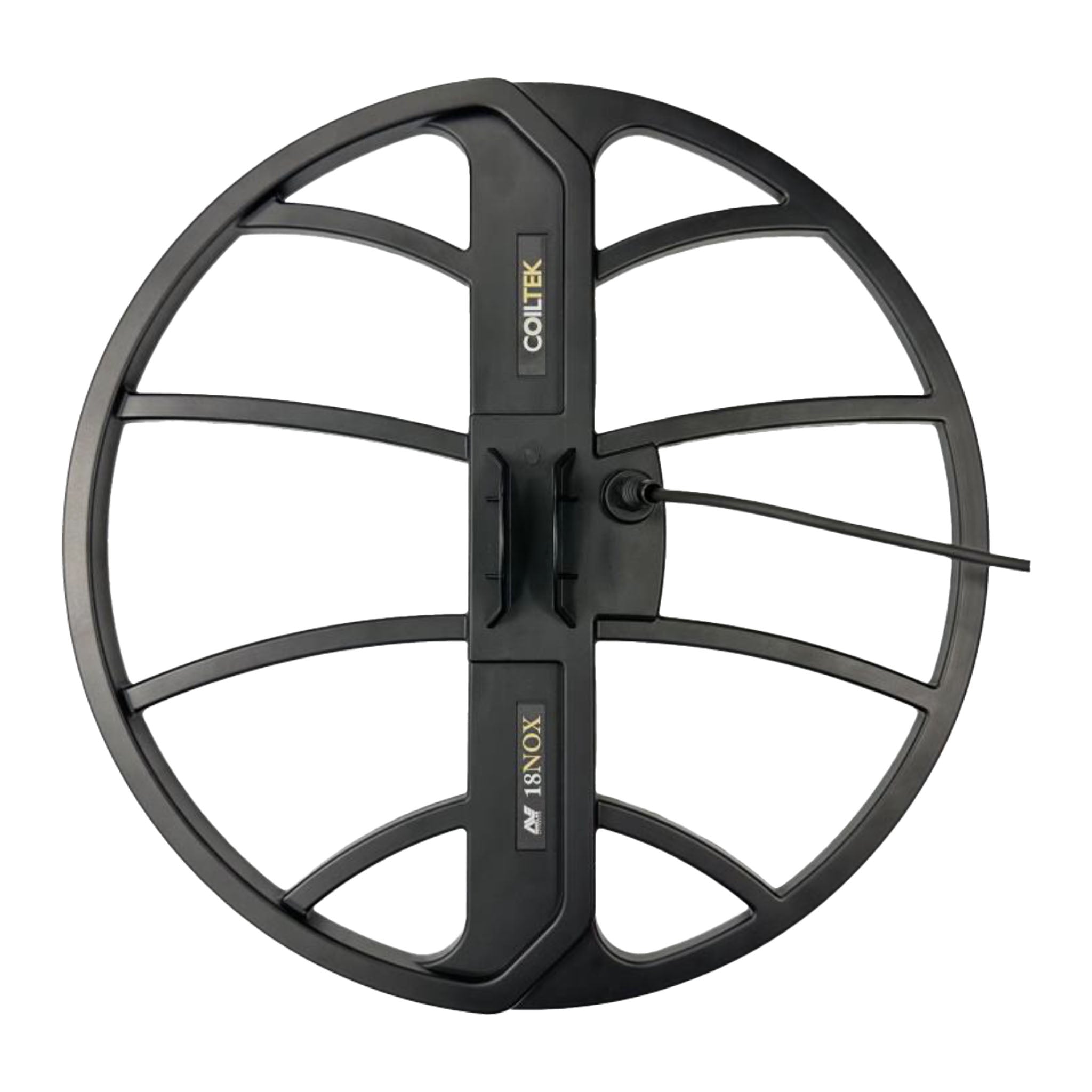

    • The Coiltek 18 inch NOX search coil shown against a white background.
    Sale!

    Coiltek NOX 18 inch DD Search Coil for Minelab EQUINOX, X-TERRA and VANQUISH

    SKU: C04-0021
    Sale Price $435.00 Regular Price $465.00
    6% Off

    Hurry up! Only 9 left

    4.9 from 3,100+ verified reviews · 4.8 on Google
    • Authorized U.S. dealer Genuine Coiltek Manufacturing, full manufacturer warranty.
    • Free shipping, ships today Order by 3 PM ET Mon to Fri, noon ET Sat. Contiguous U.S.
    • 30-day free returns Prepaid return label included.
    • Talk to a detectorist (844) 771-0707, Mon to Fri, 10 AM to 4 PM ET.

    Found it lower at an authorized U.S. dealer? We'll match it.

    Payment & Security

    Your payment is secure. We don’t store or see your card details.

    • Amazon
    • American Express
    • Apple Pay
    • Bizum
    • Diners Club
    • Discover
    • Google Pay
    • Mastercard
    • PayPal
    • Satispay
    • Shop Pay
    • USDC
    • Visa

    The Coiltek NOX 18 is an 18 inch (46 cm) round Double-D search coil for the Minelab EQUINOX 900 and the other EQUINOX, X-TERRA PRO and ELITE, and VANQUISH 360, 460 and 560 detectors Coiltek lists. Coiltek calls it its largest and deepest searching coil for EQUINOX detectors, built to cover more ground.

    Configuration
    Coil Coiltek NOX 18 in round
    Type Double-D
    Fits Minelab EQUINOX 600, 700, 800, 900; X-TERRA PRO, ELITE; VANQUISH 360, 460, 560
    Waterproof 3 m (10 ft) on EQUINOX 600 and 800; 5 m (16.4 ft) on the other listed detectors

    What is in the box with the Coiltek NOX 18

    Coiltek's standard contents for the NOX 18

    • Coiltek NOX 18 inch round DD coil
    • Skid plate, attached to the coil

    Which detectors the NOX 18 fits

    Coiltek lists the NOX coils as plug and play: they work with your usual settings, and after fitting one you may only need to adjust sensitivity or run a noise cancel. Coiltek rates the NOX coils as fully submersible to 3 m (10 ft) on the EQUINOX 600 and 800, and to 5 m (16.4 ft) on the EQUINOX 700 and 900, the X-TERRA PRO and ELITE and the VANQUISH 360, 460 and 560. The coil can only go as deep as your detector's own waterproof rating allows. Coiltek does not list the Minelab MANTICORE or the VANQUISH 340, 440 and 540 for the NOX 18.

    When to use the NOX 18

    The NOX 18 earns its place where finds are spread thin over wide, open ground and each sweep should search as much soil as possible. Coiltek names the 15 and 18 as its deepest searching NOX coils and recommends the round sizes for beach hunting. Around heavy trash a coil this large hears several targets in one pass and their signals run together, so we would keep the stock coil or the NOX 10x5 for busy sites, and around fences or trees. Coiltek's NOX coils include the 10x5 and 14x9 inch ellipticals and the 15 and 18 inch rounds. Coiltek says the smaller coils have better maneuverability and sensitivity, and the larger coils better coverage and depth. Coiltek lists the NOX 10x5 at 426 g (15 oz), the NOX 14x9 at about 790 g (27.9 oz) and the NOX 15 at 836 g (29.5 oz). The NOX 15 is the one step down in size from the NOX 18. A bigger coil does not promise more usable depth on every site. Our metal detector coil guide explains how coil size and type trade coverage for separation.

    Coiltek NOX 18 specifications

    Specification Coiltek NOX 18
    Size 18 in (46 cm)
    Shape Round
    Type Double-D
    Waterproof 3 m (10 ft) on EQUINOX 600, 800; 5 m (16.4 ft) on EQUINOX 700, 900, X-TERRA PRO, ELITE, VANQUISH 360, 460, 560
    Skid plate Attached
    Warranty 2 years from Coiltek

    Coiltek covers the NOX 18 with a 2-year warranty. Every coil and accessory we carry for the EQUINOX 900 is in our Minelab EQUINOX 900 collection, and the other Coiltek coils are in our Coiltek collection.

    Serious Detecting is a family-owned, authorized Coiltek dealer with a showroom in Ypsilanti, Michigan, and our staff help by phone or email.

    Product Specifications
    Specification Name Specification Value
    Compatibility
    Fits Minelab Minelab Equinox 600, Minelab Equinox 700, Minelab Equinox 800, Minelab Equinox 900, Minelab X-Terra Pro, Minelab X-Terra Elite, Minelab Vanquish 360, Minelab Vanquish 460, and Minelab Vanquish 560
    Coil
    Coil Size 18" (46 cm)
    Coil Type Double-D (DD)
    Coil Shape Round
    Coil Build Open
    Coil Connection Wired
    Waterproofing
    Water Resistance Waterproof
    Waterproof Depth 16 Feet
    Details
    Color Black
    Box & Warranty
    Warranty 2 Years
    Service & Support

    Warranty & Product Assurance

    At Serious Detecting, we stand behind the quality of every product we offer. Warranty coverage is provided directly by the manufacturer and may vary depending on the item. We’re here to help you understand your coverage and assist with the warranty process when needed. If you ever have questions or need support navigating a warranty claim, our team is happy to guide you.

    Technical Support & Expert Guidance

    Whether you’re setting up new gear, optimizing performance, or troubleshooting an issue in the field, our knowledgeable support team is here to help. We use this equipment ourselves, so we can offer real-world tips and step-by-step assistance to get you detecting with confidence. Message us anytime and we’ll do our best to get you pointed in the right direction fast.

    Manuals, Resources & Downloads

    Access user manuals, setup guides, safety tips, and technical documentation in our online support center. These resources help you understand your equipment, learn recommended settings, and get the most out of every hunt.

    Replacement Parts & Accessories

    Keep your equipment running strong with genuine parts and accessories. We carry coils, batteries, chargers, protective gear, digging tools, and more — fully compatible with your detector and backed by manufacturer standards. Not sure what fits your model? Just ask — we’re here to help.

    Training & Tutorials

    New to detecting or upgrading to advanced equipment? Our resource library includes helpful guides, maintenance tips, how-to videos, and expert advice from experienced detectorists. From ground balancing and coil choices to target ID basics and field technique, you’ll find the knowledge you need to level up your success.

    Customer Questions & Expert Answers

    Get real answers from outdoor explorers and our product experts. Browse questions about performance, features, and setup — or ask your own to make sure this gear fits your next adventure.

    Will the Coiltek NOX 18 in coil fit the Minelab Manticore?

    Coiltek does not list the Minelab Manticore as compatible with the NOX 18 in coil. Coiltek lists it for the Equinox 600, 700, 800 and 900, the X-TERRA PRO and ELITE, and the Vanquish 360, 460 and 560. For coils made for the Manticore, see our Minelab Manticore collection.

    Answered by Dan P. · October 2026

    How deep underwater can I take the Coiltek NOX 18 in coil?

    The Coiltek NOX 18 in coil is rated by Coiltek as submersible to 3 m (10 ft) on the Equinox 600 and 800, and to 5 m (16.5 ft) on the Equinox 700 and 900, the X-TERRA PRO and ELITE, and the Vanquish 360, 460 and 560. The coil can only go as deep as your detector's control box allows. See coils and accessories for the Equinox 900 in our Minelab Equinox 900 collection.

    Answered by Richard T. · October 2026

    Should I choose the Coiltek NOX 18 in or the NOX 15 in for my Equinox?

    For your Equinox, choose the Coiltek NOX 18 in if you mostly hunt big open fields or beaches and want the most ground coverage and depth. Choose the NOX 15 in if you want a large coil that is easier to swing for long sessions and works in a wider range of sites. Both are in our Coiltek collection.

    Answered by John W. · October 2026
