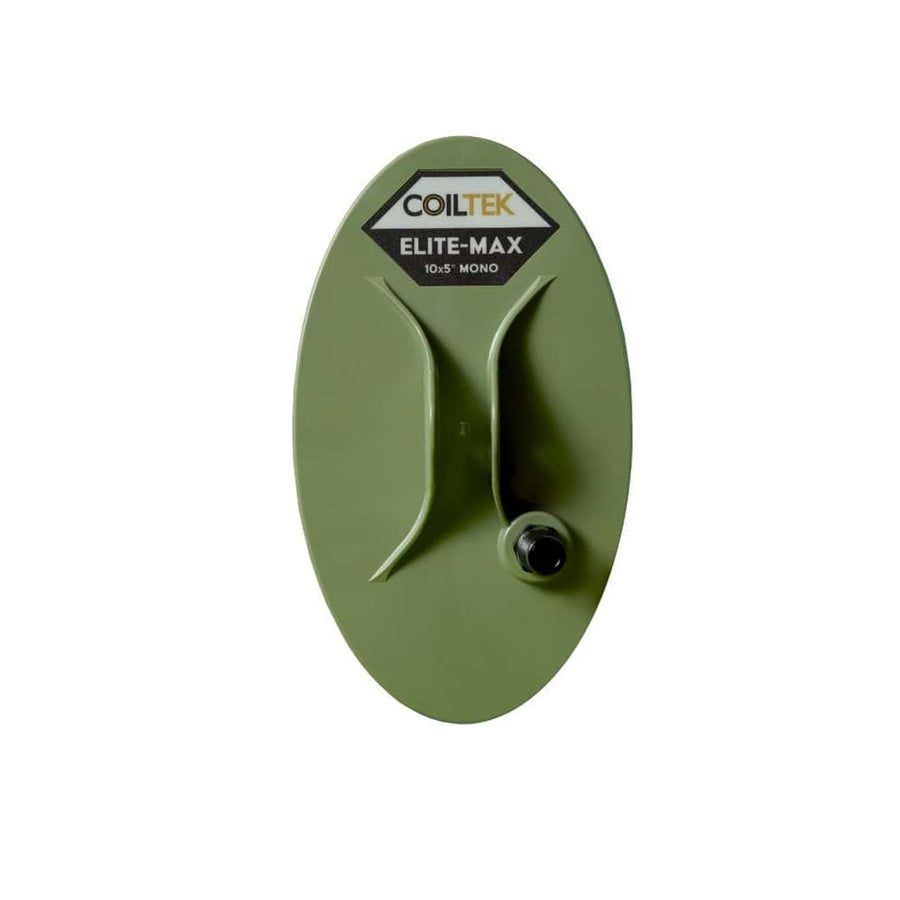

Coiltek Elite-Max 10x5 Elliptical Mono Coil for Minelab GPX, GP, SD, and AlgoForce Detectors

The Coiltek Elite-Max 10x5 is a compact elliptical mono coil engineered for maximum sensitivity on small, shallow gold targets in confined terrain. Built with flat and semi-flat windings that optimize electromagnetic field transmission, this coil delivers pinpoint accuracy for prospectors running Minelab GPX, GP, SD, or AlgoForce metal detectors. At 1.4 lbs with a pre-fitted skid plate, it maneuvers between rocks and brush where larger coils fail. Prospectors working re-visited patches choose the 10x5 for its ability to extract sub-gram nuggets that 11-inch and larger coils miss.

What's Included with the Elite-Max 10x5

• Coiltek Elite-Max 10x5 Elliptical Mono Coil (khaki camo finish)
• Pre-fitted injection-molded skid plate

Why GPX, GP, and SD Owners Choose the Elite-Max 10x5

• Flat-wound construction maximizes sensitivity on small gold targets that standard bundled-wire coils miss in worked-over ground.
• Elliptical 10x5-inch footprint slips between tight basalt outcrops and dense desert brush without sacrificing ground coverage.
• Waterproof to 3 feet for hunting creek beds, shallow washes, and wet mineralized ground where nuggets concentrate.
• Pre-fitted skid plate eliminates setup time and protects the coil housing from day one in abrasive environments.
• 1.4-pound weight reduces arm fatigue during 6-8 hour prospecting sessions on steep terrain. Compare to the Elite-Max 14x9 for broader coverage when maneuverability matters less.

Pinpoint Accuracy in Rocky Quartz Veins

Re-Working Tight Patches Where Larger Coils Can't Reach

The 10x5 elliptical geometry excels in areas where 11-inch and larger coils physically cannot fit. Prospectors working between exposed quartz veins, around boulder piles, or inside narrow gullies gain access to ground that larger coils must skip entirely. We run this coil on worked claims where previous detectorists swept with 14-inch and 15-inch coils, and the 10x5 consistently pulls sub-gram nuggets from crevices and tight spots the larger coils bridged over.

Creek Bed and Shallow Wash Hunting

Waterproof construction to 3 feet allows submersion in active creeks and seasonal washes where gold deposits after winter storms. The khaki camo finish reduces glare in bright sunlight and blends into natural prospecting environments. The coil's light weight makes it practical for wading upstream through rocky channels where footing is uncertain and arm fatigue compounds quickly. Pulse induction platforms like the GPX series maintain stable operation in wet mineralized ground, and the 10x5's compact size lets you work tight bends and undercut banks where larger coils hit the waterline or vegetation. Understanding the technologies behind modern detectors helps prospectors match coil geometry to ground conditions.

How it compares to other Elite-Max and mono coils

The Elite-Max series spans three elliptical sizes. The 10x5 prioritizes tight-space maneuverability, the 9-inch round offers similar sensitivity in a circular footprint, and the 14x9 provides broader coverage when terrain permits.

Specifications

• Compatibility: Minelab GPX (excludes GPX 6000), GP, SD series; AlgoForce E1500 and E1500 Plus
• Coil Size: 10in x 5in (250mm x 145mm) elliptical
• Weight: 1.4 lbs (650g)
• Configuration: Monoloop
• Waterproof Rating: 3ft (1m)
• Housing: Injection-molded with pre-fitted skid plate
• Finish: Khaki camo
• Warranty: 2 years

Why Buy from Serious Detecting

We are an authorized Coiltek dealer, which means every Elite-Max coil ships with the full 2-year manufacturer warranty. Our team runs Coiltek coils on GPX platforms in Arizona and Nevada goldfields, so we provide real-world setup guidance and compatibility verification. Every order ships free within the continental U.S., and our 30-day return policy and price-match guarantee ensure you get the right coil at the best price.
