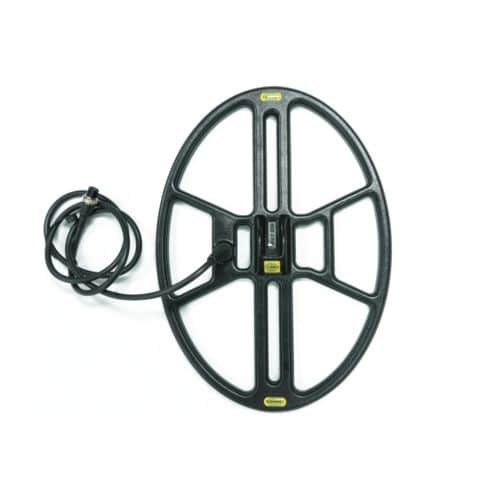

The CORS Cannon is a 14.5 x 10.5 inch (37 x 26.5 cm) Double-D aftermarket search coil from CORS Labs, in the version for the Fisher F5, F11, F22, F44 and Gold Bug. Its 14.5 x 10.5 inch footprint makes it the smallest of the three coils in CORS's extreme depth series, beside the Giant and the Fire.
| Configuration | |
|---|---|
| Coil | CORS Cannon, 14.5 x 10.5 in |
| Type | Double-D |
| Fits | Fisher F5, F11, F22, F44, Gold Bug |
| Waterproof | Fully waterproof |
What is in the box with the CORS Cannon 14.5 x 10.5
CORS's standard contents for the Cannon 14.5 x 10.5
- CORS Cannon 14.5 x 10.5 inch DD search coil
- Coil cover, fitted to the coil
- Fixing bolt and nut with two rubber rings
- Velcro cable strap
- Protective cap for the connector
Which detectors the Cannon 14.5 x 10.5 fits
- Fisher F5
- Fisher F11
- Fisher F22
- Fisher F44
- Fisher Gold Bug
CORS lists the F5, F11, F22, F44 and Gold Bug together on one line of its Fisher fit list for the Cannon, apart from its F2 and F4 line and its F70 and F75 line, and a label in the box shows which detector each coil is for. CORS makes the Cannon for many other detectors too, including Minelab, Garrett, Nokta and XP models, and those versions are in our CORS Labs search coils collection.
When to use the Cannon 14.5 x 10.5
CORS puts the Cannon in its extreme depth series, made for going back over ground that has already been searched with standard coils and built for maximum detection depth. CORS recommends these coils as an additional coil, for advanced users. The Cannon is light for its size at 570 g (20.1 oz) without the cover, and a slow swing helps it pick up small targets as well as large and medium ones. CORS notes the weight may vary slightly with the detector model. The coil body is filled with epoxy resin inside an impact resistant, UV protected plastic shell, the cable strain relief seals the cable entry, and the coil can be used without its cover if needed. CORS says all of its coils are waterproof.
Wide, open ground is where the Cannon pays off on an F5, F11, F22, F44 or Gold Bug, covering more of it per pass than the stock coil. Keep the coil parallel to the ground through each swing, go back to the stock coil around heavy iron, and treat any extra depth as dependent on soil and target rather than guaranteed. Our metal detector coil guide explains how coil size and type trade coverage for separation.
CORS Cannon 14.5 x 10.5 specifications
| Specification | CORS Cannon 14.5 x 10.5 |
|---|---|
| Size | 14.5 x 10.5 in (37 x 26.5 cm) |
| Type | Double-D |
| Weight | 570 g (20.1 oz) without coil cover |
| Waterproof | Fully waterproof |
| Connector | Screw-on, gold or silver plated contacts |
| Cable | High-strength, larger conductor cross-section, made in Germany |
| Fits | Fisher F5, F11, F22, F44, Gold Bug |
| Warranty | 2 years from CORS Labs |
CORS Labs gives a full 2-year warranty on all of its coils, from the date of purchase. Every CORS coil we carry is in our CORS Labs search coils collection.
Serious Detecting is a family-owned, authorized CORS dealer with a showroom in Ypsilanti, Michigan, and our staff help by phone or email.
