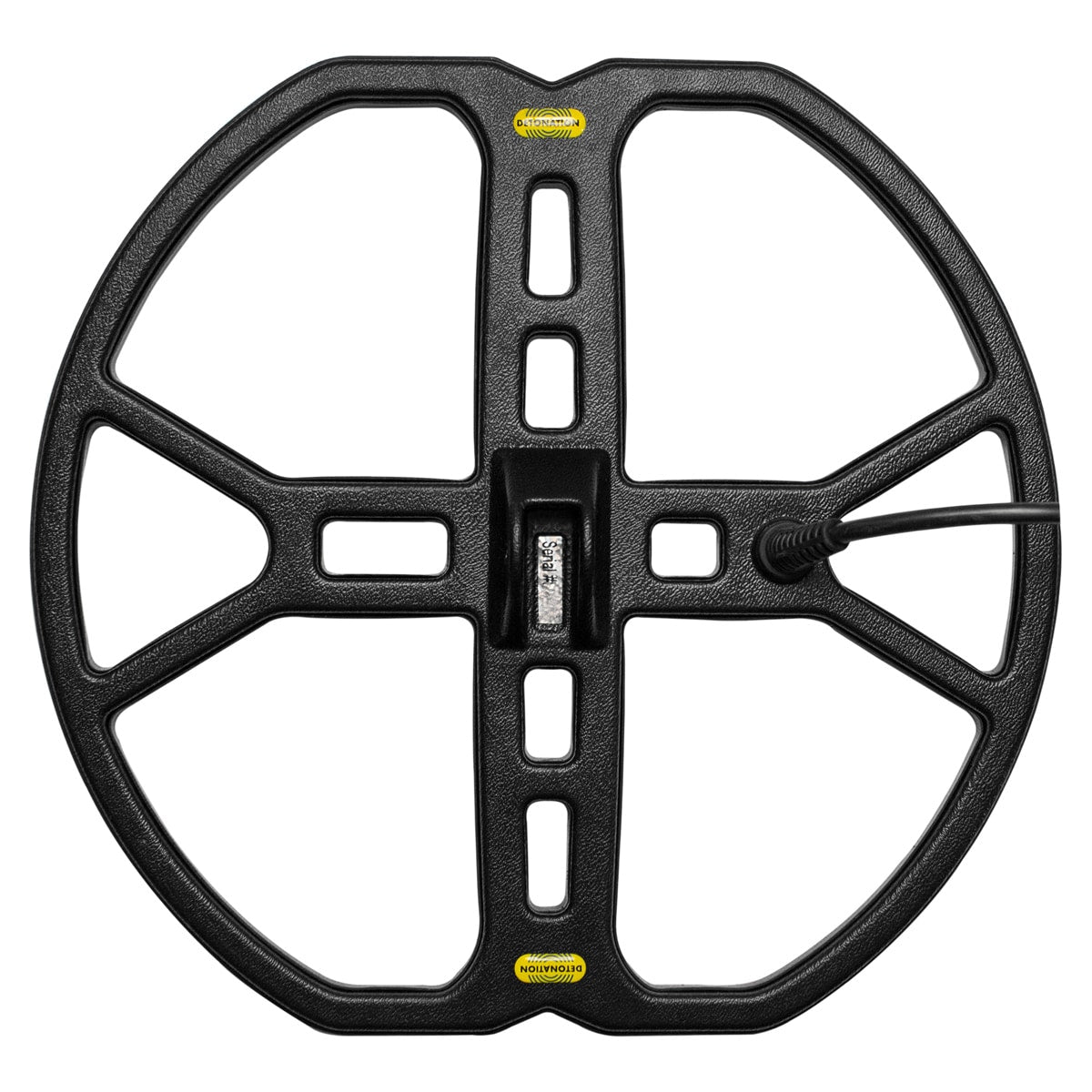

    • Black open-frame CORS Detonation 13x14 inch DD search coil with yellow logo labels and attached cable, for Minelab X-Terra

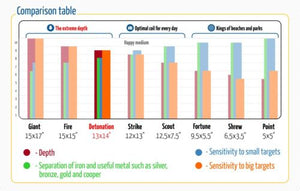

    • CORS coil comparison chart showing depth and target sensitivity, with the Detonation 13x14 highlighted
    • CORS Labs logo in black lettering on a yellow background, surrounded by blue concentric signal arcs
    Sale!

    CORS Detonation 13 x 14 inch DD Coil for Minelab X-TERRA, 18.75 kHz

    SKU: CORSDT172
    Sale Price $172.50 Regular Price $328.05
    47% Off

    Hurry up! Only 3 left

    4.9 from 3,100+ verified reviews · 4.8 on Google
    • Authorized U.S. dealer Genuine CORS Labs Search Coils, full manufacturer warranty.
    • Free shipping, ships today Order by 3 PM ET Mon to Fri, noon ET Sat. Contiguous U.S.
    • 30-day free returns Prepaid return label included.
    • Talk to a detectorist (844) 771-0707, Mon to Fri, 10 AM to 4 PM ET.

    Found it lower at an authorized U.S. dealer? We'll match it.

    Payment & Security

    Your payment is secure. We don’t store or see your card details.

    • Amazon
    • American Express
    • Apple Pay
    • Bizum
    • Diners Club
    • Discover
    • Google Pay
    • Mastercard
    • PayPal
    • Satispay
    • Shop Pay
    • USDC
    • Visa

    The CORS Detonation is a 13 x 14 inch (33 x 35.5 cm) Double-D aftermarket search coil from CORS Labs, in the version for the original Minelab X-TERRA series, 18.75 kHz. CORS places the Detonation in its everyday series, which it recommends as a substitute for standard coils for novice and advanced users, and says these coils do a fine job on highly mineralized soils.

    Configuration
    Coil CORS Detonation, 13 x 14 in
    Type Double-D
    Fits Minelab X-TERRA series (original models), 18.75 kHz version
    Waterproof Fully waterproof

    What is in the box with the CORS Detonation 13 x 14

    CORS's standard contents for the Detonation 13 x 14

    • CORS Detonation 13 x 14 inch DD search coil
    • Coil cover, fitted to the coil
    • Fixing bolt and nut with two rubber rings
    • Velcro cable strap
    • Protective cap for the connector

    Which detectors the Detonation 13 x 14 fits

    • Minelab X-TERRA series (original models), 18.75 kHz version

    CORS makes the Detonation for the X-TERRA in seven frequency versions: 3 kHz, 7.5 kHz, 18.75 kHz, 7.5 + 18.75 kHz, 3 + 18.75 kHz, 3 + 7.5 kHz and 3 + 7.5 + 18.75 kHz, and a label in the box shows which detector each coil is for. These are coils for the original X-TERRA series. For the current X-TERRA PRO and X-TERRA ELITE, Minelab lists its own V8X, V10X and V12X and EQX coils instead. CORS makes the Detonation for many other detectors too, and the versions we carry are in our CORS Labs search coils collection.

    When to use the Detonation 13 x 14

    Should an 18.75 kHz X-TERRA owner want a bigger coil for open ground, the Detonation makes a balanced choice: wide enough at 13 x 14 inch to speed up searching, without the bulk of the 920 g (32.4 oz) Giant or the 720 g (25.3 oz) Fire.

    Use it where targets are scattered and the ground is fairly clean, overlap the passes, and keep the swing slow. Dense trash is a poor match for any coil this wide; a small coil reads crowded targets much more clearly. How much depth it adds depends on soil, target and settings. Our metal detector coil guide explains how coil size and type trade coverage for separation.

    It weighs 670 g (23.6 oz) without the coil cover, and CORS notes the weight may vary slightly with the detector model. The coil face uses composite materials, so CORS says the Detonation can be used safely without its cover if required, and the coil is completely waterproof, with a cable strain relief that also seals the cable entry. The outer shell is impact stabilized, UV resistant plastic on a robust mounting bracket, and the coil body is filled with epoxy resin. CORS fits a high-strength cable with a larger conductor cross-section, made in Germany, and connectors with gold or silver plated contacts.

    CORS Detonation 13 x 14 specifications

    Specification CORS Detonation 13 x 14
    Size 13 x 14 in (33 x 35.5 cm)
    Type Double-D
    Weight 670 g (23.6 oz) without coil cover
    Waterproof Fully waterproof
    Connector Screw-on, gold or silver plated contacts
    Cable High-strength, larger cross-section, made in Germany
    Fits Minelab X-TERRA series (original models), 18.75 kHz version
    Warranty 2 years from CORS Labs

    CORS Labs gives a full 2-year warranty on all of its coils, from the date of purchase. Every CORS coil we carry is in our CORS Labs search coils collection.

    Serious Detecting is a family-owned, authorized CORS dealer with a showroom in Ypsilanti, Michigan, and our staff help by phone or email.

    Product Specifications
    Specification Name Specification Value
    Detection
    Frequencies 18.75 kHz
    Compatibility
    Fits Minelab Minelab X-Terra 30, Minelab X-Terra 305, Minelab X-Terra 50, Minelab X-Terra 505, Minelab X-Terra 70, Minelab X-Terra 705, and Minelab X-Terra 705 Gold
    Coil
    Coil Size 14" x 13" (35.5 x 33 cm)
    Coil Type Double-D (DD)
    Coil Shape Butterfly
    Coil Build Open
    Coil Connection Wired
    Waterproofing
    Water Resistance Waterproof
    Build
    Weight 1.48 lb / 0.67 kg
    Details
    Color Black
    Box & Warranty
    Warranty 2 Years
