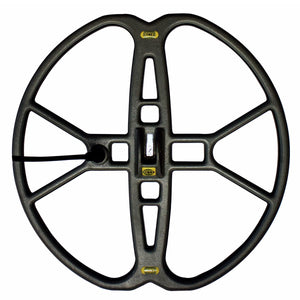

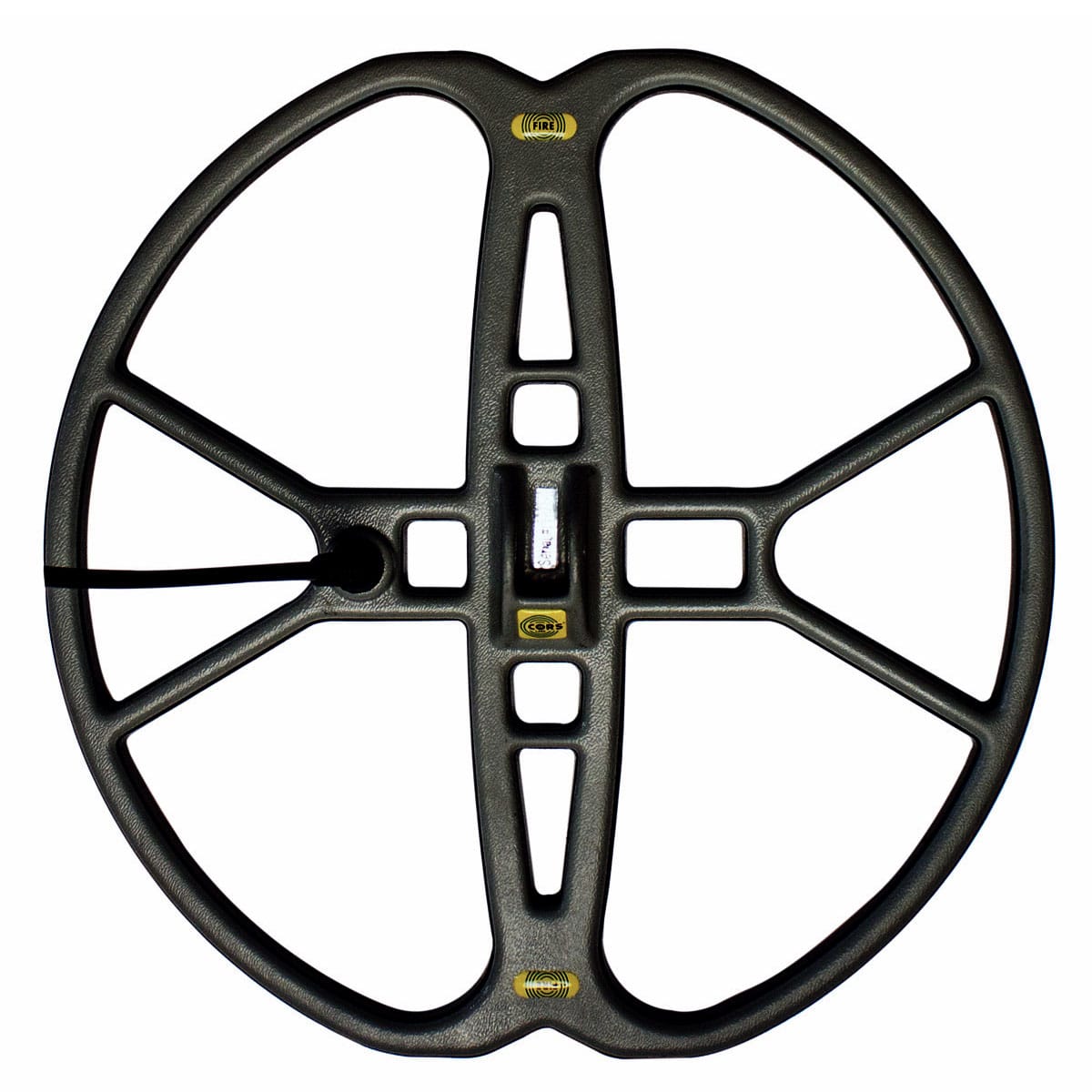

The CORS Fire is a 15 x 15 inch (38 x 38 cm) Double-D aftermarket search coil from CORS Labs, in the version for the original Minelab X-TERRA series, 3 kHz. CORS groups the Fire with its extreme depth coils, which it marks for advanced users and recommends as an additional coil rather than a replacement for the standard one.
| Configuration | |
|---|---|
| Coil | CORS Fire, 15 x 15 in |
| Type | Double-D |
| Fits | Minelab X-TERRA series (original models), 3 kHz version |
| Waterproof | Fully waterproof |
What is in the box with the CORS Fire 15 x 15
CORS's standard contents for the Fire 15 x 15
- CORS Fire 15 x 15 inch DD search coil
- Coil cover, fitted to the coil
- Fixing bolt and nut with two rubber rings
- Velcro cable strap
- Protective cap for the connector
Which detectors the Fire 15 x 15 fits
- Minelab X-TERRA series (original models), 3 kHz version
CORS makes the Fire for the X-TERRA in six frequency versions: 3 kHz, 7.5 kHz, 7.5 + 18.75 kHz, 3 + 18.75 kHz, 3 + 7.5 kHz and 3 + 7.5 + 18.75 kHz, and a label in the box shows which detector each coil is for. These are coils for the original X-TERRA series. For the current X-TERRA PRO and X-TERRA ELITE, Minelab lists its own V8X, V10X and V12X and EQX coils instead. CORS makes the Fire for many other detectors too, and the versions we carry are in our CORS Labs search coils collection.
When to use the Fire 15 x 15
Choose the Fire when width of sweep matters more than anything else. A 15 x 15 inch coil on a 3 kHz X-TERRA lets you work a large open area in orderly passes with fewer trips back and forth.
Expect a heavier load on the arm and a broader target signal, so take a few extra sweeps to center a target before digging. If the detector grows unstable with the big coil, turn sensitivity down until it runs quietly. Crowded, trashy spots call for a smaller coil. Our metal detector coil guide explains how coil size and type trade coverage for separation.
It weighs 720 g (25.3 oz) without the coil cover, and CORS notes the weight may vary slightly with the detector model. The coil face uses composite materials, so CORS says the Fire can be used safely without its cover if required, and the coil is completely waterproof, with a cable strain relief that also seals the cable entry. The outer shell is impact stabilized, UV resistant plastic on a robust mounting bracket, and the coil body is filled with epoxy resin. CORS fits a high-strength cable with a larger conductor cross-section, made in Germany, and connectors with gold or silver plated contacts. The coil color may vary.
CORS Fire 15 x 15 specifications
| Specification | CORS Fire 15 x 15 |
|---|---|
| Size | 15 x 15 in (38 x 38 cm) |
| Type | Double-D |
| Weight | 720 g (25.3 oz) without coil cover |
| Waterproof | Fully waterproof |
| Connector | Screw-on, gold or silver plated contacts |
| Cable | High-strength, larger cross-section, made in Germany |
| Fits | Minelab X-TERRA series (original models), 3 kHz version |
| Warranty | 2 years from CORS Labs |
CORS Labs gives a full 2-year warranty on all of its coils, from the date of purchase. Every CORS coil we carry is in our CORS Labs search coils collection.
Serious Detecting is a family-owned, authorized CORS dealer with a showroom in Ypsilanti, Michigan, and our staff help by phone or email.
