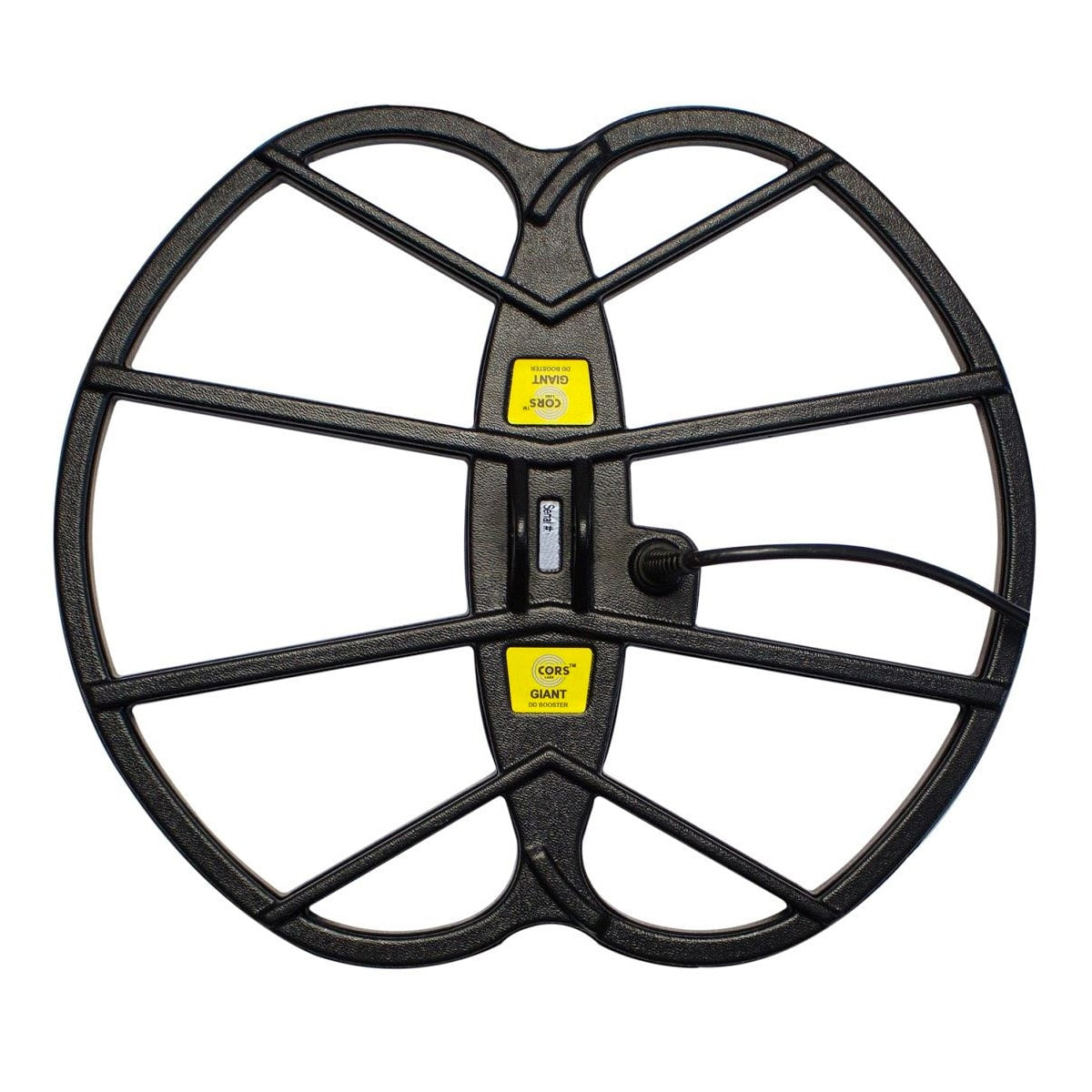

    • CORS Giant 15x17 DD search coil for Minelab X-Terra metal detectors with protective cover

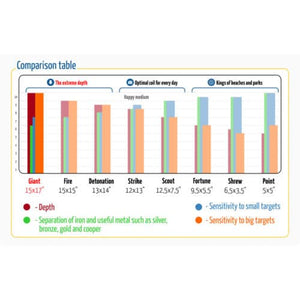

    • CORS Giant coil dimensions and specifications chart showing 15x17 inch size
    • CORS Giant search coil connector and mounting hardware for Minelab X-Terra
    Sale!

    CORS Giant 15 x 17 inch DD Coil for Minelab X-TERRA, All Frequencies

    SKU: CORSGN157
    Sale Price $266.25 Regular Price $511.65
    48% Off

    Hurry up! Only 7 left

    4.9 from 3,100+ verified reviews · 4.8 on Google
    • Authorized U.S. dealer Genuine CORS Labs Search Coils, full manufacturer warranty.
    • Free shipping, ships today Order by 3 PM ET Mon to Fri, noon ET Sat. Contiguous U.S.
    • 30-day free returns Prepaid return label included.
    • Talk to a detectorist (844) 771-0707, Mon to Fri, 10 AM to 4 PM ET.

    Found it lower at an authorized U.S. dealer? We'll match it.

    Payment & Security

    Your payment is secure. We don’t store or see your card details.

    • Amazon
    • American Express
    • Apple Pay
    • Bizum
    • Diners Club
    • Discover
    • Google Pay
    • Mastercard
    • PayPal
    • Satispay
    • Shop Pay
    • USDC
    • Visa

    The CORS Giant is a 15 x 17 inch (38 x 43 cm) Double-D aftermarket search coil from CORS Labs, in the version for the Minelab X-TERRA 305, 505 and 705 at 3 kHz, 7.5 kHz and 18.75 kHz. CORS groups the Giant with its extreme depth coils, which it marks for advanced users and recommends as an additional coil rather than a replacement for the standard one.

    Configuration
    Coil CORS Giant, 15 x 17 in
    Type Double-D
    Fits Minelab X-TERRA 305, Minelab X-TERRA 505, Minelab X-TERRA 705
    Waterproof Fully waterproof

    What is in the box with the CORS Giant 15 x 17

    CORS's standard contents for the Giant 15 x 17

    • CORS Giant 15 x 17 inch DD search coil
    • Coil cover, fitted to the coil
    • Fixing bolt and nut with two rubber rings
    • Velcro cable strap
    • Protective cap for the connector

    Which detectors the Giant 15 x 17 fits

    • Minelab X-TERRA 305
    • Minelab X-TERRA 505
    • Minelab X-TERRA 705

    CORS makes the Giant for the X-TERRA in six frequency versions: 3 kHz, 7.5 kHz, 7.5 + 18.75 kHz, 3 + 18.75 kHz, 3 + 7.5 kHz and 3 + 7.5 + 18.75 kHz, and a label in the box shows which detector each coil is for. These are coils for the original X-TERRA series. For the current X-TERRA PRO and X-TERRA ELITE, Minelab lists its own V8X, V10X and V12X and EQX coils instead. CORS makes the Giant for many other detectors too, and the versions we carry are in our CORS Labs search coils collection.

    When to use the Giant 15 x 17

    Very large, sparsely littered sites are the Giant's territory. At 15 x 17 inch it is a coverage coil for specialists, meant for an experienced X-TERRA user hunting for larger, deeper objects, not a coil for everyday hunting at the local park.

    Plan on a heavier swing, more chatter from nearby targets and slower pinpointing, and do not count on it for the smallest targets. Keep a smaller coil in the bag for the spots where targets turn up close together. Our metal detector coil guide explains how coil size and type trade coverage for separation.

    It weighs 920 g (32.4 oz) without the coil cover, and CORS notes the weight may vary slightly with the detector model. The coil face uses composite materials, so CORS says the Giant can be used safely without its cover if required, and the coil is completely waterproof, with a cable strain relief that also seals the cable entry. The outer shell is impact stabilized, UV resistant plastic on a robust mounting bracket, and the coil body is filled with epoxy resin. CORS fits a high-strength cable with a larger conductor cross-section, made in Germany, and connectors with gold or silver plated contacts.

    CORS Giant 15 x 17 specifications

    Specification CORS Giant 15 x 17
    Size 15 x 17 in (38 x 43 cm)
    Type Double-D
    Weight 920 g (32.4 oz) without coil cover
    Waterproof Fully waterproof
    Connector Screw-on, gold or silver plated contacts
    Cable High-strength, larger cross-section, made in Germany
    Fits Minelab X-TERRA 305, Minelab X-TERRA 505, Minelab X-TERRA 705
    Warranty 2 years from CORS Labs

    CORS Labs gives a full 2-year warranty on all of its coils, from the date of purchase. Every CORS coil we carry is in our CORS Labs search coils collection.

    Serious Detecting is a family-owned, authorized CORS dealer with a showroom in Ypsilanti, Michigan, and our staff help by phone or email.

    Product Specifications
    Specification Name Specification Value
    Detection
    Frequencies 3 kHz, 7.5 kHz, and 18.75 kHz
    Compatibility
    Fits Minelab Minelab X-Terra 30, Minelab X-Terra 305, Minelab X-Terra 50, Minelab X-Terra 505, Minelab X-Terra 70, Minelab X-Terra 705, and Minelab X-Terra 705 Gold
    Coil
    Coil Size 17" x 15" (43 x 38 cm)
    Coil Type Double-D (DD)
    Coil Shape Butterfly
    Coil Build Open
    Coil Connection Wired
    Waterproofing
    Water Resistance Waterproof
    Build
    Weight 2.03 lb / 0.92 kg
    Details
    Color Black
    Box & Warranty
    Warranty 2 Years
