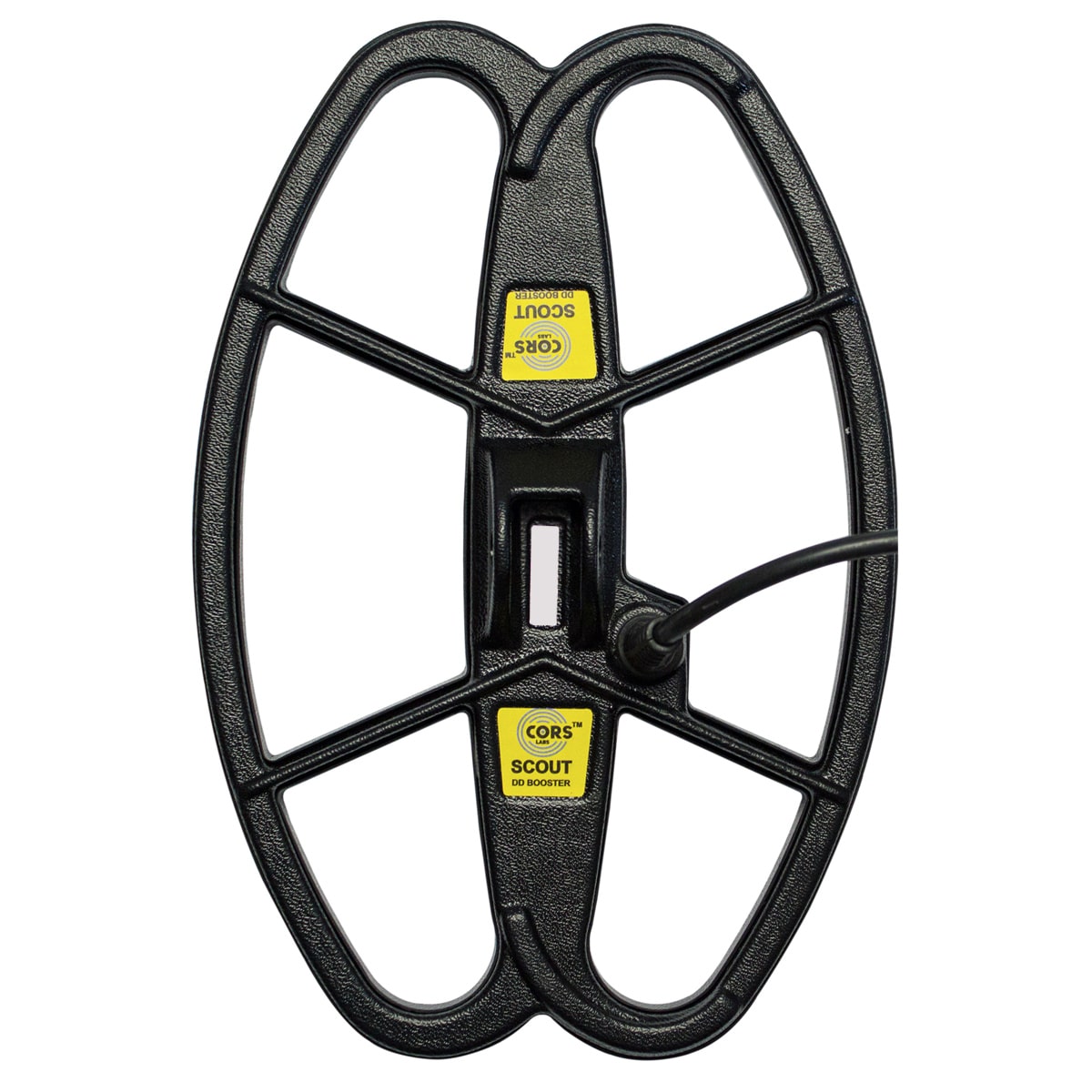

The CORS Scout is a 12.5 x 8.5 inch (31.5 x 21.5 cm) Double-D aftermarket search coil from CORS Labs, in the version for the original Minelab X-TERRA series, listed by CORS as 3 kHz + 7.5 kHz + 18.75 kHz. CORS places the Scout in its everyday series, which it recommends as a substitute for standard coils for novice and advanced users, and says these coils do a fine job on highly mineralized soils.
| Configuration | |
|---|---|
| Coil | CORS Scout, 12.5 x 8.5 in |
| Type | Double-D |
| Fits | Minelab X-TERRA series (original models), 3 kHz + 7.5 kHz + 18.75 kHz version |
| Waterproof | Fully waterproof |
What is in the box with the CORS Scout 12.5 x 8.5
CORS's standard contents for the Scout 12.5 x 8.5
- CORS Scout 12.5 x 8.5 inch DD search coil
- Coil cover, fitted to the coil
- Fixing bolt and nut with two rubber rings
- Velcro cable strap
- Protective cap for the connector
Which detectors the Scout 12.5 x 8.5 fits
- Minelab X-TERRA series (original models), 3 kHz + 7.5 kHz + 18.75 kHz version
CORS makes the Scout for the X-TERRA in six frequency versions: 7.5 kHz, 18.75 kHz, 7.5 + 18.75 kHz, 3 + 18.75 kHz, 3 + 7.5 kHz and 3 + 7.5 + 18.75 kHz, and a label in the box shows which detector each coil is for. These are coils for the original X-TERRA series. For the current X-TERRA PRO and X-TERRA ELITE, Minelab lists its own V8X, V10X and V12X and EQX coils instead. CORS makes the Scout for many other detectors too, and the versions we carry are in our CORS Labs search coils collection.
When to use the Scout 12.5 x 8.5
For an X-TERRA owner who hunts mixed ground, part open and part cluttered, the Scout is a sensible all-round step up from the stock coil. Its 12.5 x 8.5 inch footprint covers more ground per pass yet stays narrow enough to steer around obstacles, and at 490 g (17.2 oz) without the cover it is lighter than the Cannon (570 g, 20.1 oz), Strike (560 g, 19.7 oz) or Detonation (670 g, 23.6 oz).
On the densest iron it is still a big coil, so overlap your sweeps and move to a smaller coil once signals start to merge. Our metal detector coil guide explains how coil size and type trade coverage for separation.
It weighs 490 g (17.2 oz) without the coil cover, and CORS notes the weight may vary slightly with the detector model. The coil face uses composite materials, so CORS says the Scout can be used safely without its cover if required, and the coil is completely waterproof, with a cable strain relief that also seals the cable entry. The outer shell is impact stabilized, UV resistant plastic on a robust mounting bracket, and the coil body is filled with epoxy resin. CORS fits a high-strength cable with a larger conductor cross-section, made in Germany, and connectors with gold or silver plated contacts.
CORS Scout 12.5 x 8.5 specifications
| Specification | CORS Scout 12.5 x 8.5 |
|---|---|
| Size | 12.5 x 8.5 in (31.5 x 21.5 cm) |
| Type | Double-D |
| Weight | 490 g (17.2 oz) without coil cover |
| Waterproof | Fully waterproof |
| Connector | Screw-on, gold or silver plated contacts |
| Cable | High-strength, larger cross-section, made in Germany |
| Fits | Minelab X-TERRA series (original models), 3 kHz + 7.5 kHz + 18.75 kHz version |
| Warranty | 2 years from CORS Labs |
CORS Labs gives a full 2-year warranty on all of its coils, from the date of purchase. Every CORS coil we carry is in our CORS Labs search coils collection.
Serious Detecting is a family-owned, authorized CORS dealer with a showroom in Ypsilanti, Michigan, and our staff help by phone or email.
