Detecting Adventure Shaft Mount Pinpointer Holder

Detecting Adventure Shaft Mount Pinpointer Holder

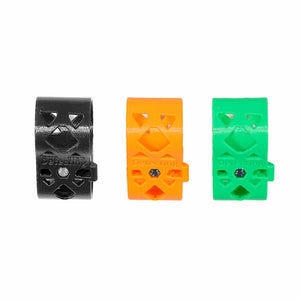

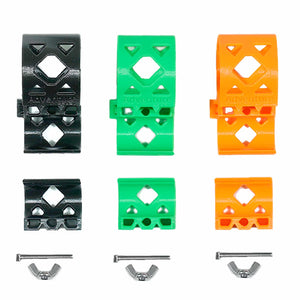

This pinpointer holder will fit standard round detector shafts 7/8" diameter. It is designed to fit Deus, Garrett, and Land or Sea pinpointer. Also, any cylindrical pinpointer which tapers from 3/4" at the tip to 2" at the top.

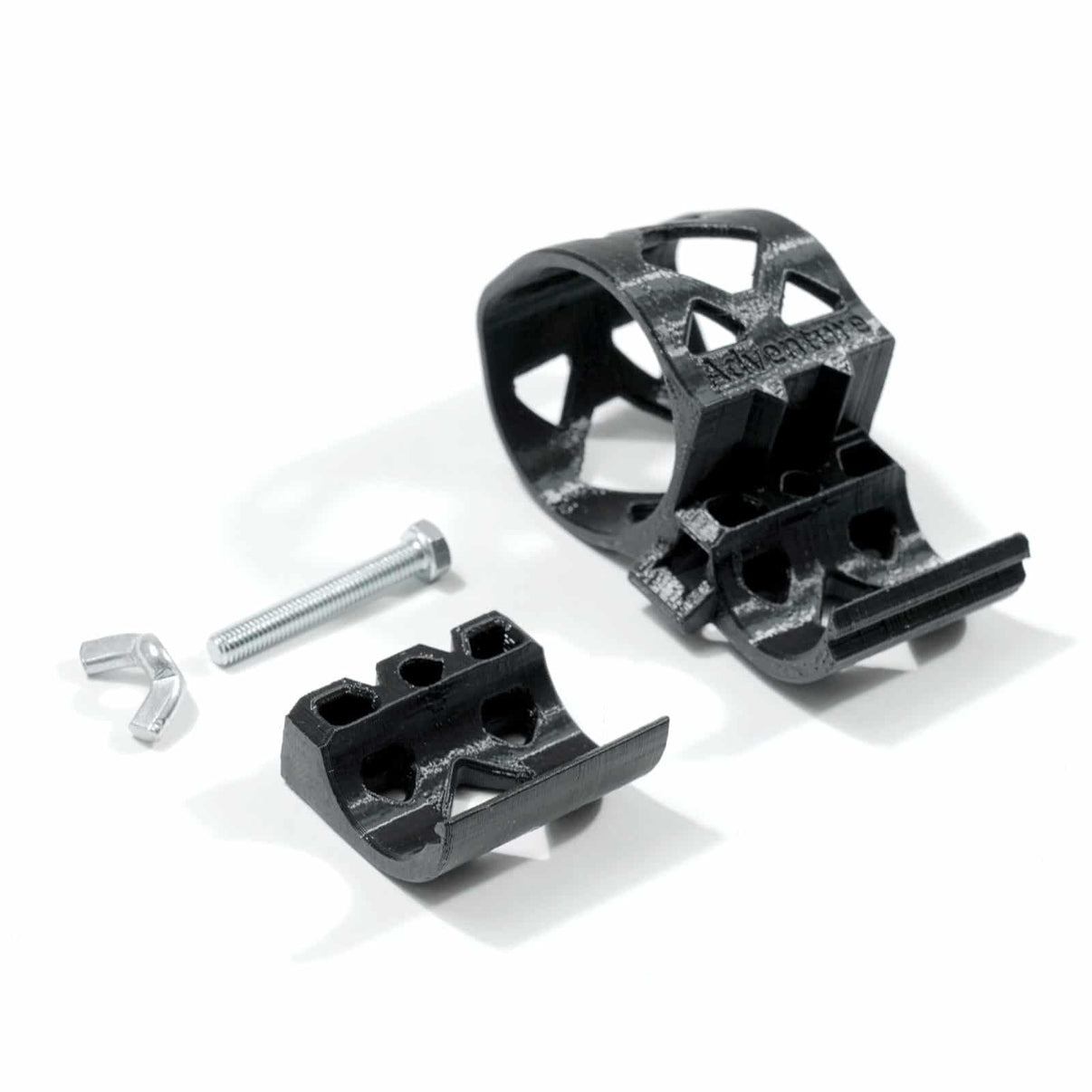

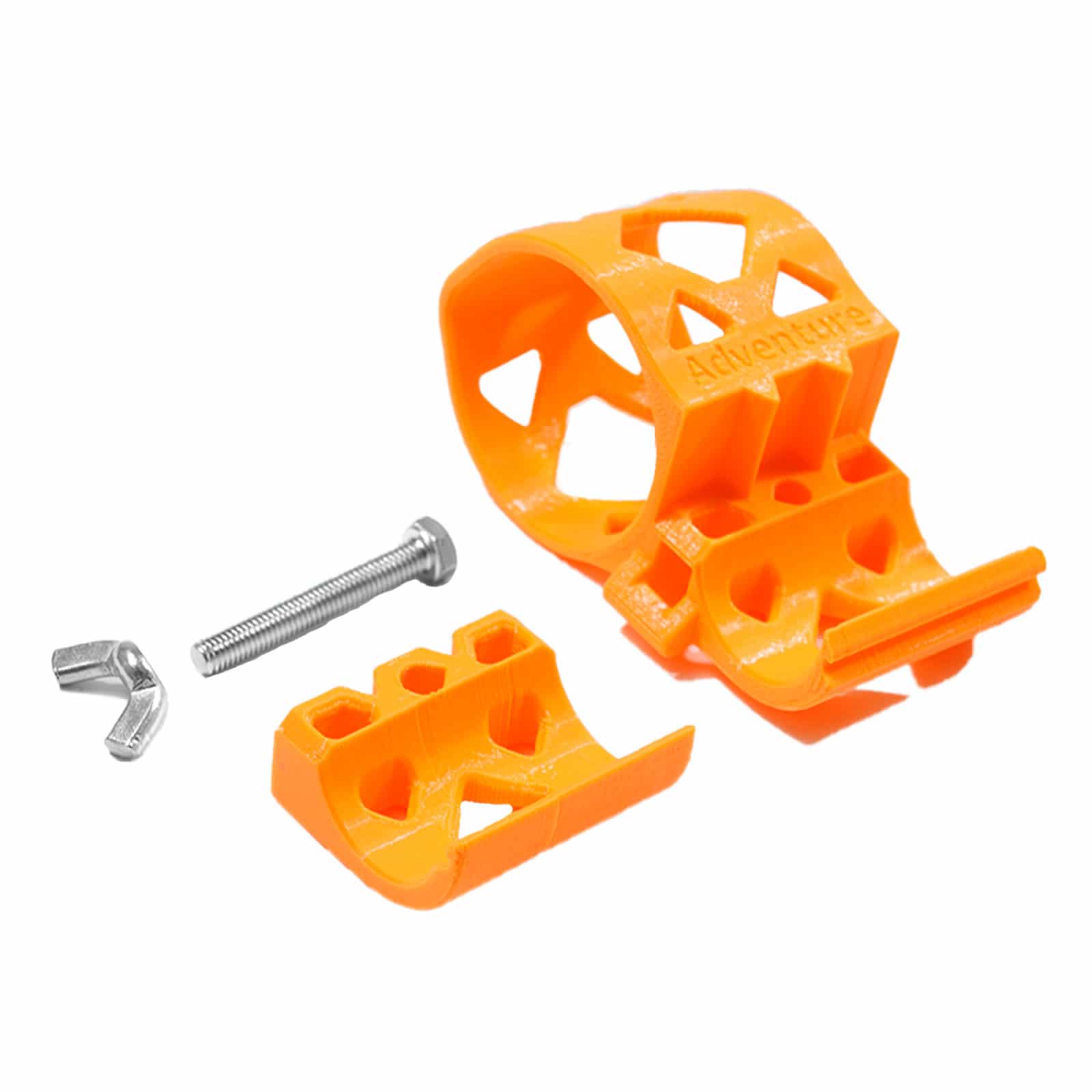

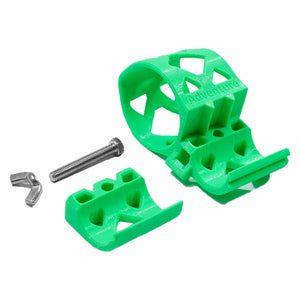

Installation:

Place Pinpointer holder around the shaft.
Place shaft bracket around the shaft, being sure to fit interlocking groove into the channel at the bottom.
Insert hex nut through holder so hex head fits into the recessed side of Pinpointer holder.
Install wing nut to the end of bold protruding out of the side of the Pinpointer holder.
Be sure the wing nut is right.

Removal:

Loosen wingnut and remove from the bolt.
Take the bolt out of the holder.
Lightly pull the bracket away from the shaft, then apply downward pressure to release the bracket from the locking channel.

*Installation and removal illustrations and instructions are included with the product.

*One year warranty for defects. Proof of purchase required.
