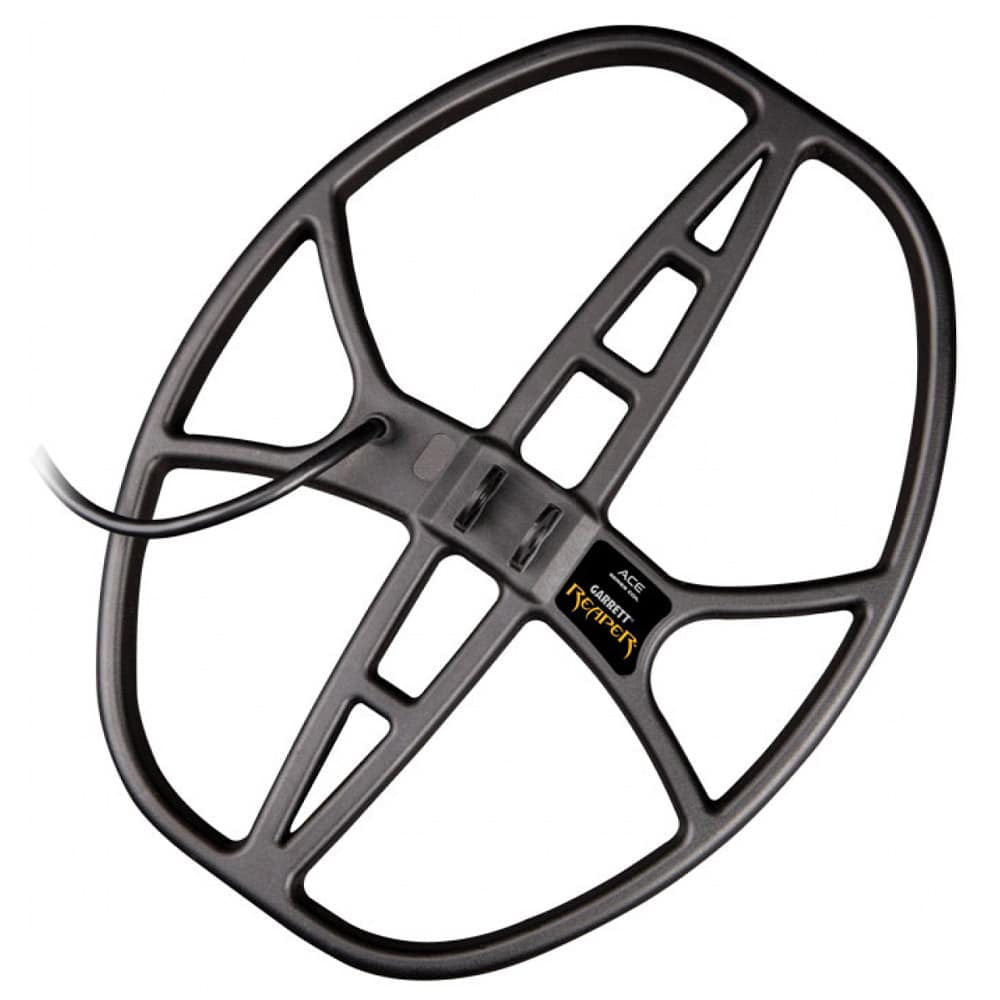

    Garrett 14 x 11 inch DD Reaper Search Coil for ACE Series Metal Detectors

    Vendor:Garrett Type:Coils
    SKU: 2224300
    Sale Price $166.46 Regular Price $217.99
    24% Off

    Hurry up! Only 3 left

    4.9 from 3,100+ verified reviews · 4.8 on Google
    • Authorized U.S. dealer Genuine Garrett, full manufacturer warranty.
    • Free shipping, ships today Order by 3 PM ET Mon to Fri, noon ET Sat. Contiguous U.S.
    • 30-day free returns Prepaid return label included.
    • Talk to a detectorist (844) 771-0707, Mon to Fri, 10 AM to 4 PM ET.

    Found it lower at an authorized U.S. dealer? We'll match it.

    Payment & Security

    Your payment is secure. We don’t store or see your card details.

    • Amazon
    • American Express
    • Apple Pay
    • Bizum
    • Diners Club
    • Discover
    • Google Pay
    • Mastercard
    • PayPal
    • Satispay
    • Shop Pay
    • USDC
    • Visa

    The Garrett ACE 14 x 11 inch DD Reaper is a large format elliptical Double-D search coil, Garrett part 2224300, for standard ACE detectors such as the Garrett ACE 400. Garrett says it gives 25% more ground coverage than an 8.5 x 11 inch coil, the size of the ACE 400's standard coil, and suits large fields and deeply buried coin and relic caches.

    Configuration
    Coil Garrett ACE 14 x 11 in DD Reaper
    Type Double-D
    Fits Standard Garrett ACE detectors (not the ACE Apex)
    Waterproof Submersible coil

    What is in the box with the Garrett ACE 14 x 11 inch DD Reaper

    Garrett's standard contents for the ACE 14 x 11 inch DD Reaper (Garrett part 2224300)

    • Garrett ACE 14 x 11 inch DD Reaper search coil
    • 14 x 11 inch coil cover

    Which detectors the ACE 14 x 11 inch DD Reaper fits

    • Garrett ACE 100
    • Garrett ACE 150
    • Garrett ACE 200
    • Garrett ACE 200i
    • Garrett ACE 250
    • Garrett ACE 300
    • Garrett ACE 300i
    • Garrett ACE 350
    • Garrett EuroACE
    • Garrett ACE 400
    • Garrett ACE 400i

    Garrett designs the ACE 14 x 11 inch Reaper for standard ACE detectors and says it is not for use with the Garrett ACE Apex, which takes Garrett's Multi-Flex coils. Garrett also makes AT versions of its coils, and those work only with AT detectors, so check that the coil you order is the ACE version.

    When to use the ACE 14 x 11 inch DD Reaper

    Garrett says the Reaper's large size is made for deeper detection and for covering more terrain with each sweep, and that its DD configuration still separates and identifies multiple adjacent targets where there is plenty of metal. Garrett's searchcoil guide adds that large coils generally detect deeper and need fewer sweeps to cover an area, but can detect several targets at once in trashy areas.

    We would pick the Reaper for pasture, plowed fields and wide sandy beaches with little trash, where covering ground matters most. A coil this size is more tiring to swing over a long day, and in trash its signals run together, so for parks and tight spots the 6 x 11 inch Viper or the 5 x 8 inch DD suits better. Garrett also sells the 14 x 11 inch Reaper in AT, ACE Apex and Vortex versions, each a separate coil, so order the ACE version for an ACE.

    Garrett says the entire coil can be submerged in water along the water's edge and in shallow creeks, streams or swimming areas, but ACE detectors are not waterproof, so keep the control box dry. Our metal detector coil guide explains how coil size and type trade coverage for separation.

    Garrett ACE 14 x 11 inch DD Reaper specifications

    Specification Garrett ACE 14 x 11 inch DD Reaper
    Size 14 x 11 in (36 x 28 cm)
    Shape Elliptical
    Type Double-D
    Weight 1.55 lb (24.8 oz, 703 g) out of box
    Waterproof Submersible coil; ACE detectors are not waterproof
    Fits Garrett ACE 100 to ACE 400i, EuroACE (not ACE Apex)
    Part number Garrett 2224300
    Made in USA, ISO 9001
    Warranty 3 years parts and labor

    Garrett covers its searchcoils with a full 3-year parts and labor warranty. Every coil and accessory we carry for the ACE 400 is in our Garrett ACE 400 collection.

    Serious Detecting is a family-owned, authorized Garrett dealer with a showroom in Ypsilanti, Michigan, and our staff help by phone or email.

    Product Specifications
    Specification Name Specification Value
    Compatibility
    Fits Garrett Garrett Ace 200, Garrett Ace 250, Garrett Ace 300, Garrett Ace 350, Garrett Ace 400, and Garrett Ace 150
    Coil
    Coil Size 14" x 11" (36 x 28 cm)
    Coil Type Double-D (DD)
    Coil Shape Elliptical
    Coil Build Open
    Coil Connection Wired
    Waterproofing
    Water Resistance Waterproof
    Build
    Weight 1.55 lb / 0.7 kg
    Details
    Color Black
    Box & Warranty
    Warranty 3 Years
