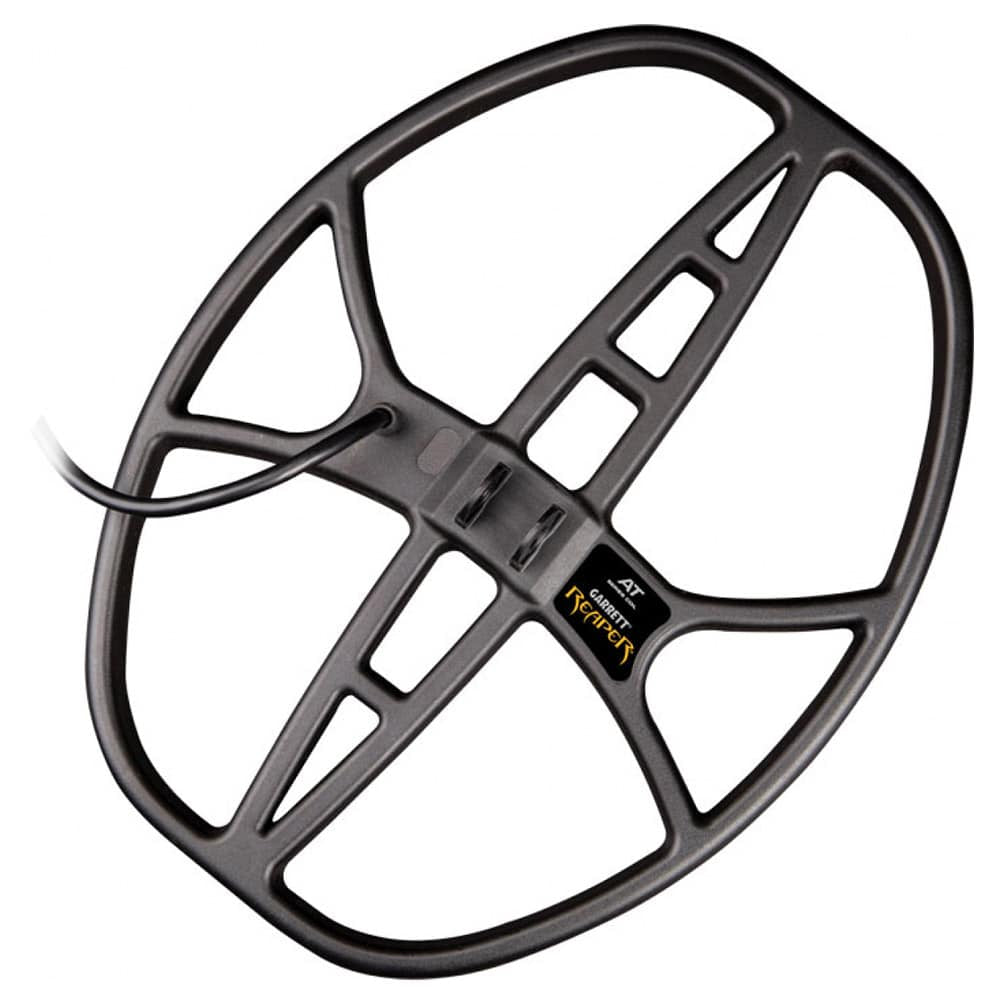

    • Garrett 14 inch by 11 inch DD Reaper search coil for AT Pro, AT Max, and AT Gold detectors with protective coil cover
    Sale!

    Garrett AT 14 x 11 inch DD Reaper Search Coil for AT Pro, AT Max and AT Gold

    Vendor:Garrett Type:Coils
    SKU: 2224100
    Sale Price $175.46 Regular Price $229.99
    24% Off

    Hurry up! Only 1 left

    4.9 from 3,100+ verified reviews · 4.8 on Google
    • Authorized U.S. dealer Genuine Garrett, full manufacturer warranty.
    • Free shipping, ships today Order by 3 PM ET Mon to Fri, noon ET Sat. Contiguous U.S.
    • 30-day free returns Prepaid return label included.
    • Talk to a detectorist (844) 771-0707, Mon to Fri, 10 AM to 4 PM ET.

    Found it lower at an authorized U.S. dealer? We'll match it.

    Payment & Security

    Your payment is secure. We don’t store or see your card details.

    • Amazon
    • American Express
    • Apple Pay
    • Bizum
    • Diners Club
    • Discover
    • Google Pay
    • Mastercard
    • PayPal
    • Satispay
    • Shop Pay
    • USDC
    • Visa

    The Garrett AT 14 x 11 inch DD Reaper is a large 14 x 11 inch (36 x 28 cm) elliptical Double-D search coil, Garrett part 2224100, for the Garrett AT Pro, AT Max and AT Gold. Garrett says it provides 25% more ground coverage than an 8.5 x 11 inch searchcoil.

    Configuration
    Coil Garrett AT 14 x 11 in DD Reaper, elliptical
    Type Double-D (DD)
    Fits AT Pro, AT Max, AT Gold
    Waterproof Entire coil submersible

    What is in the box with the Garrett AT 14 x 11 inch DD Reaper

    Garrett's standard contents for the AT 14 x 11 inch DD Reaper (Garrett part 2224100)

    • Garrett AT 14 x 11 inch DD Reaper search coil
    • 14 x 11 inch coil cover

    Which detectors the AT 14 x 11 inch DD Reaper fits

    Garrett designed the AT Reaper for its All Terrain detectors: the AT Pro, AT Gold and AT Max. Garrett sells a separate 14 x 11 inch Vortex Reaper for the Vortex detectors, and Vortex coils do not fit other Garrett detectors.

    When to use the AT 14 x 11 inch DD Reaper

    Garrett built the Reaper for deeper detection depth and for covering more terrain with each sweep, and calls it perfect for large fields and for hunting deeply buried coin and relic caches. Its DD configuration, Garrett adds, enables easy separation and identification of multiple adjacent targets where metal items are abundant.

    We would put the Reaper on open pasture, plowed fields and wide, clean stretches of beach, and change to the 6 x 11 inch Viper or the 5 x 8 inch DD around old building sites full of iron. It is heavier on the arm and picks up several targets at once in trash, and a bigger coil does not make the detector any steadier on salt. The entire coil can be submerged in lakes, streams and oceans, and Garrett rates the AT Pro, AT Gold and AT Max waterproof to 10 feet (3 m). Our metal detector coil guide explains how coil size and type trade coverage for separation.

    Garrett AT 14 x 11 inch DD Reaper specifications

    Specification Garrett AT 14 x 11 inch DD Reaper
    Size 14 x 11 in (36 x 28 cm)
    Shape Elliptical
    Type Double-D (DD)
    Coverage 25% more than an 8.5 x 11 in coil (Garrett)
    Weight 1.65 lb (748 g) out of the box
    Waterproof Entire coil submersible
    Fits Garrett AT Pro, AT Max, AT Gold
    Coil cover Included
    Made in USA (ISO 9001)
    Part number Garrett 2224100
    Warranty 3 years parts and labor

    Garrett covers its searchcoils with a full 3-year parts and labor warranty. Every coil and accessory we carry for the AT Pro is in our Garrett AT Pro collection.

    Serious Detecting is a family-owned, authorized Garrett dealer with a showroom in Ypsilanti, Michigan, and our staff help by phone or email.

    Product Specifications
    Specification Name Specification Value
    Compatibility
    Fits Garrett Garrett AT Gold, Garrett AT Max, and Garrett AT Pro
    Coil
    Coil Size 14" x 11" (36 x 28 cm)
    Coil Type Double-D (DD)
    Coil Shape Elliptical
    Coil Build Open
    Coil Connection Wired
    Waterproofing
    Water Resistance Waterproof
    Build
    Weight 1.65 lb / 0.75 kg
    Details
    Color Black
    Box & Warranty
    Warranty 3 Years
