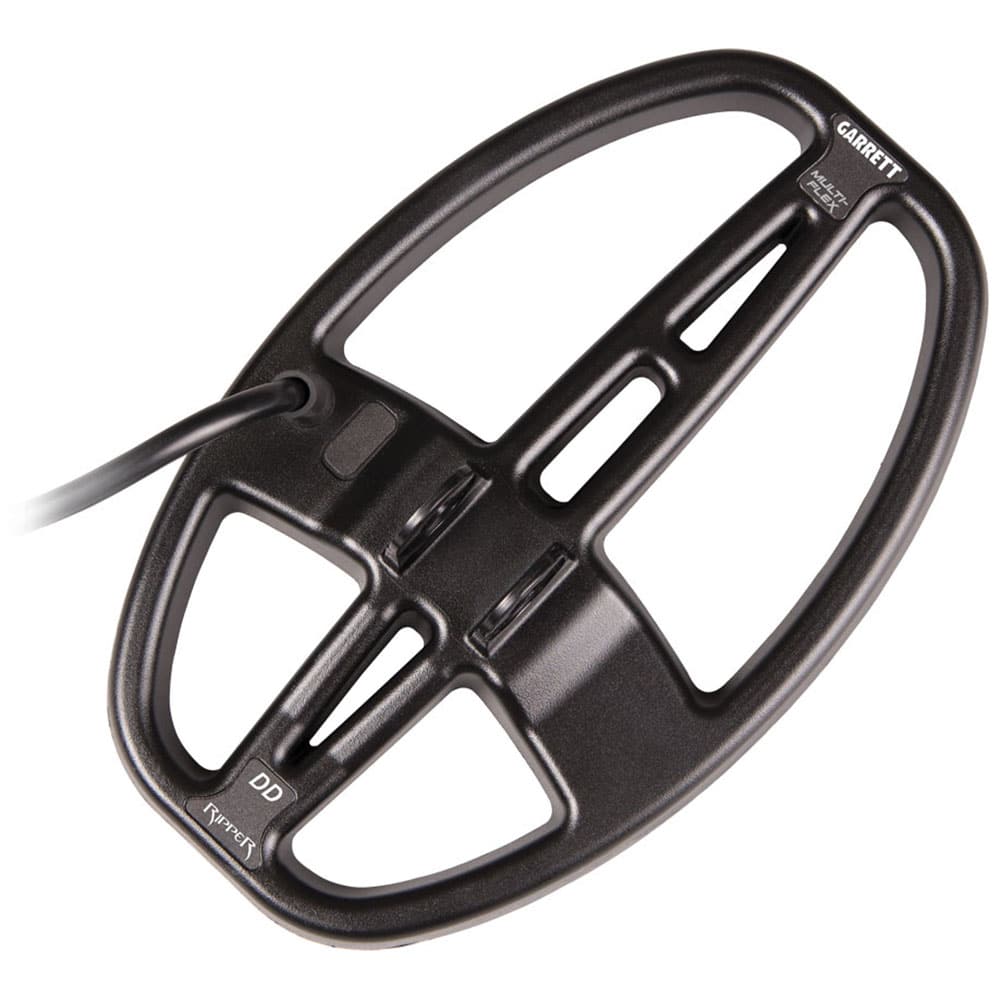

    • Garrett 5x8 inch DD Multi-Flex Ripper open-frame search coil in black with attached cable, for the Ace Apex detector
    Sale!

    Garrett 5 x 8 inch DD Multi-Flex Ripper Search Coil for ACE Apex Metal Detector

    Vendor:Garrett Type:Coils
    SKU: 2223800
    Sale Price $112.41 Regular Price $146.99
    24% Off

    Hurry up! Only 1 left

    4.9 from 3,100+ verified reviews · 4.8 on Google
    • Authorized U.S. dealer Genuine Garrett, full manufacturer warranty.
    • Free shipping, ships today Order by 3 PM ET Mon to Fri, noon ET Sat. Contiguous U.S.
    • 30-day free returns Prepaid return label included.
    • Talk to a detectorist (844) 771-0707, Mon to Fri, 10 AM to 4 PM ET.

    Found it lower at an authorized U.S. dealer? We'll match it.

    Payment & Security

    Your payment is secure. We don’t store or see your card details.

    • Amazon
    • American Express
    • Apple Pay
    • Bizum
    • Diners Club
    • Discover
    • Google Pay
    • Mastercard
    • PayPal
    • Satispay
    • Shop Pay
    • USDC
    • Visa

    The Garrett ACE Apex 5 x 8 inch DD Multi-Flex Ripper is the small Double-D search coil for the Garrett ACE Apex, Garrett part 2223800. Garrett calls it the perfect size for tight spaces and iron-infested sites, with improved target separation and maneuverability.

    Configuration
    Coil Garrett Multi-Flex Ripper, 5 x 8 in
    Type Double-D
    Fits Garrett ACE Apex
    Waterproof Fully submersible coil

    What is in the box with the Garrett ACE Apex 5 x 8 inch Ripper

    Garrett's standard contents for the ACE Apex 5 x 8 inch Ripper (Garrett part 2223800)

    • Garrett Multi-Flex Ripper 5 x 8 inch DD search coil
    • 5 x 8 inch DD coil cover

    Which detectors the ACE Apex 5 x 8 inch Ripper fits

    Garrett designed the Multi-Flex coils to work only with the Garrett ACE Apex. Because of the Multi-Flex coil technology, older ACE coils are not compatible with an Apex, and the Apex coils do not fit older ACE detectors. Garrett also makes Vortex and AT versions of its coil sizes, each for its own detector line.

    When to use the ACE Apex 5 x 8 inch Ripper

    Garrett says the concentrated detection energy of the 5 x 8 inch Ripper makes it great for fine jewelry, small coins and gold nuggets. Its tight detection field suits stubble fields and cramped, iron-heavy spots, and lets you work closer to large metal objects such as iron poles. Out of the box it weighs only 0.75 lb (340 g).

    On the Apex, we would fit the Ripper where iron is thick, such as old home sites and busy parks, since the small face slips between targets that the Raider or the Reaper would read together. It is slow going, and iron can still hide a good target from any coil. Garrett says the whole coil can be submerged at the water's edge and in shallow creeks, streams or swimming areas, but the ACE Apex control box is not waterproof and should never go under water. Our metal detector coil guide explains how coil size and type trade coverage for separation.

    Garrett ACE Apex 5 x 8 inch Ripper specifications

    Specification Garrett ACE Apex 5 x 8 inch Ripper
    Size 5 x 8 in (13 x 20 cm)
    Type Double-D, Multi-Flex
    Weight 0.75 lb (340 g) out of the box
    Fits Garrett ACE Apex only
    Waterproof Fully submersible coil; Apex control box is not
    Coil cover Included
    Build Made in America under ISO 9001 guidelines
    Part number Garrett 2223800
    Warranty 3 years parts and labor

    Garrett covers its detectors, pinpointers and searchcoils with a 3-year warranty. Every coil and accessory we carry for the ACE Apex is in our Garrett ACE Apex collection.

    Serious Detecting is a family-owned, authorized Garrett dealer with a showroom in Ypsilanti, Michigan, and our staff help by phone or email.

    Product Specifications
    Specification Name Specification Value
    Compatibility
    Fits Garrett Garrett Ace Apex
    Coil
    Coil Size 5" x 8" (13 x 20 cm)
    Coil Type Double-D (DD)
    Coil Shape Elliptical
    Coil Build Open
    Coil Connection Wired
    Waterproofing
    Water Resistance Waterproof
    Build
    Weight 12 oz / 340 g
    Details
    Color Black
    Box & Warranty
    Warranty 3 Years
