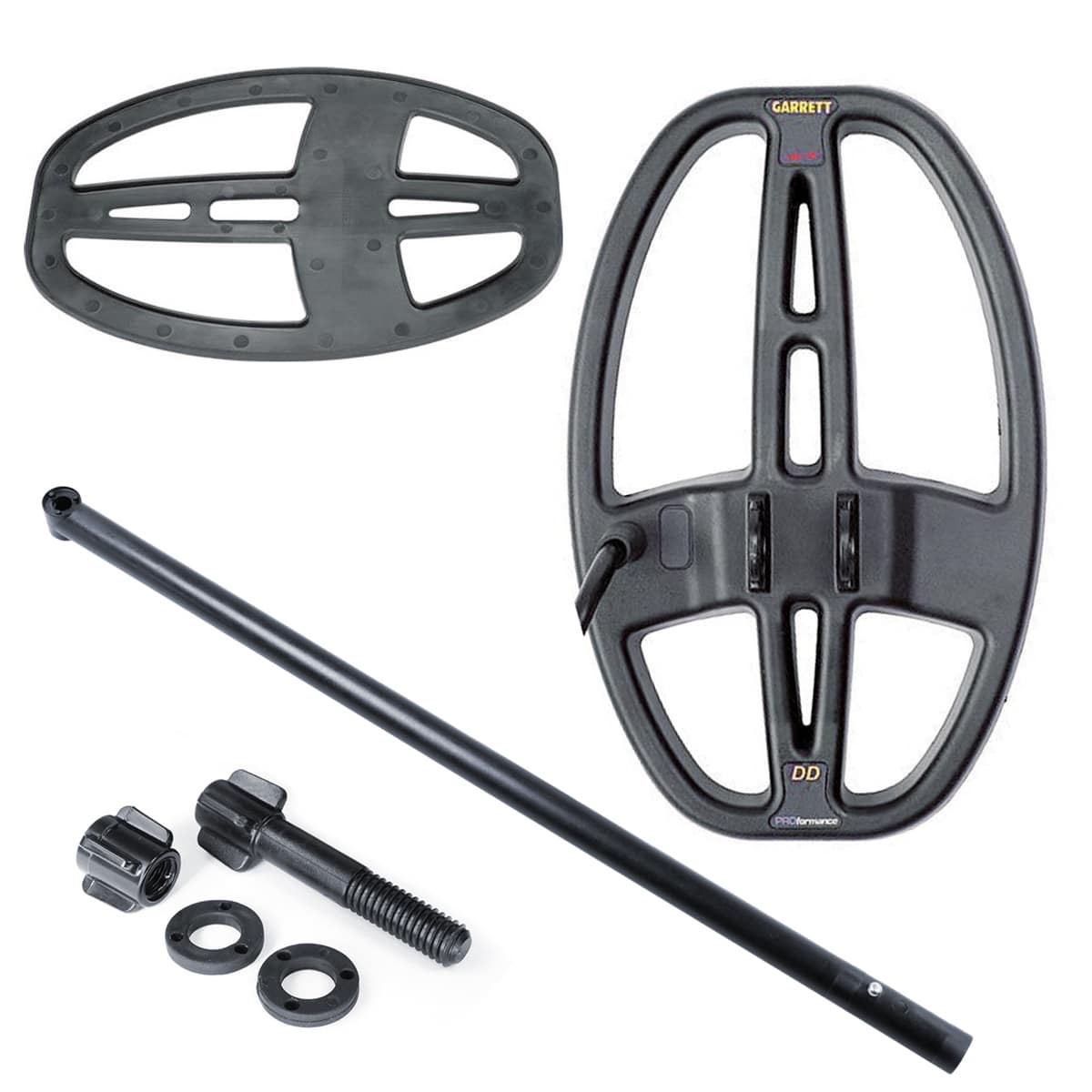

    • Garrett 5x8 inch DD PROformance search coil with coil cover, lower rod, bolt, nut and washers for ACE series detectors
    • Garrett ACE search coil lower rod end with black plastic mounting bolt, threaded nut and two washers laid out beside it
    Sale!

    Garrett 5 x 8 inch DD PROformance ACE Series Search Coil, Cover, Rod and Hardware

    Vendor:Garrett Type:Coils
    SKU: 2223000 B001
    Sale Price $131.92 Regular Price $197.89
    33% Off

    Hurry up! Only 1 left

    4.9 from 3,100+ verified reviews · 4.8 on Google
    • Authorized U.S. dealer Genuine Garrett, full manufacturer warranty.
    • Free shipping, ships today Order by 3 PM ET Mon to Fri, noon ET Sat. Contiguous U.S.
    • 30-day free returns Prepaid return label included.
    • Talk to a detectorist (844) 771-0707, Mon to Fri, 10 AM to 4 PM ET.

    Found it lower at an authorized U.S. dealer? We'll match it.

    Payment & Security

    Your payment is secure. We don’t store or see your card details.

    • Amazon
    • American Express
    • Apple Pay
    • Bizum
    • Diners Club
    • Discover
    • Google Pay
    • Mastercard
    • PayPal
    • Satispay
    • Shop Pay
    • USDC
    • Visa

    The Garrett ACE 5 x 8 inch PROformance DD kit brings Garrett's small Double-D coil (Garrett part 2223000) together with its coil cover, a lower rod and the bolt, washers and nut to mount it, for standard ACE detectors such as the Garrett ACE 400. Garrett built the coil for tight spaces, rocks and iron-infested sites.

    Configuration
    Coil Garrett ACE 5 x 8 in PROformance DD (Ripper)
    Type Double-D
    Fits Standard Garrett ACE detectors (not the ACE Apex)
    Waterproof Submersible coil

    What is in the box with the Garrett ACE 5 x 8 inch PROformance DD

    Garrett's standard contents for the ACE 5 x 8 inch PROformance DD (Garrett part 2223000)

    • Garrett ACE 5 x 8 inch PROformance DD search coil
    • 5 x 8 inch DD coil cover

    This Garrett ACE 5 x 8 inch PROformance DD kit also includes

    • An extra Garrett coil cover (Garrett part 1607400)
    • Lower rod (lower stem)
    • Mounting hardware: bolt, washers and nut

    Which detectors the ACE 5 x 8 inch PROformance DD fits

    • Garrett ACE 100
    • Garrett ACE 150
    • Garrett ACE 200
    • Garrett ACE 200i
    • Garrett ACE 250
    • Garrett ACE 300
    • Garrett ACE 300i
    • Garrett ACE 350
    • Garrett EuroACE
    • Garrett ACE 400
    • Garrett ACE 400i

    Garrett designs the ACE 5 x 8 inch PROformance DD for standard ACE detectors and says it is not for use with the Garrett ACE Apex, which takes Garrett's Multi-Flex coils. Garrett also makes AT versions of its coils, and those work only with AT detectors, so check that the coil you order is the ACE version.

    When to use the ACE 5 x 8 inch PROformance DD

    Garrett calls the 5 x 8 inch DD its Ripper and says the compact size is ideal for searching in tight spaces, working through rocks and in trashy areas, including stubble fields, roots and heavily iron-infested ground. The tight detection field lets you work it closer to large metal objects such as iron poles, and Garrett says its concentrated energy is good for fine jewelry and even gold nuggets. It is the smallest Double-D coil in Garrett's ACE range.

    Garrett designed the Double-D winding to reduce ground interference. Its searchcoil guide says a DD is less sensitive than a concentric of the same size over non-mineralized ground, but significantly outperforms the concentric over mineralized ground, which is why the 5 x 8 inch DD runs smoothly in highly mineralized areas such as salt water beaches.

    We would choose the 5 x 8 inch DD for parks and old homesites where iron lies thick, since its small footprint fits between targets that the 8.5 x 11 inch Raider or the 14 x 11 inch Reaper would see together. Plan on slow progress, and on some good targets staying hidden next to iron: a smaller coil improves separation but cannot solve masking entirely. Garrett makes 5 x 8 inch DD coils for its ACE, AT, ACE Apex and Vortex lines, so order the one made for your detector. Garrett says the entire coil can be submerged in water along the water's edge and in shallow creeks, streams or swimming areas, but ACE detectors are not waterproof, so keep the control box dry. Our metal detector coil guide explains how coil size and type trade coverage for separation.

    Garrett ACE 5 x 8 inch PROformance DD specifications

    Specification Garrett ACE 5 x 8 inch PROformance DD
    Size 5 x 8 in (13 x 20 cm)
    Shape Semi-elliptical
    Type Double-D
    Weight 0.7 lb (11.2 oz, 318 g) out of box
    Waterproof Submersible coil; ACE detectors are not waterproof
    Fits Garrett ACE 100 to ACE 400i, EuroACE (not ACE Apex)
    Part number Garrett 2223000
    Made in USA, ISO 9001
    Warranty 3 years parts and labor

    Garrett covers its searchcoils with a full 3-year parts and labor warranty. Every coil and accessory we carry for the ACE 400 is in our Garrett ACE 400 collection.

    Serious Detecting is a family-owned, authorized Garrett dealer with a showroom in Ypsilanti, Michigan, and our staff help by phone or email.

    Product Specifications
    Specification Name Specification Value
    Compatibility
    Fits Garrett Garrett Ace 150, Garrett Ace 200, Garrett Ace 250, Garrett Ace 300, Garrett Ace 350, and Garrett Ace 400
    Coil
    Coil Size 5" x 8" (13 x 20 cm)
    Coil Type Double-D (DD)
    Coil Shape Semi Elliptical
    Coil Build Open
    Coil Connection Wired
    Waterproofing
    Water Resistance Waterproof
    Build
    Weight 11.2 oz / 318 g
    Details
    Color Black
    Box & Warranty
    Warranty 3 Years
