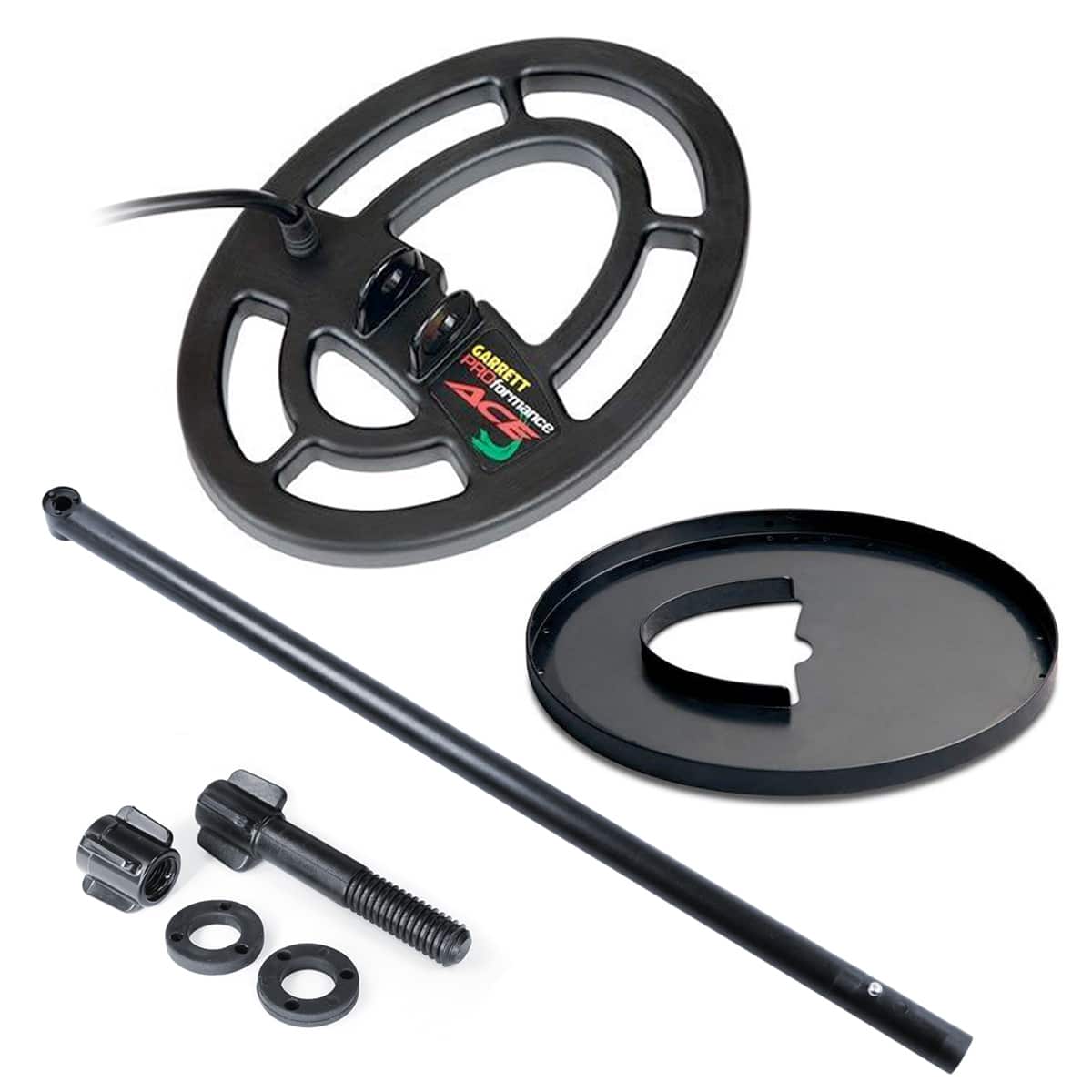

    • Garrett ACE PROformance 6.5 x 9 in concentric search coil with cover, lower rod, bolt, nut and washers
    • Closeup of the Garrett lower rod and mounting hardware, shown against a white background.
    Sale!

    Garrett ACE 6.5 x 9 in PROformance Concentric Coil Kit with Cover, Lower Rod and Hardware

    Vendor:Garrett Type:Coils
    SKU: 2221700 B002
    Sale Price $98.35 Regular Price $147.53
    33% Off

    Hurry up! Only 1 left

    4.9 from 3,100+ verified reviews · 4.8 on Google
    • Authorized U.S. dealer Genuine Garrett, full manufacturer warranty.
    • Ships today Order by 3 PM ET Mon to Fri, noon ET Sat. Free shipping on orders $99+.
    • 30-day free returns Prepaid return label included.
    • Talk to a detectorist (844) 771-0707, Mon to Fri, 10 AM to 4 PM ET.

    Found it lower at an authorized U.S. dealer? We'll match it.

    Payment & Security

    Your payment is secure. We don’t store or see your card details.

    • Amazon
    • American Express
    • Apple Pay
    • Bizum
    • Diners Club
    • Discover
    • Google Pay
    • Mastercard
    • PayPal
    • Satispay
    • Shop Pay
    • USDC
    • Visa

    The Garrett ACE 6.5 x 9 in Coil Kit pairs Garrett's ACE 6.5 x 9 in PROformance concentric searchcoil (part 2221700) with a spare lower rod and mounting hardware. The coil weighs 1 lb, is fully submersible, and fits every ACE model from the ACE 100 to the ACE 400i except the ACE Apex. It is the standard coil on the ACE 200, so ACE 200 owners buy it as a spare or a replacement. ACE 300 and ACE 400 owners buy it as a lighter, smaller second coil for tight spots and long sessions.

    Who the Garrett ACE 6.5 x 9 in coil is for

    • ACE 200 owners (and ACE 150 and ACE 250 owners): this is the coil your detector shipped with. Buy it to replace a damaged coil or to keep a spare.
    • ACE 300 owners: the Garrett ACE 300 ships with a 7 x 10 in concentric coil. The 6.5 x 9 in is a little smaller and lighter, which helps around trees, fences, playground edges and other tight spots.
    • ACE 400 owners: the Garrett ACE 400 ships with an 8.5 x 11 in DD coil. The 6.5 x 9 in concentric is smaller and lighter, but on heavily mineralized ground or wet salt sand the stock DD coil will usually run more stable. Most ACE 400 owners use the 6.5 x 9 in as a second coil for trashy parks and tight spots, not as a replacement.

    If you own the Garrett ACE Apex, this coil will not work. Garrett states it is not for use with the Apex, which uses its own coils.

    Key features

    • Concentric winding: Garrett configures this coil for the largest detection field and greatest depth among its formats, with a symmetrical field that makes pinpointing straightforward and keeps target ID consistent from sweep to sweep.
    • 1 lb out of the box: light enough to swing for hours, and easy to steer into tight gaps.
    • Fully submersible coil: the coil itself can go underwater along the water's edge, in shallow creeks and in swimming areas.
    • Cover included from Garrett: the 6.5 x 9 in elliptical cover (part 1605700) protects the coil face from rocks, gravel and rough soil.
    • Made in America with a 3-year warranty: Garrett covers the coil with a full 3-year parts and labor warranty.

    What is in the box

    Garrett's standard contents (2221700)

    • Garrett ACE 6.5 x 9 in PROformance concentric searchcoil
    • Garrett 6.5 x 9 in elliptical coil cover

    This Garrett ACE 6.5 x 9 in coil kit also includes

    • An extra Garrett coil cover (Garrett part 1605700)
    • Lower rod (lower stem) for ACE detectors
    • Coil mounting hardware: bolt, nut and two washers

    Why the kit includes a lower rod

    With its own lower rod, the 6.5 x 9 in coil can stay mounted and cabled. To change coils, you swap the complete lower rod at the shaft rather than unbolting the coil from the stock rod each time. That saves wear on the coil ears and hardware if you switch often between the stock coil and this one. The rod also serves as a replacement if your original lower rod is bent or the coil ears have worn the mount.

    Garrett ACE 6.5 x 9 in coil compatibility

    Fits: ACE 100, ACE 150, ACE 200, ACE 200i, ACE 250, ACE 300, ACE 300i, ACE 350, EuroACE, ACE 400 and ACE 400i.

    Does not fit: the ACE Apex, or any Garrett AT series detector. AT owners need the AT version of the 6.5 x 9 in coil, which is a different part.

    The cover fits this coil only. It does not fit the stock ACE 300 7 x 10 in coil or the ACE 400 8.5 x 11 in DD coil. Other ACE coils, covers and parts are in our metal detector search coils collection.

    Where the 6.5 x 9 in coil works well, and where it does not

    • Parks, yards and general coin hunting: Garrett sizes this coil for parks, fields and beachfronts. Its light weight makes long park sessions easier.
    • Tight spots: the smaller footprint gets closer to trees, fences, curbs and playground equipment than the ACE 300 and ACE 400 stock coils.
    • Water's edge and shallow water: the coil can be submerged, but Garrett ACE control boxes are not waterproof. Keep the control box dry and out of rain and splashes. Rinse sand out from under the cover after beach use.
    • Mineralized ground and wet salt sand: a concentric coil is more affected by ground mineralization than a DD coil. If you hunt red clay, iron-rich soil or wet salt sand often, the ACE 400's stock DD coil or Garrett's ACE 5 x 8 in DD coil is the better choice.
    • Dense trash: for heavy iron or tight trash, the smaller ACE 5 x 8 in DD separates targets better than the 6.5 x 9 in concentric.

    All current Garrett detectors and accessories are in our Garrett collection.

    Product Specifications
    Specification Name Specification Value
    Compatibility
    Fits Garrett Garrett Ace 150, Garrett Ace 200, Garrett Ace 250, Garrett Ace 300, Garrett Ace 350, and Garrett Ace 400
    Coil
    Coil Size 6.5" x 9" (16.5 x 23 cm)
    Coil Type Concentric
    Coil Shape Elliptical
    Coil Build Open
    Coil Connection Wired
    Waterproofing
    Water Resistance Waterproof
    Build
    Weight 1 lb / 0.45 kg
    Details
    Color Black
    Box & Warranty
    Warranty 3 Years
    Service & Support

    Warranty & Product Assurance

    At Serious Detecting, we stand behind the quality of every product we offer. Warranty coverage is provided directly by the manufacturer and may vary depending on the item. We’re here to help you understand your coverage and assist with the warranty process when needed. If you ever have questions or need support navigating a warranty claim, our team is happy to guide you.

    Technical Support & Expert Guidance

    Whether you’re setting up new gear, optimizing performance, or troubleshooting an issue in the field, our knowledgeable support team is here to help. We use this equipment ourselves, so we can offer real-world tips and step-by-step assistance to get you detecting with confidence. Message us anytime and we’ll do our best to get you pointed in the right direction fast.

    Manuals, Resources & Downloads

    Access user manuals, setup guides, safety tips, and technical documentation in our online support center. These resources help you understand your equipment, learn recommended settings, and get the most out of every hunt.

    Replacement Parts & Accessories

    Keep your equipment running strong with genuine parts and accessories. We carry coils, batteries, chargers, protective gear, digging tools, and more — fully compatible with your detector and backed by manufacturer standards. Not sure what fits your model? Just ask — we’re here to help.

    Training & Tutorials

    New to detecting or upgrading to advanced equipment? Our resource library includes helpful guides, maintenance tips, how-to videos, and expert advice from experienced detectorists. From ground balancing and coil choices to target ID basics and field technique, you’ll find the knowledge you need to level up your success.

    Customer Questions & Expert Answers

    Get real answers from outdoor explorers and our product experts. Browse questions about performance, features, and setup — or ask your own to make sure this gear fits your next adventure.

    Will the Garrett ACE 6.5 x 9 in coil work on my Garrett ACE 400?

    Yes, the Garrett ACE 6.5 x 9 in coil works on the Garrett ACE 400, and Garrett lists the ACE 400 and ACE 400i as compatible. It is smaller and lighter than the ACE 400's stock 8.5 x 11 in DD coil, which helps in tight spots and trashy parks. On mineralized ground or wet salt sand, the stock DD coil usually runs more stable, so most owners keep both. Everything for the model is in our Garrett ACE 400 collection.

    Answered by Richard T. · October 2026

    Why does this Garrett ACE coil kit include a lower rod?

    This Garrett ACE coil kit includes a lower rod so the 6.5 x 9 in coil can stay mounted and cabled on its own rod. Swapping coils then means swapping the complete lower rod at the shaft, not unbolting the coil each time, which saves wear on the coil ears and hardware. The rod also replaces a bent or worn original. Other ACE coils and parts are in our metal detector search coils collection.

    Answered by Dan P. · October 2026

    Can I take the Garrett ACE 6.5 x 9 in coil into the water?

    Yes, you can take the Garrett ACE 6.5 x 9 in coil into the water: Garrett rates the coil as fully submersible for the water's edge, shallow creeks and swimming areas. The ACE control box is not waterproof, though, so keep it dry and out of splashes. If you want to hunt with the whole detector in the water, look at the fully submersible machines in our waterproof metal detectors collection.

    Answered by John W. · October 2026
