    • Garrett 6x11 DD Viper waterproof search coil for ACE series metal detectors
    Sale!

    Garrett 6 x 11 inch DD Viper Search Coil for ACE Series Metal Detectors

    Vendor:Garrett Type:Coils
    SKU: 2224200
    Sale Price $109.36 Regular Price $164.04
    33% Off

    Hurry up! Only 8 left

    4.9 from 3,100+ verified reviews · 4.8 on Google
    • Authorized U.S. dealer Genuine Garrett, full manufacturer warranty.
    • Free shipping, ships today Order by 3 PM ET Mon to Fri, noon ET Sat. Contiguous U.S.
    • 30-day free returns Prepaid return label included.
    • Talk to a detectorist (844) 771-0707, Mon to Fri, 10 AM to 4 PM ET.

    Found it lower at an authorized U.S. dealer? We'll match it.

    Payment & Security

    Your payment is secure. We don’t store or see your card details.

    • Amazon
    • American Express
    • Apple Pay
    • Bizum
    • Diners Club
    • Discover
    • Google Pay
    • Mastercard
    • PayPal
    • Satispay
    • Shop Pay
    • USDC
    • Visa

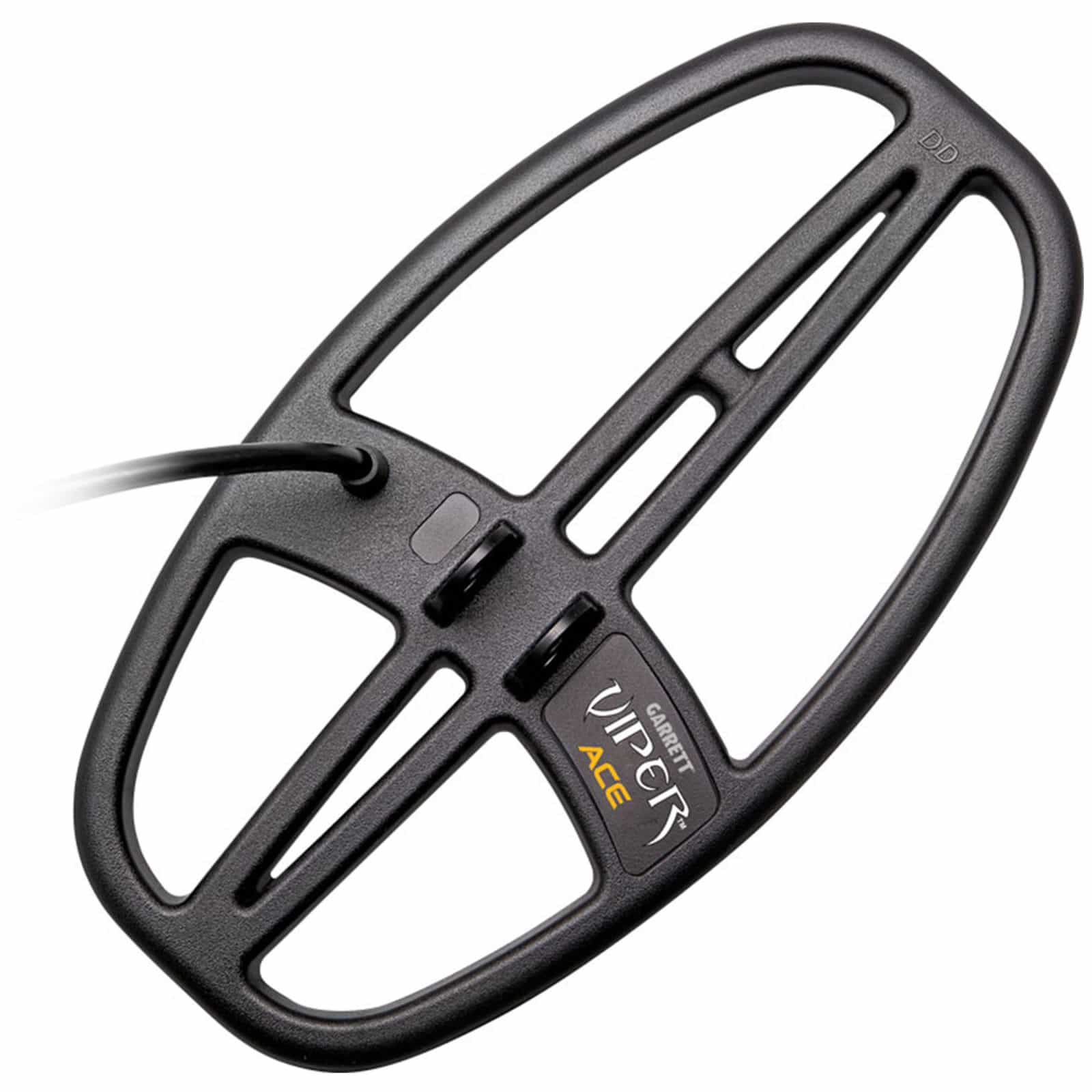

    The Garrett ACE 6 x 11 inch DD Viper is a narrow, elliptical PROformance Double-D search coil, Garrett part 2224200, for traditional ACE detectors such as the Garrett ACE 400. Garrett says the narrow DD format gives excellent maneuverability and depth.

    Configuration
    Coil Garrett ACE 6 x 11 in PROformance DD Viper
    Type Double-D
    Fits Standard Garrett ACE detectors (not the ACE Apex)
    Waterproof Submersible coil

    What is in the box with the Garrett ACE 6 x 11 inch DD Viper

    Garrett's standard contents for the ACE 6 x 11 inch DD Viper (Garrett part 2224200)

    • Garrett ACE 6 x 11 inch PROformance DD Viper search coil
    • 6 x 11 inch DD coil cover

    Which detectors the ACE 6 x 11 inch DD Viper fits

    • Garrett ACE 100
    • Garrett ACE 150
    • Garrett ACE 200
    • Garrett ACE 200i
    • Garrett ACE 250
    • Garrett ACE 300
    • Garrett ACE 300i
    • Garrett ACE 350
    • Garrett EuroACE
    • Garrett ACE 400
    • Garrett ACE 400i

    Garrett designs the ACE 6 x 11 inch Viper for standard ACE detectors and says it is not for use with the Garrett ACE Apex, which takes Garrett's Multi-Flex coils. Garrett also makes AT versions of its coils, and those work only with AT detectors, so check that the coil you order is the ACE version.

    When to use the ACE 6 x 11 inch DD Viper

    Garrett describes the Viper as a narrow DD-format coil with excellent maneuverability and depth. With a narrower footprint than standard round coils, its energy is highly focused, and Garrett calls it ideal for stubble fields and other tight areas. At less than 1 lb (0.95 lb, 431 g out of the box), Garrett says it gives the detector good balance.

    We see the Viper as a sensible in-between coil for ACE owners: slimmer than a full-size coil, so it works around trees and scattered trash, yet longer than the 5 x 8 inch DD, so it still covers a useful strip. Its shape makes it easy to put the coil exactly where you want it, but we would still overlap every sweep, since a narrow coil covers less with each pass. For wide open fields the 14 x 11 inch Reaper covers more ground.

    Garrett says the entire coil can be submerged in water along the water's edge and in shallow creeks, streams or swimming areas, but ACE detectors are not waterproof, so keep the control box dry. Our metal detector coil guide explains how coil size and type trade coverage for separation.

    Garrett 6x11 DD Viper waterproof search coil for ACE series detectors

    Garrett ACE 6 x 11 inch DD Viper specifications

    Specification Garrett ACE 6 x 11 inch DD Viper
    Size 6 x 11 in (15 x 28 cm)
    Shape Elliptical
    Type Double-D
    Weight 0.95 lb (15.2 oz, 431 g) out of box
    Waterproof Submersible coil; ACE detectors are not waterproof
    Fits Garrett ACE 100 to ACE 400i, EuroACE (not ACE Apex)
    Part number Garrett 2224200
    Made in USA, ISO 9001
    Warranty 3 years parts and labor

    Garrett covers its searchcoils with a full 3-year parts and labor warranty. Every coil and accessory we carry for the ACE 400 is in our Garrett ACE 400 collection.

    Serious Detecting is a family-owned, authorized Garrett dealer with a showroom in Ypsilanti, Michigan, and our staff help by phone or email.

    Product Specifications
    Specification Name Specification Value
    Compatibility
    Fits Garrett Garrett Ace 150, Garrett Ace 200, Garrett Ace 250, Garrett Ace 300, Garrett Ace 350, and Garrett Ace 400
    Coil
    Coil Size 6" x 11" (15 x 28 cm)
    Coil Type Double-D (DD)
    Coil Shape Elliptical
    Coil Build Open
    Coil Connection Wired
    Waterproofing
    Water Resistance Waterproof
    Build
    Weight 15.2 oz / 431 g
    Details
    Color Black
    Box & Warranty
    Warranty 3 Years
