The Garrett ACE 9 x 12 inch PROformance Concentric kit sets Garrett's large concentric coil (Garrett part 2221900) up with its coil cover, a lower rod and the bolt, washers and nut to mount it, for standard ACE detectors such as the Garrett ACE 400. Garrett built the coil for depth and ground coverage in large open areas.
| Configuration | |
|---|---|
| Coil | Garrett ACE 9 x 12 in PROformance |
| Type | Concentric |
| Fits | Standard Garrett ACE detectors (not the ACE Apex) |
| Waterproof | Submersible coil |

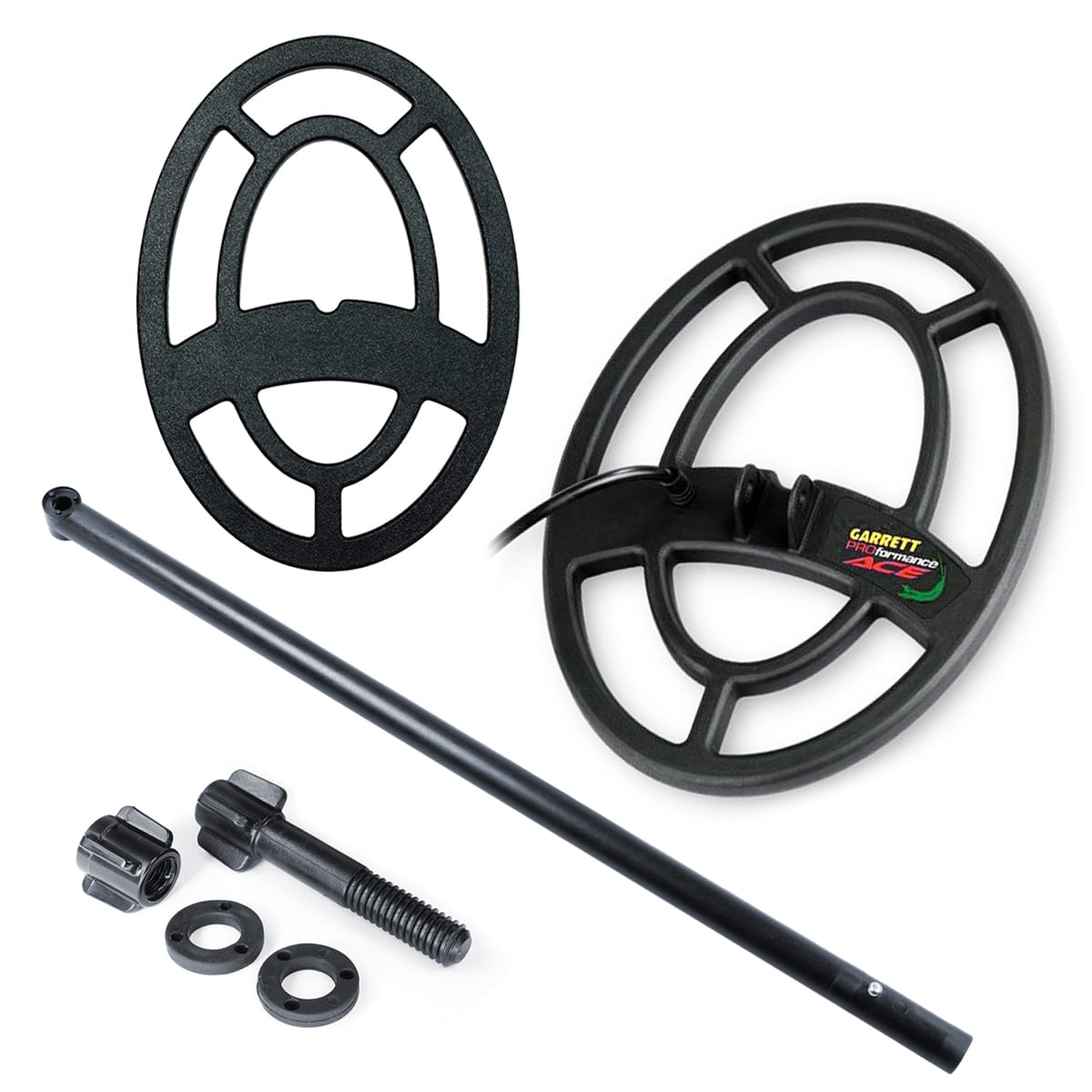

What is in the box with the Garrett ACE 9 x 12 inch PROformance Concentric
Garrett's standard contents for the ACE 9 x 12 inch PROformance Concentric (Garrett part 2221900)
- Garrett ACE 9 x 12 inch PROformance concentric search coil
- 9 x 12 inch coil cover
This Garrett ACE 9 x 12 inch PROformance Concentric kit also includes
- An extra Garrett 9 x 12 inch coil cover

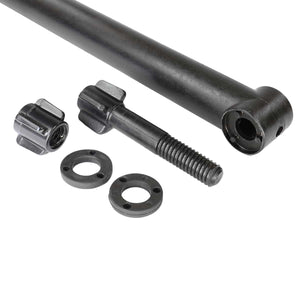

- Lower rod (lower stem)
- Mounting hardware: bolt, washers and nut
Which detectors the ACE 9 x 12 inch PROformance Concentric fits
- Garrett ACE 100
- Garrett ACE 150
- Garrett ACE 200
- Garrett ACE 200i
- Garrett ACE 250
- Garrett ACE 300
- Garrett ACE 300i
- Garrett ACE 350
- Garrett EuroACE
- Garrett ACE 400
- Garrett ACE 400i
Garrett designs the ACE 9 x 12 inch coil for standard ACE detectors and says it is not for use with the Garrett ACE Apex, which takes Garrett's Multi-Flex coils. Garrett also makes AT versions of its coils, and those work only with AT detectors, so check that the coil you order is the ACE version.
When to use the ACE 9 x 12 inch PROformance Concentric
Garrett calls the 9 x 12 inch PROformance Concentric a large format accessory coil: its size is made for deeper detection and for covering more terrain with each sweep. Garrett says it gives approximately 20 to 25% more detection depth on coin-sized targets than its ACE coils of 9 to 10 inch size, and broader ground coverage per sweep than smaller coils. The concentric windings give the largest possible detection field, a symmetrical field for easy pinpointing and consistent target identification, and Garrett says the design helps in ignoring bottle caps and other iron trash.
We would put the 9 x 12 inch concentric on for big lawns and open ground with little trash, as a wider option than the 7 x 10 inch concentric, and go back to a smaller coil once iron and trash pick up. Around trees and fences it is more awkward to handle, and Garrett's searchcoil guide says a concentric is the coil type most affected by ground minerals, so on mineralized soil we would look at a Double-D such as the 8.5 x 11 inch Raider first. Garrett also sells an AT version of this coil size, so check that you are ordering the ACE version.
Garrett says the entire coil can be submerged in water along the water's edge and in shallow creeks, streams or swimming areas, but ACE detectors are not waterproof, so keep the control box dry. Our metal detector coil guide explains how coil size and type trade coverage for separation.
Garrett ACE 9 x 12 inch PROformance Concentric specifications
| Specification | Garrett ACE 9 x 12 inch PROformance Concentric |
|---|---|
| Size | 9 x 12 in (23 x 30 cm) |
| Shape | Elliptical |
| Type | Concentric |
| Weight | 1.25 lb (20 oz, 567 g) out of box |
| Waterproof | Submersible coil; ACE detectors are not waterproof |
| Fits | Garrett ACE 100 to ACE 400i, EuroACE (not ACE Apex) |
| Part number | Garrett 2221900 |
| Made in | USA, ISO 9001 |
| Warranty | 3 years parts and labor |
Garrett covers its searchcoils with a full 3-year parts and labor warranty. Every coil and accessory we carry for the ACE 400 is in our Garrett ACE 400 collection.
Serious Detecting is a family-owned, authorized Garrett dealer with a showroom in Ypsilanti, Michigan, and our staff help by phone or email.
