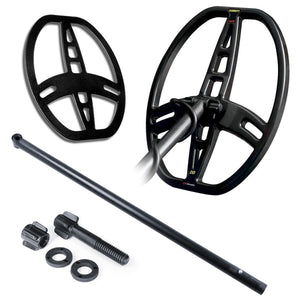

    • Garrett ACE PROformance 8.5x11 inch DD waterproof search coil with coil cover, lower rod, bolt, nut and washers

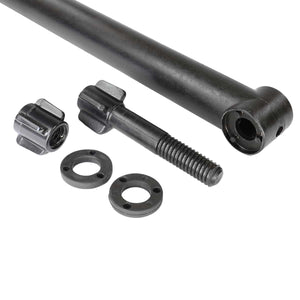

    • Black lower rod end with threaded bolt, nut and two washers for the Garrett ACE PROformance DD waterproof coil

    Garrett ACE Series 8.5 x 11 inch PROformance DD Waterproof Coil, Cover, Rod and Hardware

    Vendor:Garrett Type:Coils
    SKU: 2222000 B001
    Sale Price $140.65 Regular Price $210.99
    33% Off

    Out of Stock

    4.9 from 3,100+ verified reviews · 4.8 on Google
    • Authorized U.S. dealer Genuine Garrett, full manufacturer warranty.
    • Free shipping Contiguous U.S. on orders $99+.
    • 30-day free returns Prepaid return label included.
    • Talk to a detectorist (844) 771-0707, Mon to Fri, 10 AM to 4 PM ET.

    Found it lower at an authorized U.S. dealer? We'll match it.

    Payment & Security

    Your payment is secure. We don’t store or see your card details.

    • Amazon
    • American Express
    • Apple Pay
    • Bizum
    • Diners Club
    • Discover
    • Google Pay
    • Mastercard
    • PayPal
    • Satispay
    • Shop Pay
    • USDC
    • Visa

    The Garrett ACE 8.5 x 11 inch PROformance DD Raider kit combines the Double-D coil Garrett supplies as standard on the Garrett ACE 400 (Garrett part 2222000) with its coil cover, a lower rod and the bolt, washers and nut to mount it. Garrett says the Raider covers a lot of ground and runs smoothly in highly mineralized soils and on saltwater beaches.

    Configuration
    Coil Garrett ACE 8.5 x 11 in PROformance DD Raider
    Type Double-D
    Fits Standard Garrett ACE detectors (not the ACE Apex)
    Waterproof Submersible coil

    What is in the box with the Garrett ACE 8.5 x 11 inch PROformance DD Raider

    Garrett's standard contents for the ACE 8.5 x 11 inch PROformance DD Raider (Garrett part 2222000)

    • Garrett ACE 8.5 x 11 inch PROformance DD Raider search coil
    • 8.5 x 11 inch DD coil cover

    This Garrett ACE 8.5 x 11 inch PROformance DD Raider kit also includes

    • An extra Garrett coil cover (Garrett part 1606600)
    • Lower rod (lower stem)
    • Mounting hardware: bolt, washers and nut

    Which detectors the ACE 8.5 x 11 inch PROformance DD Raider fits

    • Garrett ACE 100
    • Garrett ACE 150
    • Garrett ACE 200
    • Garrett ACE 200i
    • Garrett ACE 250
    • Garrett ACE 300
    • Garrett ACE 300i
    • Garrett ACE 350
    • Garrett EuroACE
    • Garrett ACE 400
    • Garrett ACE 400i

    Garrett designs the ACE 8.5 x 11 inch Raider for standard ACE detectors and says it is not for use with the Garrett ACE Apex, which takes Garrett's Multi-Flex coils. Garrett also makes AT versions of its coils, and those work only with AT detectors, so check that the coil you order is the ACE version.

    When to use the ACE 8.5 x 11 inch PROformance DD Raider

    Garrett calls the 8.5 x 11 inch Raider the perfect size coil for open field searches, with great coverage, easy target separation and excellent detection depth on coin-sized and larger targets. Garrett says its DD configuration separates and identifies multiple adjacent targets, which helps where there is plenty of metal, and that it runs smoothly even in highly mineralized soils and on saltwater beaches.

    We think of the Raider as the all-round ACE coil, large enough to cover ground at a sensible pace and still manageable in a park. Where trash is dense, the smaller 5 x 8 inch DD separates targets better; on a big open field the 14 x 11 inch Reaper covers more. Garrett makes the 8.5 x 11 inch size in separate versions for the ACE, AT, ACE Apex and Vortex detectors, and they do not swap, so check the detector name before you order.

    A DD pinpoints along a line rather than at a point: Garrett's searchcoil guide explains that the positive detection field of a DD runs beneath the overlapping center section from front to back. Sweep across the target, turn 90 degrees and sweep again; the target lies where the two lines cross. Garrett says the entire coil can be submerged in water along the water's edge and in shallow creeks, streams or swimming areas, but ACE detectors are not waterproof, so keep the control box dry. Our metal detector coil guide explains how coil size and type trade coverage for separation.

    Garrett ACE 8.5 x 11 inch PROformance DD Raider specifications

    Specification Garrett ACE 8.5 x 11 inch PROformance DD Raider
    Size 8.5 x 11 in (22 x 28 cm)
    Shape Semi-elliptical
    Type Double-D
    Weight 1.2 lb (19.2 oz, 544 g) out of box
    Waterproof Submersible coil; ACE detectors are not waterproof
    Fits Garrett ACE 100 to ACE 400i, EuroACE (not ACE Apex)
    Part number Garrett 2222000
    Made in USA, ISO 9001
    Warranty 3 years parts and labor

    Garrett covers its searchcoils with a full 3-year parts and labor warranty. Every coil and accessory we carry for the ACE 400 is in our Garrett ACE 400 collection.

    Serious Detecting is a family-owned, authorized Garrett dealer with a showroom in Ypsilanti, Michigan, and our staff help by phone or email.

    Product Specifications
    Specification Name Specification Value
    Compatibility
    Fits Garrett Garrett Ace 150, Garrett Ace 200, Garrett Ace 250, Garrett Ace 300, Garrett Ace 350, and Garrett Ace 400
    Coil
    Coil Size 8.5" x 11" (22 x 28 cm)
    Coil Type Double-D (DD)
    Coil Shape Semi Elliptical
    Coil Build Open
    Coil Connection Wired
    Waterproofing
    Water Resistance Waterproof
    Build
    Weight 1.2 lb / 0.54 kg
    Details
    Color Black
    Box & Warranty
    Warranty 3 Years
