Detector specifications
Best for
Highlighted icons show the targets, ground and experience level this detector is built for.
- Coin & Relic — shop all
- Gold — shop all
- Beach & Water — not suited to this detector
- Kids — not suited to this detector
- Beginner / Intermediate — shop all
- Advanced / Expert — not suited to this detector
An open box Garrett AT Gold brings a waterproof VLF for natural gold in freshwater creeks and mineralized ground to prospectors, with Garrett's 3-year warranty. Garrett's AT Gold box holds the 5 x 8 inch PROformance DD searchcoil and wired MS-2 headphones, and the detector runs at 18 kHz.
| Configuration | |
|---|---|
| Condition | Open box |
| Detector | Garrett AT Gold with adjustable stem |
| Coil(s) | 5 x 8 in PROformance DD searchcoil with coil cover |
| Headphones | Garrett MS-2 wired headphones |

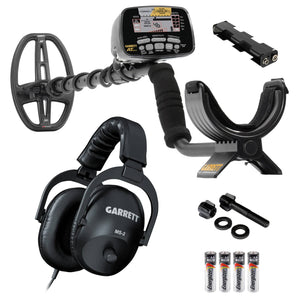

What is in the box with this open box Garrett AT Gold
Garrett's standard contents for the AT Gold (Garrett part 1140680)
- Garrett AT Gold control housing with S-shaped stem
- Upper and lower stem
- Searchcoil mounting hardware: wing nut, two mounting washers and threaded bolt
- 5 x 8 inch PROformance DD searchcoil with coil cover

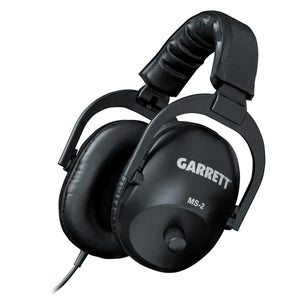

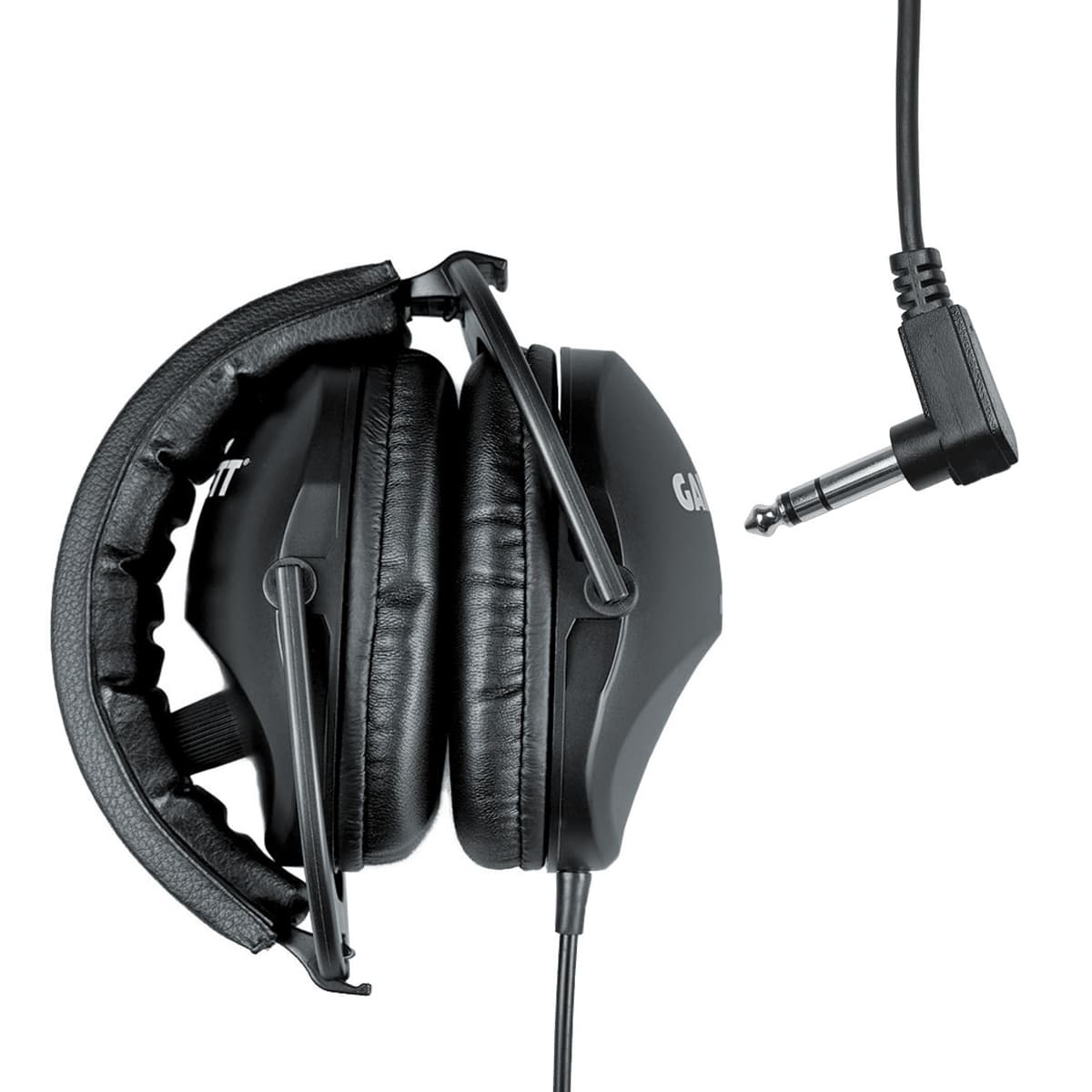

- Garrett MS-2 wired headphones with headband and ear cushions
- Four AA batteries in the battery holder, installed
- Owner's manual
About this open box Garrett AT Gold
Open Box: Metal detectors with damaged or opened packaging, offered at a reduced price. Full manufacturer’s warranty included. Questions about a specific unit? Call us. Garrett's 3-year warranty applies, the same as on a new AT Gold. Every open box and demo detector we have is in our open box collection.

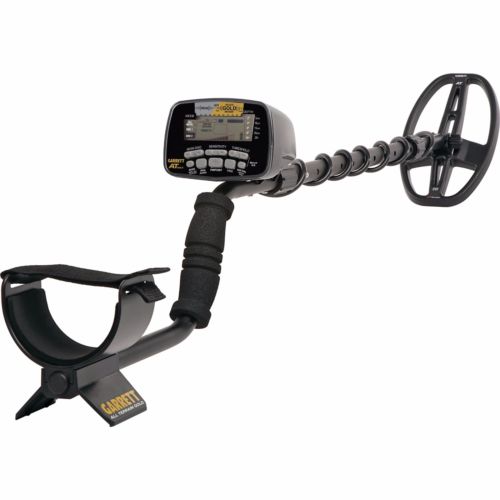

About the Garrett AT Gold
The Garrett AT Gold is designed for prospectors searching for small nuggets in creeks, rocky ground and mineralized gold-bearing locations. Gold prospecting brings different challenges from ordinary coin hunting: small nuggets, mineralized soil, hot rocks and weak target responses. The AT Gold answers with an 18 kHz operating frequency, which Garrett describes as optimized for gold prospecting and which is higher than the 15 kHz Garrett AT Pro and the 13.6 kHz Garrett AT Max, plus adjustable ground balance with a Ground Balance Window, a true All Metal mode and a housing Garrett rates waterproof to 10 feet (3 meters) in fresh water.
What we like about the AT Gold is its 18 kHz operating frequency together with the All Metal mode, a combination that suits small natural gold and other low-conductivity targets. We would choose it for small-gold prospecting when you also want a versatile waterproof VLF detector.
Garrett AT Gold search modes and key settings
- Three modes: a true All Metal mode plus two discrimination modes, DISC 1 and DISC 2, with Pro audio and electronic pinpointing. In All Metal the proportional audio reports changes in signal strength, and the mode responds to iron and other junk as well as gold.
- Ground balance and Ground Balance Window: manual and automatic ground balance with Fast Track, plus a Ground Balance Window adjustable from 0 to 6. Garrett's manual calls the default of 2 optimum for most conditions; the window smooths out the audio by reducing subtle ground responses, so faint targets are easier to hear. Garrett recommends using the minimum GB Window setting needed, because an excessive setting could reduce sensitivity to faint targets.
- Iron discrimination and Iron Audio: iron discrimination from 0 to 44, Iron Audio and All Metal Iron Audio (some iron discrimination must be set for Iron Audio to work). Garrett warns that iron such as a nail can sometimes mask a good target's signal, and that the good target can be missed if too much iron discrimination is applied.

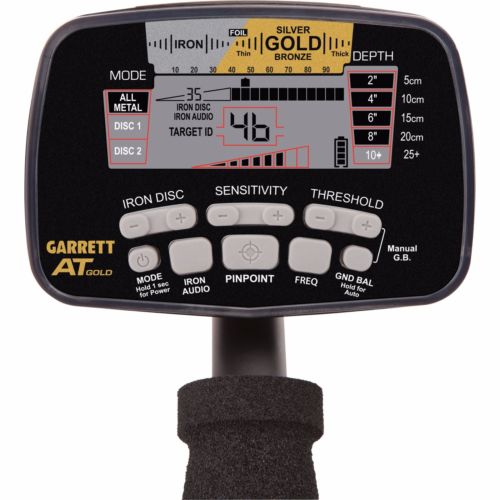

- Sensitivity, threshold and target ID: eight sensitivity settings, an adjustable threshold, four slightly different frequencies (F1 to F4), and a 0 to 99 digital target ID with a 20-segment graphic scale. Garrett's manual says the coin depth indicator shows the depth of a coin-sized target in 2 inch (5 cm) increments, and larger targets may read shallower than they are. Garrett advises lower sensitivity where the detector behaves erratically, and pressing FREQ to find the frequency with the least interference. Very tiny nuggets and deep targets with a small signal may give no numeric reading at all, and in mineralized soils the Target ID of small gold pieces can be skewed by the ground.
Water and creek prospecting with the Garrett AT Gold
Garrett says the AT Gold is built to withstand dust, dirt and being submerged to 10 feet (3 meters) in fresh water. The included headphones are not waterproof, as Garrett's manual states, and for submersion Garrett specifies its waterproof headphones. The common mistake we see is assuming that because the AT Gold is waterproof, it is designed for saltwater beach detecting. Salt water can create problems for its VLF system, and Garrett's manual does not recommend saltwater use; it says the AT Gold performs well for coins and jewelry on dry sand beach areas. For saltwater beaches, we would look at the Garrett Vortex VX7 or Garrett Vortex VX9 instead, since both add Garrett's Beach search mode. See our waterproof metal detectors.
Where the Garrett AT Gold works well, and where it does not
Small nuggets in creeks, rocky ground and mineralized gold-bearing locations suit the AT Gold. For dedicated tiny-gold prospecting we would consider the Garrett Goldmaster 24K; for severe mineralization, Garrett's pulse induction Garrett Axiom is a better candidate; and for general coin hunting, the AT Pro may be more suitable. Hot rocks, which contain enough iron minerals to make the detector sound off, and terra cotta can give a positive response; Garrett notes hot rocks usually read very low on Target ID, often below 10, so a very low IRON DISC level is enough to handle them. Garrett also notes that magnetite black sand is often associated with gold deposits, so black sand areas are worth investigating. See our gold detectors.
Garrett AT Gold coil and batteries
The AT Gold comes with the compact 5 x 8 inch PROformance Double-D searchcoil; Garrett notes that its narrow detection field allows better separation of adjacent targets and recommends narrow swings in trashy areas; our coil guide explains the tradeoffs. Four AA batteries come installed and run the AT Gold for 20 to 40 hours depending on battery type and quality.
Getting started with the Garrett AT Gold
On exposed bedrock along a gold-bearing creek, we ground balance first, switch to All Metal and investigate faint, repeatable responses around cracks and rocks. The settings worth learning first are ground balance, the Ground Balance Window, threshold and All Metal mode. Garrett's sweep technique: keep the searchcoil within about 1 inch (2.5 cm) of the ground, at a constant height and parallel to it, sweep at about 3 feet (0.9 m) per second, overlap each swing by half the coil length, and do not lift or tilt the coil at the end of a swing.
Garrett AT Gold specifications
| Specification | Garrett AT Gold |
|---|---|
| Operating frequency | 18 kHz, with four slight frequency adjustments (F1 to F4) |
| Search modes | All Metal, DISC 1, DISC 2; Pro audio |
| Target ID | 0 to 99 digital, 20-segment graphic scale (Graphic Target Analyzing) |
| Iron discrimination | 0 to 44 |
| Iron Audio | Iron Audio and All Metal Iron Audio |
| Ground balance | Manual and Fast Track automatic; Ground Balance Window 0 to 6 (default 2) |
| Sensitivity | 8 settings; adjustable threshold |
| Pinpoint | Electronic |
| Waterproof | Submersible to 10 ft (3 m) in fresh water; headphones not waterproof |
| Searchcoil | 5 x 8 in PROformance Double-D |
| Headphones | Garrett MS-2 wired |
| Batteries | 4 AA installed, 20 to 40 hours |
| Length | 43 to 56 in (1.09 to 1.42 m) |
| Weight | 3.03 lb (1.37 kg) |
| Warranty | 3 years from Garrett |
Garrett covers the AT Gold with a 3-year warranty, as it now does for its detectors, pinpointers and searchcoils.
For our full Garrett AT Gold guide, settings advice and comparisons, see the Garrett AT Gold collection.
