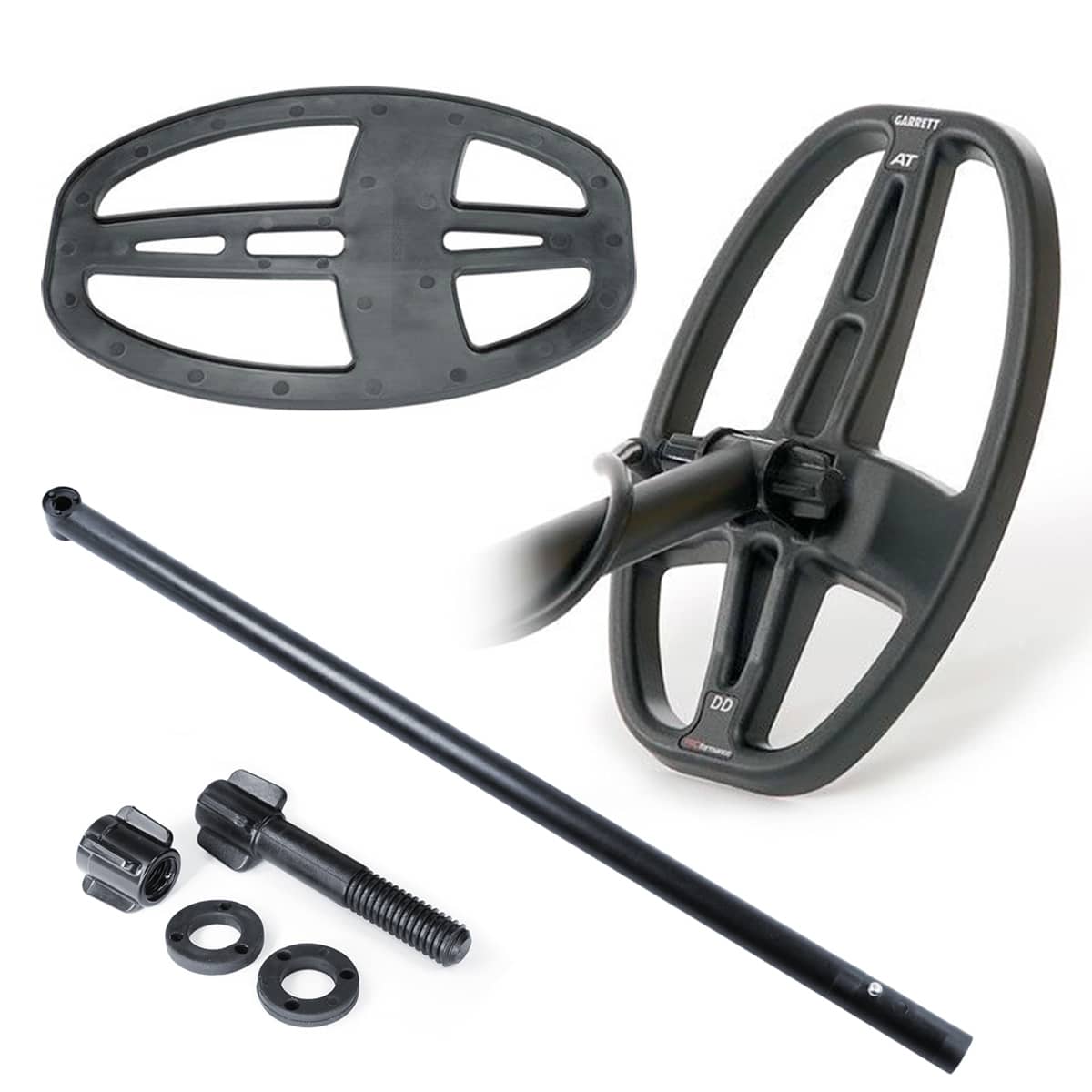

    • Garrett AT 5x8 inch DD PROformance search coil with coil cover, lower rod, bolt, nut and washers laid out together
    • Garrett AT Series search coil hardware: lower rod end, mounting bolt, nut and two rubber washers
    Sale!

    Garrett AT 5 x 8 inch PROformance DD Search Coil with Cover, Rod and Hardware

    Vendor:Garrett Type:Coils
    SKU: 2222800 B001
    Sale Price $172.42 Regular Price $258.63
    33% Off

    Hurry up! Only 2 left

    4.9 from 3,100+ verified reviews · 4.8 on Google
    • Authorized U.S. dealer Genuine Garrett, full manufacturer warranty.
    • Free shipping, ships today Order by 3 PM ET Mon to Fri, noon ET Sat. Contiguous U.S.
    • 30-day free returns Prepaid return label included.
    • Talk to a detectorist (844) 771-0707, Mon to Fri, 10 AM to 4 PM ET.

    Found it lower at an authorized U.S. dealer? We'll match it.

    Payment & Security

    Your payment is secure. We don’t store or see your card details.

    • Amazon
    • American Express
    • Apple Pay
    • Bizum
    • Diners Club
    • Discover
    • Google Pay
    • Mastercard
    • PayPal
    • Satispay
    • Shop Pay
    • USDC
    • Visa

    The Garrett AT 5 x 8 inch PROformance DD kit includes Garrett's 5 x 8 inch (13 x 20 cm) Double-D coil, part 2222800, with coil cover, lower rod and mounting hardware for the Garrett AT Gold, AT Pro and AT Max. On its own lower rod, the coil Garrett ships as standard on the AT Gold becomes a quick swap for tight, trashy ground.

    Configuration
    Coil Garrett AT 5 x 8 in PROformance DD (Ripper)
    Type Double-D (DD)
    Fits AT Gold, AT Pro, AT Max
    Waterproof Entire coil submersible
    Kit adds Lower rod and mounting hardware

    What is in the box with the Garrett AT 5 x 8 inch PROformance DD kit

    Garrett's standard contents for the AT 5 x 8 inch PROformance DD (Garrett part 2222800)

    • Garrett AT 5 x 8 inch PROformance DD search coil
    • 5 x 8 inch DD coil cover

    This AT 5 x 8 inch PROformance DD kit also includes

    • An extra Garrett coil cover (Garrett part 1607400)
    • Garrett lower rod (shaft)
    • Mounting hardware: bolt, washers and nut

    Which detectors the AT 5 x 8 inch PROformance DD fits

    Garrett designed the AT 5 x 8 inch PROformance DD to work with the AT Pro, AT Gold and AT Max, and ships it as the standard coil on the AT Gold. Garrett makes separate 5 x 8 inch DD coils for the Garrett ACE Apex (Multi-Flex Ripper) and the Vortex detectors (Vortex Ripper), and Vortex coils do not fit other Garrett detectors.

    When to use the AT 5 x 8 inch PROformance DD

    Garrett calls the 5 x 8 inch Ripper the perfect size for tight spaces and iron-infested sites. It is ideal for stubble fields and other tight areas among roots, rocks or heavy iron, and its tight detection field lets it work closer to larger metallic objects such as iron poles. Garrett adds that the concentrated detection energy makes it great for fine jewelry and even gold nuggets. The Double-D winding gives smooth operation in highly mineralized ground such as saltwater beaches.

    A replacement 5 x 8 inch coil keeps an AT Gold in its factory setup. On an AT Pro or AT Max, which ship with the 8.5 x 11 inch Raider, we would fit the 5 x 8 inch coil where iron and trash sit so close together that the larger coil is hard to place between signals, and recheck a promising signal with short sweeps from a second direction. A small coil is slow across a whole site and still cannot pull every good target out from under iron, so we would switch back to the Raider, or the 14 x 11 inch Reaper, once the ground opens up. The entire coil can be submerged in lakes, streams and oceans, and Garrett rates the AT Pro, AT Gold and AT Max waterproof to 10 feet (3 m). On the lower rod, snug the bolt enough to hold the coil angle without overtightening the coil's mounting ears. Our metal detector coil guide explains how coil size and type trade coverage for separation.

    Garrett AT 5 x 8 inch PROformance DD specifications

    Specification Garrett AT 5 x 8 inch PROformance DD
    Size 5 x 8 in (13 x 20 cm)
    Shape Semi-elliptical
    Type Double-D (DD)
    Weight 0.75 lb (340 g) out of the box
    Waterproof Entire coil submersible
    Fits Garrett AT Gold, AT Pro, AT Max
    Coil cover Included
    Kit adds Lower rod (shaft), bolt, washers and nut
    Made in USA (ISO 9001)
    Part number Garrett 2222800
    Warranty 3 years parts and labor

    Garrett covers its searchcoils with a full 3-year parts and labor warranty. Every coil and accessory we carry for the AT Gold is in our Garrett AT Gold collection.

    Serious Detecting is a family-owned, authorized Garrett dealer with a showroom in Ypsilanti, Michigan, and our staff help by phone or email.

    Product Specifications
    Specification Name Specification Value
    Compatibility
    Fits Garrett Garrett AT Gold, Garrett AT Max, and Garrett AT Pro
    Coil
    Coil Size 5" x 8" (13 x 20 cm)
    Coil Type Double-D (DD)
    Coil Shape Semi Elliptical
    Coil Build Open
    Coil Connection Wired
    Waterproofing
    Water Resistance Waterproof
    Build
    Weight 12 oz / 340 g
    Details
    Color Black
    Box & Warranty
    Warranty 3 Years
