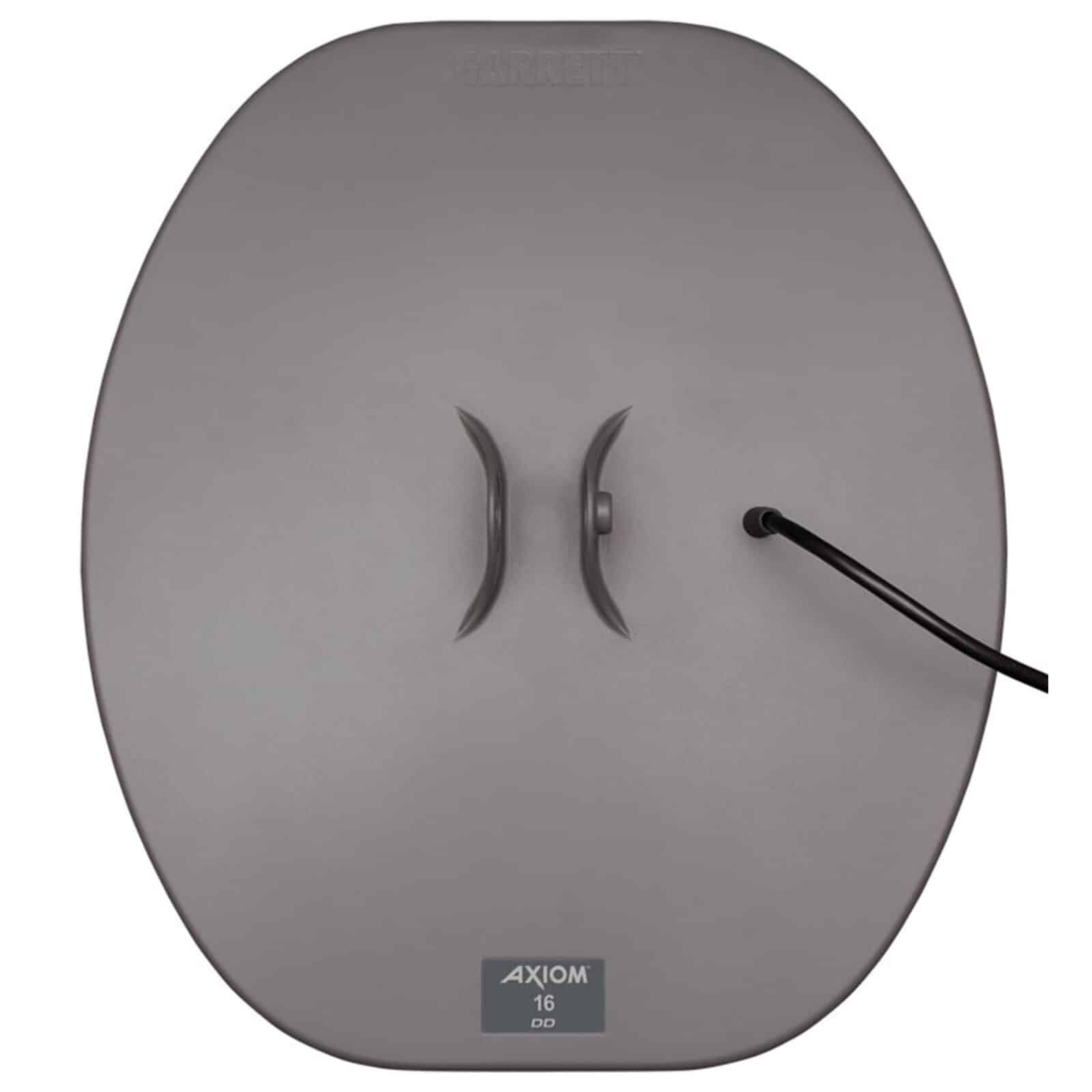

    • Garrett Axiom 16 inch by 14 inch DD search coil with semi-elliptical geometry and protective cover for gold prospecting
    Sale!

    Garrett Axiom 16 x 14 inch DD-FC Search Coil for Gold Prospecting

    Vendor:Garrett Type:Coils
    SKU: 2237200
    Sale Price $332.95 Regular Price $435.99
    24% Off

    Hurry up! Only 1 left

    4.9 from 3,100+ verified reviews · 4.8 on Google
    • Authorized U.S. dealer Genuine Garrett, full manufacturer warranty.
    • Free shipping, ships today Order by 3 PM ET Mon to Fri, noon ET Sat. Contiguous U.S.
    • 30-day free returns Prepaid return label included.
    • Talk to a detectorist (844) 771-0707, Mon to Fri, 10 AM to 4 PM ET.

    Found it lower at an authorized U.S. dealer? We'll match it.

    Payment & Security

    Your payment is secure. We don’t store or see your card details.

    • Amazon
    • American Express
    • Apple Pay
    • Bizum
    • Diners Club
    • Discover
    • Google Pay
    • Mastercard
    • PayPal
    • Satispay
    • Shop Pay
    • USDC
    • Visa

    The Garrett Axiom 16 x 14 inch DD-FC is a large Double-D search coil with Garrett's Focused Core technology, made for the Garrett Axiom pulse induction gold detector. Garrett sells it as part 2237200 and describes it as a large size DD coil with a focused central core.

    Configuration
    Coil Garrett Axiom 16 x 14 in DD-FC
    Type Double-D with Focused Core (DD-FC)
    Fits Garrett Axiom, Garrett Axiom Lite
    Waterproof Submersible coil

    What is in the box with the Garrett Axiom 16 x 14 inch DD-FC

    Garrett's standard contents for the Axiom 16 x 14 inch DD-FC (Garrett part 2237200)

    • Garrett Axiom 16 x 14 inch DD-FC search coil
    • Coil cover

    Which detectors the Axiom 16 x 14 inch DD-FC fits

    Garrett makes the Axiom coils in 11 x 7, 13 x 11 and 16 x 14 inch sizes, each as a mono and a DD coil. The Axiom Lite carries the full features of the Axiom and ships with the 11 x 7 inch mono coil, and the Axiom standard package pairs the 13 x 11 inch DD-FC with the 11 x 7 inch mono.

    When to use the Axiom 16 x 14 inch DD-FC

    Garrett says the 16 x 14 inch DD-FC includes Focused Core technology and exceeds the performance of mono searchcoils, and it is the largest Axiom coil size. Garrett builds it in durable plastic.

    Garrett's Axiom manual says DD coils are inherently less susceptible to ground mineralization than mono coils, so they may give better stability and performance in severely mineralized ground. A DD coil also unlocks Iron Check, which Garrett says only works with DD searchcoils.

    Use the 16 x 14 inch DD-FC on open ground when you are after bigger or deeper gold, sweeping slowly and evenly with the coil kept low. It is heavier to swing and clumsy on rough, broken terrain, so choose it for open country and ground balance again after fitting it. The coil is submersible, but the Axiom control housing and connectors are not, so keep them out of the water. Our metal detector coil guide explains how coil size and type trade coverage for separation.

    Garrett Axiom 16 inch by 14 inch DD search coil with semi-elliptical geometry and protective cover

    Garrett Axiom 16 x 14 inch DD-FC specifications

    Specification Garrett Axiom 16 x 14 inch DD-FC
    Size 16 x 14 in (41 x 36 cm)
    Type Double-D with Focused Core (DD-FC)
    Iron Check Yes (DD coils only)
    Fits Garrett Axiom, Axiom Lite
    Waterproof Submersible coil
    Construction Durable plastic
    Part number Garrett 2237200
    Warranty 3 years from Garrett

    Garrett covers its detectors, pinpointers and searchcoils with a 3-year warranty. Every Axiom coil and accessory we carry is in our Garrett Axiom collection.

    Serious Detecting is a family-owned, authorized Garrett dealer with a showroom in Ypsilanti, Michigan, and our staff help by phone or email.

    Product Specifications
    Specification Name Specification Value
    Compatibility
    Fits Garrett Garrett Axiom and Garrett Axiom Lite
    Coil
    Coil Size 16" x 14" (41 x 36 cm)
    Coil Type Double-D (DD)
    Coil Shape Semi Elliptical
    Coil Build Solid
    Coil Connection Wired
    Waterproofing
    Water Resistance Waterproof
    Details
    Color Grey
    Box & Warranty
    Warranty 3 Years
    Service & Support

    Warranty & Product Assurance

    At Serious Detecting, we stand behind the quality of every product we offer. Warranty coverage is provided directly by the manufacturer and may vary depending on the item. We’re here to help you understand your coverage and assist with the warranty process when needed. If you ever have questions or need support navigating a warranty claim, our team is happy to guide you.

    Technical Support & Expert Guidance

    Whether you’re setting up new gear, optimizing performance, or troubleshooting an issue in the field, our knowledgeable support team is here to help. We use this equipment ourselves, so we can offer real-world tips and step-by-step assistance to get you detecting with confidence. Message us anytime and we’ll do our best to get you pointed in the right direction fast.

    Manuals, Resources & Downloads

    Access user manuals, setup guides, safety tips, and technical documentation in our online support center. These resources help you understand your equipment, learn recommended settings, and get the most out of every hunt.

    Replacement Parts & Accessories

    Keep your equipment running strong with genuine parts and accessories. We carry coils, batteries, chargers, protective gear, digging tools, and more — fully compatible with your detector and backed by manufacturer standards. Not sure what fits your model? Just ask — we’re here to help.

    Training & Tutorials

    New to detecting or upgrading to advanced equipment? Our resource library includes helpful guides, maintenance tips, how-to videos, and expert advice from experienced detectorists. From ground balancing and coil choices to target ID basics and field technique, you’ll find the knowledge you need to level up your success.

    Customer Questions & Expert Answers

    Get real answers from outdoor explorers and our product experts. Browse questions about performance, features, and setup — or ask your own to make sure this gear fits your next adventure.

    Which Garrett detectors is the 16" x 14" DD coil compatible with?

    The Garrett Axiom 16" x 14" DD search coil is compatible exclusively with the Garrett Axiom detector. This coil uses the proprietary Double-D construction and connector system designed specifically for the Axiom platform. Axiom owners gain three coil size options in the DD lineup: the 11" x 7" for maximum target separation in trashy patches, the 13" x 11" for balanced coverage in moderate-trash ground, and this 16" x 14" for maximum area coverage in open washes and hillsides. All three coil sizes ship with protective covers and maintain waterproof integrity for wet-ground prospecting, giving you flexibility to match coil size to ground conditions. See the detector, bundles, and every coil option in our Garrett Axiom collection.

    Answered by Dan P. · July 2026

    How does the 16" x 14" coil compare to the 13" x 11" coil for open-ground prospecting?

    The 16" x 14" DD coil covers more ground per swing than the 13" x 11" coil, making it the better choice for wide-open desert washes and hillsides where nuggets scatter across expansive terrain. Both coils use the same Double-D construction for strong sensitivity on small gold, but the larger footprint lets you prospect big areas faster when target separation isn't a limiting factor. The 13" x 11" coil becomes the better option when you're working patches with moderate trash density or bedrock crevices where multiple targets cluster within a few inches of each other. Our team switches between the two sizes based on ground conditions: the 16" x 14" stays on the detector in open Nevada washes, and we swap to the 13" x 11" when we move into tighter benches or old dig sites. Compare the mid-size option on the Garrett Axiom 13" x 11" DD coil page.

    Answered by John W. · July 2026

    Is the 16" x 14" coil waterproof for creek prospecting?

    The Garrett Axiom 16" x 14" DD coil is fully waterproof and built for submersion in creek beds, flooded washes, and wet hillside seeps. The coil housing and cable connection maintain seal integrity when you're working seasonal runoff channels or prospecting wet ground after storms. Axiom prospectors running the coil in Arizona and Nevada creeks report no seal failures or water intrusion after repeated wet-ground use. The included coil cover protects the housing from rock abrasion in creek beds, extending coil life in harsh prospecting conditions. Other waterproof prospecting detectors and accessories are in our gold prospecting equipment collection.

    Answered by Richard T. · July 2026

    Does the coil ship with a protective cover?

    The Garrett Axiom 16" x 14" DD coil ships with a protective coil cover included in the box. The cover fits the semi-elliptical geometry of the 16" x 14" footprint and protects the coil housing from rock abrasion, brush contact, and impact damage during prospecting. Axiom operators working rocky desert terrain or bedrock exposure benefit from running the cover full-time because pulse-induction prospecting often involves dragging the coil across abrasive surfaces. The cover material is durable enough to handle repeated contact with sharp rocks without tearing, and it doesn't interfere with detection depth or sensitivity. Browse covers and coils for every platform in our metal detector search coils collection.

    Answered by Dan P. · July 2026

    What is DD-FC technology and how does it improve gold detection?

    DD-FC stands for Double-D Focused Core, a coil construction Garrett developed for the Axiom pulse-induction platform that concentrates the electromagnetic field for stronger response on small gold targets compared to traditional mono coils. The Double-D configuration creates two overlapping detection fields that intersect in a narrow centerline, giving you better target separation in mineralized ground than a circular mono field would provide. The Focused Core element tightens the field concentration along that centerline, boosting sensitivity on sub-gram nuggets that larger mono coils miss. Axiom prospectors working patches with fine gold report better small-target response from DD-FC coils than from the mono coils they ran on previous pulse-induction detectors. The technology works across all three Axiom coil sizes, so you're not trading sensitivity for coverage when you step up to the 16" x 14" footprint. To compare the Axiom with other pulse-induction and VLF nugget machines, see our gold detectors collection.

    Answered by John W. · July 2026

    Can I use the 16" x 14" coil in trashy gold patches near old mine sites?

    The 16" x 14" DD coil works in trashy patches, but the larger footprint makes target separation more challenging when multiple targets cluster within inches of each other. Axiom prospectors working old dig sites or bedrock crevices with dense trash get better results from the 11" x 7" coil because the smaller footprint isolates individual nuggets that the 16" x 14" coil would blend into a single signal. The 16" x 14" coil excels in open washes and hillsides where trash density is low and the expanded coverage lets you prospect more ground per hour. If you're working a mix of open ground and trashy patches, consider running the 16" x 14" coil in the open areas and swapping to the smaller coil when you move into concentrated trash zones. The small-footprint option is the Garrett Axiom 11" x 7" DD coil.

    Answered by Richard T. · July 2026

    What warranty coverage does the coil carry?

    The Garrett Axiom 16" x 14" DD coil is backed by manufacturer warranty coverage when purchased from an authorized dealer like Serious Detecting. For specific warranty terms, coverage details, and service information, contact Garrett directly or refer to the warranty documentation included with your coil. The warranty typically does not cover physical damage from impact, abrasion, or improper storage, so running the included coil cover protects your investment in rocky prospecting terrain. Serious Detecting ships every Axiom coil with full warranty documentation, and our team can help coordinate manufacturer support if you need assistance. Proudly designed, engineered, and made in the USA at Garrett's Garland, Texas facility and built to the same standards as Garrett's flagship detectors. Every Garrett product we sell carries the same factory coverage; see the full range in our Garrett metal detectors collection.

    Answered by Dan P. · July 2026
