Detector specifications
Best for
Highlighted icons show the targets, ground and experience level this detector is built for.
- Coin & Relic — shop all
- Gold — not suited to this detector
- Beach & Water — shop all
- Kids — not suited to this detector
- Beginner / Intermediate — shop all
- Advanced / Expert — not suited to this detector
The Garrett Vortex VX5 is a fully submersible multi-frequency metal detector for beginners and intermediate detectorists who search parks, yards, fields, freshwater swimming areas and milder beaches. It runs Multi-Freq. or 13 kHz with one 0 to 99 target ID scale, and Garrett rates the whole detector waterproof to 16 feet (5 meters). Garrett's box includes the 8.5 x 11 inch DD Raider searchcoil, and Z-Lynk wireless and a speaker are built in.
| Configuration | |
|---|---|
| Detector | Garrett Vortex VX5 with built-in Z-Lynk wireless and speaker |
| Coil(s) | 8.5 x 11 in DD Raider with coil cover |
| Power | Internal lithium-ion battery, USB-C charging |

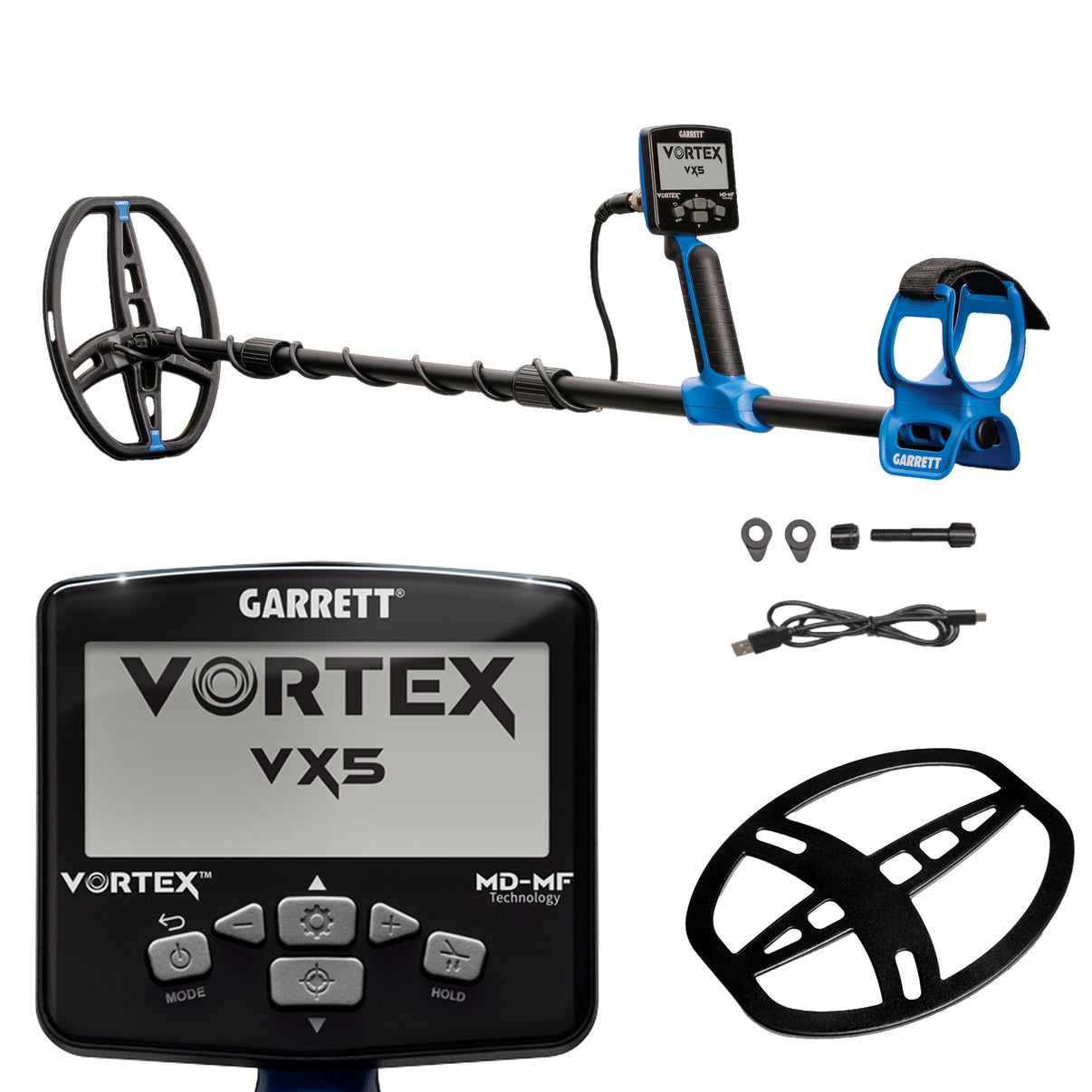

What is in the box with the Garrett Vortex VX5
Garrett's standard contents for the Vortex VX5 (Garrett part 1142860)
- Garrett Vortex VX5 control box on its straight stem, with upper and lower stem
- Arm cuff with strap
- 8.5 x 11 inch DD Raider searchcoil with coil cover installed
- Coil nut, bolt and washers
- USB-C charging cable
- Quick-Start Guide
About the Garrett Vortex VX5
The Garrett Vortex VX5 is the Vortex model with the simplest controls: a fully submersible multi-frequency detector built on Garrett's MD-MF (Multi-Dimensional Multi-Frequency) technology, which also analyzes the targets. It offers two frequency choices, simultaneous Multi-Freq. or a single 13 kHz, shows target ID on one 0 to 99 scale with three fixed audio tones, and has a fixed recovery speed. Garrett rates the whole detector waterproof to 16 feet (5 meters).
Garrett Vortex VX5 search modes and key settings
- Four search modes: Zero, Standard, USA Coins and Custom, plus a Pinpoint button you hold to locate a target precisely.
- Frequencies and channels: Multi-Freq. or 13 kHz, each with eight channels, independent frequency shifts that step away from electrical interference.
- Discrimination and iron: notch discrimination, high-resolution iron discrimination, Iron Audio to hear discriminated iron that is normally silenced, and Iron Volume with eight levels. Bottlecap Reject and Iron Boundary are fixed on the VX5.
- Sensitivity and ground balance: eight sensitivity levels and automatic ground balance with 175 points of resolution.

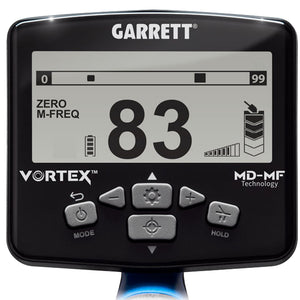

- Display: a backlit LCD with a battery condition indicator and a depth indicator that shows the depth of a coin-sized target in 2 inch (5 cm) steps.
Water and beach hunting with the Garrett Vortex VX5

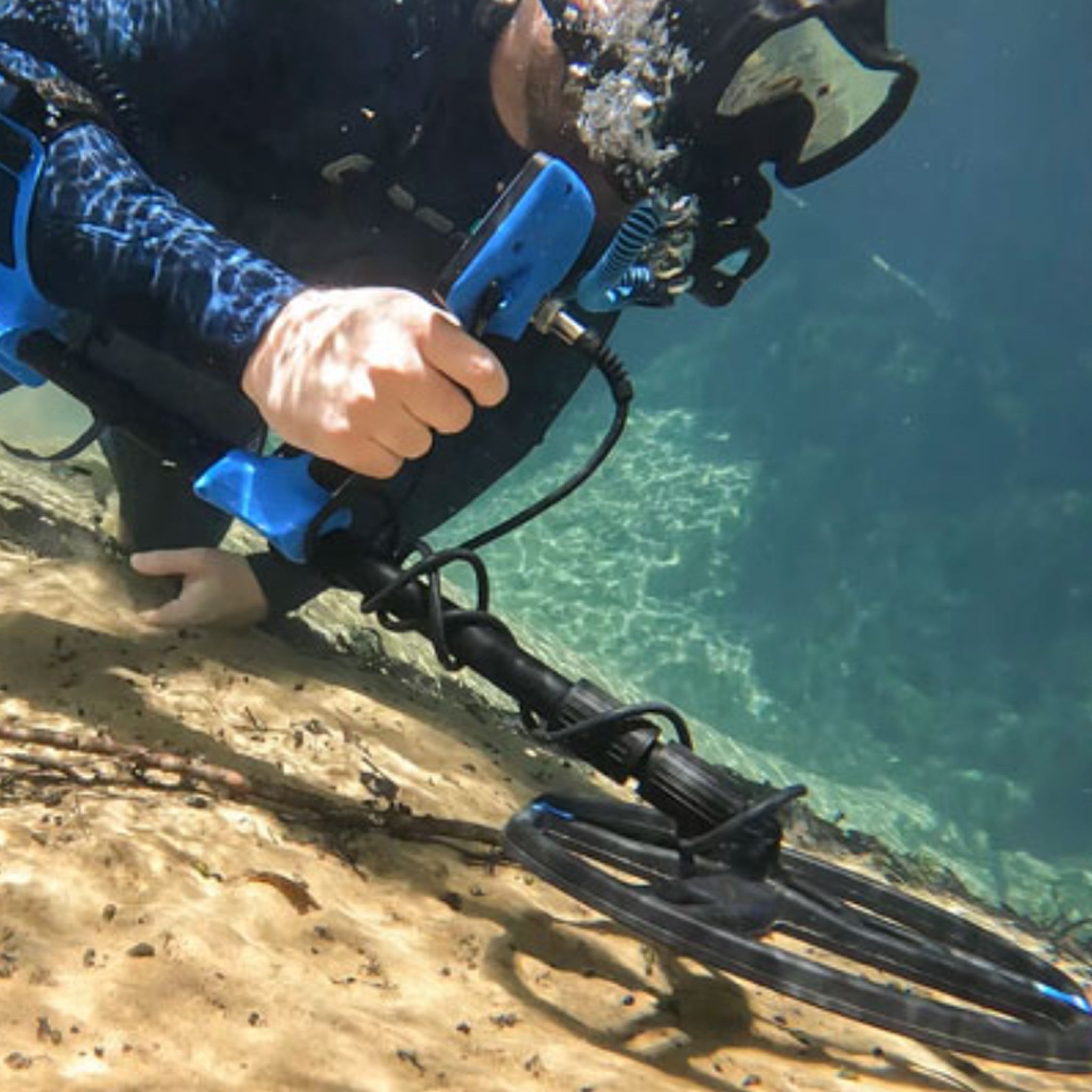

Garrett engineers the Vortex for submersible operation down to 16 feet (5 meters), control box included. A button lock keeps the keys from changing settings when you dive below 6 feet (2 meters). Z-Lynk wireless audio stops at the surface: Garrett's manual says radio signals do not transmit through water, so wired headphones must be used under water, through the 1/8 inch headphone jack, and Garrett makes fully submersible Vortex dive headphones for it. Picture a family weekend at a lakeside campground: coins in the grassy areas, then the freshwater shoreline, and the waterproof VX5 moves between the two. Multi-Salt and Beach mode are VX7 and VX9 features, and a common mistake is assuming that a waterproof multi-frequency VX5 handles salt water like those models; for regular wet ocean sand and saltwater surf we recommend the Garrett Vortex VX7. See our waterproof metal detectors.
Where the Garrett Vortex VX5 works well, and where it does not
Beginners and intermediate detectorists who search parks, yards, fields, freshwater swimming areas and beaches with fairly mild conditions suit the VX5, and so does anyone who wants a general-purpose detector rather than a specialized gold machine. What we like is that Garrett gives simultaneous multi-frequency and a fully waterproof design without the most expensive Vortex, and the straightforward controls make it easier for a newer detectorist to start. Its recovery speed, Bottlecap Reject and Iron Boundary are fixed; for adjustable recovery and more detailed target information, see the Garrett Vortex VX9. Our best metal detectors for coins guide covers more choices.
Garrett Vortex VX5 battery, charging and build

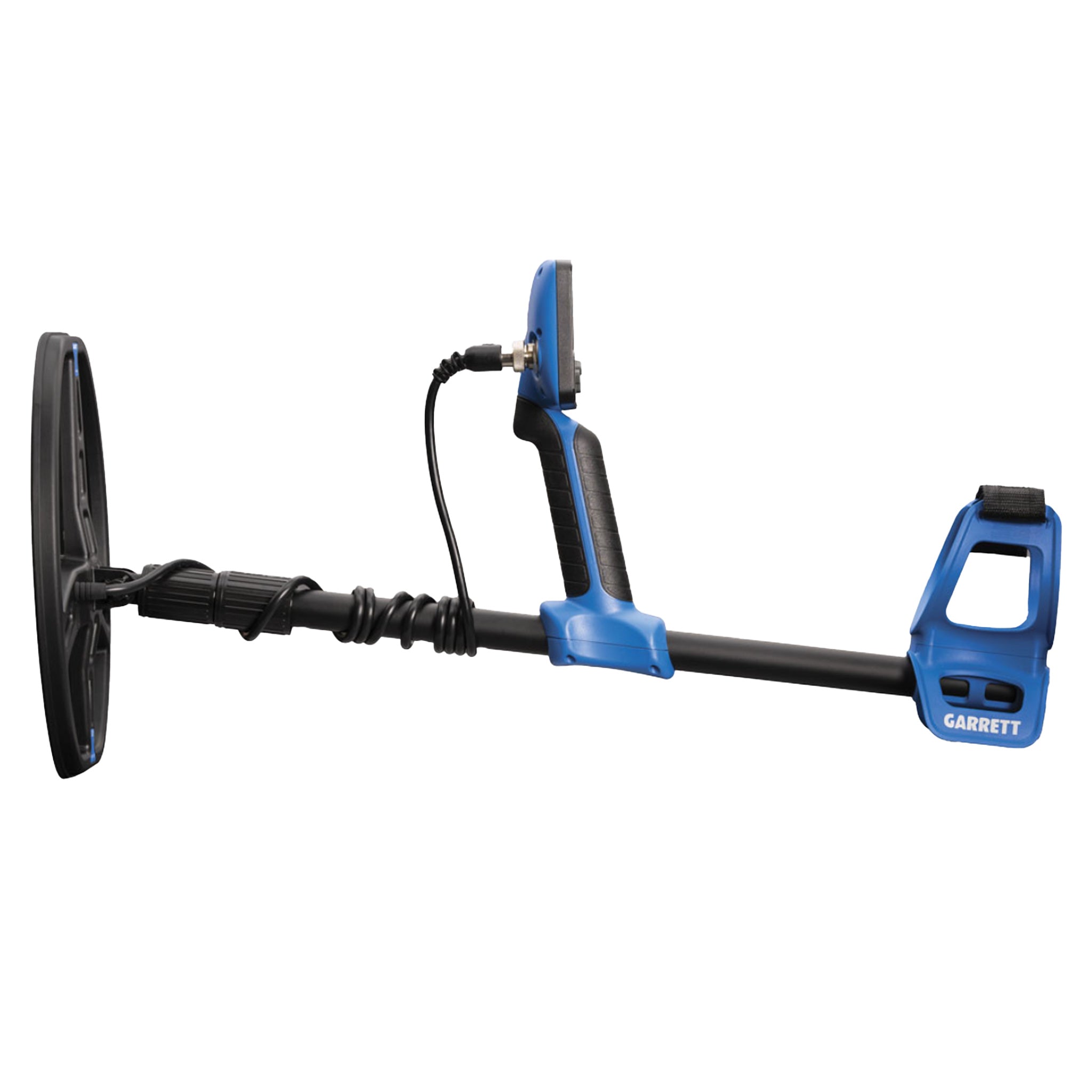

The VX5 runs on an internal lithium-ion battery that Garrett rates at 15 hours typical, depending on settings. It charges through a USB-C port behind a protective cap on the back of the control box; Garrett recommends a 10 W (2 A) or greater power source for the fastest charge, and charging is faster with the detector switched off. The Vortex can also run while plugged into a 5 V USB power pack. Garrett lists the VX5 at 3 lbs (1.38 kg) with the 8.5 x 11 inch coil, adjustable from 24.75 to 56.75 inches (62.86 to 144.14 cm), and the stem collapses to the short length for travel.
Z-Lynk wireless is built in for Garrett Z-Lynk headphones on land, a built-in speaker covers detecting without headphones, and any wired headphones with a 1/8 inch plug work. Garrett lets a VX5 owner turn the detector into a VX7 or a VX9 by buying an upgrade code through the Garrett store. Garrett also updates the Vortex software through its Garrett Updater app on a Windows or Mac computer, over the detector's own USB-C data cable.
Searchcoils for the Garrett Vortex VX5
The VX5 comes with the 8.5 x 11 inch DD Raider (Garrett part 2238400). Garrett makes three more Vortex DD searchcoils: the 5 x 8 inch Ripper (Garrett part 2238500) for tight spaces and iron-infested sites, the 6 x 11 inch Viper (Garrett part 2238300) for maneuverability and target separation, and the 14 x 11 inch Reaper (Garrett part 2238600) for more depth and more ground covered with each sweep. Vortex searchcoils have their own waterproof connector and fit only Vortex detectors, even though some ACE Apex coils share the same names, such as the 5 x 8 inch Ripper.
Getting started with the Garrett Vortex VX5
Begin with Multi-Freq. for general detecting, in Standard or USA Coins depending on what you are after. Learn the automatic ground balance procedure, start sensitivity at a stable level rather than the maximum, and learn how lowering Iron Volume changes what you hear without rejecting every iron response.
Ground balance and sensitivity on the Garrett Vortex VX5
Vortex ground balance is automatic, with 175 points of resolution. The manual shows values from 0 to 75 as whole numbers and marks the range from 75 to 99 as hot, mineralized ground, while a reading below 50 points to salt conditions. Multi-Salt is a VX7 and VX9 feature. Sensitivity has eight levels, and Garrett suggests increased sensitivity when searching for very small or very deep targets. Each frequency also has eight channels to step away from electrical interference. We start sensitivity at a stable level rather than the maximum and raise it only while the detector stays steady.
Target ID and iron handling on the Garrett Vortex VX5
The VX5 reads every target on one 0 to 99 scale with three fixed audio tones. Notch discrimination removes chosen targets from audible detection, high-resolution iron discrimination sets where iron starts, and Iron Audio lets you hear discriminated iron that is normally silenced, with Iron Volume turning it down in eight levels while non-ferrous targets stay at normal volume. We would learn how lowering Iron Volume changes what you hear without rejecting every iron response. The depth indicator shows the depth of a coin-sized target in 2 inch (5 cm) steps, which helps decide how big a plug to cut.
Pinpointer and headphones for the Garrett Vortex VX5
For recovery, Garrett's Pro-Pointer AT Z-Lynk pinpointer pairs with Garrett Z-Lynk wireless headphones, the same wireless system built into the VX5, so detector and pinpointer can come through one headset on land. Garrett rates the pinpointer waterproof to 20 feet (6 meters), IP68, deeper than the 16 foot (5 meter) rating of the VX5. See our Garrett pinpointers.
On land, pairing takes holding Garrett Z-Lynk headphones within 3.5 feet (1.1 meters) of the Vortex and pressing plus. Under water, only wired headphones work, through the 1/8 inch jack.
Who we would recommend the Garrett Vortex VX5 to
We recommend the VX5 for waterproof, general-purpose detecting at the entry point of the Vortex range, with an upgrade path: Garrett lets a VX5 owner turn it into a VX7 or VX9, so a beginner can start with a capable detector and add features later.
Garrett Vortex VX5, VX7 and VX9 compared
All three Vortex models share the same body, the 16 foot (5 meter) rating, the battery and the 8.5 x 11 inch DD Raider coil; these are the differences, from Garrett's published comparison.
| Feature | Garrett Vortex VX5 | Garrett Vortex VX7 | Garrett Vortex VX9 |
|---|---|---|---|
| Frequencies | 13 kHz, Multi-Freq. | 5 and 13 kHz, Multi-Freq., Multi-Salt | 5, 9, 13, 18 and 25 kHz, Multi-Freq., Multi-Salt |
| Search modes | Zero, Standard, USA Coins, Custom | Zero, Standard, USA Coins, Beach, Custom | Zero, Standard, USA Coins, Thin Coins, Beach, Custom, Fast |
| Target ID | One scale, 0 to 99 | 2-tier MD-MF scales | 3-tier MD-MF scales |
| Recovery speed | Fixed | 2 settings | 3 settings |
| Bottlecap Reject and Iron Boundary | Fixed | 4 settings each | 6 settings each |
| Audio tones | 3 | 3 or 5 | 2, 3 or 5 |
| Increased sensitivity/depth | No | Yes | Yes |
Garrett Vortex VX5 specifications
| Specification | Garrett Vortex VX5 |
|---|---|
| Frequencies | 13 kHz, Multi-Freq. |
| Search modes | Zero, Standard, USA Coins, Custom |
| Target ID | One scale, 0 to 99 |
| Recovery speed | Fixed |
| Bottlecap Reject and Iron Boundary | Fixed |
| Audio tones | 3 |
| Increased sensitivity/depth | No |
| Sensitivity | 8 levels |
| Iron Volume | 8 levels |
| Channels | 8 per frequency |
| Ground balance | Automatic, 175 points of resolution |
| Waterproof | Fully waterproof to 16 ft (5 m) |
| Searchcoil | 8.5 x 11 in DD Raider |
| Battery | Internal lithium-ion, 15 hours typical, USB-C charging |
| Audio | Built-in Z-Lynk wireless, speaker, 1/8 in headphone jack |
| Length | 24.75 to 56.75 in (62.86 to 144.14 cm) |
| Weight | 3 lbs (1.38 kg) with 8.5 x 11 in coil |
| Warranty | 3 years, limited parts and labor |
Garrett lists a 3-year limited parts and labor warranty for the Vortex VX5.
Serious Detecting is a family-owned, authorized Garrett dealer with a showroom in Ypsilanti, Michigan, and our staff help by phone or email.
See all our Garrett metal detectors.
