    • Garrett Vortex VX7 multi-frequency metal detector with 8.5 x 11 inch DD coil and blue control housing
    • Garrett Vortex VX7 Multi-Frequency Metal Detector for Beach and Relic Hunting
    • Garrett Vortex VX5 metal detector side view with blue control box, black shaft, arm cuff and round search coil
    • Scuba diver underwater sweeping a Garrett Vortex VX7 metal detector with blue handle over a sandy lake bed

    Garrett Vortex VX7 Multi-Frequency Metal Detector for Beach and Relic Hunting

    SKU: 1142960
    Sale Price $499.99 Regular Price $588.95

    Out of Stock

    4.9 from 3,100+ verified reviews · 4.8 on Google
    • Authorized U.S. dealer Genuine Garrett, full manufacturer warranty.
    • Free shipping Contiguous U.S. on orders $99+.
    • 30-day free returns Prepaid return label included.
    • Talk to a detectorist (844) 771-0707, Mon to Fri, 10 AM to 4 PM ET.

    Found it lower at an authorized U.S. dealer? We'll match it.

    Payment & Security

    Your payment is secure. We don’t store or see your card details.

    • Amazon
    • American Express
    • Apple Pay
    • Bizum
    • Diners Club
    • Discover
    • Google Pay
    • Mastercard
    • PayPal
    • Satispay
    • Shop Pay
    • USDC
    • Visa

    Best for

    Highlighted icons show the targets, ground and experience level this detector is built for.

    The Garrett Vortex VX7 is a fully submersible multi-frequency metal detector with Beach mode and Multi-Salt, for intermediate detectorists who want one detector for parks, relic sites, fresh water and saltwater beaches. It adds a 2-tier target ID with separate ferrous and non-ferrous scales and two recovery speeds, and Garrett rates the whole detector waterproof to 16 feet (5 meters). Garrett's box includes the 8.5 x 11 inch DD Raider searchcoil, and Z-Lynk wireless is built in.

    Configuration
    Detector Garrett Vortex VX7 with built-in Z-Lynk wireless and speaker
    Coil(s) 8.5 x 11 in DD Raider with coil cover
    Power Internal lithium-ion battery, USB-C charging

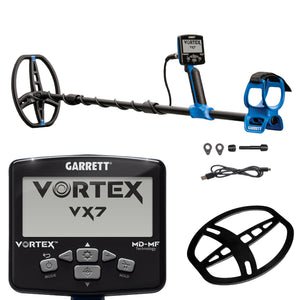

    Garrett Vortex VX7 metal detector complete system with black and blue coil, control box, armrest, and accessories

    What is in the box with the Garrett Vortex VX7

    Garrett's standard contents for the Vortex VX7 (Garrett part 1142960)

    • Garrett Vortex VX7 control box on its straight stem, with upper and lower stem
    • Arm cuff with strap
    • 8.5 x 11 inch DD Raider searchcoil with coil cover installed
    • Coil nut, bolt and washers
    • USB-C charging cable
    • Quick-Start Guide

    About the Garrett Vortex VX7

    The Garrett Vortex VX7 is, in Garrett's words, the intermediate Vortex model: a fully submersible multi-frequency detector with a 2-tiered MD-MF (Multi-Dimensional Multi-Frequency) target ID display and Multi-Salt for saltwater hunting. It runs simultaneous Multi-Freq., Multi-Salt, or single frequencies of 5 kHz and 13 kHz, adds Beach mode and a choice of two recovery speeds, and Garrett lists increased sensitivity and depth for it compared with the VX5. Garrett rates the whole detector waterproof to 16 feet (5 meters).

    Garrett Vortex VX7 search modes and key settings

    • Five search modes: Zero, Standard, USA Coins, Beach and Custom, plus a Pinpoint button you hold to locate a target precisely.
    • Frequencies and channels: Multi-Freq., Multi-Salt, 5 kHz and 13 kHz, with eight channels, independent frequency shifts, for each one to step away from electrical interference.
    • Two-tier target ID: the top scale shows non-ferrous (conductive) targets and the lower scale shows ferrous (iron) targets, so you get more information before you dig.
    • Iron tools: Bottlecap Reject and Iron Boundary each with four settings (0 to 3), notch discrimination, high-resolution iron discrimination, Iron Audio for distinctive responses on iron and steel targets, and Iron Volume with eight levels.
    • Recovery speed and audio: two recovery speeds, and a choice of 3-tone or 5-tone audio.
    • Sensitivity, ground balance and display: eight sensitivity levels, automatic ground balance with 175 points of resolution, a backlit LCD with battery condition indicator, and a depth indicator in 2 inch (5 cm) steps for a coin-sized target.

    Water and beach hunting with the Garrett Vortex VX7

    Garrett engineers the Vortex for submersible operation down to 16 feet (5 meters), control box included. A button lock keeps the keys from changing settings when you dive below 6 feet (2 meters). Z-Lynk wireless audio stops at the surface: Garrett's manual says radio signals do not transmit through water, so wired headphones must be used under water, through the 1/8 inch headphone jack, and Garrett makes fully submersible Vortex dive headphones for it. Beach mode and Multi-Salt are the reason to choose the VX7 for salt water: Multi-Salt uses a blend of frequencies to help overcome the negative effects of saltwater beaches. Garrett's troubleshooting advice is to use Multi-Salt when the ground balance reads below 50. See our beach metal detectors and waterproof metal detectors.

    Detectorist holding a Garrett Vortex metal detector in a wooded field

    Where the Garrett Vortex VX7 works well, and where it does not

    In our view the VX7 is the sweet spot in the Vortex lineup: Multi-Salt, Beach mode, more detailed target information and adjustable recovery speed are the additions that make the biggest practical difference. It suits intermediate detectorists who search parks, older properties, relic sites, fresh water and saltwater beaches with one detector. Picture someone who hunts Michigan parks for coins and jewelry among nails and aluminum trash, then spends a vacation on wet salt sand in Florida: the VX7 has operating options for both, and that is the reason to choose it over the Garrett Vortex VX5. For extremely trashy historical sites and the most detailed target information in the Vortex family, with more recovery speeds and extra search modes, we recommend the Garrett Vortex VX9.

    Garrett Vortex VX7 battery, charging and build

    The VX7 runs on an internal lithium-ion battery that Garrett rates at 15 hours typical, depending on settings. It charges through a USB-C port behind a protective cap on the back of the control box; Garrett recommends a 10 W (2 A) or greater power source for the fastest charge, and charging is faster with the detector switched off. The Vortex can also run while plugged into a 5 V USB power pack. Garrett lists the VX7 at 3 lbs (1.38 kg) with the 8.5 x 11 inch coil, adjustable from 24.75 to 56.75 inches (62.86 to 144.14 cm), and the stem collapses to the short length for travel.

    Z-Lynk wireless is built in for Garrett Z-Lynk headphones on land, the built-in speaker shares the overall volume control with the headphones, and any wired headphones with a 1/8 inch plug work.

    Getting started with the Garrett Vortex VX7

    Use Multi-Freq. as the starting point inland and Multi-Salt on wet salt sand and in the surf. Learn the two recovery speeds: the faster one can help in dense trash, the slower one may help on certain deeper targets in cleaner ground. Try Bottlecap Reject when rusty caps give misleading signals, and adjust Iron Boundary carefully, because aggressive iron filtering can affect good targets close to iron. The common mistake is turning iron rejection and bottlecap filtering up hard and then assuming every remaining signal is a good one; those settings involve tradeoffs.

    Ground balance and sensitivity on the Garrett Vortex VX7

    Vortex ground balance is automatic, with 175 points of resolution. The manual shows values from 0 to 75 as whole numbers and marks the range from 75 to 99 as hot, mineralized ground, while a reading below 50 points to salt conditions. Garrett's advice for a reading below 50 is to switch the VX7 to Multi-Salt. Sensitivity has eight levels, and Garrett suggests increased sensitivity when searching for very small or very deep targets. Each frequency also has eight channels to step away from electrical interference. We start sensitivity at a stable level rather than the maximum and raise it only while the detector stays steady.

    Target ID and iron handling on the Garrett Vortex VX7

    The VX7 splits target ID onto two scales: non-ferrous (conductive) targets on the top scale and ferrous (iron) targets on the lower one, so a target with both responses shows on both. Bottlecap Reject and Iron Boundary each have four settings (0 to 3) on the multi-frequency modes, notch discrimination removes chosen targets from audible detection, and Iron Audio gives distinctive responses for iron and steel targets, with Iron Volume in eight levels. Two recovery speeds help separate targets that sit close together, and the audio runs in 3-tone or 5-tone. We adjust Iron Boundary carefully, because aggressive iron filtering can affect good targets close to iron.

    Pinpointer and headphones for the Garrett Vortex VX7

    For recovery, Garrett's Pro-Pointer AT Z-Lynk pinpointer pairs with Garrett Z-Lynk wireless headphones, the same wireless system built into the VX7, so detector and pinpointer can come through one headset on land. Garrett rates the pinpointer waterproof to 20 feet (6 meters), IP68, deeper than the 16 foot (5 meter) rating of the VX7. See our Garrett pinpointers.

    Pair Garrett Z-Lynk headphones by holding them within 3.5 feet (1.1 meters) of the Vortex and pressing plus. In the surf or under water, use wired headphones through the 1/8 inch jack.

    Who we would recommend the Garrett Vortex VX7 to

    We recommend the VX7 for the best balance of Vortex features, especially when saltwater beach detecting matters, and for customers who want one detector for several environments.

    Garrett Vortex VX5, VX7 and VX9 compared

    All three Vortex models share the same body, the 16 foot (5 meter) rating, the battery and the 8.5 x 11 inch DD Raider coil; these are the differences, from Garrett's published comparison.

    Feature Garrett Vortex VX7 Garrett Vortex VX5 Garrett Vortex VX9
    Frequencies 5 and 13 kHz, Multi-Freq., Multi-Salt 13 kHz, Multi-Freq. 5, 9, 13, 18 and 25 kHz, Multi-Freq., Multi-Salt
    Search modes Zero, Standard, USA Coins, Beach, Custom Zero, Standard, USA Coins, Custom Zero, Standard, USA Coins, Thin Coins, Beach, Custom, Fast
    Target ID 2-tier MD-MF scales One scale, 0 to 99 3-tier MD-MF scales
    Recovery speed 2 settings Fixed 3 settings
    Bottlecap Reject and Iron Boundary 4 settings each Fixed 6 settings each
    Audio tones 3 or 5 3 2, 3 or 5
    Increased sensitivity/depth Yes No Yes

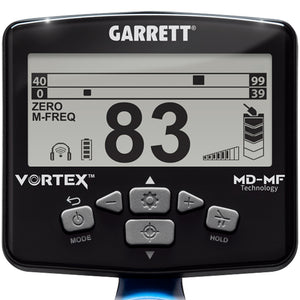

    Garrett Vortex control box showing Zero mode, Multi-Freq. and target ID 83 on the 0 to 99 scale

    Garrett Vortex VX7 specifications

    Specification Garrett Vortex VX7
    Frequencies 5 and 13 kHz, Multi-Freq., Multi-Salt
    Search modes Zero, Standard, USA Coins, Beach, Custom
    Target ID 2-tier MD-MF scales
    Recovery speed 2 settings
    Bottlecap Reject and Iron Boundary 4 settings each
    Audio tones 3 or 5
    Increased sensitivity/depth Yes
    Sensitivity 8 levels
    Iron Volume 8 levels
    Channels 8 per frequency
    Ground balance Automatic, 175 points of resolution
    Waterproof Fully waterproof to 16 ft (5 m)
    Searchcoil 8.5 x 11 in DD Raider
    Battery Internal lithium-ion, 15 hours typical, USB-C charging
    Audio Built-in Z-Lynk wireless, speaker, 1/8 in headphone jack
    Length 24.75 to 56.75 in (62.86 to 144.14 cm)
    Weight 3 lbs (1.38 kg) with 8.5 x 11 in coil
    Warranty 3 years, limited parts and labor

    Garrett lists a 3-year limited parts and labor warranty for the Vortex VX7.

    Serious Detecting is a family-owned, authorized Garrett dealer with a showroom in Ypsilanti, Michigan, and our staff help by phone or email.

    See all our Garrett metal detectors.

    Product Specifications
    Specification Name Specification Value
    Detection
    Detector Type Treasure & Relic Detectors and Beach & Underwater Detectors
    Skill Level Beginner / Intermediate
    Detection Technology Multi-Frequency (MF or SMF)
    Frequencies Multi-Frequency, Multi-Salt, 5 kHz, and 13 kHz
    Number of Frequencies 4
    Frequency Type Simultaneous and Selectable
    Search Modes Zero, Standard, USA Coins, Beach, and Custom
    Number of Search Modes 5
    All Metal Mode Yes
    Target ID 0-99
    Target ID Segments 0-99 (100 segments)
    Discrimination Adjustable
    Sensitivity 1-8
    Recovery Speed 2 speeds
    Ground Balance Automatic
    Pinpoint Mode Yes
    Depth Indicator Yes
    Controls & Audio
    Display LCD
    Backlit Display Yes
    Keypad Backlight Yes
    Tone Options 3 tones and 5 tones
    Adjustable Iron Volume Yes
    Volume Control Yes
    Headphone Jack 1/8"
    Wireless Audio Compatible
    Wireless Audio System Garrett Z-Lynk
    Coil
    Stock Coil Raider 8.5" x 11" (22 x 28 cm) waterproof DD
    Coil Size 8.5" x 11" (22 x 28 cm)
    Coil Type Double-D (DD)
    Coil Shape Elliptical
    Coil Connection Wired
    Waterproofing
    Water Resistance Waterproof
    Waterproof Depth 16 Feet
    Power
    Battery Type Lithium-Ion
    Battery Life 15 hours
    Rechargeable Yes
    Build
    Weight 3 lb / 1.38 kg
    Length (Min) 24.75 in (63 cm)
    Length (Max) 56.75 in (144 cm)
    Adjustable Shaft Yes
    Details
    Color Blue and Black
    Box & Warranty
    Warranty 3 Years
    Service & Support

    Warranty & Product Assurance

    At Serious Detecting, we stand behind the quality of every product we offer. Warranty coverage is provided directly by the manufacturer and may vary depending on the item. We’re here to help you understand your coverage and assist with the warranty process when needed. If you ever have questions or need support navigating a warranty claim, our team is happy to guide you.

    Technical Support & Expert Guidance

    Whether you’re setting up new gear, optimizing performance, or troubleshooting an issue in the field, our knowledgeable support team is here to help. We use this equipment ourselves, so we can offer real-world tips and step-by-step assistance to get you detecting with confidence. Message us anytime and we’ll do our best to get you pointed in the right direction fast.

    Manuals, Resources & Downloads

    Access user manuals, setup guides, safety tips, and technical documentation in our online support center. These resources help you understand your equipment, learn recommended settings, and get the most out of every hunt.

    Replacement Parts & Accessories

    Keep your equipment running strong with genuine parts and accessories. We carry coils, batteries, chargers, protective gear, digging tools, and more — fully compatible with your detector and backed by manufacturer standards. Not sure what fits your model? Just ask — we’re here to help.

    Training & Tutorials

    New to detecting or upgrading to advanced equipment? Our resource library includes helpful guides, maintenance tips, how-to videos, and expert advice from experienced detectorists. From ground balancing and coil choices to target ID basics and field technique, you’ll find the knowledge you need to level up your success.

    Customer Questions & Expert Answers

    Get real answers from outdoor explorers and our product experts. Browse questions about performance, features, and setup — or ask your own to make sure this gear fits your next adventure.

    Is the Garrett Vortex VX7 waterproof?

    The Garrett Vortex VX7 is fully submersible to 16 feet (5 meters), including the control box, coil, and shaft. This waterproof rating makes the VX7 honest for shallow-water relic hunting in rivers and tide pools, not just wading at the beach. We have run ours submerged in Pacific Northwest streams and saltwater surf without issue. The control box features a sealed USB charging port and button lock to prevent accidental setting changes when hunting in the water.

    Answered by John W. · May 2026

    What batteries does the Vortex VX7 use?

    The Vortex VX7 runs on an integrated lithium-ion battery that delivers approximately 15 hours of search time per charge. The battery recharges through a high-speed USB cable included in the box, and the same port pushes firmware updates with no proprietary chargers or upgrade paywall. The LCD includes a battery condition indicator so you know when it is time to recharge. No AA batteries to swap in the field, and the 15-hour runtime covers multiple hunt sessions before we need to plug in.

    Answered by Dan P. · May 2026

    What is Multi Salt mode on the VX7?

    Multi Salt is a dedicated simultaneous multi-frequency mode that rebalances the VX7's algorithm for conductive saltwater environments. Saltwater is highly conductive, and naive multi-frequency engines treat wet sand and surf like a giant non-ferrous target, causing false signals and unstable threshold. Multi Salt adjusts the frequency weighting so the threshold stays smooth and the two-tier Target ID keeps calling coins and rings cleanly right up to the waterline. This is the single biggest reason serious beach hunters step up from the VX5, which does not include Multi Salt.

    Answered by John W. · May 2026

    What coils are compatible with the Garrett Vortex VX7?

    The Vortex VX7 ships with an 8.5" x 11" Multi-Flex DD coil, a balanced all-rounder for parks, fields, and beaches. Additional Vortex coils include a 5" x 8" Ripper for tight trashy spaces, a 6" x 11" Viper for curb strips, and a 14" x 11" Reaper for wide beach coverage. All Vortex coils share the Multi-Flex platform, so swapping coils does not give up multi-frequency capability. Coils are sold separately. For pinpointing recovered targets, browse our best pinpointers for metal detecting guide to pair with the VX7's built-in Z-Lynk wireless.

    Answered by Richard T. · May 2026

    How does the VX7 compare to the VX5 and VX9?

    The VX7 sits between the VX5 and VX9 in Garrett's Vortex lineup. The VX7 adds Multi Salt mode for saltwater beaches, variable recovery speed (Standard and Fast), two-tier MD-MF target ID, and a second single frequency (5 kHz) that the VX5 lacks. The VX9 steps up further with seven total frequencies (5, 9, 13, 18, 25 kHz plus two Multi modes), three-tier target ID, three-stage recovery speed, and a dedicated THIN COINS mode for hammered silvers and low-conductivity gold. All three models are 16-foot waterproof and weigh 3 lbs with the coil installed. Detectorists who hunt primarily saltwater beaches and mineralized relic sites find the VX7 hits the capability-to-cost sweet spot.

    Answered by Richard T. · May 2026

    What is the VX7's recovery speed setting?

    The VX7 offers two recovery speed settings: Standard and Fast. Recovery speed controls how quickly the detector resets between adjacent targets. Fast mode lets us hear a separating high tone right next to a low iron grunt in trashy sites like colonial cellar holes, competition hunts, and urban curb strips littered with bottle caps and shotgun shells. Standard mode is smoother in clean ground and maximizes depth on isolated targets. We toggle to Fast when working iron-heavy relic fields and back to Standard for wide-open farm fields and beaches.

    Answered by John W. · May 2026

    Does the Vortex VX7 have wireless headphones?

    The VX7 has built-in Z-Lynk wireless technology, so it pairs with Garrett wireless headphones and pinpointers without an external transmitter. Z-Lynk wireless headphones (MS-3 or CS-3) are sold separately. The VX7 also includes a 1/8-inch waterproof headphone jack for wired accessories when hunting fully submerged, since wireless signals do not transmit underwater. We run wireless options on land for a cordless workflow, and switch to wired tools when hunting specialized environments found within our waterproof metal detectors 10–16 feet section.

    Answered by John W. · May 2026

    Can I upgrade the VX7 firmware?

    Yes, the Vortex VX7 is firmware-upgradeable through the high-speed USB cable included in the box. Garrett has already released free firmware updates that improve recovery speed, refine iron filters for better unmasking of good targets in trash, and increase detection depth for single-frequency operation. Updates install through the Garrett Update app with no upgrade paywall. The VX7 is also part of Garrett's upgradeable Vortex platform, so detectorists can transform a VX5 to a VX7 or a VX7 to a VX9 with paid software upgrades as skills increase.

    Answered by Richard T. · May 2026

    What search modes does the VX7 include?

    The VX7 includes five search modes: Zero (all-metal, no discrimination), Standard (ideal for relics, jewelry, and most international coins), USA Coins (optimized for U.S. coinage), Beach (for saltwater and freshwater hunting), and Custom (user-defined discrimination and settings). Each mode can run in Multi-Freq., Multi Salt, 5 kHz, or 13 kHz depending on the hunt scenario. We use Standard with Multi-Freq. for park coin shooting, Beach with Multi Salt for wet sand, and Custom with 13 kHz and Fast recovery for iron-heavy cellar holes. The very low frequency (VLF) metal detectors category includes the VX7 and other simultaneous multi-frequency platforms that balance depth and discrimination across varied terrain.

    Answered by Dan P. · May 2026
