Detector specifications
Best for
Highlighted icons show the targets, ground and experience level this detector is built for.
- Coin & Relic — shop all
- Gold — not suited to this detector
- Beach & Water — shop all
- Kids — not suited to this detector
- Beginner / Intermediate — shop all
- Advanced / Expert — shop all
The Garrett Vortex VX9 is Garrett's professional Vortex model, a fully submersible multi-frequency detector for experienced coin, jewelry and relic hunters who enjoy learning advanced settings and regularly search ocean beaches. It runs Multi-Freq., Multi-Salt or single frequencies from 5 to 25 kHz, with a 3-tier target ID, seven search modes and three recovery speeds, and Garrett rates it waterproof to 16 feet (5 meters). Garrett's box includes the 8.5 x 11 inch DD Raider searchcoil.
| Configuration | |
|---|---|
| Detector | Garrett Vortex VX9 with built-in Z-Lynk wireless and speaker |
| Coil(s) | 8.5 x 11 in DD Raider with coil cover |
| Power | Internal lithium-ion battery, USB-C charging |

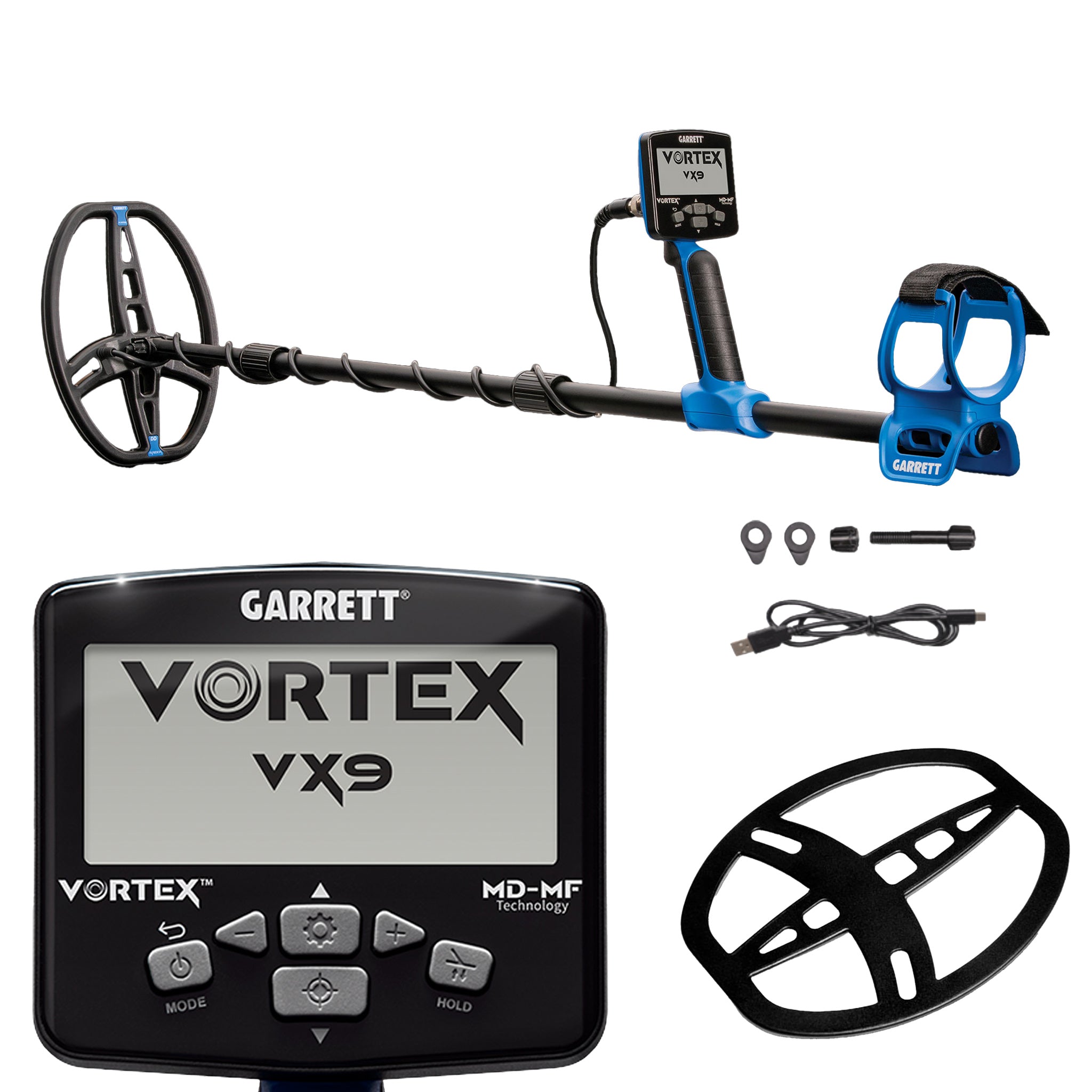

What is in the box with the Garrett Vortex VX9
Garrett's standard contents for the Vortex VX9 (Garrett part 1143060)
- Garrett Vortex VX9 control box on its straight stem, with upper and lower stem
- Arm cuff with strap
- 8.5 x 11 inch DD Raider searchcoil with coil cover installed
- Coil nut, bolt and washers
- USB-C charging cable
- Quick-Start Guide
About the Garrett Vortex VX9
The Garrett Vortex VX9 is, in Garrett's words, the professional Vortex model: a fully submersible multi-frequency detector with a 3-tier MD-MF (Multi-Dimensional Multi-Frequency) target ID display, seven search modes, three recovery speeds and the widest frequency choice in the series. It runs simultaneous Multi-Freq. or Multi-Salt, or single frequencies of 5, 9, 13, 18 and 25 kHz, and Garrett rates the whole detector waterproof to 16 feet (5 meters).
Garrett Vortex VX9 search modes and key settings
- Seven search modes: Zero, Standard, USA Coins, Thin Coins, Beach, Custom and Fast, plus a Pinpoint button you hold to locate a target precisely. Thin Coins and Fast are VX9 only.
- Frequencies and channels: Multi-Freq., Multi-Salt, 5, 9, 13, 18 and 25 kHz, with eight channels, independent frequency shifts, for each one.
- Three-tier target ID: the top scale shows flat, tricky or complex ferrous items, the center scale non-ferrous targets and the lower scale common ferrous targets.
- Iron tools: Bottlecap Reject and Iron Boundary each with six settings (0 to 5), notch discrimination, high-resolution iron discrimination, Iron Audio for distinctive responses on iron and steel targets, and Iron Volume with eight levels.
- Recovery speed and audio: recovery speed 1 to 3, and a choice of 2-tone, 3-tone or 5-tone audio.
- Sensitivity, ground balance and display: eight sensitivity levels, automatic ground balance with 175 points of resolution, a backlit LCD with battery condition indicator, and a depth indicator in 2 inch (5 cm) steps for a coin-sized target.
Water and beach hunting with the Garrett Vortex VX9
Garrett engineers the Vortex for submersible operation down to 16 feet (5 meters), control box included. A button lock keeps the keys from changing settings when you dive below 6 feet (2 meters). Z-Lynk wireless audio stops at the surface: Garrett's manual says radio signals do not transmit through water, so wired headphones must be used under water, through the 1/8 inch headphone jack, and Garrett makes fully submersible Vortex dive headphones for it. For salt water the VX9 has Beach mode and Multi-Salt, which uses a blend of frequencies to help overcome the negative effects of saltwater beaches; Garrett's troubleshooting advice is to use Multi-Salt when the ground balance reads below 50. See our beach metal detectors and waterproof metal detectors.
Where the Garrett Vortex VX9 works well, and where it does not
The VX9 is the Vortex we recommend to experienced coin, jewelry and relic hunters who enjoy learning advanced settings, and to anyone who regularly searches ocean beaches. Picture a farmhouse site from the nineteenth century full of rusty square nails and iron fragments with the occasional older coin close to the iron: the three-tier display and adjustable recovery give more information to judge those complicated responses, though no setting guarantees that a coin next to iron will be detected. We would not recommend the VX9 for small natural gold in difficult goldfields; that calls for the Garrett Goldmaster 24k or the Garrett Axiom, depending on ground and budget. For an occasional detectorist who does not need the extra controls, the Garrett Vortex VX5 may be enough, and the Garrett Vortex VX7 sits between the two. See our relic and treasure metal detectors.
Garrett Vortex VX9 battery, charging and build
The VX9 runs on an internal lithium-ion battery that Garrett rates at 15 hours typical, depending on settings. It charges through a USB-C port behind a protective cap on the back of the control box; Garrett recommends a 10 W (2 A) or greater power source for the fastest charge, and charging is faster with the detector switched off. The Vortex can also run while plugged into a 5 V USB power pack. Garrett lists the VX9 at 3 lbs (1.38 kg) with the 8.5 x 11 inch coil, adjustable from 24.75 to 56.75 inches (62.86 to 144.14 cm), and the stem collapses to the short length for travel.
Z-Lynk wireless is built in for Garrett Z-Lynk headphones on land, the built-in speaker shares the overall volume control with the headphones, and any wired headphones with a 1/8 inch plug work.
Searchcoils for the Garrett Vortex VX9
The VX9 comes with the 8.5 x 11 inch DD Raider (Garrett part 2238400). Garrett makes three more Vortex DD searchcoils: the 5 x 8 inch Ripper (Garrett part 2238500) for tight spaces and iron-infested sites, the 6 x 11 inch Viper (Garrett part 2238300) for maneuverability and target separation, and the 14 x 11 inch Reaper (Garrett part 2238600) for more depth and more ground covered with each sweep. Vortex searchcoils have their own waterproof connector and fit only Vortex detectors, even though some ACE Apex coils share the same names, such as the 5 x 8 inch Ripper.
Getting started with the Garrett Vortex VX9
Begin in Multi-Freq. for general detecting and use Multi-Salt in saltwater conditions. Experiment with the three recovery speeds according to target density, learn how Iron Boundary changes mixed ferrous and non-ferrous signals, and keep Bottlecap Reject at moderate settings in parks. Thin Coins mode is worth learning for certain thin, low-conductivity coins, and Fast mode for particularly trashy sites. The common mistake is changing recovery speed, Iron Boundary, Bottlecap Reject and sensitivity all at once: when the responses change, you cannot tell which adjustment caused it.
Ground balance and sensitivity on the Garrett Vortex VX9
Vortex ground balance is automatic, with 175 points of resolution. The manual shows values from 0 to 75 as whole numbers and marks the range from 75 to 99 as hot, mineralized ground, while a reading below 50 points to salt conditions. Garrett's advice for a reading below 50 is to switch the VX9 to Multi-Salt. Sensitivity has eight levels, and Garrett suggests increased sensitivity when searching for very small or very deep targets. Each frequency also has eight channels to step away from electrical interference. We start sensitivity at a stable level rather than the maximum and raise it only while the detector stays steady.
Target ID and iron handling on the Garrett Vortex VX9
The VX9 spreads target ID over three scales: flat, tricky or complex ferrous items on the top scale, non-ferrous targets in the center and common ferrous targets on the lower scale. Bottlecap Reject and Iron Boundary each have six settings (0 to 5) on the multi-frequency modes, recovery speed runs 1 to 3, and the audio can be 2-tone, 3-tone or 5-tone. Iron Audio gives distinctive responses for iron and steel, Iron Volume turns iron down in eight levels, and notch discrimination removes chosen targets from audible detection. We change one of these settings at a time, so it is clear which adjustment changed a response.
Pinpointer and headphones for the Garrett Vortex VX9
For recovery, Garrett's Pro-Pointer AT Z-Lynk pinpointer pairs with Garrett Z-Lynk wireless headphones, the same wireless system built into the VX9, so detector and pinpointer can come through one headset on land. Garrett rates the pinpointer waterproof to 20 feet (6 meters), IP68, deeper than the 16 foot (5 meter) rating of the VX9. See our Garrett pinpointers.
Pair Garrett Z-Lynk headphones by holding them within 3.5 feet (1.1 meters) of the Vortex and pressing plus. In the surf or under water, use wired headphones through the 1/8 inch jack.
Who we would recommend the Garrett Vortex VX9 to
We recommend the VX9 when detailed target information and extensive control are worth more to you than simplicity. What we like most are the three-tier MD-MF display, the wider frequency choice, adjustable recovery speed and the extra discrimination controls for heavily hunted parks and older properties.
Garrett Vortex VX5, VX7 and VX9 compared
All three Vortex models share the same body, the 16 foot (5 meter) rating, the battery and the 8.5 x 11 inch DD Raider coil; these are the differences, from Garrett's published comparison.
| Feature | Garrett Vortex VX9 | Garrett Vortex VX5 | Garrett Vortex VX7 |
|---|---|---|---|
| Frequencies | 5, 9, 13, 18 and 25 kHz, Multi-Freq., Multi-Salt | 13 kHz, Multi-Freq. | 5 and 13 kHz, Multi-Freq., Multi-Salt |
| Search modes | Zero, Standard, USA Coins, Thin Coins, Beach, Custom, Fast | Zero, Standard, USA Coins, Custom | Zero, Standard, USA Coins, Beach, Custom |
| Target ID | 3-tier MD-MF scales | One scale, 0 to 99 | 2-tier MD-MF scales |
| Recovery speed | 3 settings | Fixed | 2 settings |
| Bottlecap Reject and Iron Boundary | 6 settings each | Fixed | 4 settings each |
| Audio tones | 2, 3 or 5 | 3 | 3 or 5 |
| Increased sensitivity/depth | Yes | No | Yes |
Garrett Vortex VX9 specifications
| Specification | Garrett Vortex VX9 |
|---|---|
| Frequencies | 5, 9, 13, 18 and 25 kHz, Multi-Freq., Multi-Salt |
| Search modes | Zero, Standard, USA Coins, Thin Coins, Beach, Custom, Fast |
| Target ID | 3-tier MD-MF scales |
| Recovery speed | 3 settings |
| Bottlecap Reject and Iron Boundary | 6 settings each |
| Audio tones | 2, 3 or 5 |
| Increased sensitivity/depth | Yes |
| Sensitivity | 8 levels |
| Iron Volume | 8 levels |
| Channels | 8 per frequency |
| Ground balance | Automatic, 175 points of resolution |
| Waterproof | Fully waterproof to 16 ft (5 m) |
| Searchcoil | 8.5 x 11 in DD Raider |
| Battery | Internal lithium-ion, 15 hours typical, USB-C charging |
| Audio | Built-in Z-Lynk wireless, speaker, 1/8 in headphone jack |
| Length | 24.75 to 56.75 in (62.86 to 144.14 cm) |
| Weight | 3 lbs (1.38 kg) with 8.5 x 11 in coil |
| Warranty | 3 years, limited parts and labor |
Garrett lists a 3-year limited parts and labor warranty for the Vortex VX9.
Serious Detecting is a family-owned, authorized Garrett dealer with a showroom in Ypsilanti, Michigan, and our staff help by phone or email.
See all our Garrett metal detectors.
