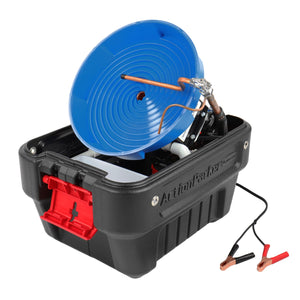

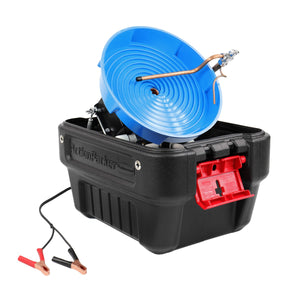

Gold Miner Advanced Spiral Wheel Gold Prospecting Panning Machine

The Gold Miner Advanced Spiral Wheel is a motorized gold panning machine that processes black sand concentrates through a 13-inch rotating spiral pan, recirculating water system, and catch cup assembly. Prospectors working remote claims and backcountry sites use this system to recover fine gold and flour gold that hand panning misses, running the unit off any 12-volt DC car battery or portable power source. The 7-spiral lead design rotates at 12 revolutions per minute, a speed optimized for high recovery rates without washing gold over the rim, and processes an average of 60 pounds of concentrate per hour.

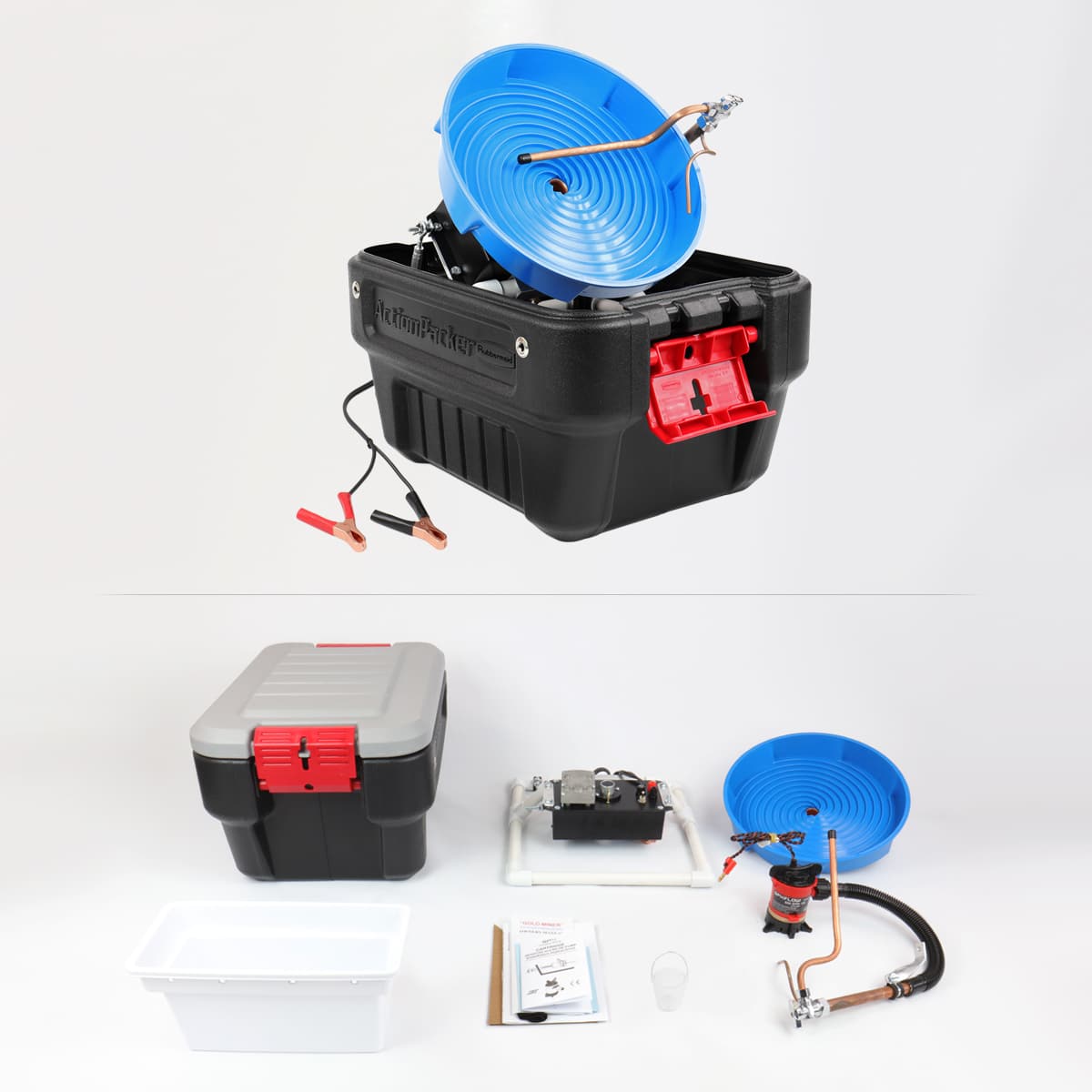

What's Included with the Gold Miner Advanced Spiral Wheel

• Gold Miner Advanced Spiral Wheel panning machine with 13-inch spiral wheel
• 500 GPH recirculating pump and spray bar assembly
• Catch cup for gold collection
• Drive unit with frame and direct-drive gearbox
• Tailings container and pump filter
• Heavy-duty Rubbermaid Action Packer carrying case with lid
• Angle template for setting pan pitch
• Micro-adjuster for fine-tuning pan angle while running

Motorized Spiral Recovery for Fine Gold and Flour Gold Separation

Black Sand Concentrates from Sluice Box Cleanups

The 7-spiral lead carries a half-inch recess at the start of each spiral, agitating concentrates as the pan rotates and settling gold into the spirals faster than flat-pan designs. Heavy black sand moves outward toward the rim while gold rides the spirals up to the center catch cup, eliminating the hand splashing and tilting required with static panning. The injection-molded pan holds deep, sharp spirals that won't wear smooth after hundreds of hours of abrasive magnetite and garnet contact, maintaining consistent recovery rates across seasons.

Dry Wash and Remote Claim Sites with Limited Water

The recirculating pump moves 3 gallons of water through the spray bar all day, eliminating the need for a continuous water source in desert claims or dry washes where water hauling limits your processing volume. You fill the system once, run concentrates until the battery drains, and dump only the tailings. The 500 GPH pump maintains steady flow across the pan surface without flooding the spirals or creating turbulence that lifts settled gold.

Backcountry Prospecting and Truck Bed Transport

The complete system weighs 10 pounds in the carrying case, measuring 20 inches long by 15 inches wide by 13 inches high. The Rubbermaid Action Packer case protects the pan, pump, and drive unit during rough road transport and stacks cleanly in a truck bed alongside gold prospecting equipment like sluice boxes and classifiers. Four vent holes in the case dissipate condensation when the unit is stored between trips, preventing corrosion on the motor and pump housing.

Direct-Drive Gearbox and Delrin Bushing Construction for Field Durability

The drive unit uses a rugged direct-drive gearbox molded from thick ABS plastic, eliminating belts and chains that slip or break under load. Delrin bushings at the rotation points handle the continuous motion without seizing, and the design requires no lubrication between seasons. The highly efficient motor extends battery life, a measurable advantage when you're running the machine off a portable power station and every amp-hour counts.

The micro-adjuster allows real-time pan angle changes while the machine runs, saving setup time and letting you dial in the optimal pitch for flour gold separation from stubborn black sand. You start with the included angle template for initial positioning, then fine-tune the pitch as you watch gold movement in the spirals. Steeper angles push material faster but risk washing fine gold over the rim; shallower angles slow the flow and increase recovery of fine particles. The adjuster locks with a thumbscrew once you've found the working angle for your concentrate type.

12-Volt DC Operation and Portable Power Compatibility

The Gold Miner runs on any 12-volt DC battery with no inverter required, drawing low amperage that makes it compatible with car batteries, marine deep-cycle batteries, and lithium portable power stations. The direct DC connection eliminates the efficiency loss and heat buildup of AC-to-DC conversion, and you avoid hauling a generator into remote claim sites where noise restrictions apply. The motor pulls consistent power across the voltage range, maintaining 12 RPM rotation speed as the battery discharges.

Prospectors working claims hours from the nearest town appreciate the no-maintenance design. There's no oil to check, no spark plugs to foul, no air filters to clean. You connect the battery leads, fill the water reservoir, and run concentrates until the tailings container fills or the battery depletes. The pump filter catches debris before it reaches the impeller, and you rinse it between sessions to maintain flow rate.

Optimizing Recovery Rates for Different Concentrate Types

The 12 RPM rotation speed is a compromise between processing speed and fine gold retention. Faster speeds move material through the spirals quickly but create centrifugal force that lifts flour gold out of the grooves. Slower speeds maximize recovery but reduce your hourly throughput. The Gold Miner's factory setting handles the middle ground, processing 60 pounds of concentrate per hour on average. Prospectors chasing fine flour gold slow the machine by reducing battery voltage with a PWM controller, trading speed for recovery on high-value concentrates.

The spray bar delivers water across the full width of the pan, creating a thin sheet that carries material into the spirals without washing settled gold. You adjust flow rate by angling the spray bar or partially blocking outlets with tape, matching water volume to your concentrate's clay content. Sticky clays need more water to break apart and expose gold; clean sands need less to avoid turbulence. The recirculating system lets you experiment with flow rates without wasting water, and you dump the reservoir only when clay buildup clouds the water enough to obscure gold visibility in the catch cup.

Field Setup and Operational Workflow

You remove the components from the carrying case, snap the drive unit onto the frame, position the spiral wheel on the shaft, and lock it with the retaining clip. The pump drops into the water reservoir with the intake filter facing down, and you connect the spray bar to the pump outlet with the supplied hose. The angle template guides initial pan pitch, and you lock the micro-adjuster once the pan is level. Battery leads connect to any 12-volt source with alligator clips.

You fill the reservoir with 3 gallons of water, start the pump to verify spray bar coverage, then begin feeding concentrates into the center of the rotating pan. Material spreads outward across the spirals as the pan turns, and you watch gold settle into the grooves while black sand moves toward the rim and drops into the tailings container. The catch cup at the center collects gold that rides the spirals upward, and you empty it periodically into a vial. Processing rhythm depends on concentrate density: coarse material feeds faster, fine clays slower to avoid overloading the spirals.

Our gold panning guide covers hand-panning techniques that complement motorized processing, and many prospectors finish the catch cup contents with a traditional pan to verify recovery and remove any remaining black sand.

Why Prospectors Processing Black Sand Concentrates Choose the Gold Miner

• 7-spiral lead with half-inch recess at each spiral start agitates concentrates and settles gold faster than flat-pan designs, sending it to the center catch cup without hand splashing or manual tilting.
• Recirculates 3 gallons of water all day: eliminates the need for a continuous water source in remote claim sites, dry washes, or desert prospecting areas where water hauling limits your processing volume.
• Micro-adjuster allows real-time pan angle changes while the machine runs, letting you dial in the optimal pitch for flour gold separation from stubborn black sand without stopping to reposition the frame.
• Weighs 10 pounds in the carrying case (20 inches long, 15 inches wide, 13 inches high), light enough to pack into backcountry claims and compact enough to store in a truck bed alongside sluice boxes and classifiers.
• Runs on any 12-volt DC battery with no lubrication or maintenance required: a practical advantage when you're processing concentrates hours from the nearest town and mechanical failures end your day.

Specifications

• Spiral Wheel Diameter: 13 inches
• Spiral Lead Count: 7 spirals
• Rotation Speed: 12 RPM
• Power Requirement: 12 volts DC (battery not included)
• Pump Capacity: 500 GPH recirculating
• Water Volume: 3 gallons
• Processing Capacity: 60 pounds of concentrate per hour (average)
• Weight: 10 lbs (4.5 kg) including carrying case
• Carrying Case Dimensions: 20in x 15in x 13in (51cm x 38cm x 33cm)
• Materials: ABS plastic gearbox, injection-molded pan, Delrin bushings
• Warranty: 5 years manufacturer warranty
