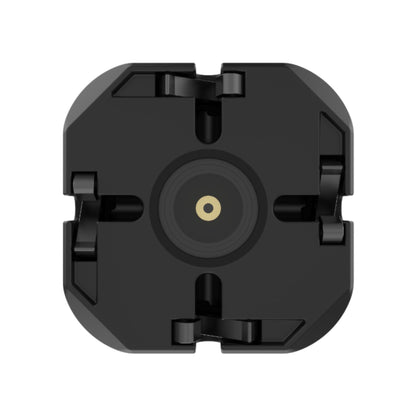

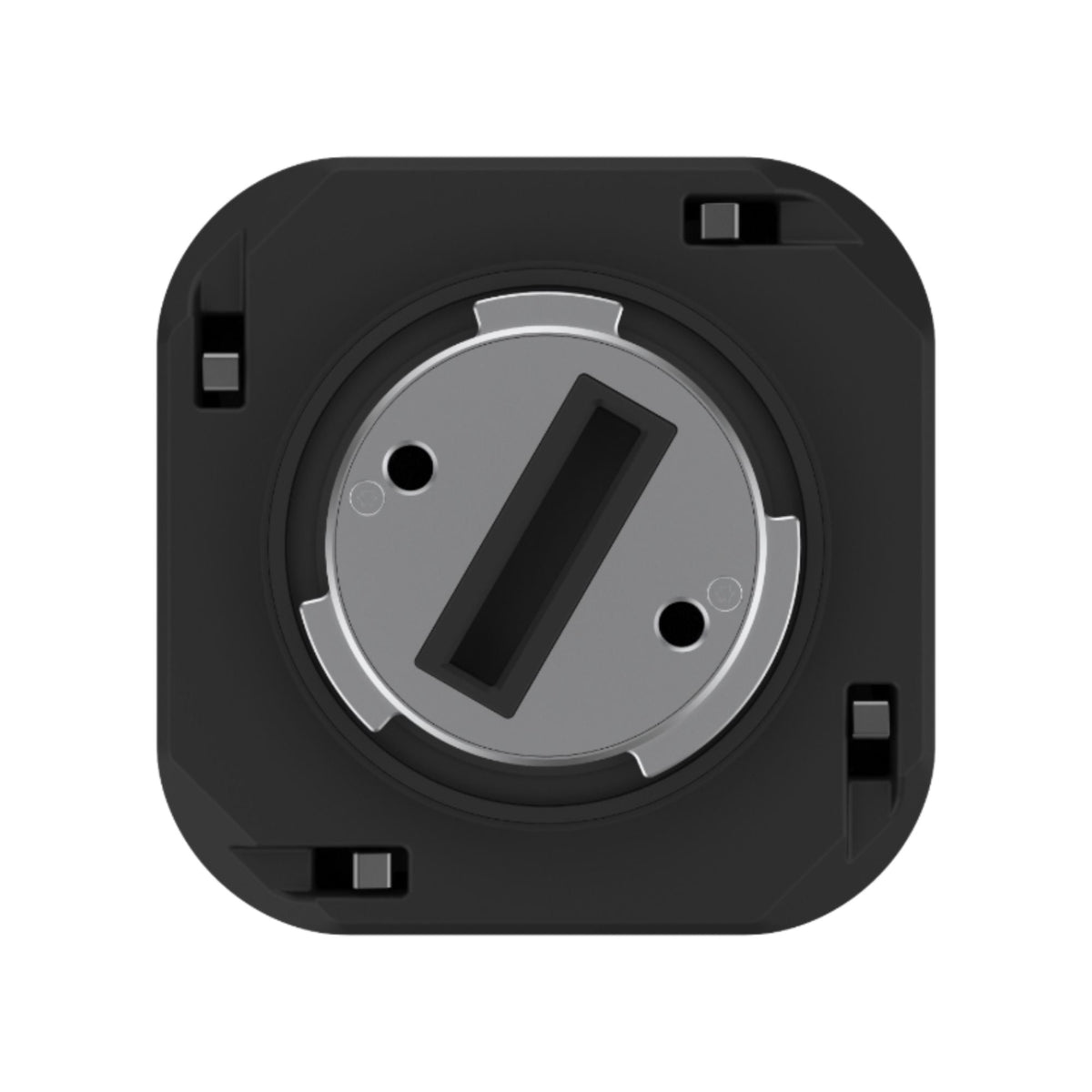

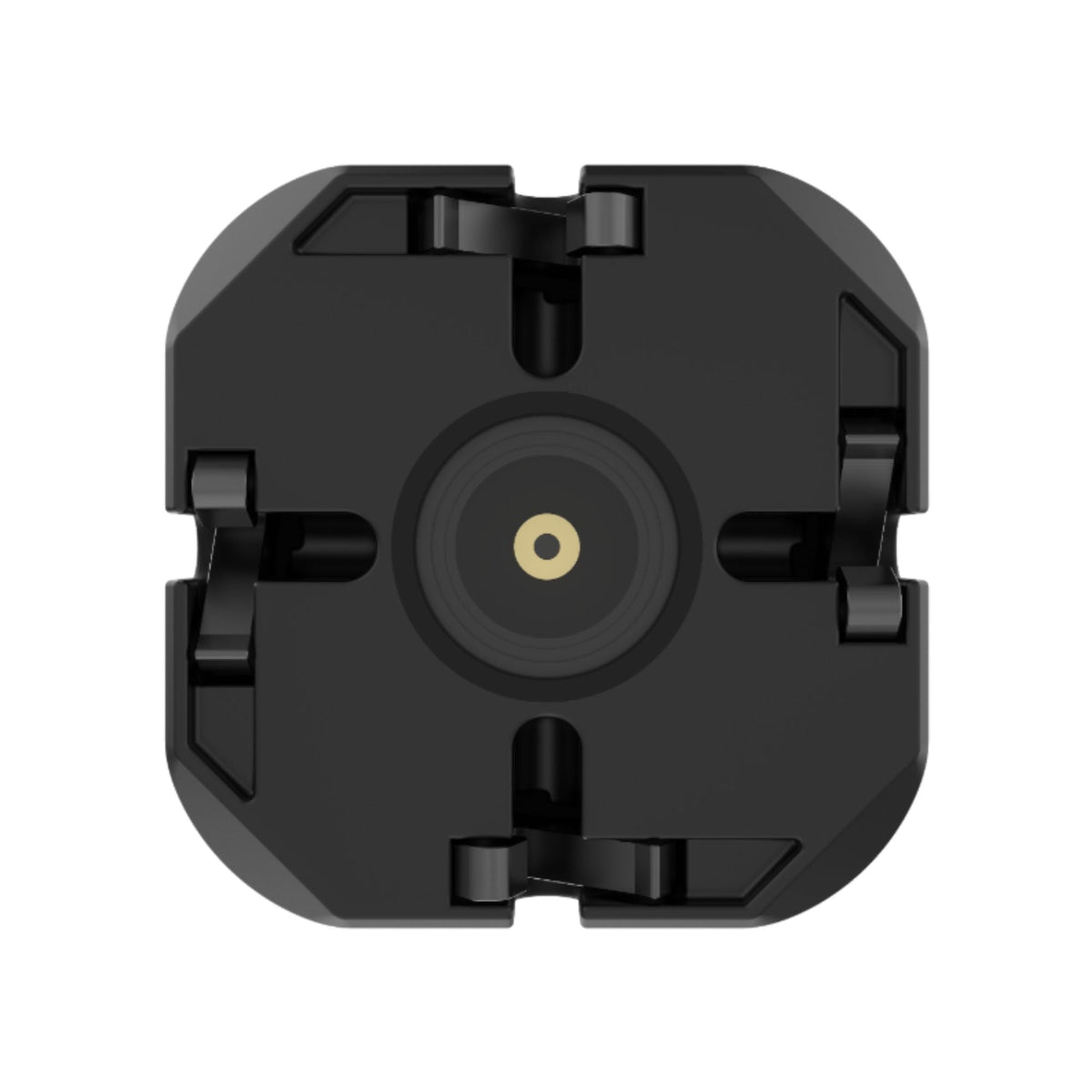

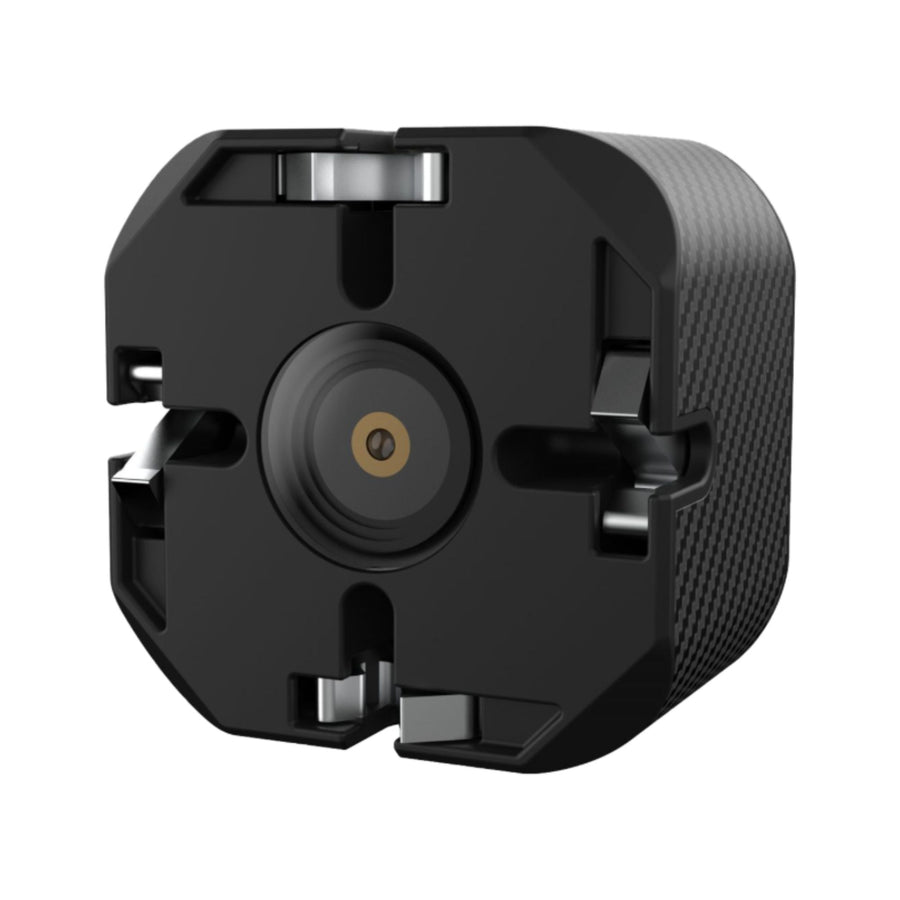

JZ Drones PT4 Four Drop Kit for M350/M400

JZ Drones PT4 Four Drop Kit: Lightweight Four-Stage Payload Release System for Controlled Multi-Drop Operations

The JZ Drones PT4 Four Drop Kit is a DJI PSDK-based aerial payload delivery system designed for controlled, multi-point deployment using DJI Matrice platforms, including the Matrice 300 RTK, Matrice 350 RTK, and Matrice 400. It mounts via the DJI SkyPort V2 interface and integrates directly with DJI Pilot 2, allowing operators to monitor payload status and trigger releases in real time.

The system supports up to four payloads with independent or simultaneous release, making it suitable for search and rescue, emergency logistics, and industrial operations. With a lightweight 120 g design, laser-assisted targeting, and no external power requirement, it enables efficient and repeatable aerial delivery missions.

Key Features and Benefits

• Four-hook system: supports 4 independent mounts for multi-point payload deployment
• Payload capacity: supports up to 3 kg (6.6 lbs) per hook
• Total capacity: supports up to 12 kg (26.4 lbs) combined payload weight
• SkyPort V2 interface: enables fast mounting with integrated power and data connection
• Pilot 2 integration: displays real-time hook status and enables independent release
• One-key release: deploys all payloads simultaneously for rapid mission execution
• Lightweight design: weighs 120 g reducing impact on aircraft payload capacity
• Laser-assisted aiming: built-in laser improves drop zone targeting accuracy
• Power-free mounting: allows payload loading without powering aircraft or system

Applications and Use Cases

• Search and rescue: delivers medical kits or flotation devices to individuals in distress
• Fire response: deploys small suppression payloads into targeted fire zones safely
• Emergency logistics: transports food and medicine to remote or isolated locations
• Utility operations: supports line deployment or placement of lightweight equipment
• Disaster response: enables rapid delivery of aid across affected environments
• Industrial delivery: releases tools or materials during controlled onsite operations

The PT4 provides a lightweight and repeatable solution for multi-payload aerial delivery in operational environments. Its four-stage release system, real-time monitoring, and integrated targeting support accurate deployment while minimizing system complexity.

With DSLRPros, you gain access to field-proven UAV solutions backed by real-world operational expertise. Every system is validated for reliability and integration—order the PT4 Four Drop Kit from DSLRPros today.
