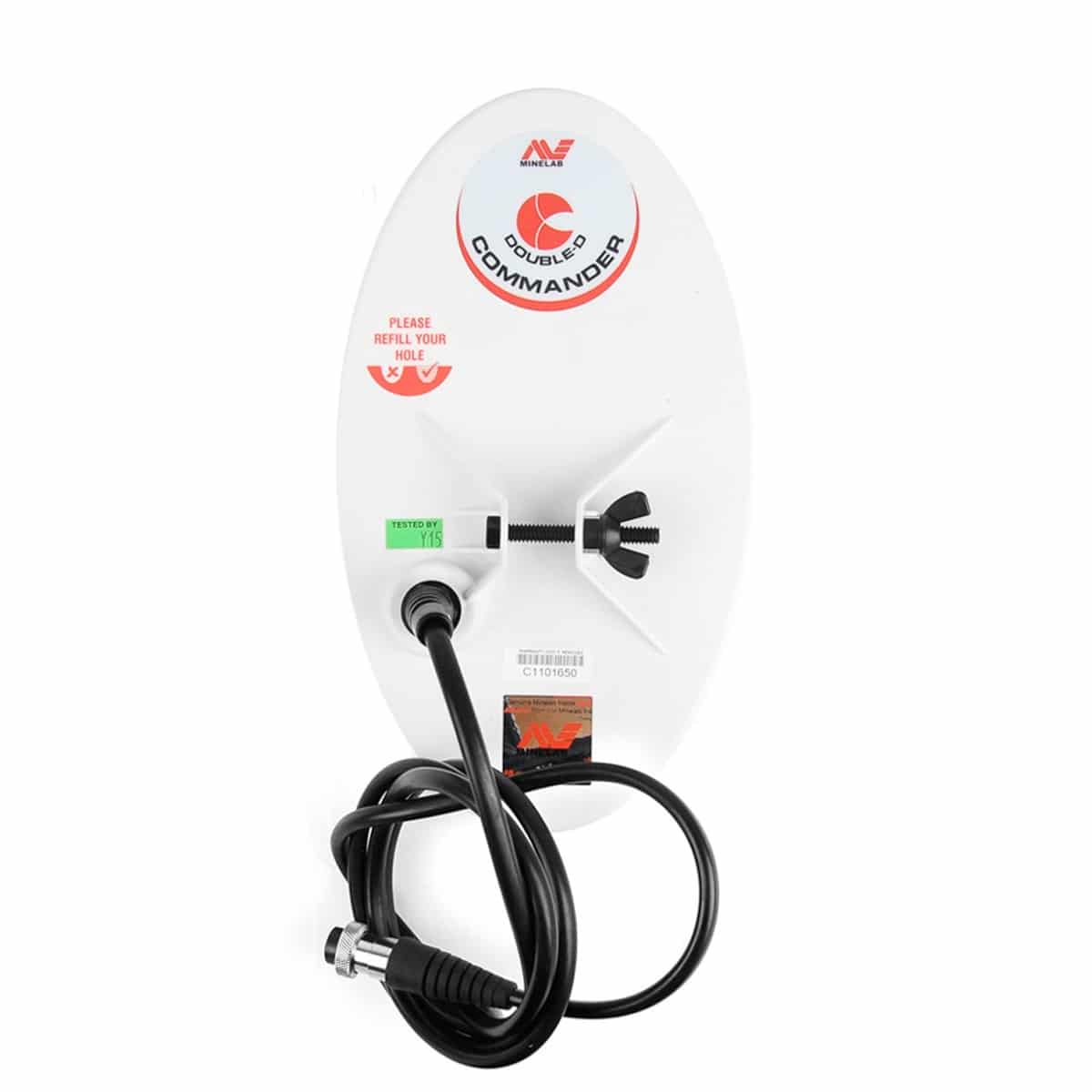

Minelab 10 x 5 inch Elliptical Double-D Commander Coil for GPX, GP, and SD Series

It's water-resistant, not submersible. It handles wet grass, damp soil, and shallow creek crossings, but shouldn't be fully submerged.

The 10x5 Commander offers a narrower profile compared to larger round coils, providing better target separation and maneuverability in tight spaces. This makes it ideal for trashy relic sites and boulder-strewn goldfields where larger coils feel cumbersome. Larger round coils provide more ground coverage per swing and slightly more depth on large isolated targets in open ground. Both Double-D designs offer similar ground-handling capability in mineralized soil. Choose the 10x5 Commander when you prioritize precision and tight-space access, and use larger round coils for open-field gold hunting where maximum coverage matters. For additional setup strategies, visit our practical detecting tips page.

The 10x5 Commander Coil is compatible with Minelab GPX 4000, GPX 4500, GPX 4800, GPX 5000, GP 3000, GP 3500, GP Extreme, SD 2000, SD 2100, SD 2100e, SD 2100v2, SD 2200d, and SD 2200v2 detectors. All these models use the same coil connector and support MPS (Multi-Period Sensing) technology, which the Commander Coil is engineered to match. The coil works with Iron Reject and RX Cancel features on GPX models, but those features are not available on the older GP and SD series. Verify your detector's coil connector type before ordering to ensure compatibility with your specific model.

The 10x5 Commander Coil is water-resistant, not fully waterproof or submersible. You can use it in wet grass, shallow puddles, damp soil, and light rain without damaging the coil, but do not submerge it in creeks, rivers, or saltwater. The cable and connector are sealed against moisture intrusion during normal field use, but extended underwater exposure will cause failure. If you hunt shallow water or need a fully submersible coil for your GPX detector, consider Minelab's waterproof coil models designed for wet environments.

The elliptical 10x5 shape provides better target separation and maneuverability in tight spaces compared to a round coil of similar coverage area. The narrow 5-inch width lets you sweep between rocks, along fence lines, and in trashy sites where multiple targets lie close together, reducing masking from adjacent iron or junk. The 10-inch length maintains reasonable ground coverage so you don't sacrifice too much area per swing. This geometry works well in goldfields with boulder piles and relic sites with dense trash. Round coils offer slightly deeper maximum depth on isolated targets in clean ground, but the elliptical design excels when target density or terrain obstacles demand precision.

Yes, the 10x5 Commander Coil supports Iron Reject mode on GPX 4000, GPX 4500, GPX 4800, and GPX 5000 detectors. Iron Reject lets you filter ferrous trash like nails, wire, and plow debris while preserving signals from non-ferrous targets such as coins, buttons, and relics. The Double-D winding is required for Iron Reject to function; concentric coils do not support this feature. Run the coil in Fine Gold or Enhance timing modes for best discrimination performance. The older GP and SD series detectors do not have Iron Reject capability, so this feature is GPX-specific.

Litz wire is multi-strand wire where each strand is individually insulated, then twisted together to increase the wire's total surface area. This construction improves signal transmission efficiency and reduces electromagnetic interference compared to solid-core wire. In the 10x5 Commander Coil, Litz wire delivers stronger, more sensitive signals to the detector and minimizes noise from external sources like power lines or radio towers. The result is better depth on small targets and quieter operation in electrically noisy environments. Minelab uses Litz wire across their Commander Coil line as part of the MPS technology optimization.

The 10x5 Commander Coil delivers very good depth and sensitivity on gold nuggets, with actual detection depth depending on nugget size, ground mineralization, and detector settings. The Double-D winding provides excellent stability in hot rocks and mineralized ground, letting you run higher sensitivity without threshold noise. In highly mineralized Western goldfields, this stable operation often results in better real-world depth than a deeper but noisier concentric coil. The coil excels at finding small nuggets in challenging ground conditions where other coils struggle with false signals. Pair it with appropriate timing and sensitivity settings on your GPX detector to maximize depth performance in your specific hunting environment.

The 10x5 Commander Coil works well for both gold prospecting and coin/relic hunting on GPX detectors. For relic hunting, pair it with Iron Reject mode to filter ferrous trash in colonial homesites, old farmsteads, and battlefield edges. The elliptical shape improves target separation in trashy sites, and the Double-D winding handles mineralized soil common in the eastern United States. For coin hunting in parks or schoolyards, this coil is overkill; GPX detectors are designed for nugget hunting and lack the fine discrimination features of dedicated coin machines. If you own a GPX and want to hunt relics as a secondary activity, the 10x5 Commander is a capable choice. You can explore coils - search coil build - solid for other durable options across detector platforms.

Double-D runs smoother in mineralized and hot-rock ground, gives better target separation, and enables Iron Reject on GPX models — ideal for trashy relic sites. Monoloop coils generally hit deeper on larger gold in open country. Many prospectors carry one of each

No, the 10x5 Commander Coil is not compatible with the Minelab GPZ 7000 or SDC 2300. The GPZ 7000 uses proprietary ZVT (Zero Voltage Transmission) technology with a different coil connector and requires GPZ-specific coils. The SDC 2300 uses a fixed coil system and does not accept interchangeable coils. This Commander Coil is designed exclusively for MPS-based detectors: GPX 4000, GPX 4500, GPX 4800, GPX 5000, and the older GP and SD series. If you own a GPZ or SDC, check Minelab's catalog for coils engineered for those platforms.
