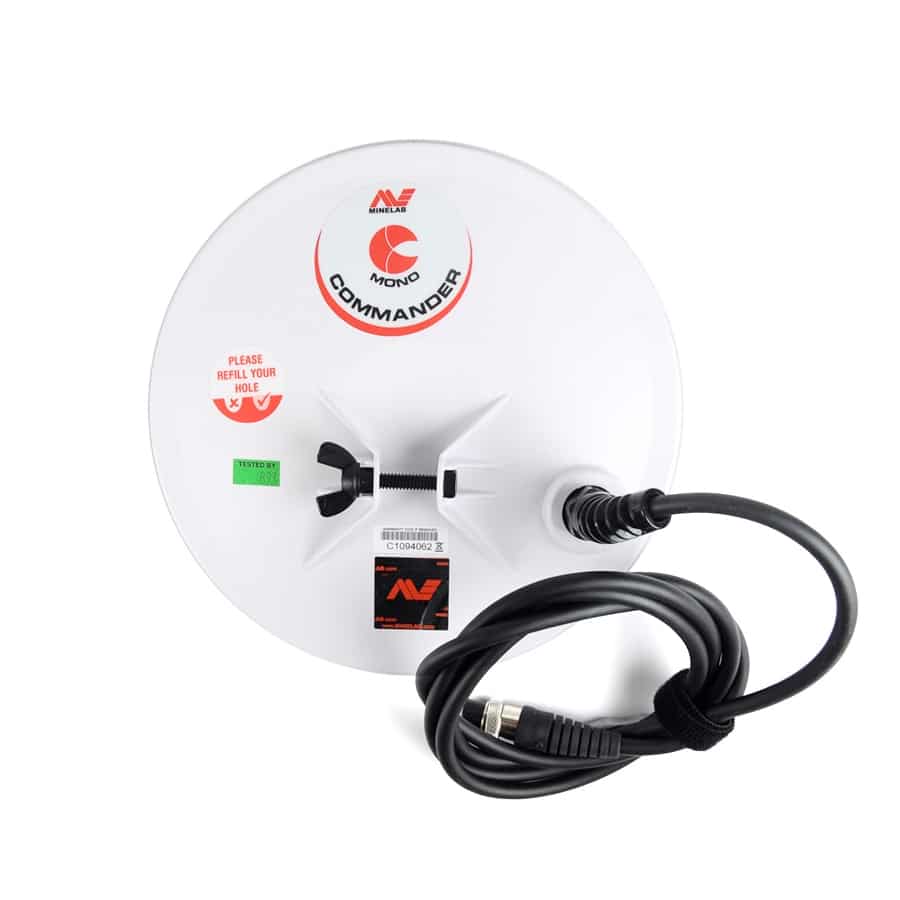

The Minelab Commander 8 inch Monoloop is an 8 inch (20 cm) round monoloop search coil from Minelab's Commander range for the GPX, GP and SD series pulse induction gold detectors, Minelab part 3011-0072. It is the smallest monoloop in the Commander range, which also includes 11 inch round, 15 x 12 inch elliptical and 18 inch round monoloops.
| Configuration | |
|---|---|
| Coil | Minelab Commander 8 inch Monoloop, 8 in (20 cm) round |
| Type | Monoloop |
| Fits | Minelab GPX 4500, GPX 5000 and earlier GPX, GP and SD detectors |
| Water protection | Water-resistant |
What is in the box with the Minelab Commander 8 inch Monoloop
Minelab's standard contents for the Commander 8 inch Monoloop (Minelab part 3011-0072)
- Minelab Commander 8 inch round monoloop coil

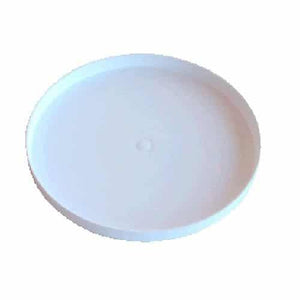

- Coil cover

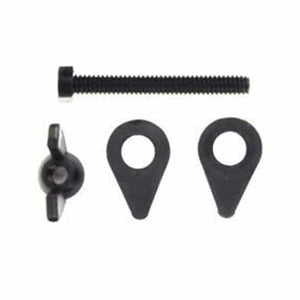

- Mounting hardware
Which detectors the Commander 8 inch Monoloop fits
- Minelab GPX 5000
- Minelab GPX 4800
- Minelab GPX 4500
- Minelab GPX 4000
- Minelab GP Extreme
- Minelab GP 3500
- Minelab GP 3000
- Minelab SD 2200 (SD 2200d and SD 2200v2)
- Minelab SD 2100 (all versions)
- Minelab SD 2000
Minelab states that all Commander coils are compatible with the GPX 4500 and GPX 5000, and the Commander 8 inch Monoloop also fits the earlier GPX, GP and SD detectors listed above. The Minelab GPX 6000 takes its own GPX 11, GPX 14 and GPX 17 coils instead. Our Minelab parts and accessories by detector model page sorts every Minelab coil by detector.
When to use the Commander 8 inch Monoloop
The 8 inch round coil is the smallest Commander monoloop, and the one we would reach for on rocky gullies, exposed bedrock and tight, shallow ground with a GPX, GP or SD detector. Minelab's GPX manuals note that a smaller coil is typically more sensitive to small targets but does not go as deep as a larger coil, is lighter, and can be easier to maneuver through thick scrub or rough terrain, and that in high trash concentrations a smaller coil is preferable. It also sees less ground with each sweep than the 11, 15 x 12 or 18 inch coils, so we would use it to work the edges of exposed bedrock once a larger coil has shown where the gold is, not for a large area of deeper wash.
Set the Coil/Rx setting to Mono: Minelab's GPX 5000 manual says the detector will not detect targets if Cancel is used with a Monoloop coil. For electrical interference, Minelab's manual points to the Cancel setting, which needs a Double-D coil. We suggest ground balancing again after changing coils. Minelab's GPX manuals say the coil may be used in light rain but take care not to immerse it in water. Our metal detector coil guide explains how coil size and winding trade coverage for separation.

Minelab Commander 8 inch Monoloop specifications
| Specification | Minelab Commander 8 inch Monoloop |
|---|---|
| Size | 8 in (20 cm) |
| Shape | Round |
| Type | Monoloop |
| Series | Commander |
| Fits | Minelab GPX 4500 and GPX 5000; earlier GPX, GP and SD series |
| Coil/Rx setting | Mono |
| Water protection | Water-resistant |
| Part number | Minelab 3011-0072 |
| Warranty | 3 years (Minelab GPX series accessories) |
Minelab's warranty schedule covers GPX series accessories, the Commander coils among them, for 3 years. Every Minelab Commander coil we carry is in our metal detector search coils collection.
Serious Detecting is a family-owned, authorized Minelab dealer with a showroom in Ypsilanti, Michigan, and our staff help by phone or email.
