Minelab Equinox 900 Metal Detector

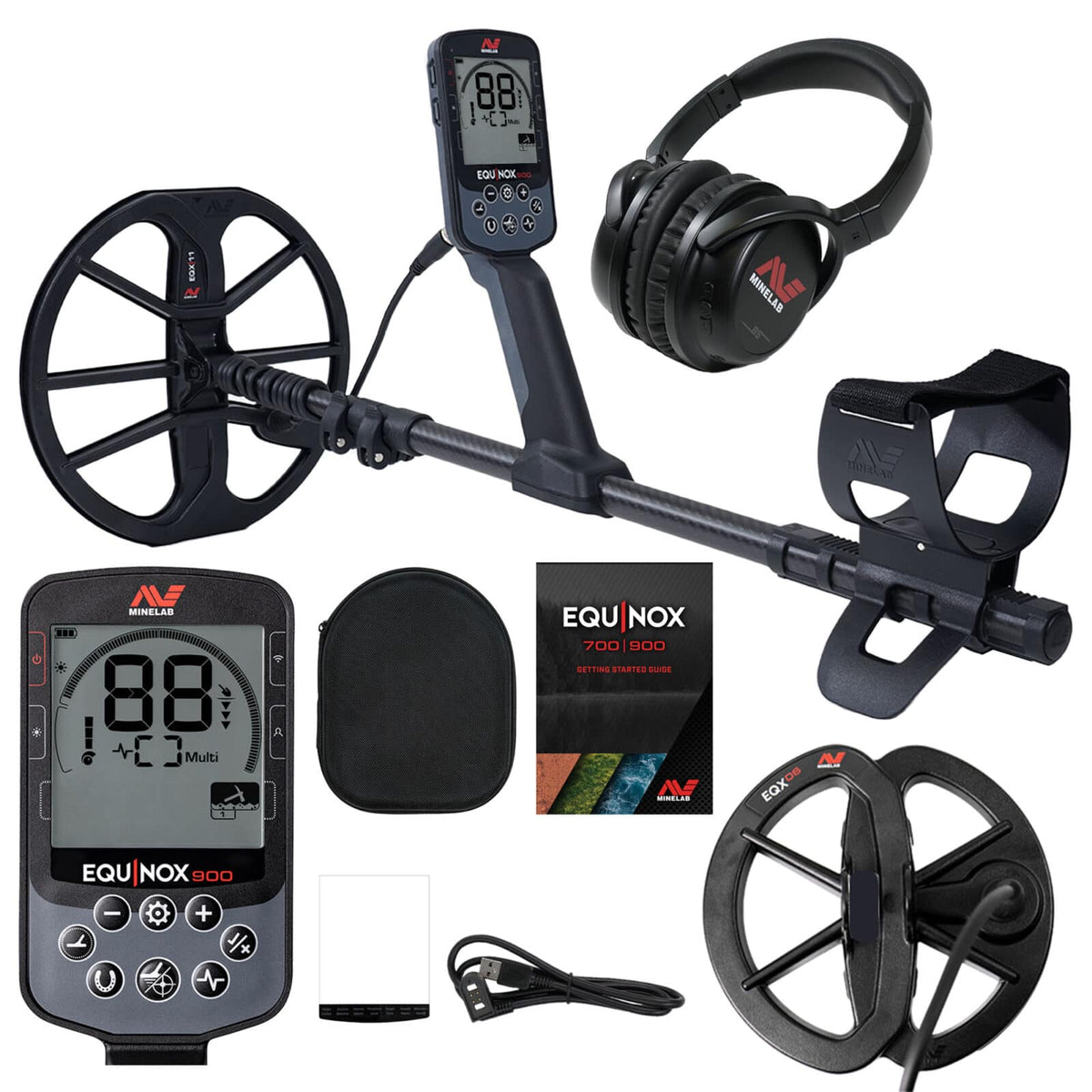

The Minelab Equinox 900 is a multi-frequency all-terrain detector built for serious coin, relic, and jewelry hunters who demand fast target separation and waterproof durability to 16 feet. This collection stocks the Equinox 900 detector, accessory coils, wireless headphones, control-pod covers, shafts, and complete bundles ready to ship. Every Equinox 900 order over $99 ships free in the continental U.S., and all units carry the full Minelab manufacturer warranty.

Filters View as:

Why the Equinox 900 Is the Most Versatile Detector Minelab Has Built

The Minelab Equinox 900 runs Multi-IQ® simultaneous multi-frequency technology and offers six selectable single frequencies on tap: 4, 5, 10, 15, 20, and 40 kHz. That isn't marketing talk. Multi-IQ means we're hitting low conductors like gold and foil with the higher frequencies while still pulling depth on silver and copper with the lower ones. We're not toggling between single-frequency modes or guessing which setting works for the site. The detector handles the math in real time, adjusting target response based on ground mineralization and target conductivity. Recovery speed runs from 1 to 8, so we can work iron-choked cellar holes and trashy tot lots without the machine blending good targets into the junk. Sensitivity climbs to 28, and the IP68 housing takes the Equinox 900 down to 16 feet. This is the detector we grab when we don't know what the day will throw at us.

Equinox 900 Specs at a Glance

Operating Frequencies Multi-IQ® simultaneous multi-frequency; six single frequencies: 4, 5, 10, 15, 20, 40 kHz
Waterproof Depth 16 feet (5 meters), IP68 rated
Weight 2.96 lbs (1.34 kg) with stock 11-inch coil

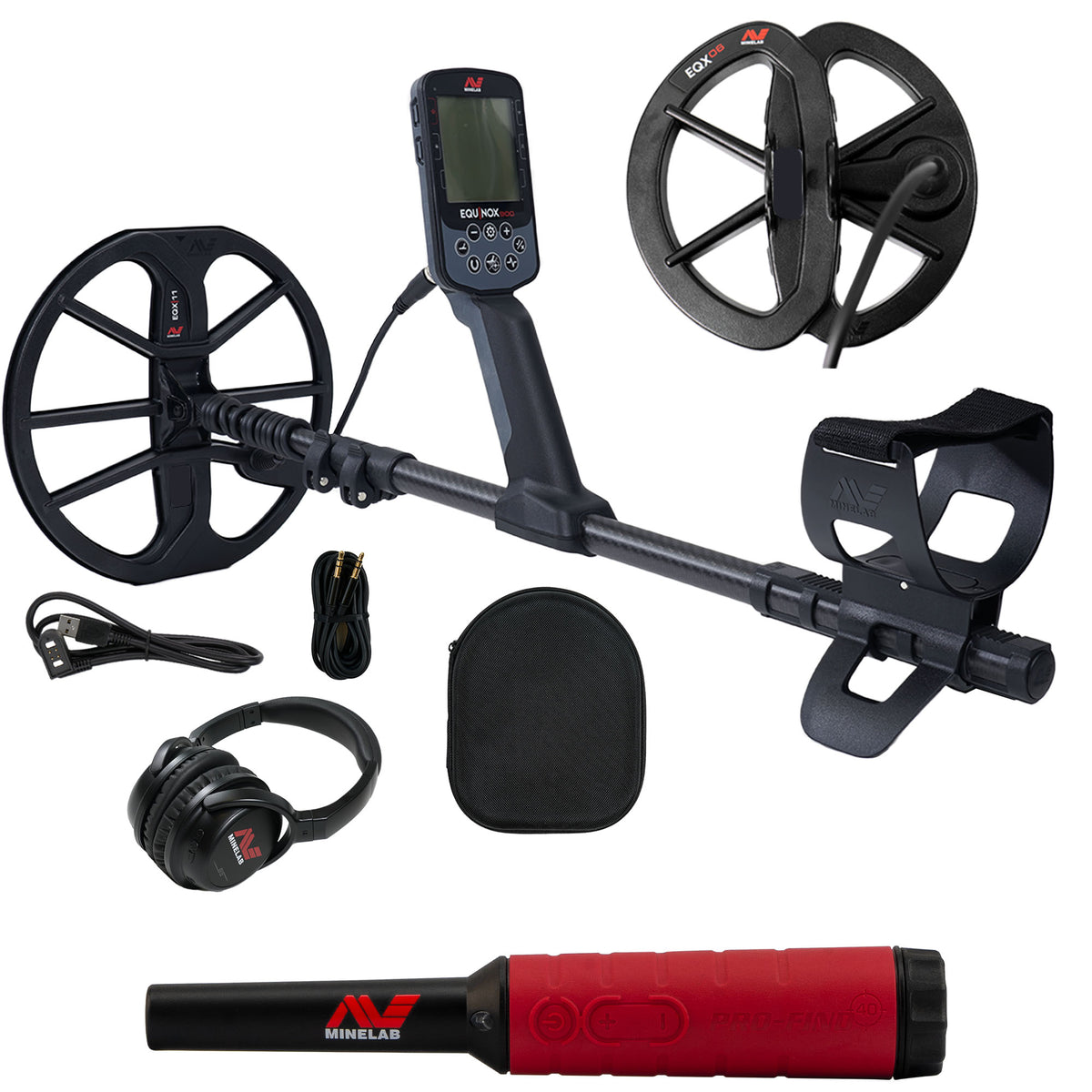

Stock Coil 11-inch Double-D Smart Coil with skidplate
Optional Coils 6-inch Double-D, 15-inch Double-D Smart Coils
Recovery Speed 1 to 8
Sensitivity 28 levels
Target ID 119-segment High Resolution Target ID
Battery Life Up to 12 hours; rechargeable lithium-ion with USB-C charging
Wireless Audio aptX Low Latency Bluetooth via ML 85 headphones; wired headphones supported through the WM 08 module

Where the Equinox 900 Outperforms: Terrain-by-Terrain Breakdown

Saltwater Beaches

Beach Mode 2 handles wet sand mineralization without ground balancing every ten steps. The 11-inch coil stays stable over shell hash and black sand. We pull silver rings well into the dry sand, deeper still when we slow our sweep down. Submerging the Equinox 900 in the surf zone is part of the design brief. The machine doesn't false on salt or wave action when we run sensitivity in the low 20s. For serious surf hunters, pairing the 900 with the 15-inch coil expands coverage on long open stretches.

Iron-Infused Relic Sites

Recovery speed at 7 or 8 separates coins sitting next to square nails. The high-resolution target ID helps us read mixed signals that lower-segment scales blur together. Field Mode works better than Park Mode in heavy iron because it opens up the mid-conductors. We dig more can slaw, but we also catch flat buttons and cuff links that other machines average out as iron. Accept all metal, run discrimination manually, and trust the audio more than the VDI number when we're in heavy iron.

Freshwater Coin Hunting

Park Mode 1 is the starting point for tot lots, fairgrounds, and old picnic areas. Notch out iron and foil if the site is clean. Leave foil in if we're hunting gold jewelry. Coins ring clear at typical park-soil depths, with clad dimes coming through cleanly in the right ground. Pre-1965 silver quarters hit harder and read with consistent high-conductor tones. The 900 separates a nickel next to a pull tab better than the Equinox 800 did, thanks to the updated target separation algorithms.

Gold Prospecting in Mineralized Ground

Gold Mode 1 and 2 handle hot rocks and variable ground better than most dedicated prospecting VLFs at this tier. Sub-gram nuggets come through on the higher-frequency components of Multi-IQ®. Larger nuggets, half-gram and up, hit across the full frequency range. The machine ground balances to red dirt, black sand, and decomposed granite without losing stability. For full-time nugget shooting, consider the Minelab GPX 6000, but the Equinox 900 is the better all-around choice if we're also hunting coins and relics.

Equinox 900 vs. Equinox 800: What Actually Changed

Feature Equinox 800 Equinox 900
Recovery Speed 1 to 8 1 to 8 (refined response)
Target ID -9 to 40 scale 119-segment High Resolution
Iron Bias Control F/FE F2 (refined for variable trash)
Waterproof Rating 10 feet (3 meters) 16 feet (5 meters)
Headphones / Audio WM 08 + wireless headphones ML 85 wireless (aptX Low Latency)

The 900 isn't a redesign. It's a refinement. The high-resolution target ID gives us more usable separation on mid-conductors, which matters in trashy sites where a fine-resolution VDI difference decides if we dig or walk. The processor improvements show up most clearly in iron, where target separation runs cleaner without sacrificing depth. The deeper waterproof rating matters for surf hunters and river waders. Detectorists who already own an 800 and hunt mostly dry land won't see an urgent reason to upgrade. Detectorists buying their first Equinox who hunt varied terrain will get more out of the 900.

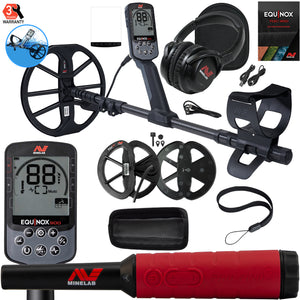

Bundles, Accessories & Coil Upgrades for the Equinox 900

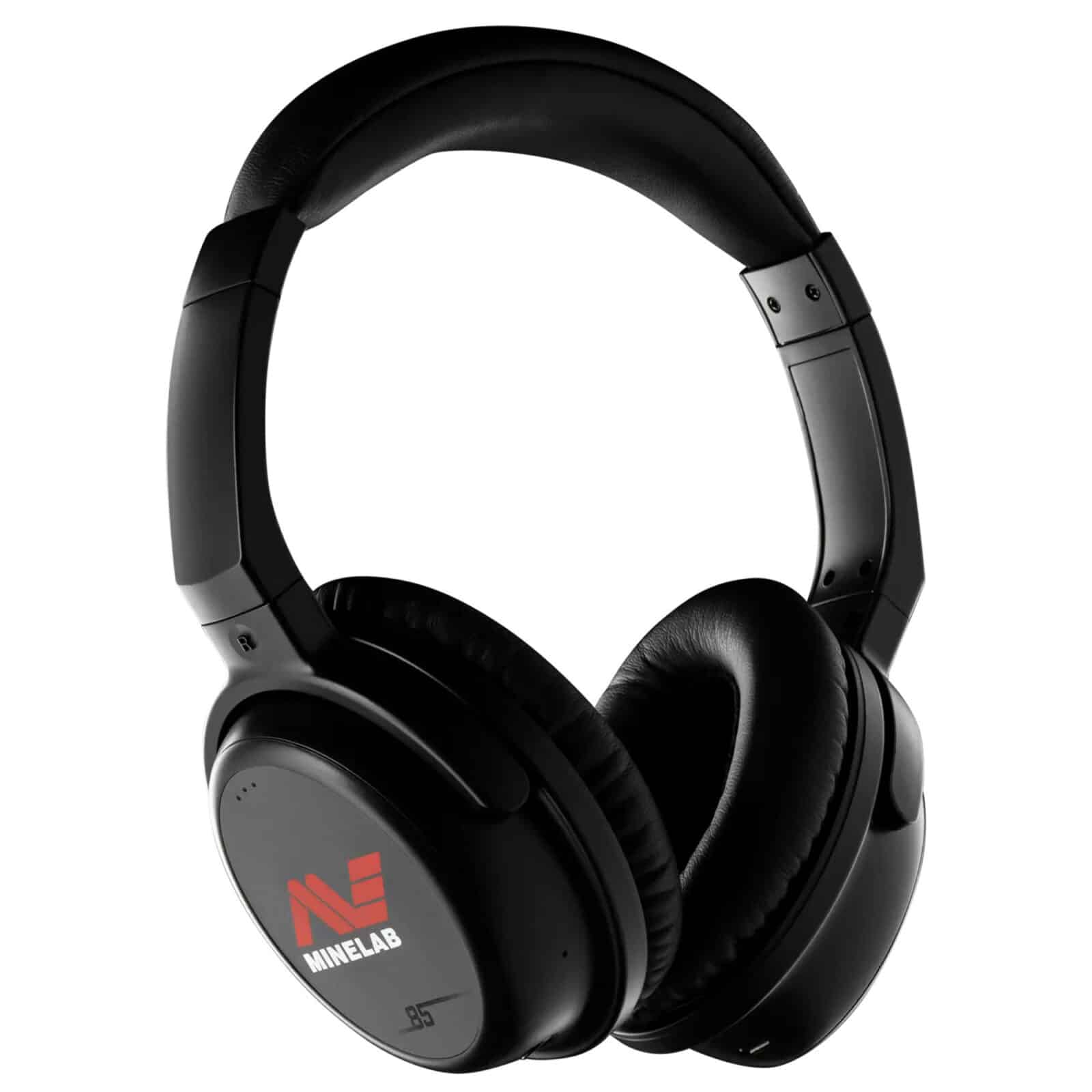

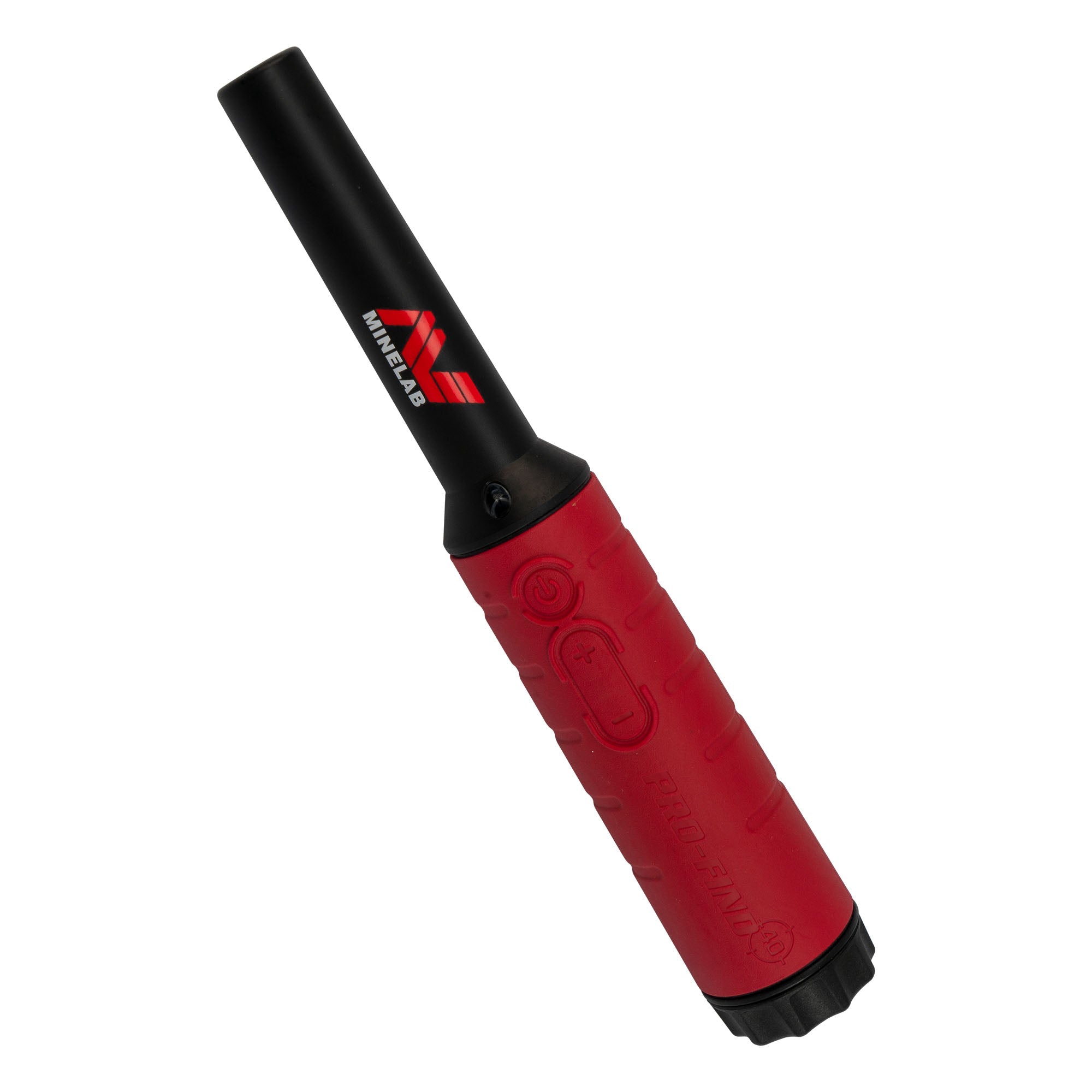

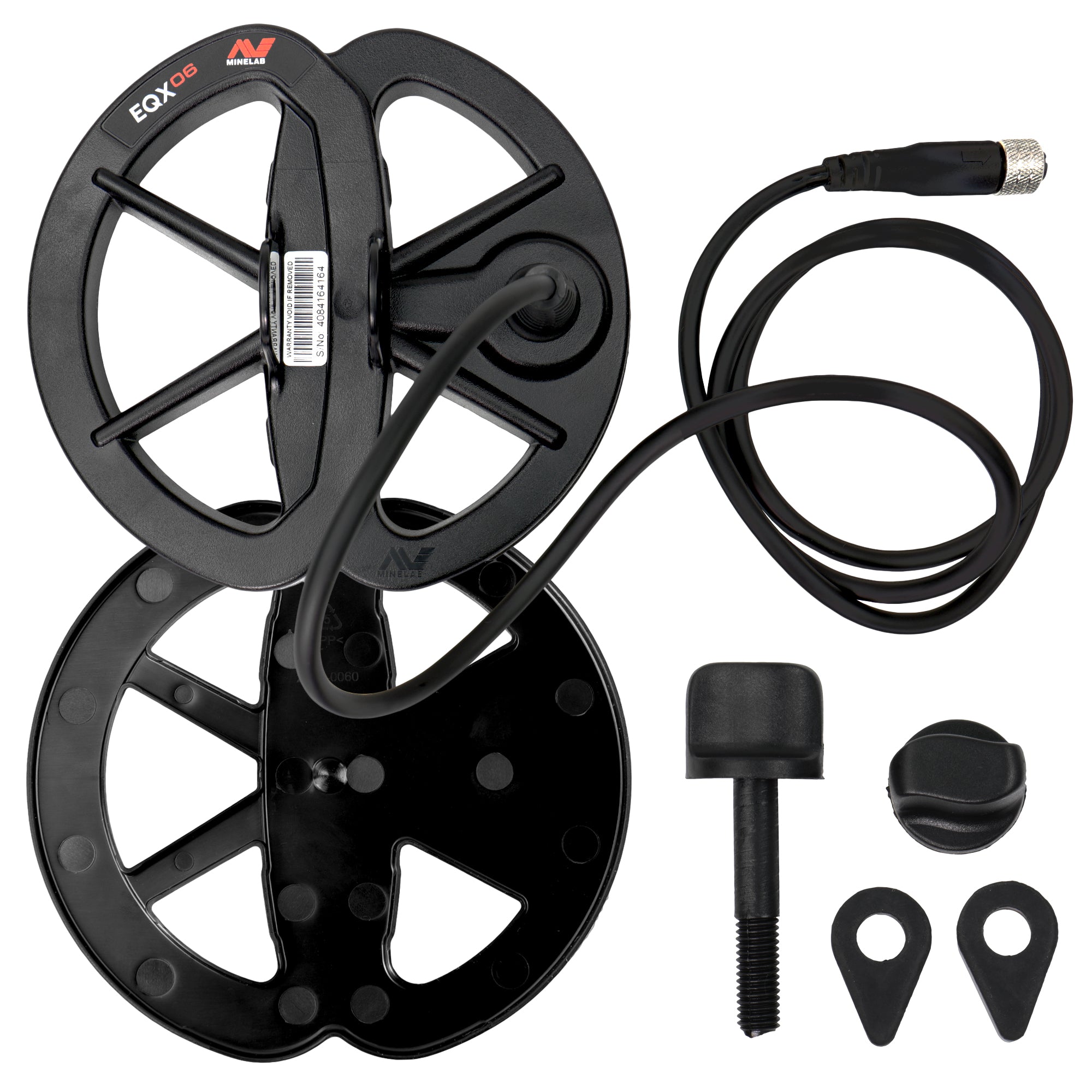

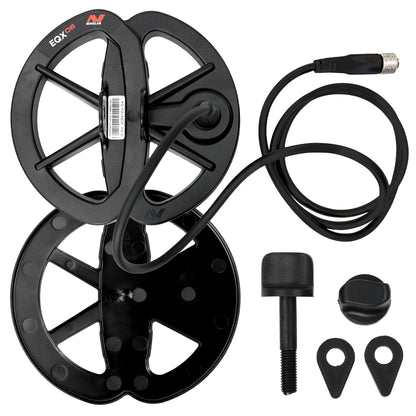

The 6-inch Double-D Smart Coil turns the 900 into a trash separator. We use it in urban parks, old fairgrounds, and cellar holes where the 11-inch masks good targets under iron. The 15-inch Double-D adds two to three inches of depth on large silver and relics in open fields. For a pinpointer, the Minelab Pro-Find 40 matches the 900's waterproof rating and integrates with the Minelab ecosystem. Carry solutions matter: a detector-specific bag with coil pockets and a padded shaft sleeve protects the rig in the truck and on a flight. ML 85 wireless headphones cover most hunts, and a wired backup never needs charging on long days. Browse the Minelab accessories section for armrest upgrades, coil covers, and replacement lower rods.

Why Buy the Equinox 900 from Serious Detecting

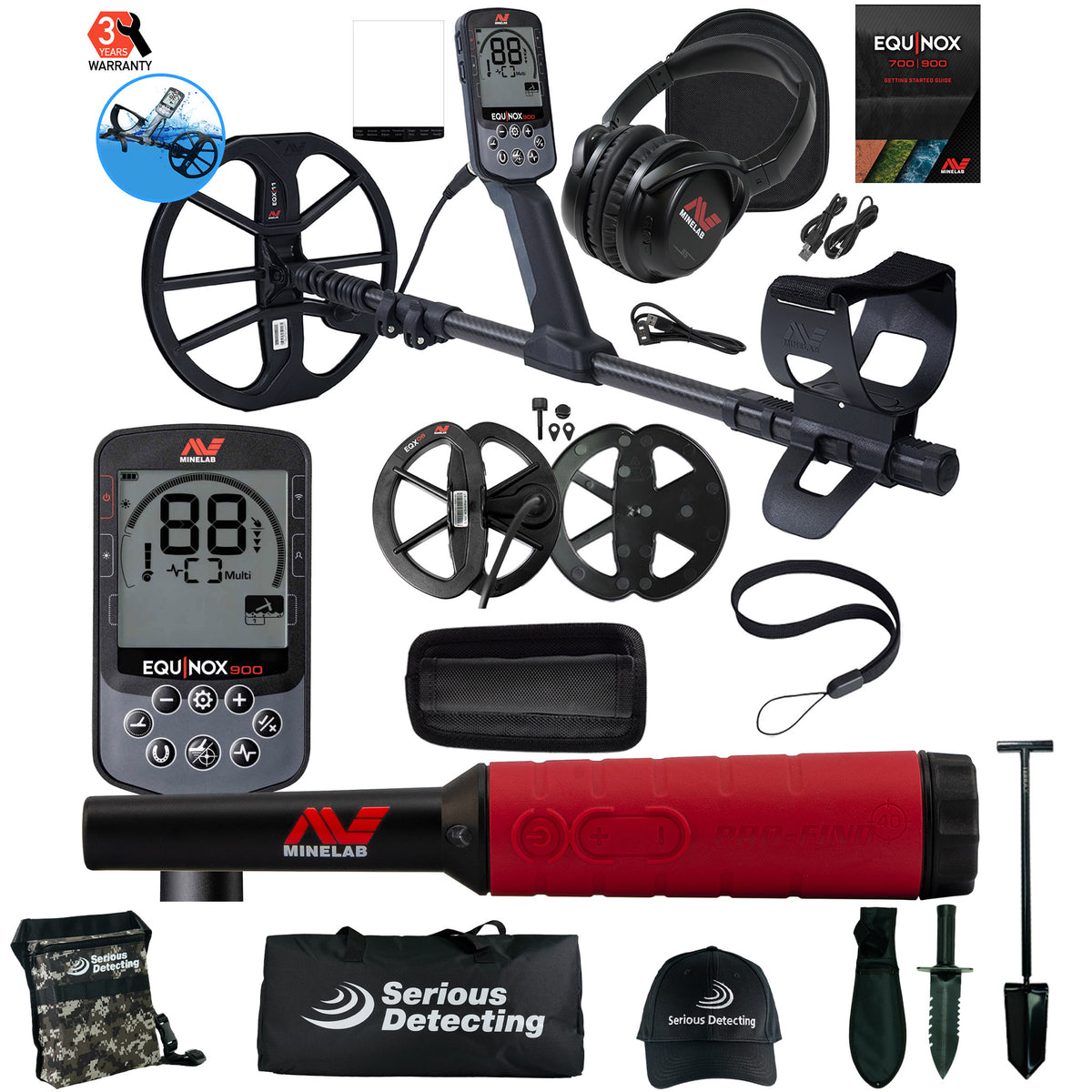

The Equinox 900 ships from our Michigan warehouse, usually same-day on orders placed before 2 PM Eastern, and qualifies for our free shipping threshold to the Lower 48. We stock coil upgrades, replacement parts, and bundle packages that pair the 900 with a pinpointer, an extra coil, and a carry bag for less than ordering each component on its own. When questions come up on settings, coil selection, or how the 900 fits a particular hunting style, our team picks up the phone. The person on the other end has run the machine in the field, not read off a script. We're detectorists. We know the difference between a spec sheet and how a detector actually handles in iron-heavy dirt.
