Minelab GPX 6000 Metal Detector

The Minelab GPX 6000 is a pulse induction gold detector for prospectors who want serious gold detecting ability in mineralized ground without a long list of manual adjustments. Minelab builds it around GeoSense-PI, automatic ground balance and Noise Cancel, supplies the GPX 11 Monoloop and GPX 14 Double-D coils, and rates its coils submersible to 1 meter (3.3 feet) and the detector body splash and rain proof.

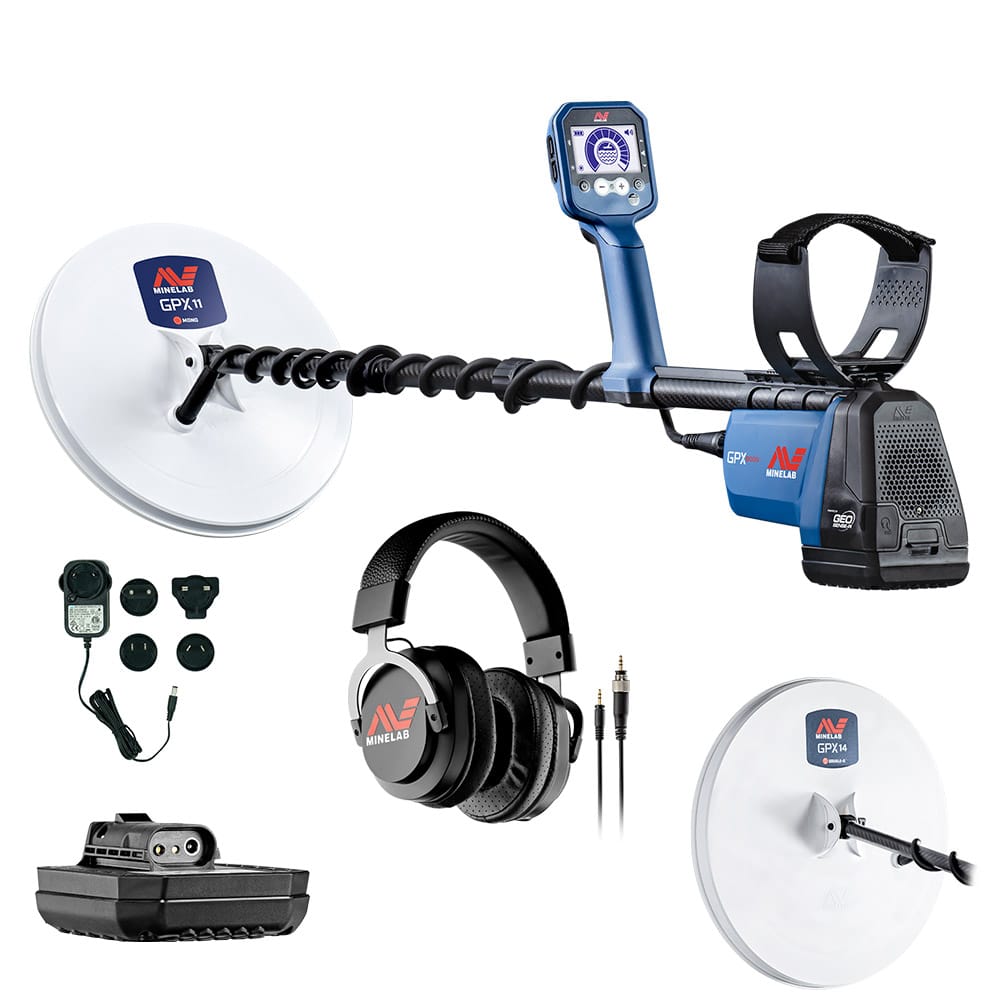

What is in the box with the Minelab GPX 6000

Minelab's standard contents for the GPX 6000 (Minelab part 3300-0500)

• Minelab GPX 6000 detector
• GPX 11 11 inch round Monoloop coil
• GPX 14 14 inch round Double-D coil
• Rechargeable lithium-ion battery pack, 7.4 V, 5833 mAh
• AC plug pack charger
• Car battery charging cable with crocodile clips
• ML 100 Bluetooth wireless headphones with detachable cable and USB charging cable

Who we recommend the Minelab GPX 6000 for

Gold prospecting gets complicated quickly. Ground mineralization changes, electrical interference becomes a problem, and different nugget sizes respond differently to detector settings. The GPX 6000 was designed to handle much of that automatically, and what we like most is that it gives strong sensitivity to small gold without asking you to learn the timing adjustments of older GPX detectors. We recommend it for prospectors who search mineralized goldfields holding a range of nugget sizes and want interchangeable coils. We would not claim it finds every nugget deeper than other Minelab gold detectors; its biggest advantage is capable pulse induction detection with simple operation.

GeoSense-PI in mineralized ground

GeoSense-PI is Minelab's pulse induction system for natural gold in mineralized ground. Picture an old goldfield where the soil holds iron-rich minerals, hot rocks and the occasional small nugget: those minerals produce signals that get in the way of recognizing gold. Minelab says GeoSense-PI analyzes ground and target signals in real time, reducing noise for a stable threshold and sharp responses to fine gold and large nuggets. Mineralization can change a lot over short distances, which is why we value that. It will not remove every ground signal, and extremely difficult ground can still call for adjustments.

Small gold and larger nuggets

On a goldfield where the larger nuggets have already been recovered, smaller pieces often remain in the soil, and the GPX 6000 with its GPX 11 Monoloop is a useful starting point for that kind of general prospecting. Minelab describes the detector as finding gold big or small with one machine, so we would not position it only as a small nugget detector: on a broad hillside where nuggets of different sizes have turned up, it responds to both. A nugget's size, shape, orientation and depth all shape its signal, so no detector recovers every tiny piece, and the real advantage here is choosing a coil to suit the ground in front of you.

Difficult or Normal Ground Type

Minelab sets Difficult as the default Ground Type, for medium to high mineralization or ground that changes quickly, and recommends Normal where the ground response is minimal. On a mild goldfield the detector runs quietly with stable responses and Normal can be the useful choice; move onto heavily mineralized ground and the extra handling of Difficult helps. We would not treat Difficult as the best setting everywhere, because more aggressive ground handling can trade away some target response. Begin with the setting that fits the ground and adjust by how the detector actually behaves. Conductive, salty ground is a job for the GPX 14 Double-D coil, covered below.

Automatic ground balance and the Quick-Trak trigger

Walk a mineralized hillside and the ground swings from mild soil to iron-rich rock and back. The GPX 6000 tracks the ground continually, which lets you concentrate on searching, but Minelab notes that tracking cannot always keep up when you move onto a different type of ground. That is when the Quick-Trak trigger earns its place: hold it and raise and lower the coil between about 10 and 100 mm (1/2 to 4 inches) above the ground, then swing side to side. We would still learn the procedure properly, and we would never run it over a suspected target; ground balance belongs over ground you believe is free of metal.

Auto, Auto+ and manual sensitivity

Sensitivity runs from manual levels 1 to 10, plus Auto at level 11 and Auto+ at level 12. On an unfamiliar goldfield where you do not yet know how mineralized the ground is, Auto is a convenient starting point, and Minelab recommends it for most users. Minelab says Auto+ can be deeper in low noise conditions but some of what it reports may be noise rather than weak targets, so we would not treat Auto+ as automatically better: in difficult ground a stable detector is often easier to interpret than one running at maximum sensitivity.

Noise Cancel near power lines and other detectors

Electrical interference is a real problem in gold prospecting. Search near power lines or another detector and you can hear signals even with the coil held still. The GPX 6000 runs Noise Cancel automatically at start up, and we would run it again whenever interference becomes noticeable. It will not cure every source of electromagnetic interference: strong noise can still call for less sensitivity, the Double-D coil or simply moving away from the source.

GPX 11, GPX 14 and GPX 17 coils

The GPX 11 11 inch round Monoloop is the general purpose coil. On a gold-bearing hillside with scattered rocks and moderate vegetation its size gives useful coverage while staying manageable, and Minelab calls it very sensitive to smaller nuggets and easy to work around obstacles. We would begin with it unless the location gives a particular reason to choose another. A Monoloop is not always preferable, though: ground conductivity and interference can make the Double-D the better choice.

The GPX 14 14 inch round Double-D is one of the most important things to explain about this detector. It is not simply a larger GPX 11; it is a different coil design for different conditions. Minelab recommends it where electromagnetic interference is high or the soil is very conductive and salty, and with it connected you choose between two modes. EMI Cancel, the factory preset, is for noise from atmospheric interference, near power lines, in stormy weather or close to other detectors. Conductive Ground Cancel is for noise from salty or wet ground, such as large open goldfields with conductive soil. Minelab recommends the Double-D only where a Monoloop cannot give good results, which is why we see these two modes as problem solvers rather than upgrades.

Minelab's GPX 17 17 x 13 inch elliptical Monoloop is the coil for broad, relatively open goldfields where targets are widely separated. Minelab calls it the top performer for larger, deep nuggets in less conductive ground, able to cover large areas quickly. We would choose it when the terrain and the expected targets justify it, since its size makes it harder to work around rocks and vegetation and it can pick up more ground noise and interference. Our GPX 6000 coil options guide goes deeper on choosing between the three.

Previously detected goldfields

Picture ground that has produced gold for decades. Earlier prospectors may have taken most of the obvious nuggets, but small nuggets and deeper targets can remain, and the GPX 6000's mix of small gold sensitivity and coil choice makes it interesting for revisiting productive locations. We would not suggest it automatically finds gold every earlier machine missed: search technique, ground conditions and the coverage the ground has already had all matter, and historical research remains essential.

Light carbon fiber build

Minelab lists the GPX 6000 at 2.1 kg (4.6 lb) with the GPX 11 coil, which is light for a serious pulse induction gold detector. Six hours on a rocky hillside with water, digging tools and supplies on your back makes detector weight matter. The carbon fiber construction and U-Flex armrest are built for long sessions, and the three piece shaft collapses to 67 cm (26.5 inches) without removing the coil or armrest, extending to 155 cm (61 inches). The light weight is about comfort and portability; it does not change detection performance.

ML 100 wireless headphones and audio

Minelab supplies ML 100 wireless headphones that connect to the detector over low-latency Bluetooth with aptX Low Latency. Kneeling again and again to recover small targets, a headphone cable gets in the way, so we think wireless audio is useful while prospecting, although it adds convenience rather than depth. The ML 100 also comes with a detachable cable for wired use, the detector has a built-in loudspeaker and a 3.5 mm headphone socket, and we would charge the headphones before every trip to a remote site.

GPX 6000 battery and charging

The removable lithium-ion pack is rated 7.4 V and 5833 mAh, and Minelab gives about 8 hours of operation and about 5 to 6 hours to charge. It charges from the supplied AC plug pack or from a 12 V car or truck system with the supplied clips, which helps on a trip several hours from a power outlet. A removable pack also means a charged spare can travel with you.

Coils in the water, control box above it

Waterproofing is something we explain carefully on the GPX 6000. Minelab rates all GPX 6000 coils submersible to 1 meter (3.3 feet) and warns that the coil connector itself must not go under, but the detector body is rain proof only and must never be submerged, and the battery pack is not waterproof either. In a shallow creek the coil can go under while the control box stays above the water. A waterproof coil does not make the whole detector submersible.

Not a coin detector

The GPX 6000 is designed for natural gold prospecting. Minelab gives it no depth indicator and no iron bias, and it does not offer the numerical target ID or coin discrimination a park detector does. In a park full of aluminum trash, bottle caps and coins it would respond to many objects without identifying them, which makes it a poor choice for ordinary park detecting. Its strength is natural gold in difficult ground.

GPX 6000 or SDC 2300

The Minelab SDC 2300 is a different mix. It is waterproof as a whole detector to 3 meters (10 feet), folds into a compact package and uses an 8 inch Monoloop coil. For someone who mainly searches rocky creek beds and shallow water, the SDC 2300 may be more practical; for someone who searches broad goldfields and wants interchangeable coils for different conditions, the GPX 6000 gives more flexibility. We would not recommend either one simply because of what it costs: the prospecting environment should decide. See every prospecting machine in our gold detectors collection.

One mistake new GPX 6000 owners make

We would caution against assuming maximum sensitivity always gives the best results. Picture heavily mineralized ground where the detector has gone unstable; worried about missing small gold, the operator turns sensitivity up and the detector only becomes noisier, which makes genuine targets harder to recognize. Our advice is to establish stable operation first, then raise sensitivity only when the conditions allow.

First trips with the GPX 6000

Charge the battery and the ML 100 headphones, switch on with the coil held about 100 mm (4 inches) above the ground, and start on Auto with the GPX 11. Spend the first outing learning how Ground Type, Quick-Trak and Noise Cancel change what you hear, one change at a time, and put equal effort into research on where gold has come from before.

Minelab GPX 6000 specifications

Minelab covers the GPX 6000 control box and coil with a 3-year limited warranty in the USA.

Serious Detecting bundle (added free at checkout):

• Lil' Digger Double Serrated Shovel
• Serious Detecting Finds Bag with 42 inch Waist Belt
• Serious Detecting Carry Bag
• Serious Detecting Cap
• Double Serrated Hand Digger with Belt Holster

For our full GPX 6000 guide, settings advice and comparisons, see the Minelab GPX 6000 collection.
