Minelab GPZ 8000 Gold Metal Detector Single Coil Pack with Z18 Coil

The Minelab GPZ 8000 Single Coil Pack is Minelab's newest flagship gold detector, built for experienced prospectors who search mineralized, conductive and EMI-heavy ground for small to large nuggets. It runs on GeoZVT with four ground types and Echo Sonic Pro stereo audio, and the box from Minelab holds the Z18 18 inch concentric toroidal coil, the WM 14 wireless audio module, Sennheiser HD 505 headphones, the PRO-SWING 125 harness and two lithium-ion batteries.

What is in the box with the Minelab GPZ 8000

Minelab's standard contents for the GPZ 8000 Single Coil Pack (Minelab part 3301-0101)

• Minelab GPZ 8000 detector with control box and Hybrid Shaft System
• Z18 18 inch concentric toroidal coil with skid plate
• Two rechargeable 7.2 V / 5833 mAh lithium-ion battery packs
• PRO-SWING 125 harness with 3 hip-strut lengths, hip-strut sockets, MOLLE-compatible webbing, bungee cord and hooks
• Two bungee loops
• GA 10 guide arm
• WM 14 wireless audio module with built-in speaker and rechargeable battery

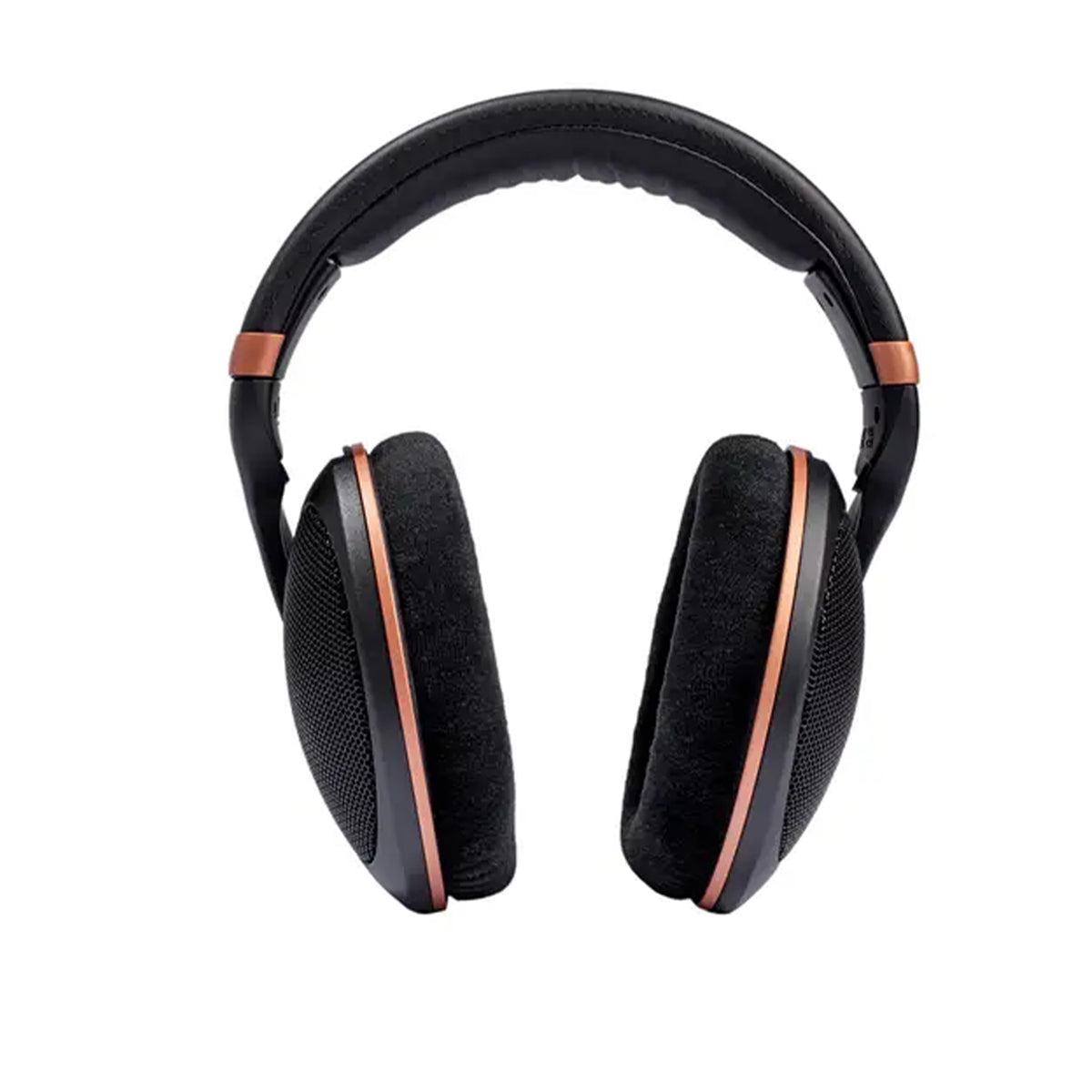

• Sennheiser HD 505 wired headphones (Minelab Audiophile Wired Headphones) with hard case and drawstring bag
• Minelab auxiliary audio cable (curly), 3.5 mm to 2.5 mm
• Standard auxiliary audio cable, 3.5 mm to 2.5 mm
• Headphone jack adapter, 3.5 mm to 6.35 mm
• Universal USB-C (AC) charger with 2 USB-C and 2 USB-A ports
• Two USB-C to USB-C charging cables
• USB-C (DC) car charger with 2 USB-C ports
• Crocodile clip adapter for direct 12 V vehicle battery connection
• Screen protector kit
• Specimen container

About the Minelab GPZ 8000

What makes the GPZ 8000 interesting to us is that Minelab redesigned its flagship gold platform rather than adding more settings to the GPZ 7000: a new GeoZVT detection system, new Z-Set concentric toroidal coils and a new audio platform called Echo Sonic Pro. Minelab describes GeoZVT as proven ZVT depth with advanced signal control for high performance in mineralized, conductive and EMI-heavy ground. We see the GPZ 8000 as a detector for experienced prospectors who want to investigate challenging goldfields for small, medium and large nuggets. We would never suggest that buying the newest flagship guarantees more gold, though: location research, the size and shape of the targets and your own technique still decide the day.

GeoZVT on mineralized ground

Picture a productive goldfield where the soil is full of iron-rich minerals and a nugget buried at depth gives only a weak response. The detector has to manage the ground signal around that nugget while keeping the response from the gold, and that is the job Minelab designed GeoZVT for. GeoZVT is a specialized gold detection platform, not ordinary VLF technology and not one more selectable frequency. Minelab gives no percentage depth gain over the GPZ 7000 on its GPZ 8000 pages, so we do not quote one either.

Minelab GPZ 8000 ground types and key settings

• Four ground types: Difficult Deep, Difficult High Yield, Normal Deep and Normal Extra Deep. Minelab says they use Echo Sonic Pro audio to identify ground conditions through nuanced stereo feedback, with performance tailored to locate shallow crumbs to deep nuggets in mineralized and conductive soils. Difficult Deep and Difficult High Yield are the approaches for heavily mineralized ground; Normal Deep and Normal Extra Deep are the depth-oriented approaches for milder soil. We would not leave Normal Extra Deep on everywhere, because a mode intended for deep targets in mild ground may become unstable in severe mineralization. The factory setting is Difficult Deep.
• Sensitivity: manual levels 1 to 10, plus Auto (level 11) and Auto+ (level 12). Auto is the factory setting.
• Ground balance: automatic tracking ground balance, switched on at the factory, plus manual ground balancing with the Quick-Trak button.
• Noise cancel: automatic across 4096 channels or manual across 128 channels.
• Audio controls: volume 1 to 17, threshold volume, threshold pitch and a volume limit, with Echo Sonic Pro high-fidelity audio or mono audio.

The GPZ 8000 does not make every hot rock or mineralization problem disappear, and extremely difficult ground can still produce unwanted responses. We would begin with the factory settings and adjust only when the ground calls for it.

The Z18 coil and the Z-Set family

The GPZ 8000 Single Coil Pack comes with the Z18 18 inch concentric toroidal coil. Minelab designed the Z18 for maximum depth and stability in highly mineralized ground, allowing deeper penetration to locate medium to large gold while covering wide open areas with reduced ground noise. Picture a broad, open hillside where larger nuggets may lie deep: that is the ground the Z18 was made for. Minelab also makes two other Z-Set coils for the GPZ 8000. The Z17 17 inch coil is designed for high EMI and conductive soils, with stable operation and strong target response on small to medium gold, and the Z13 13 inch coil suits vegetation-heavy terrain, detecting small to medium gold with balanced handling and reduced fatigue over long sessions. The largest coil is not automatically the best one. If you regularly search rocky terrain or dense vegetation you may come to prefer a smaller coil, so we would look hard at your detecting locations before buying more coils. See our metal detector search coils.

Echo Sonic Pro audio, headphones and the WM 14

Experienced prospectors rely heavily on subtle changes in audio. Picture a faint response on a mineralized hillside that repeats each time the coil passes the same spot; it is weak because the target is small or deep. Minelab describes Echo Sonic Pro as rich layered audio with enhanced stereo separation that sends distinct signal components to each ear, designed for true stereo high-fidelity headphones with a flat frequency response. For an experienced operator that is extra information, but no audio characteristic identifies gold with certainty, and iron and other metal objects can produce convincing responses. Minelab supplies Sennheiser HD 505 wired headphones for the 3.5 mm socket and the WM 14 wireless audio module, which has a built-in speaker and an internal rechargeable battery that runs about 8 hours and charges over USB-C. On a large goldfield, wireless audio keeps a headphone cable out of your swing; however you listen, we would use headphones that reproduce faint signals clearly.

Waterproof ratings on the GPZ 8000

Minelab rates the GPZ 8000 detector, its coil and the WM 14 wireless audio module waterproof to 1 meter (3.3 feet) for up to 30 minutes, IP67. That covers shallow submersion within Minelab's conditions; the GPZ 8000 is not a diving detector. The Sennheiser HD 505 headphones are not waterproof, so keep them dry. Minelab fits the 3.5 mm headphone socket with a waterproof dust cap, and the supplied Minelab auxiliary curly cable forms an IP67-rated seal on that socket.

Weight, harness, batteries and build

Minelab gives the GPZ 8000 a weight of 2.78 kg (6.1 lb) with the Z18 coil, against 3.32 kg (7.32 lb) for the GPZ 7000 with its GPZ 14 coil. Over several hours on uneven ground, carrying water and digging tools, that difference adds up in comfort. The GPZ 8000 is still a substantial detector, and we would wear the PRO-SWING 125 harness rather than expect it to handle like a light coin machine. Minelab says the harness transfers weight through the hips to reduce fatigue, supported by the GA 10 guide arm to improve swing control and reduce strain. The Hybrid Shaft System combines carbon fiber and fiberglass, with a tear-drop profile that prevents unwanted rotation and a fiberglass lower shaft that minimizes detection noise; the detector extends to 177 cm (69.7 inches) and collapses to 102 cm (40.2 inches).

Minelab packs two removable 7.2 V / 5833 mAh lithium-ion batteries, each rated at about 10 hours of detecting and about 4 hours to charge. Charging runs over USB-C from a wall outlet or a vehicle, and the crocodile clip adapter connects straight to a 12 V vehicle battery. On a goldfield hours from the nearest town, a charged spare means the session does not end early; we would still confirm the charging arrangements before a remote trip. An integrated dual-LED flashlight with three brightness levels lets you keep working after dark, and the 3.5 inch color LCD has a white backlight in three levels.

Getting started with the GPZ 8000

Fully charge the detector battery before first use, which takes about 4 hours. Minelab's quick start is three steps: turn the detector on, press and hold the Quick-Trak button while raising and lowering the coil over the ground for 10 seconds, then begin detecting. Keep the coil movement slow and controlled with overlapping passes, and learn how the factory settings sound on your ground before you change anything.

Where the GPZ 8000 fits, and who should start elsewhere

We recommend the GPZ 8000 to serious prospectors who already understand productive goldfields and want to investigate challenging, mineralized ground at greater depth with Minelab's newest flagship platform. We would not automatically recommend it to someone who has never searched for natural gold. A flagship detector does not remove the need to learn gold-bearing geology, hot rocks and mineralization, and the Minelab GOLD MONSTER 2000 is a more approachable start, a lightweight detector for small natural gold in rocky terrain, creek beds and exposed bedrock. For a lighter pulse induction detector with simpler operation, the Minelab GPX 6000 weighs 2.1 kg (4.6 lb) with the GPX 11 coil. Every prospecting machine we carry is in our gold detectors collection.

One mistake we would warn new GPZ 8000 owners about

The mistake is assuming the largest coil and the deepest ground type are always the best combination. Picture rocky terrain where small nuggets sit in narrow crevices: a large coil is hard to hold close to that ground, and a depth-oriented mode may not give the best response on every small target. Choose the coil and the ground type by the terrain, the nugget size you expect and the mineralization. The flexibility of the GPZ 8000 only pays off when you understand those tradeoffs.

GPZ 8000 and GPZ 7000 compared

The Minelab GPZ 7000 and the GPZ 8000 address different priorities. We would point an experienced prospector to the GPZ 7000 for specialized deep natural gold, particularly medium and larger nuggets, with ZVT technology and Super-D coils. The GPZ 8000 combines Minelab's newer deep-seeking technology with ground-specific search modes, a choice of concentric toroidal coils and Echo Sonic Pro audio. Both detectors come with a Minelab harness: the GPZ 7000 with the PRO-SWING 45, the GPZ 8000 with the PRO-SWING 125 and its hip struts. The table below is built from Minelab's published specifications for each detector, and our GPZ 7000 vs GPZ 8000 comparison goes through the differences in more depth.

Searching a large goldfield with the GPZ 8000

Imagine a historically productive goldfield covering several hundred acres where nuggets have been recovered before. You want to work broad stretches efficiently while staying sensitive to deeper targets. With the Z18 on, a ground type matched to the mineralization and Echo Sonic Pro feeding detail to both ears, the GPZ 8000 is set up for exactly that job, and the hip-mounted harness makes a long day more manageable. The detector does not replace careful technique: keep the coil movement slow and controlled and overlap every pass. When the mineralization changes partway across the field, we would change the ground type to match it. Our Minelab GPZ 8000 review covers the detector in more detail, and our flagship metal detectors guide sets it beside the other top models.

Minelab GPZ 8000 specifications

Minelab covers the GPZ 8000 control box and coil with a 3-year warranty in the USA.

Serious Detecting bundle (added free at checkout):

• Lil' Digger Double Serrated Shovel
• Serious Detecting Finds Bag with 42 inch Waist Belt
• Serious Detecting Carry Bag
• Serious Detecting Cap
• Double Serrated Hand Digger with Belt Holster
