Minelab X-TERRA ELITE Metal Detector with Wired Headphones

In our experience the Minelab X-TERRA ELITE with Minelab 3.5 mm wired headphones suits someone who wants headphones from the first hunt without going wireless. The X-TERRA ELITE is a waterproof Multi-IQ simultaneous multi-frequency detector from Minelab, submersible to 5 meters (16 feet) and supplied with the V12X 12 x 9 inch coil.

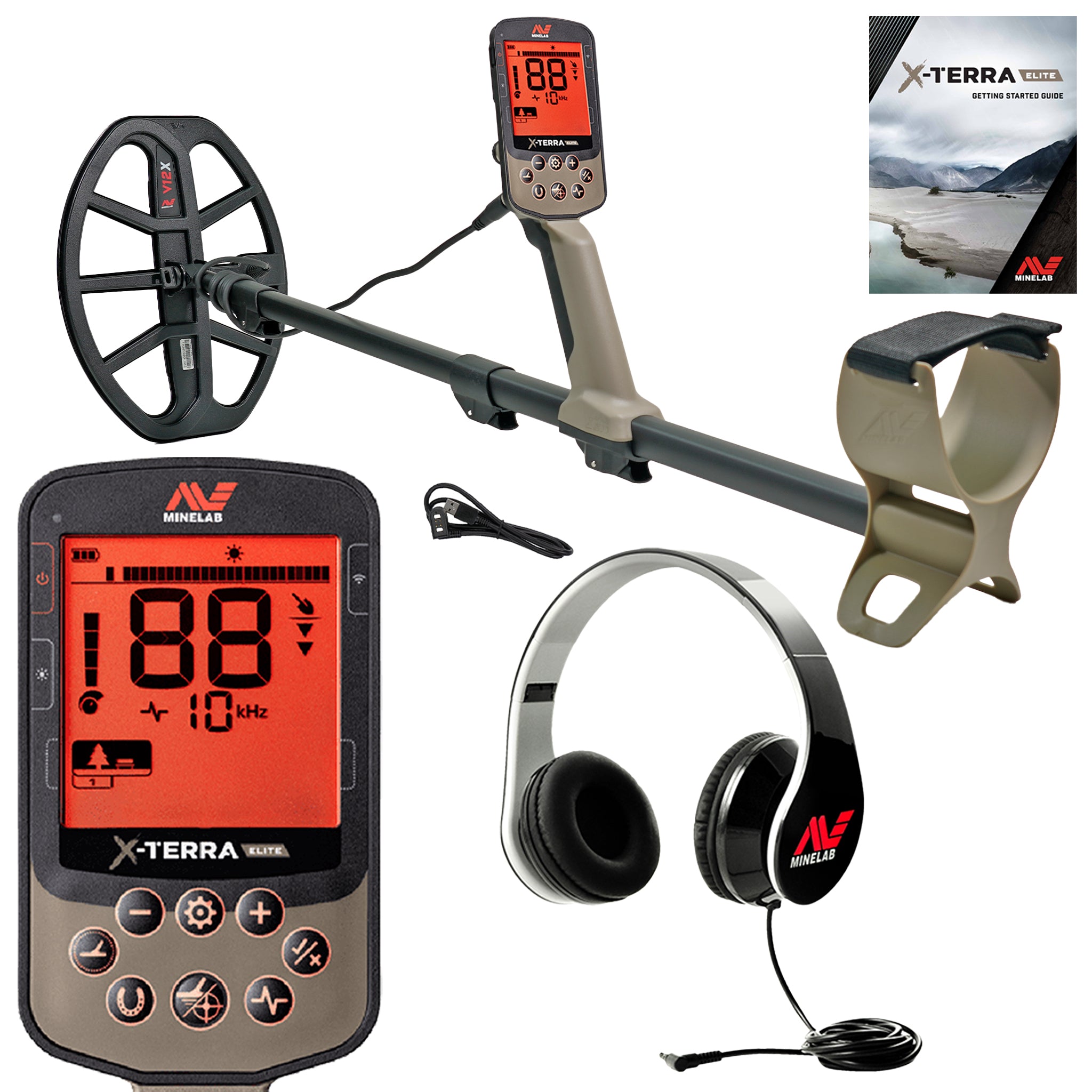

What is in the box with this Minelab X-TERRA ELITE bundle

Minelab's standard contents for the X-TERRA ELITE:

• Minelab X-TERRA ELITE detector with three-piece collapsible shaft, handle, armrest and strap, and built-in 3.7 V, 5100 mAh lithium-ion battery
• V12X 12 x 9 inch elliptical Double-D coil with skidplate
• USB charging cable with magnetic connector
• Getting Started Guide

This Minelab X-TERRA ELITE bundle also includes:

• Minelab 3.5 mm wired headphones (Minelab part 3011-0364)

What the add-ons in this Minelab X-TERRA ELITE bundle do

Minelab 3.5 mm wired headphones: in our experience headphones make faint signals much easier to hear than the built-in speaker, especially in wind. These plug into the 3.5 mm socket. Minelab gives no water rating for them, so for underwater detecting use Minelab's waterproof headphones (part 3011-0372) instead. See our metal detector headphones.

About the Minelab X-TERRA ELITE

What we appreciate about the X-TERRA ELITE is that Minelab put simultaneous multi-frequency into a relatively affordable detector without stripping away the useful controls. Picture someone who detects local parks during the week, old farm properties on weekends and freshwater beaches in summer, and takes the detector to the coast once a year: the X-TERRA ELITE is designed to handle all of those places. It makes the most sense for coin and jewelry hunters, freshwater beach detectorists and people who move between inland sites and the ocean. We would not claim it automatically detects deeper than the X-TERRA PRO everywhere; its advantage is a more versatile detection system for different targets and ground.

Multi-IQ processes multiple frequencies at once instead of running one selected frequency. A park can hold modern coins, older silver coins, gold jewelry and aluminum trash, all with different conductive characteristics, and Multi-IQ covers that range without you choosing a frequency first. On wet salt sand it also helps the detector manage the conductive ground response. Multi-IQ is the default in every profile and Minelab recommends it wherever possible; Park and Field can also run a single 15 kHz frequency, while Beach always runs Multi-IQ.

Minelab X-TERRA ELITE search modes and key settings

• Six search profiles: Park 1 (General and Coins) for modern coins and larger jewelry, Park 2 (Fine Jewelry) for smaller targets among trash with a faster recovery speed, Field 1 (Coins and Artifacts) and Field 2 (Fine Coins and Artifacts), which both reject Target IDs 1 to 4, and Beach 1 (Dry and Wet Sand) and Beach 2 (Underwater and Surf). There is no Gold mode, and an All Metal shortcut lets you hear everything.
• Iron Bias (-1 to 2): in an older park full of bottle caps, a higher setting may reduce rusty caps that sound like coins. A coin lying next to a rusty nail shows the tradeoff: a high setting raises the risk of passing a good target with a mixed response, so Minelab suggests -1 or 0 when you do not want to miss non-ferrous targets among iron. We would begin with the factory setting and change it only when the site justifies it.
• Sensitivity (1 to 25) and noise cancel: near overhead power lines, more sensitivity makes random signals worse. Run Auto Noise Cancel, which picks the quietest of 19 channels, then set sensitivity where the detector is reasonably stable.
• Ground balance (Auto, Manual, Tracking): the range is -9 to 99, and every profile starts in Manual at 0. Minelab recommends Tracking on saltwater beaches.
• Target ID and discrimination: 119 Target IDs from -19 to 99 on a 30-segment discrimination scale. A deep coin can give an inconsistent ID and gold jewelry can overlap with aluminum trash, so watch for repeatability and audio quality, not just the number.
• Audio and extras: Target Tones 1, 2, 5, All Tones and Depth, a Ferrous Tone Volume (0 to 25) that turns iron down around an old farmhouse instead of silencing it, recovery speed 1 to 3, a red backlight, an LED flashlight and vibration.

Beach and water hunting with the Minelab X-TERRA ELITE

The beach is one of the strongest reasons to consider the X-TERRA ELITE. On an ocean beach the sand gets wetter toward the water, and conductive saltwater creates difficult conditions for single-frequency detectors; the Beach profiles use Multi-IQ to manage that ground response, and Minelab assigns residual salt a Target ID of 0. Minelab rates the detector IP68, submersible to 5 meters (16 feet), so it works dry sand, wet sand and shallow water at a lake or ocean beach within that rating. We would not suggest it performs identically to every more expensive beach detector: black sand, mineralization and electrical interference still affect it. For underwater detecting Minelab requires its waterproof headphones with the threaded connector, and in our experience ordinary wired or wireless headphones are not an underwater solution. Do not take the detector underwater while it is charging or running from a power bank. See our beach metal detectors.

Minelab X-TERRA ELITE battery, weight and build

Minelab lists the X-TERRA ELITE at 1.3 kg (2.9 lb) including the battery. The shaft extends to 138 cm (54 inches) and collapses to 63 cm (25 inches). The built-in 3.7 V, 5100 mAh lithium-ion battery gives approximately 14 hours of typical use and takes about 5 to 6 hours to charge from flat over the magnetic USB cable with a USB charger rated above 2 A at 5 V. Minelab recommends an Authorized Service Center for battery replacement, to protect the waterproof seal. The V12X 12 x 9 inch coil covers ground quickly on an open farm field; around an old farmhouse full of nails a smaller coil isolates targets more easily, and Minelab says V-series coils such as the V8X and V10X and EQUINOX series coils fit the X-TERRA ELITE. See our metal detector coils.

Where the Minelab X-TERRA ELITE works well, and where it does not

Parks, farm fields, freshwater beaches and the occasional ocean trip are home ground, and wet salt sand is where Multi-IQ earns its place over a single-frequency detector. Heavily contaminated historical sites are harder: the V12X can hear several objects in one sweep, and a smaller coil or a detector with finer recovery speed control helps there. It finds gold jewelry, but there is no Gold mode; for natural gold, see our gold detectors.

One mistake to avoid with the Minelab X-TERRA ELITE

The mistake we caution beginners against is assuming Multi-IQ identifies every target accurately. You get a strong, repeatable signal with a promising Target ID in a park, dig it up and find aluminum trash. That is normal. Learn how targets respond on your own ground rather than treating the display as a guarantee.

Minelab X-TERRA ELITE, X-TERRA PRO or EQUINOX 900

The Minelab X-TERRA PRO runs one selected frequency at a time and has no Iron Bias; for someone who mainly searches dry parks and farm fields it may be all they need. The X-TERRA ELITE is worth the step up when you regularly move between inland sites and beaches, particularly saltwater. The Minelab EQUINOX 900 adds Gold modes, more single frequencies and finer recovery speed control, and we point people to it when they will use those extras, for example on difficult historical sites or for gold prospecting.

Minelab X-TERRA ELITE specifications

Minelab covers the X-TERRA ELITE control box and coil with a 3-year warranty in the USA.

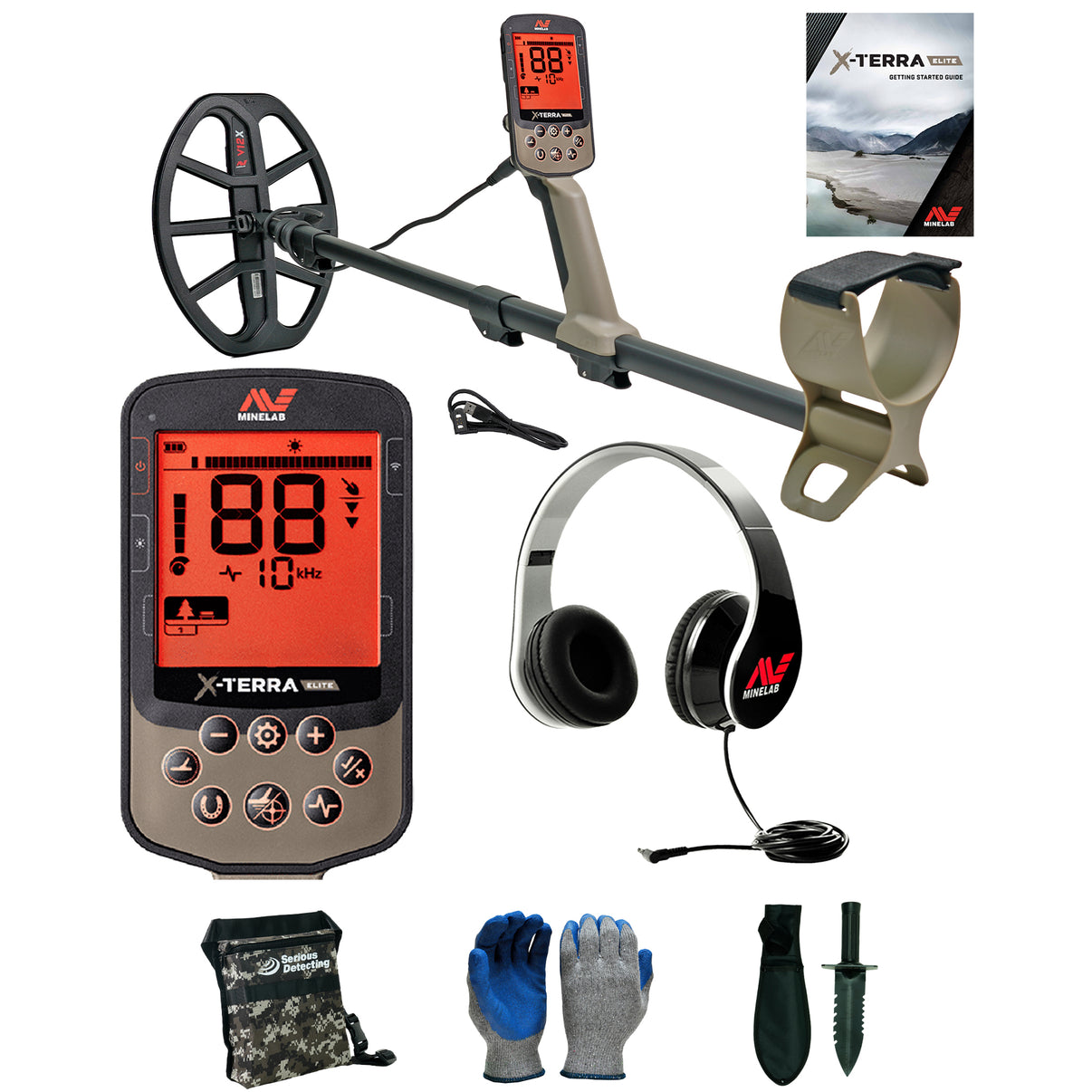

Serious Detecting bundle (added free at checkout):

• Serious Detecting Finds Bag with 42" Waist Belt
• Double Serrated Hand Digger with Belt Holster
• Protective Gloves

For our full X-TERRA ELITE guide, settings advice and comparisons, see the Minelab X-TERRA ELITE collection.
