OKM Delta Ranger Professional Multi-Mode 3D Ground Scanner

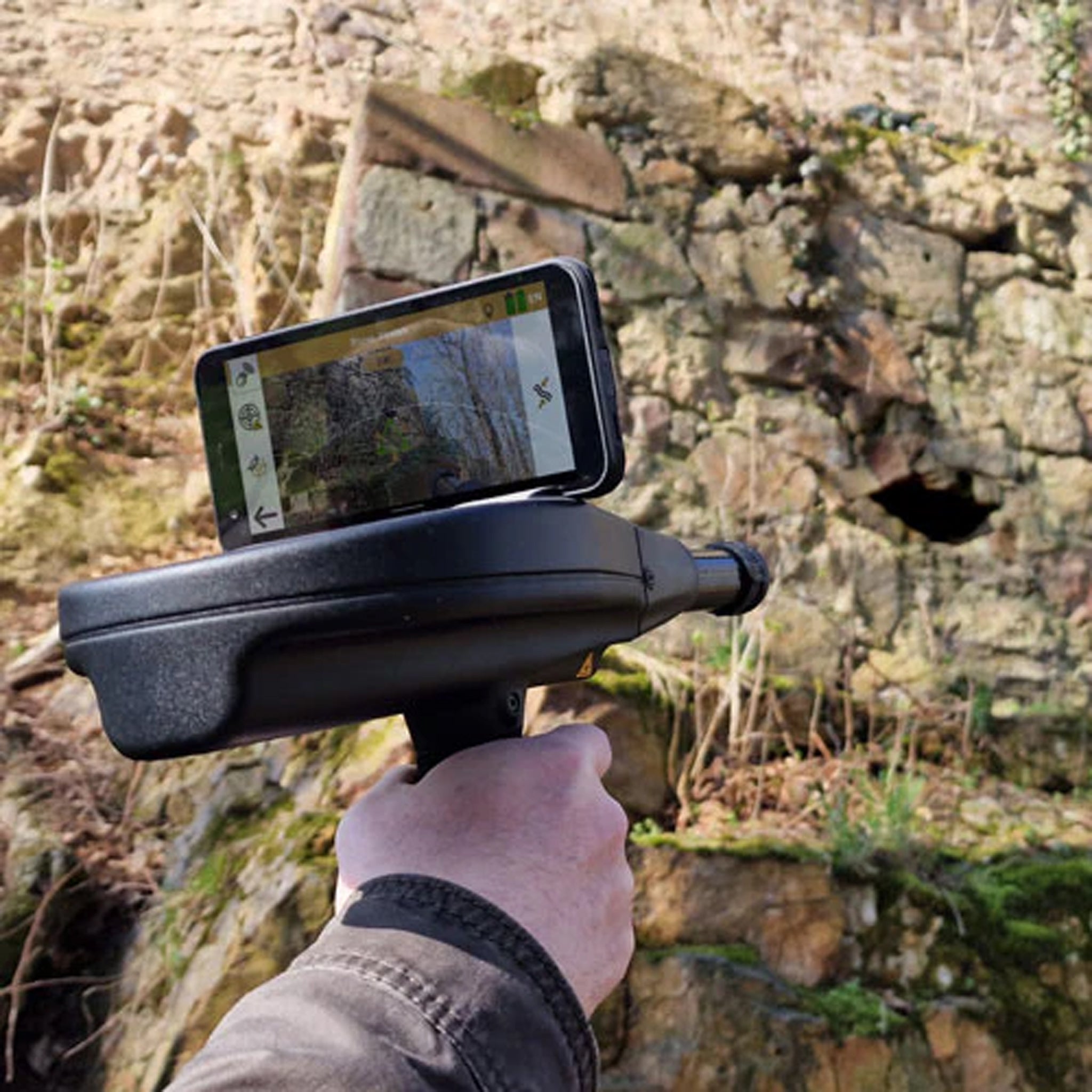

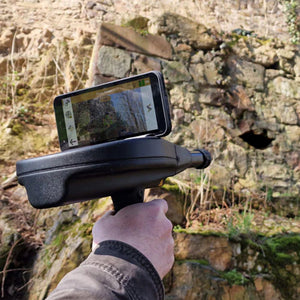

The OKM Delta Ranger Professional is a treasure detector from OKM in Germany (model DR-A01) that runs six operating modes from one control unit and three plug-in probes: two long-range modes that OKM describes for gold, a Magnetometer, 3D Ground Scan, and two thermal modes for hidden rooms, caves and tunnels. You run it from an Android smartphone app, and the Professional package includes a pre-configured Windows notebook with OKM Visualizer 3D Studio for reading 3D scans.

What is in the box with the OKM Delta Ranger Professional

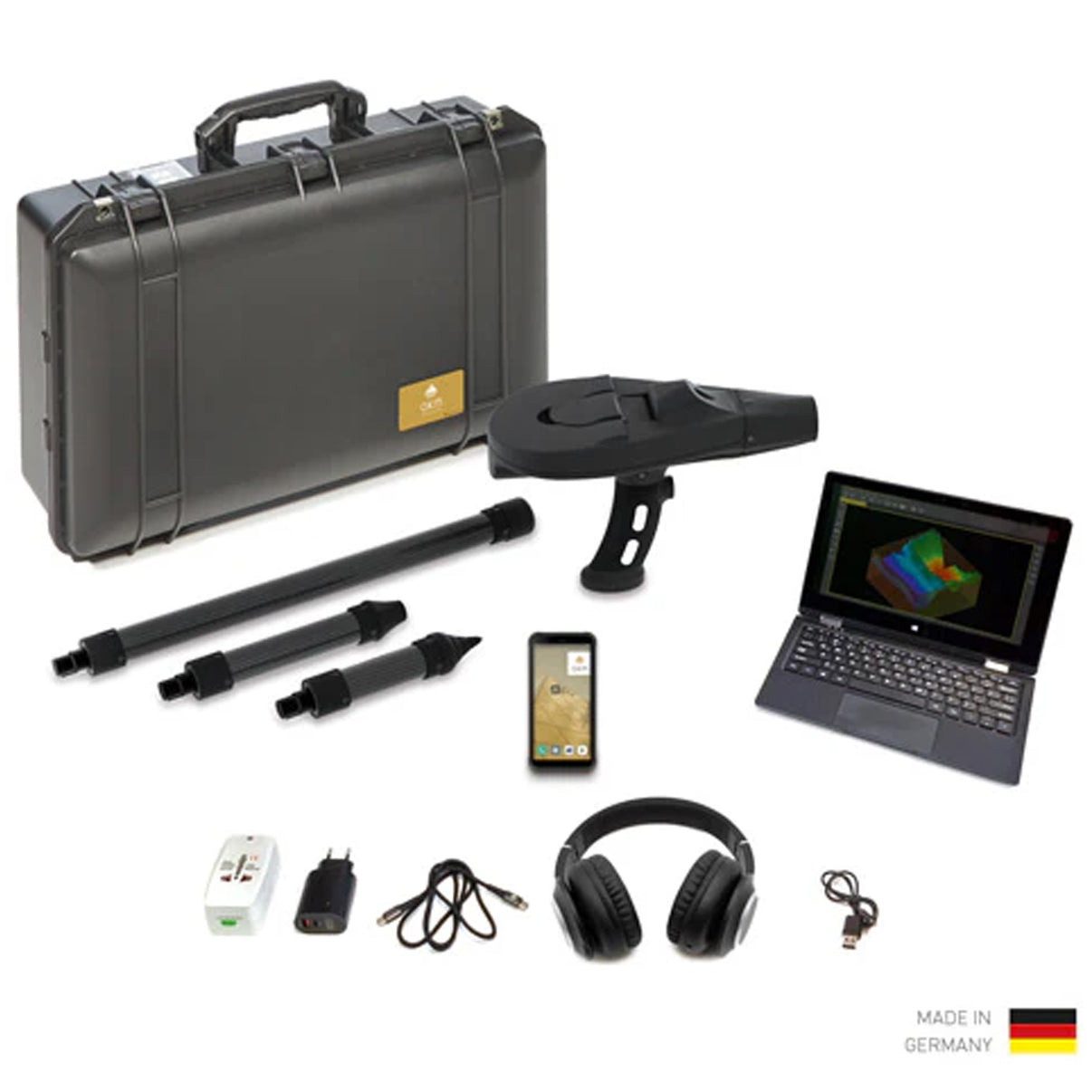

OKM's standard contents for the Delta Ranger Professional

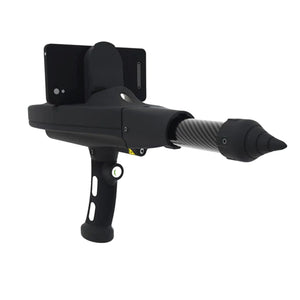

• Delta Ranger control unit

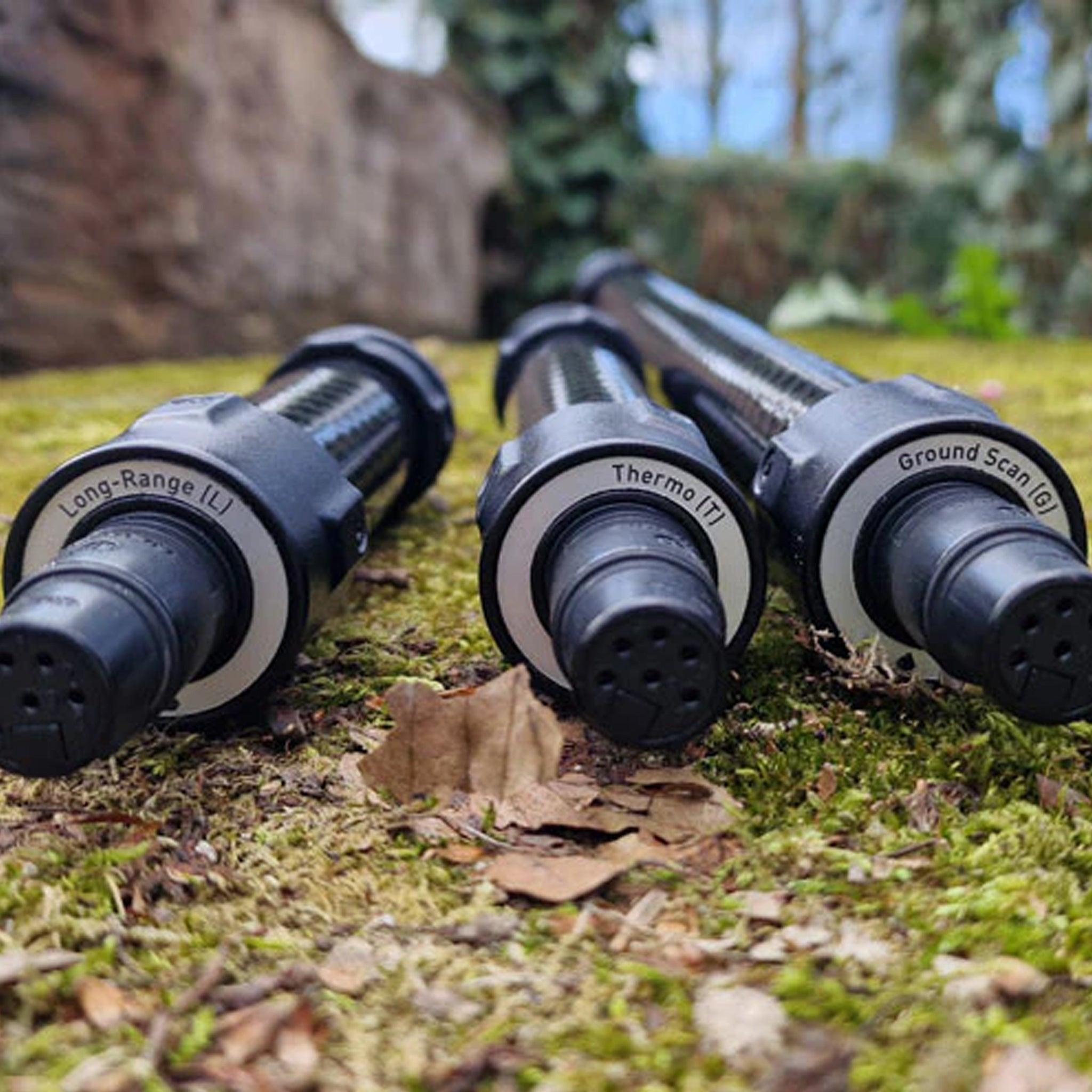

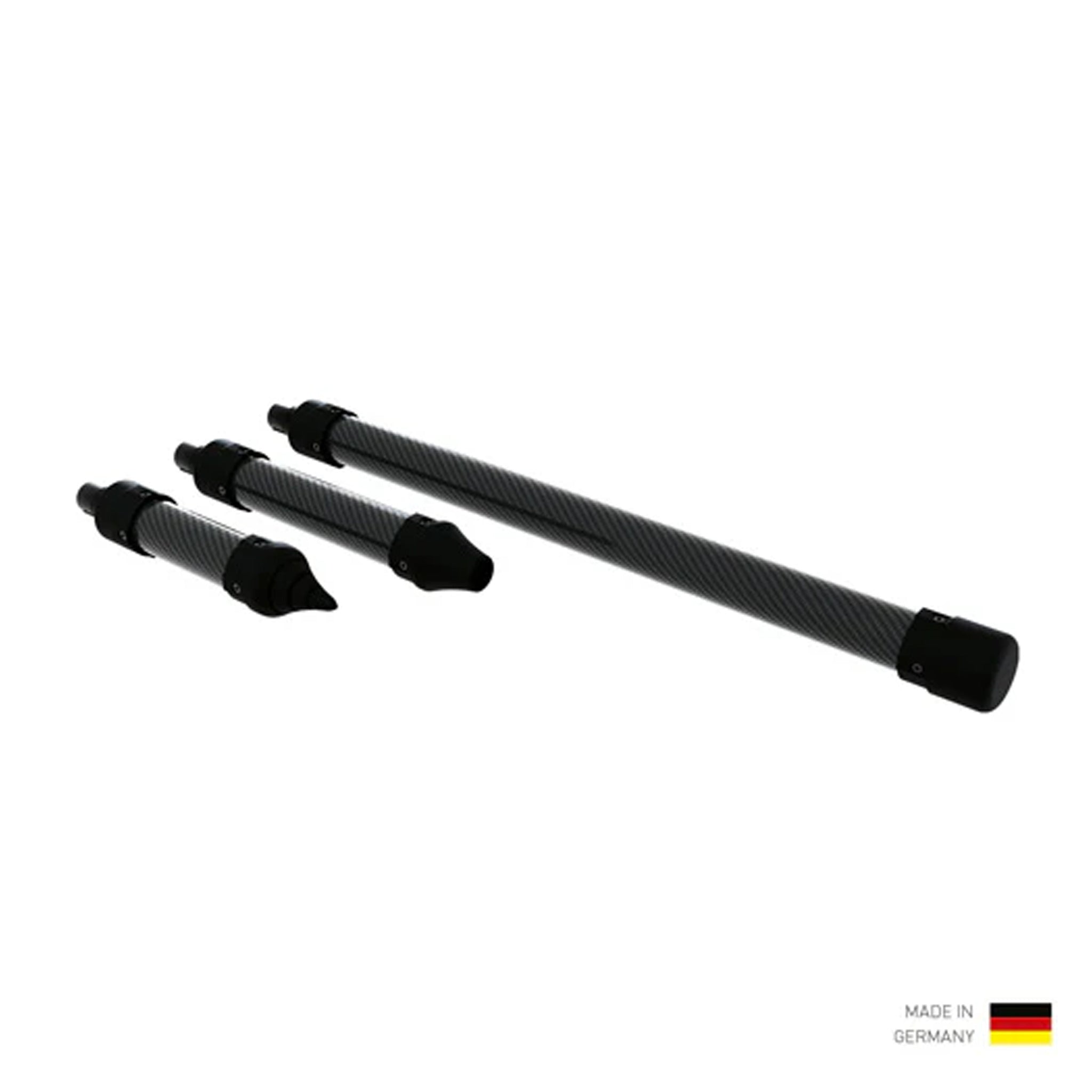

• Long-Range Probe (L), Thermo Probe (T) and Ground Scan Probe (G)
• Android smartphone with the OKM app pre-installed
• Bluetooth headphones with charging cable
• Pre-configured Windows notebook
• USB flash drive with OKM Visualizer 3D Studio Standard Edition
• Power pack, USB-C charger with cable and travel adapter set
• Waterproof, shock-resistant protector case
• Quick start guide

Who the OKM Delta Ranger suits

We see the Delta Ranger as a specialized exploration instrument rather than an ordinary coin detector. What interests us about it is that it combines different investigation methods for customers searching larger areas and suspected underground anomalies. Picture a large historical property where you have only a general idea of where a buried object or structure could be: the Delta Ranger gives you methods for a preliminary look and methods for more focused searching. We would recommend it to customers interested in specialized exploration methods who understand the need for independent verification.

The six operating modes on the OKM Delta Ranger

Each mode switches on when its probe is connected to the control unit.

• Bionic Stream (Long-Range Probe): OKM describes it for detecting gold objects, including recently buried ones. You calibrate it with your palm and fingers on the handle electrodes, scan side to side and up and down, and confirm with a control scan from a different direction, about 25 to 500 m (80 to 1,600 ft) from your first spot. Sound, vibration and flashing crosshairs signal a hit.
• Ionic Stream (Long-Range Probe): OKM describes it for gold objects that have been buried for a long time. You calibrate it on a reference object made of the material you are looking for, and OKM recommends scanning toward the south, southeast or southwest, with control scans from another direction.
• Magnetometer (Ground Scan Probe): finds small ferromagnetic metal near the surface, such as nails, screws and wires, so you can clear a scan field before a 3D Ground Scan, and it pinpoints objects during excavation. Sensitivity is low, medium or high; OKM advises low on rough terrain or highly mineralized ground. The display shows the negative pole of a ferrous object in blue and the positive pole in red.
• 3D Ground Scan (Ground Scan Probe): you walk a field line by line and the detector records a scan for analysis in Visualizer 3D Studio, which shows underground structures and possible target objects. Field length is automatic or fixed from 1 to 160 ft, impulses are recorded automatically or one per trigger press, and lines run in parallel or zigzag.

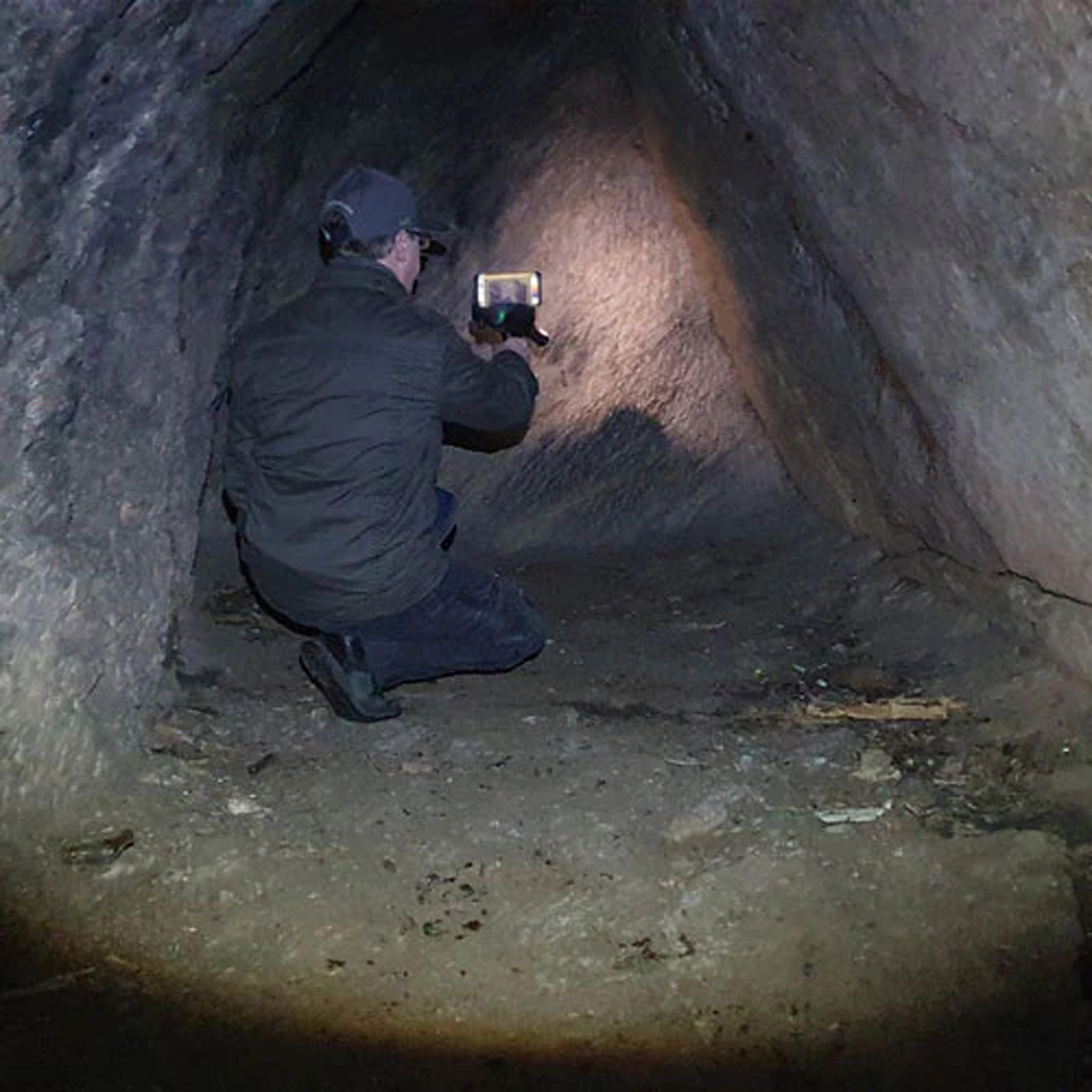

• Thermo Scan (Thermo Probe): maps surface temperature differences over a field to show hidden structures such as rooms, caves and tunnels, with the probe held horizontally or vertically.

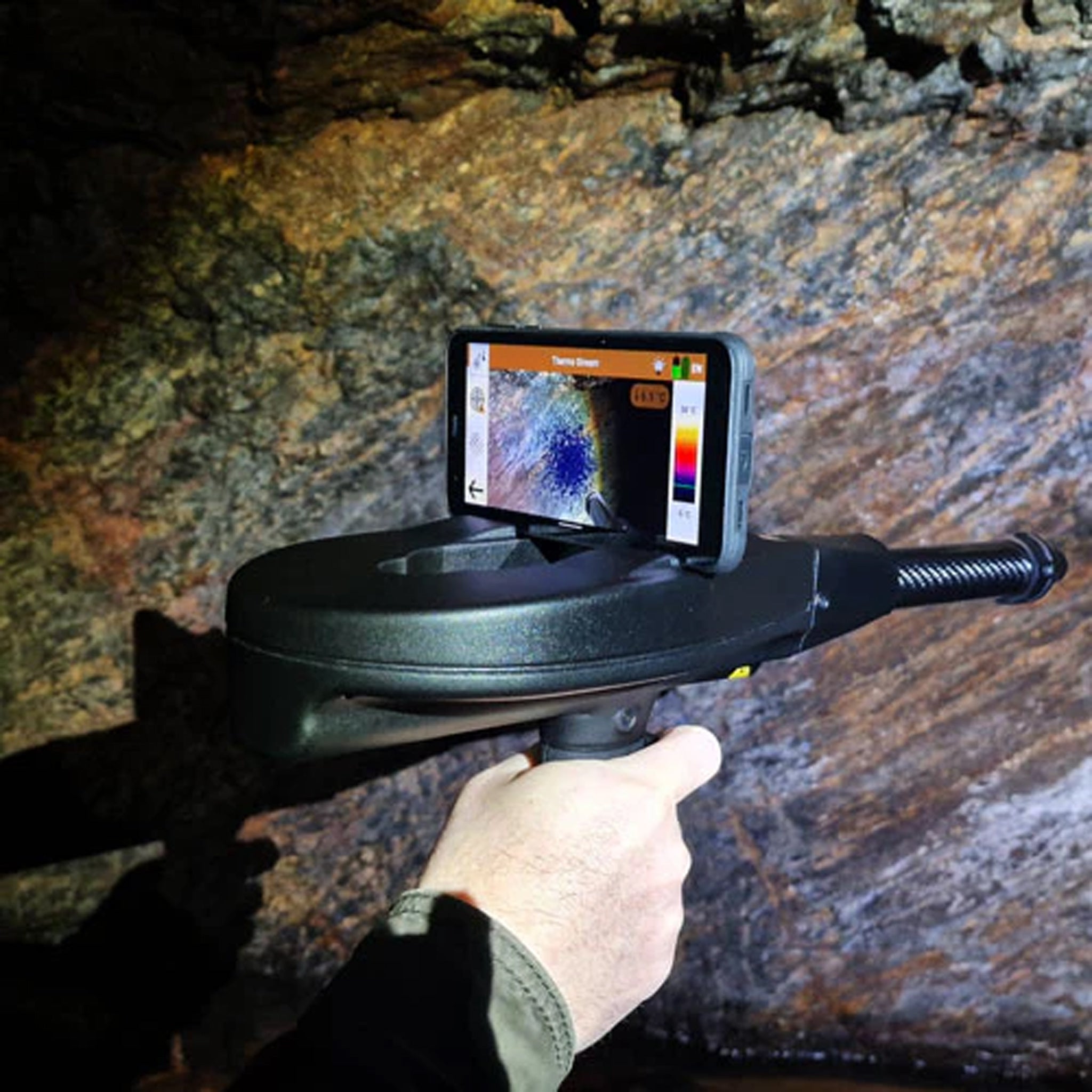

• Thermo Stream (Thermo Probe): a live view for a first look at an unknown location: you aim at a reference such as a wall and move the probe freely, and the temperature shows as a colored point cloud with a numeric value.

Two kinds of evidence on the Delta Ranger

We distinguish between modes that collect measurable ground data and modes that rely on long-range or directional indications. 3D Ground Scan and Thermo Scan record measurements over a field that you can review and repeat; Bionic Stream and Ionic Stream give a directional indication. Those are not equivalent forms of evidence.

OKM describes Bionic Stream and Ionic Stream as long-range modes for gold. We do not present them as independently proven to locate gold or treasure at specific distances; claims involving long-range gold identification need controlled, blinded testing before they can be treated as established performance. In the same way, OKM gives 3D Ground Scan a depth of down to 18 m (60 ft) on its product page, and we read that as a manufacturer-described capability, not independently demonstrated detection performance.

How we would follow up an indication

If a preliminary indication points to an area of interest, we would encourage a structured follow-up survey: clear surface iron with the Magnetometer, then lay out a 3D Ground Scan field over the area. A single directional indication is not proof of a buried object. OKM recommends its Default scan settings for entry-level users and slightly sloping terrain, zigzag lines for advanced users on flat terrain, and manual impulses for rough terrain, and notes that the fewer small metal items are in the soil, the deeper 3D Ground Scan can detect targets.

One mistake to avoid with the Delta Ranger

The biggest mistake is assuming that an indicated direction proves that a valuable metal deposit exists. Another is assuming that a graphical anomaly establishes the identity of a buried object.

Using the Delta Ranger in the field

OKM describes the Delta Ranger as passive: it emits no magnetic waves. Magnetic fields and metal around you affect the results, so OKM asks you to keep about 50 m (160 ft) from electric motors, speakers and phones, to remove keys and jewelry, and to clear visible metal from the scan field. Calibrate the compass after every restart, away from power lines and electric fences. The control unit pairs with the app over Bluetooth 5.2 with a range of about 8 m (25 ft) line of sight, and the Bluetooth headphones pair with the smartphone. Scans open on the phone, and you copy them by USB to the Windows notebook for Visualizer 3D Studio.

The laser pointer is Class 3R, so avoid direct eye exposure. Do not use the detector during thunderstorms, and if it finds ammunition, do not touch it: OKM says to report it to the police. The control unit is not waterproof; the protector case is waterproof and shock-resistant.

Battery and charging

The control unit runs about 24 hours on its non-removable Li-ion battery and charges over USB-C in up to 4 hours; the charge LED shows orange while charging and green when full. It will not charge below -10 °C (14 °F). For storage, OKM asks you to recharge the battery at least every 3 months.

OKM Delta Ranger specifications

OKM covers a new Delta Ranger with a 2-year warranty, and internal batteries, power packs, chargers and travel adapters for 6 months. Serious Detecting is a family-owned, authorized OKM dealer with a showroom in Ypsilanti, Michigan, and our staff help by phone or email.
