Detector specifications
Best for
Highlighted icons show the targets, ground and experience level this detector is built for.
- Coin & Relic — not suited to this detector
- Gold — not suited to this detector
- Beach & Water — not suited to this detector
- Kids — not suited to this detector
- Beginner / Intermediate — not suited to this detector
- Advanced / Expert — shop all
The OKM GeoSeeker is a geoelectrical water and cavity detector. It reads the apparent resistivity of the ground with a Schlumberger-based measurement procedure and electrodes placed in the soil, which OKM uses to locate underground water deposits, water-bearing gravel and groundwater levels, and cavities such as caves, tunnels and chambers. You set a depth range between 5 m (16 ft) and 250 m (820 ft) for active scans, an Android tablet runs the survey over Wi-Fi, and the results appear as a 3D graphic. It is not a metal detector.
| Configuration | |
|---|---|
| Measurement | Geoelectrical resistivity (Schlumberger procedure) |
| Hardware | Controller (receiving unit), Power Box (sending unit), four electrodes, cable drums |
| Scan modes | Active Scan (Accurate), Active Scan (Quick), Passive Scan |
| Control | Android tablet over Wi-Fi; Visualizer 3D Studio Professional Edition |

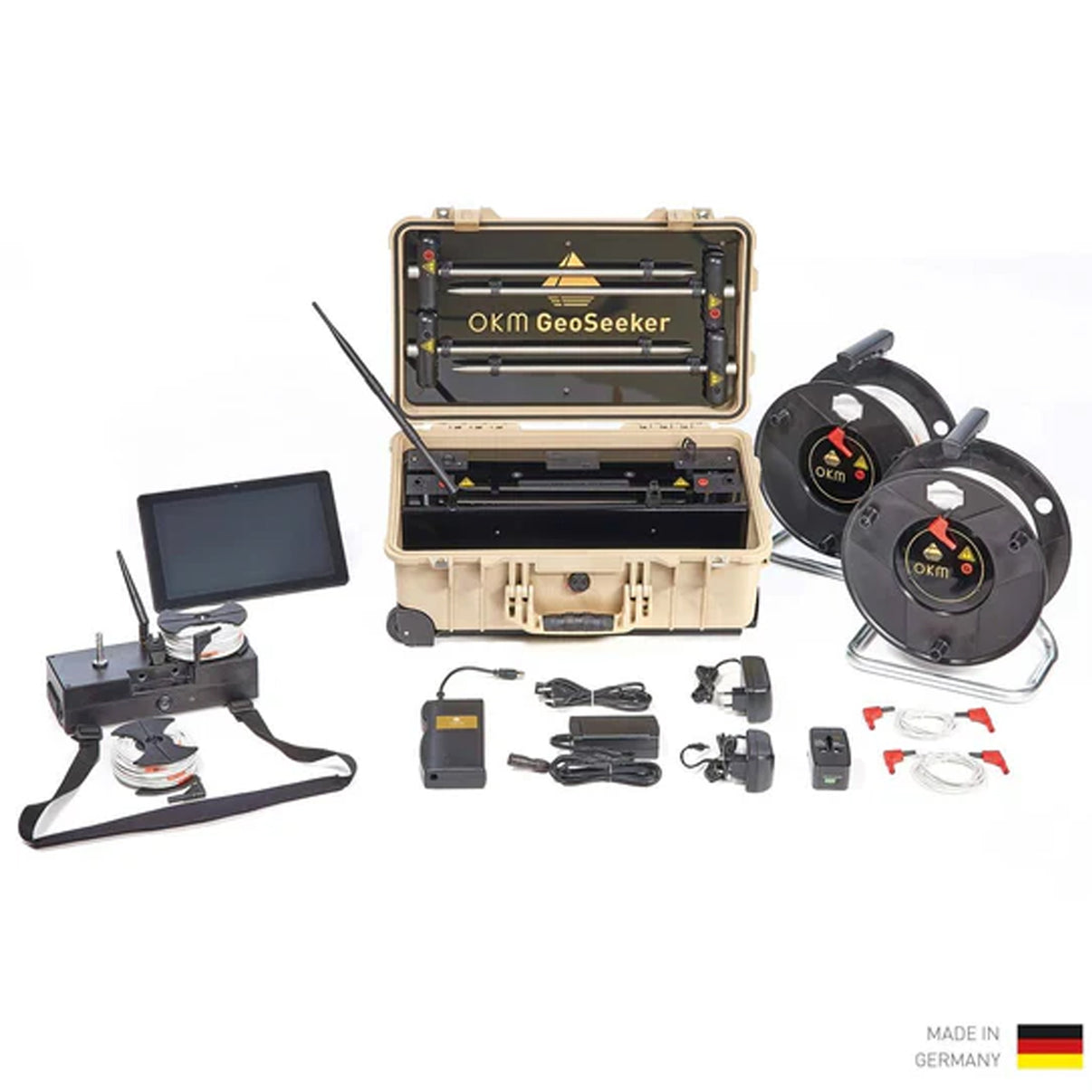

What is in the box with the OKM GeoSeeker
OKM's standard contents for the GeoSeeker
- Controller with charger
- Eight rechargeable 1.5 V AA batteries
- Android tablet
- Four electrodes
- Two power cable drums
- Two voltage cable drums
- Two connecting cables (2 m)
- USB flash drive with OKM Visualizer 3D Studio Professional Edition
- Power pack PP20V3A01
- Power Box with charger
- Waterproof and shock-resistant protector case
- Quick start guide
Three scan modes
Active Scan (Accurate): two electrodes inject current into the ground and two more measure the potential difference (the fall of voltage) at each scan point to calculate the resistivity. OKM uses it for underground water deposits, caves, and impervious layers or barriers in the soil, and you set a start and end depth between 5 m (16 ft) and 250 m (820 ft).
Active Scan (Quick): a faster version of the accurate scan, also injecting current and measuring the potential difference.
Passive Scan: only two electrodes read the natural voltage of the ground, with no current injected. OKM uses it for underground flowing water only.

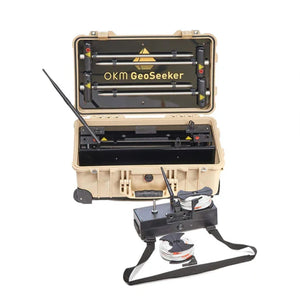

After a measurement, the tablet shows the values in 3D. Color settings help pick out water deposits, water-bearing gravel and groundwater (shown in blue) and cavities, caves, tunnels, chambers or impervious layers (shown in reddish colors). The hardware travels in a waterproof, shock-resistant protector case.
Who the OKM GeoSeeker suits
The GeoSeeker serves a different purpose from most detectors. It investigates underground water and cavities by measuring electrical resistivity, which makes it relevant to customers researching groundwater or subsurface voids. It is not a gold detector.
What resistivity tells you
Different underground materials conduct electricity differently, and the GeoSeeker measures apparent resistivity. A low resistivity reading may be associated with moisture or conductive materials. A high reading may point to dry rock, certain formations or a possible void. Different conditions can produce similar readings, so the measurements need geological interpretation. The GeoSeeker does not see water directly.
Electrode setup matters
The GeoSeeker uses a geoelectrical measuring procedure with electrodes placed in the ground. Correct electrode placement and good ground contact are essential, and we would want a customer to understand the survey procedure before buying.
About the depth figure
OKM specifies measurements down to 250 m (820 ft). We read that as the investigation range of the instrument, not a promise that a particular water deposit or cavity can be identified at that depth.
One mistake to avoid with the GeoSeeker
Assuming resistivity measurements guarantee a successful well. They help you decide where to look and drill; they do not guarantee water.
Our recommendation on the OKM GeoSeeker
We recommend the GeoSeeker to customers investigating groundwater or subsurface cavities. Its strongest point is geoelectrical resistivity measurement rather than conventional metal detection.
Permission and protected sites
We would get the landowner's permission before any survey and check the laws that protect historic sites, archaeological sites and burials where you plan to scan. A resistivity survey can show where something is different underground; it does not tell you whether you may dig there.
OKM GeoSeeker specifications
| Specification | OKM GeoSeeker |
|---|---|
| Method | Geoelectrical resistivity, Schlumberger procedure |
| Active scan depth range | 5 to 250 m (16 to 820 ft) |
| Controller | 130 x 270 x 110 mm (5.1 x 10.6 x 4.3 in), 0.6 kg (1.3 lb); 2.1 kg (4.6 lb) with cable reels and batteries |
| Controller power | Eight AA batteries, 8 to 14 V DC; charger input 12 V DC, 1.5 A |
| Controller runtime | At least 16 hours; charging 3 h, max. 5 h from empty |
| Measurement | 4096 Hz sample rate (64 times oversampling of a 512 sample mean), 16 bit ADC, 80 MHz Cortex M3; effective range minus 1400 to plus 1400 mV; at least 16 seconds per scan point; input resistance approx. 12 MΩ |
| Communication | Wi-Fi access point to the tablet (2.4 GHz, WPA2); 2.4 GHz link to the Power Box |
| Power Box | 230 x 550 x 360 mm (9.1 x 21.7 x 14.2 in), 15.8 kg (34.8 lb); 18 kg (39.7 lb) with electrodes |
| Power Box output | Max. 390 V, 0.5 A, 20 W; 2 x 12 V 10 Ah lead acid battery; charger input 24 V DC, 2 A |
| Power Box runtime | 100 h at minimum power, 40 h average, 8 h at maximum; charging max. 8 h |
| Voltage cable drums | 255 m (837 ft) cable, 15 markers, 6.5 kg (14.3 lb) |
| Power cable drums | 26 m (85 ft) cable, 25 markers, 0.65 kg (1.4 lb) |
| Electrodes | 440 x 120 x 35 mm (17 x 4.7 x 1.4 in), 0.52 kg (1.1 lb) each |
| Warranty | 2 years |
OKM covers the GeoSeeker with a 2-year warranty. Serious Detecting is an authorized OKM dealer, and we can help you set up the tablet and survey software before your first survey.
Both GeoSeeker models we carry are in our OKM GeoSeeker collection, and the rest of the range is in our OKM collection.
