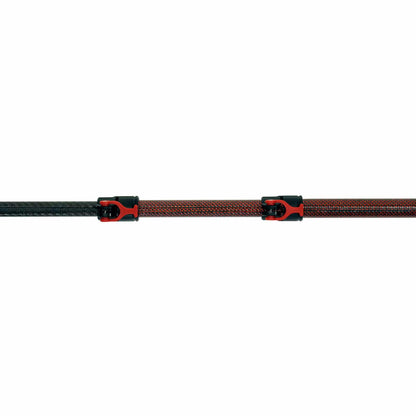

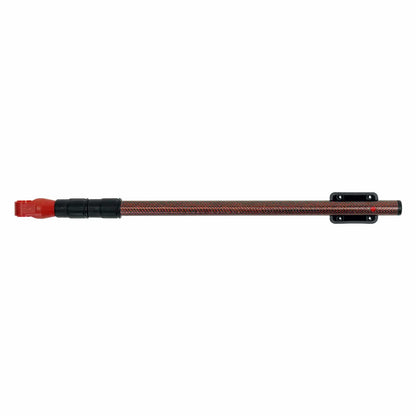

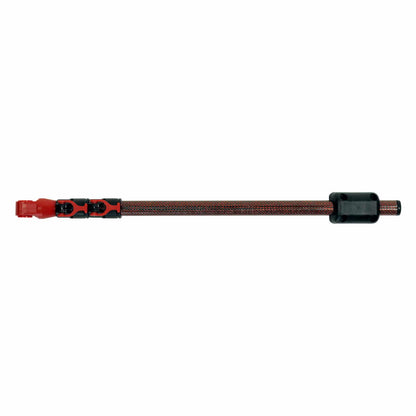

Tele-Knox Detecting Innovations Telescopic Red/Black Carbon Shaft for Minelab Equinox Detector - Short (18")

Tele-Knox Detecting Innovations Telescopic Red/Black Carbon Shaft for Minelab Equinox Detector - Short (18")

The lower stem of the 3 part stem will always be black, the top two stems initially will be Red/Black check pattern or alternatively the Matt Black check pattern.  We have been advised the coloured stem parts cannot be used for the bottom stem because there is metal foil in the colour make up which will affect signals on the detector.

The Tele-Knox Telescopic Equinox aftermarket stems have been designed by long time friend and Minelab owner Scott Ellis.  He has put a lot of thought and experience into the design.

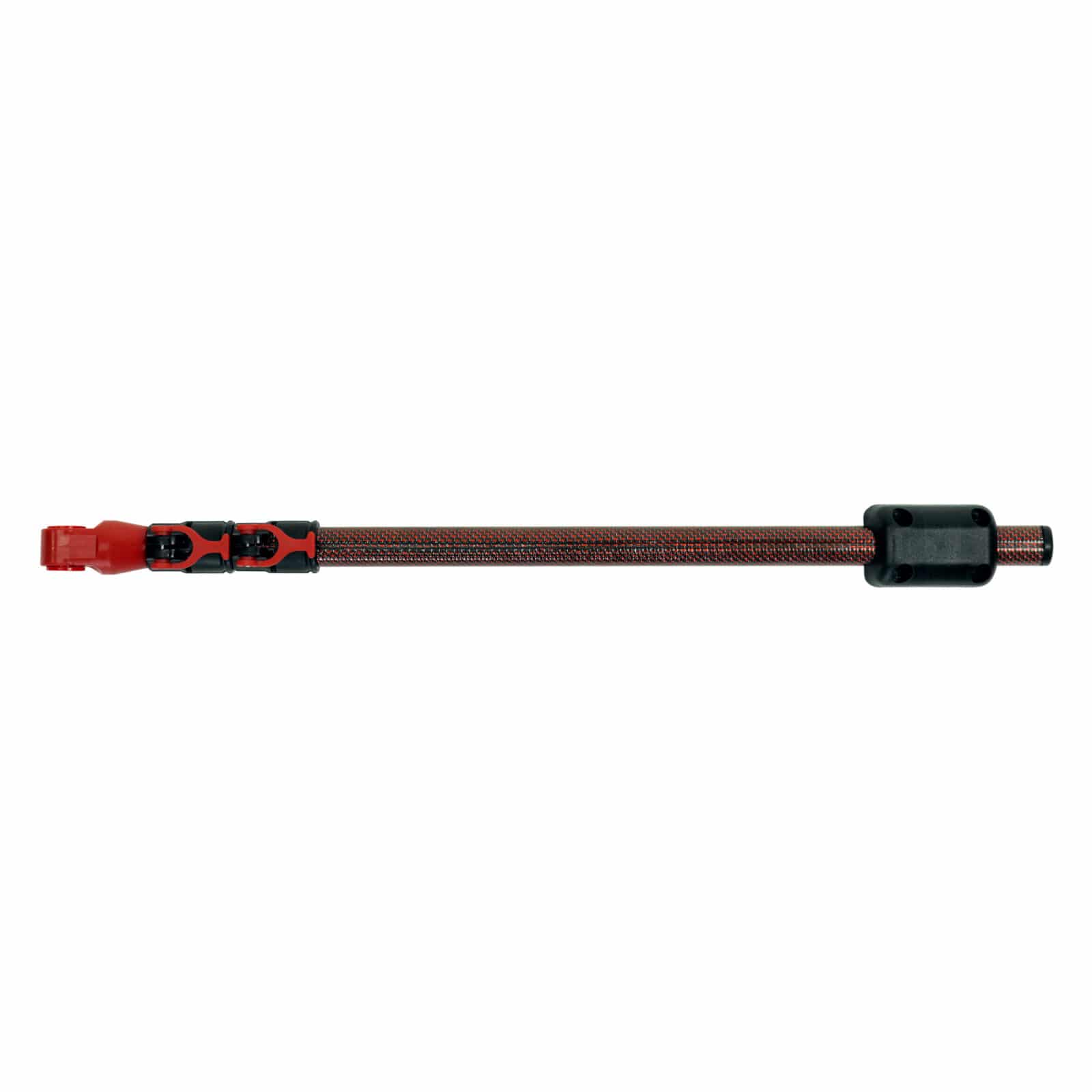

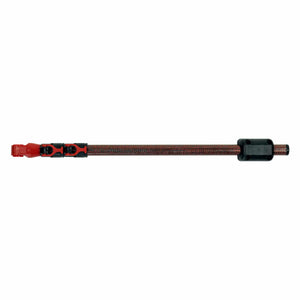

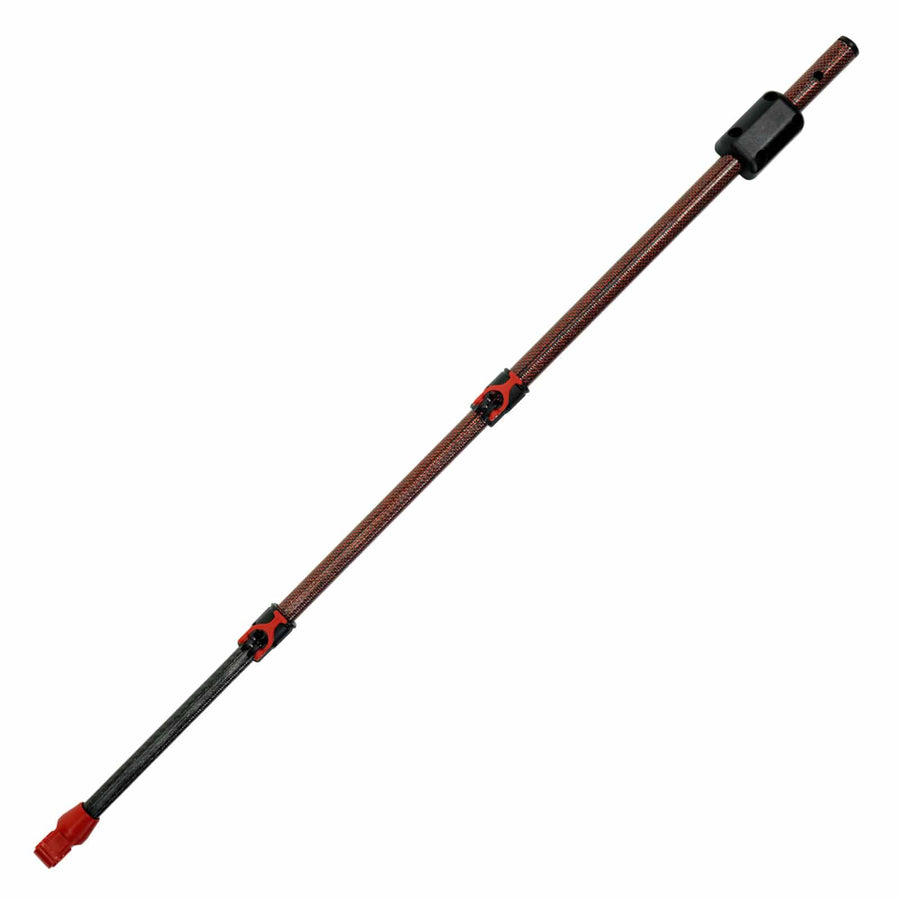

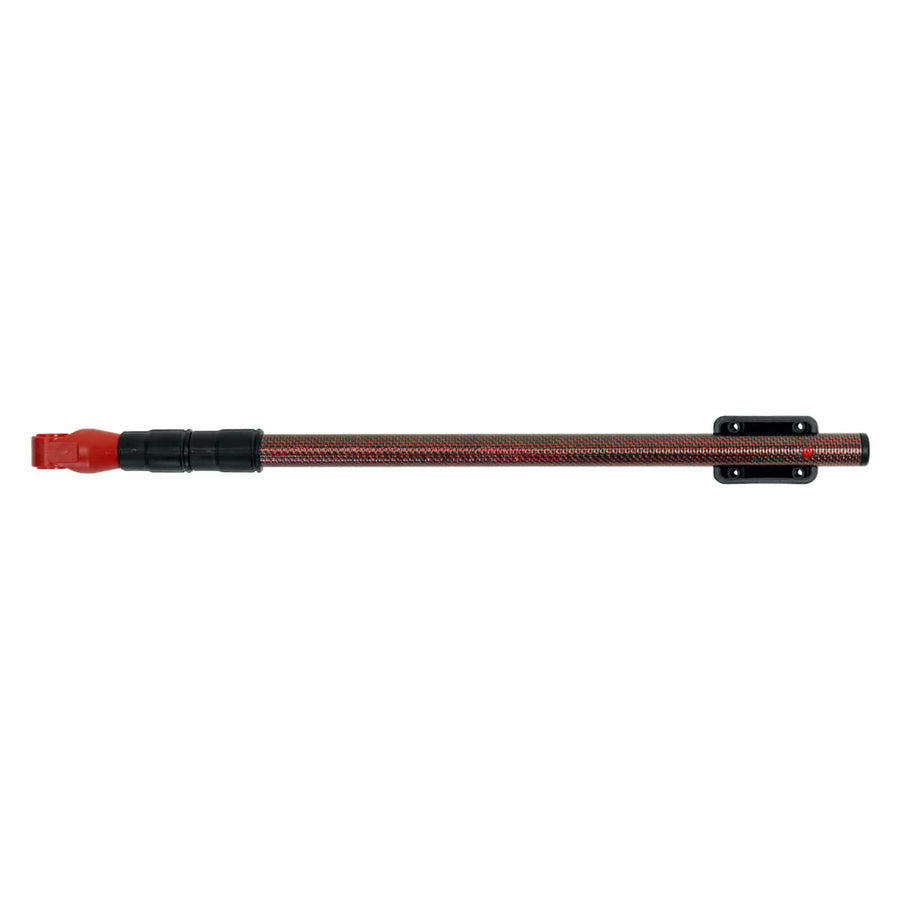

This shorter version of the Telescopic stem are 3 piece, will telescope in to 18" (46cm) and have an extended out length of 42" (107cm) and available in two colours.  These are suitable for juniors and smaller people.  Please check before ordering that 42" is long enough.  We also offer the standard longer shaft in two colours on a different listing they close to 21" (53cm) and fully open to 52" (132cm).

ONLY ORDER THIS SHORT VERSION IF THE USER IS LESS THAN 5FT  (152CM) TALL.  IF YOU ARE NOT SURE PLEASE ORDER THE STANDARD VERSION ON ANOTHER LISTING.
THE STANDARD 21" VERSION OPENS OUT A FULL 10"(25CM)  MORE THAN THIS ONE.

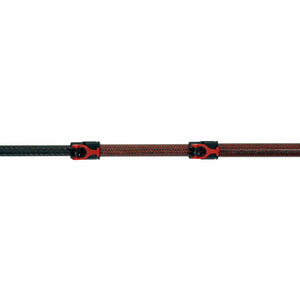

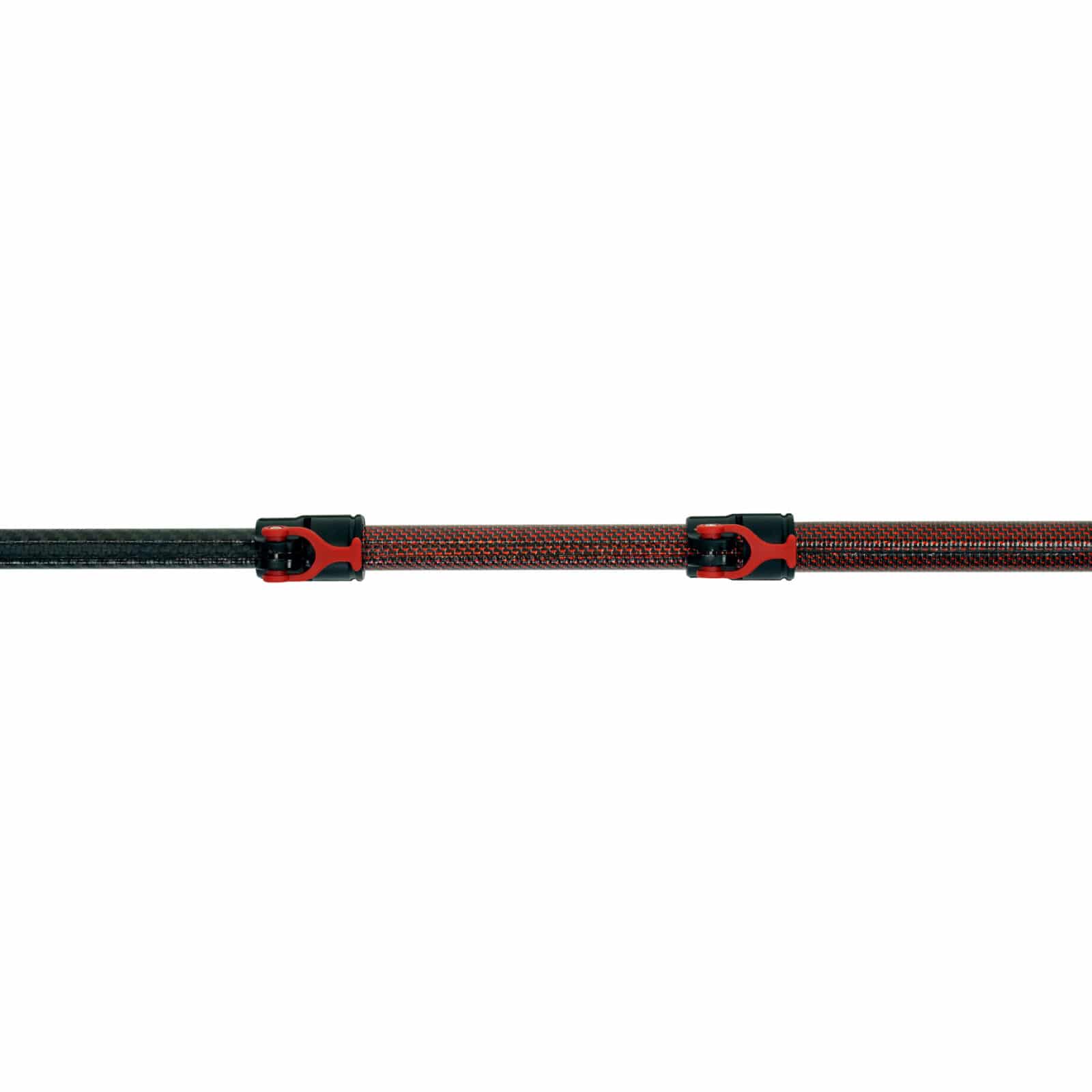

There is an anti rotation feature built into the length of the stem externally which increases their strength and also stops sideways movement so no twisting or wobble.

The stems are now fitted with our own designed lever locks with stainless steel Allen bolts and locking nuts which can be tightened with the supplied key as and when necessary.

Coil end fixings have been moulded to allow the use of CTX style round rubber washers (included in kit x 4).  This thicker washer should help to reduce over tightening problems of the coil bolt.

The coil stem end fixing and also the small clamp under the Equinox control box have been re-designed and moulded rather than be made from a 3D printing which we consider not so strong.

The stem & armrest only weigh 0.299kg on their own.

Compatibility

• Minelab Equinox 600
• Minelab Equinox 800
